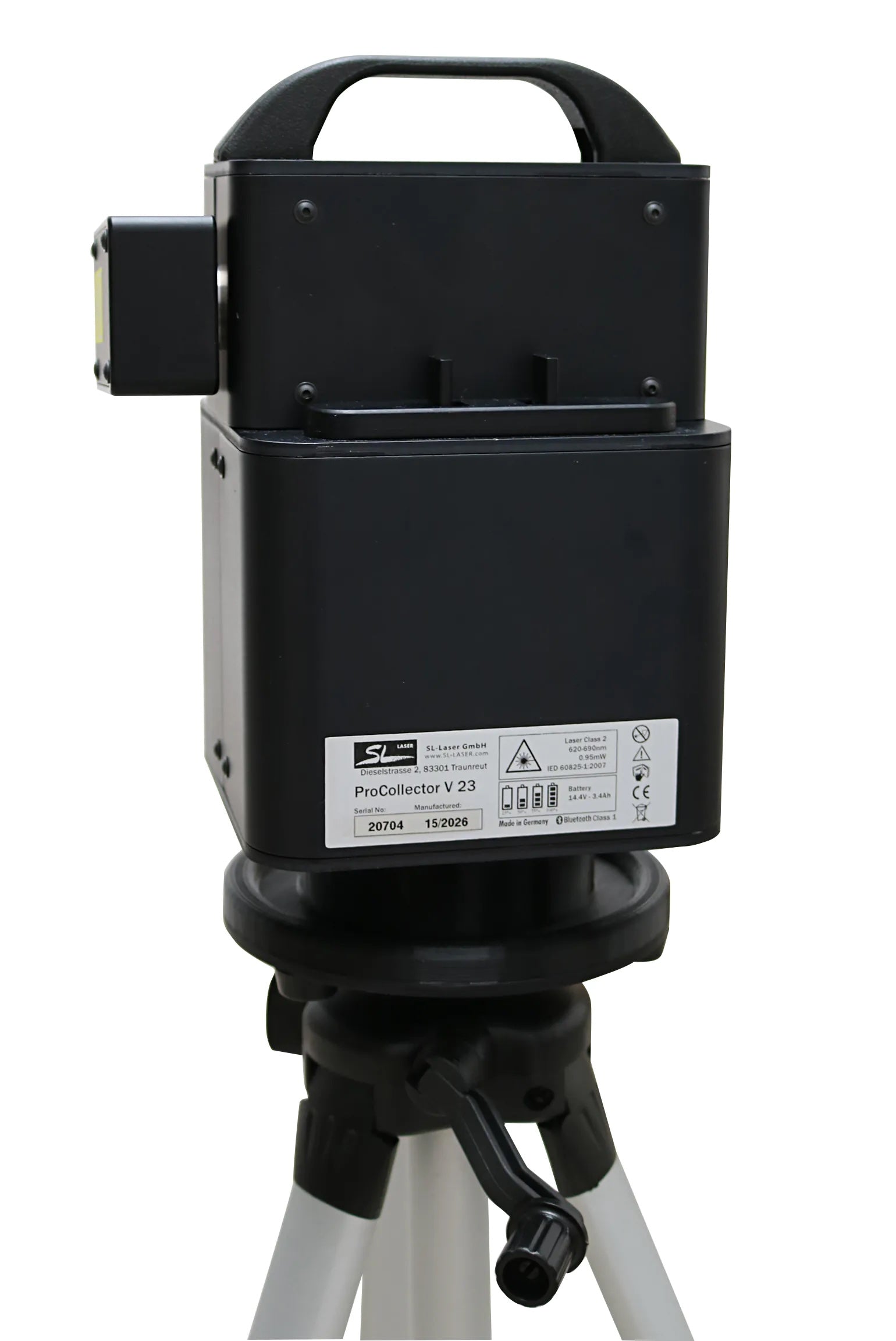

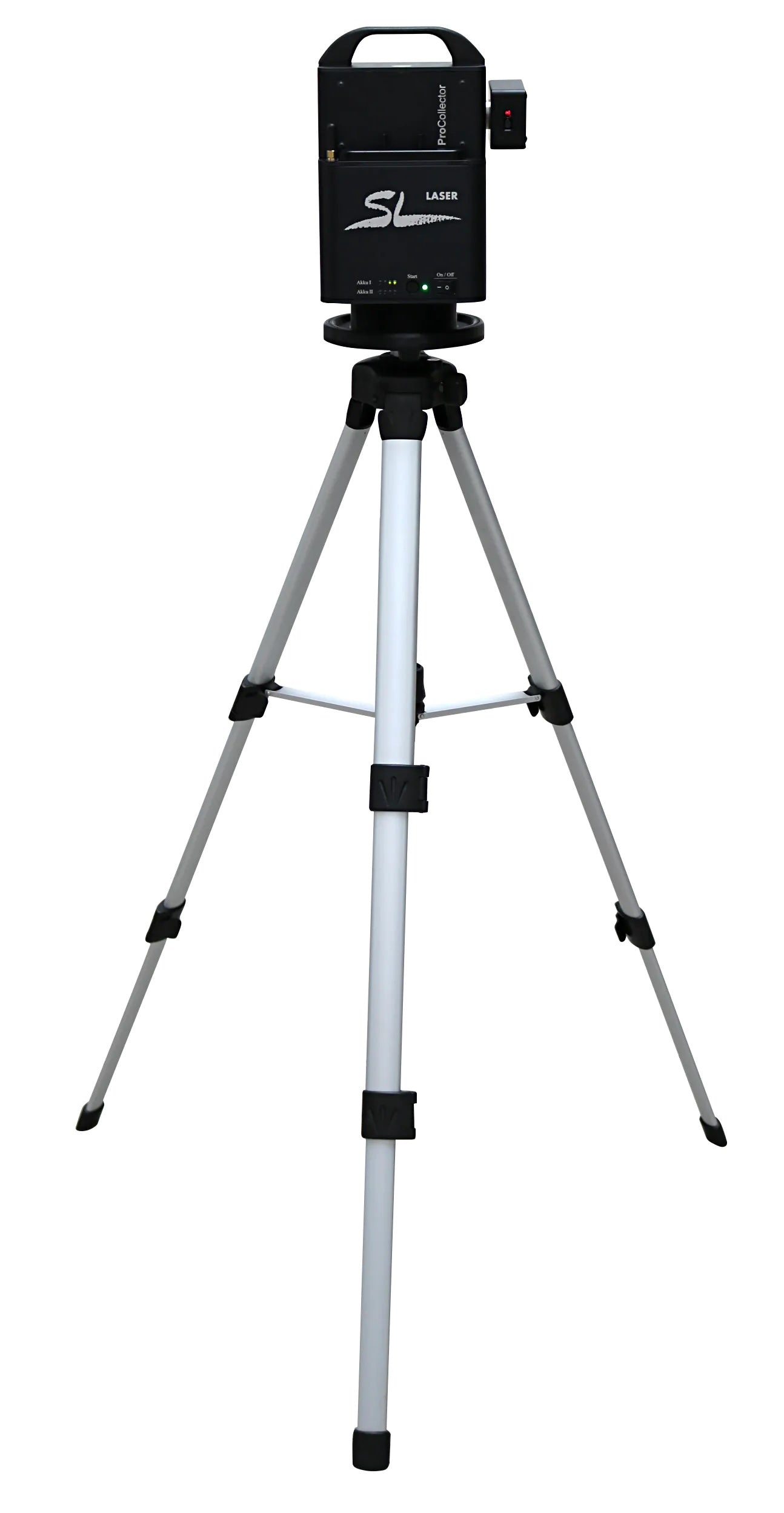

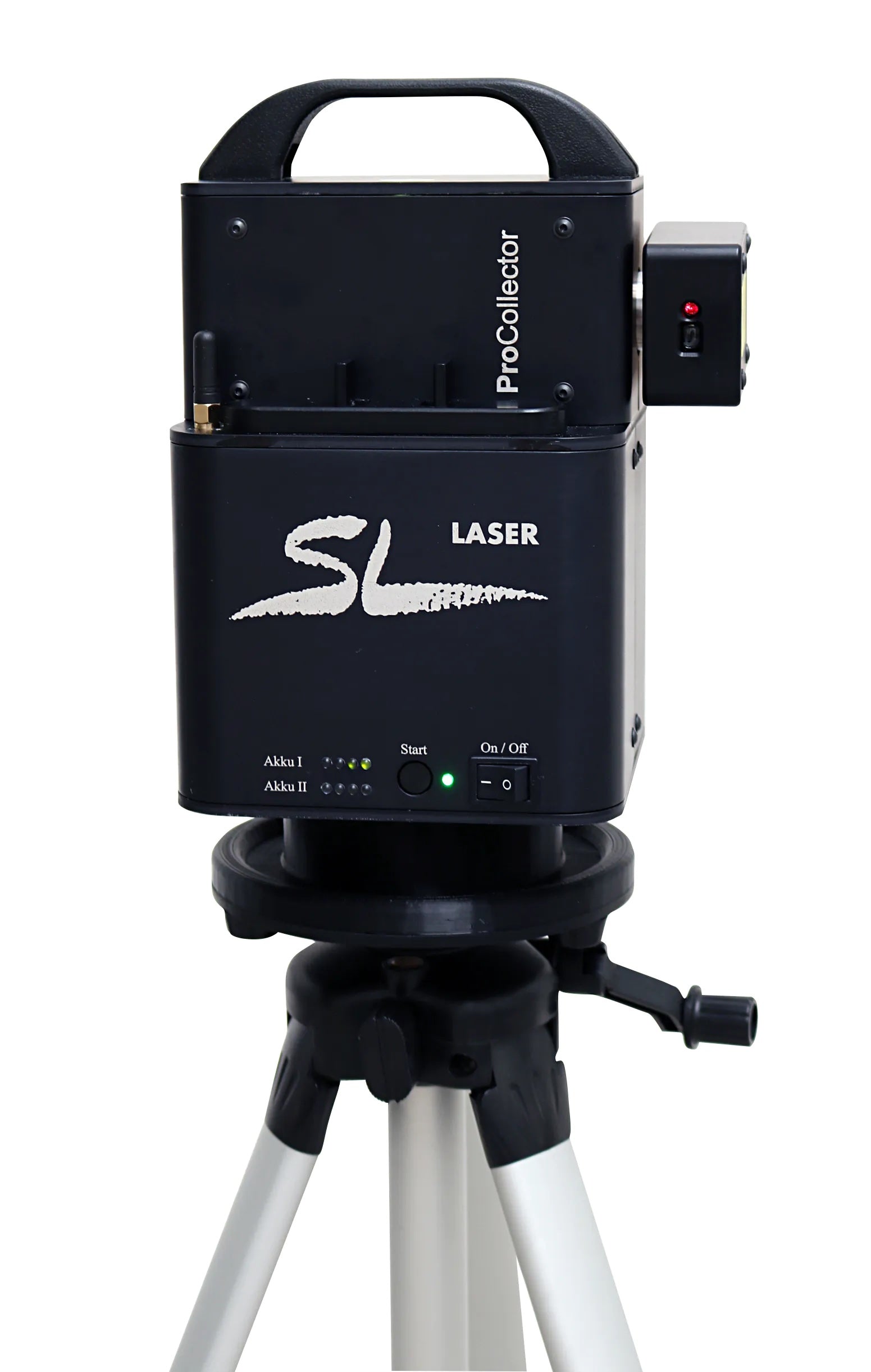

SL-Laser ProCollector 2D and 3D Laser Digital Template Measuring System
Product Overview
2D and 3D Measurement System
The SL-Laser ProCollector is an advanced 2D and 3D laser measurement and projection system that eliminates manual templating by generating CAD-ready DXF files in real-time. It offers absolute precision for industries like woodworking, stone fabrication, and aerospace by combining 1:1 scale data acquisition with laser projection capabilities.

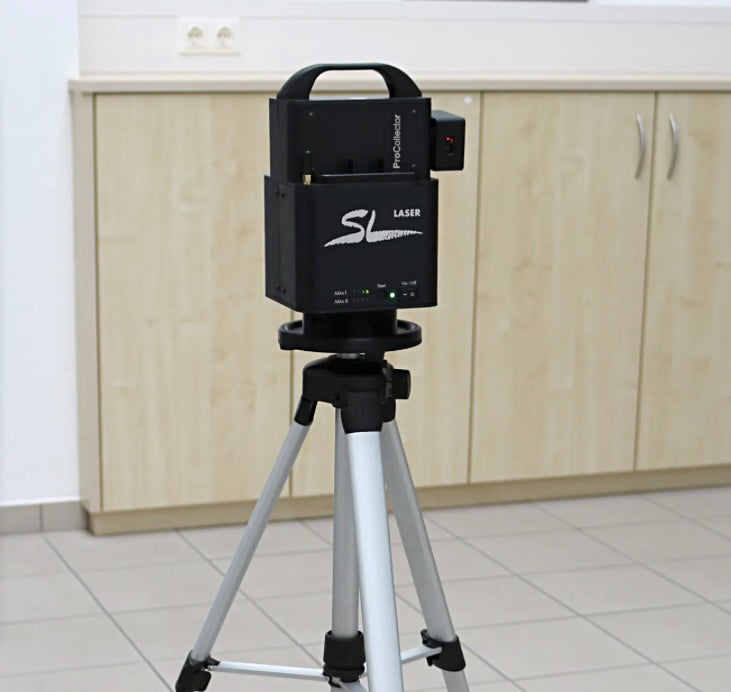

The system allows for quick and accurate capture of complex room dimensions and inaccessible points. It speeds up the site survey process, reduces costly fabrication errors, eliminates expensive rework, and improves safety.

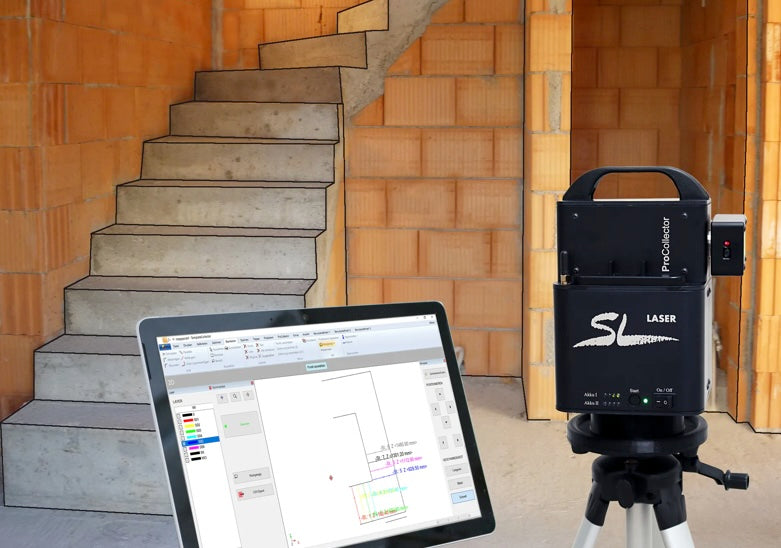

Use the included TemplateCollector software for easy collection of points, and built in Stair Measuring program that let you configure the staircase before starting to measure the stairs. Just specify the number of the steps and height, and start.
Two batteries are included, and allow for hot-swapping if you're working all day and one of them starts to run low.
The primary benefits include:
- Direct-to-CAD Workflows: Tools accurately record angles, curves, sloped surfaces, and points, and export this data directly into CAD software (like DXF or DWG formats). This digital workflow eliminates manual data-entry errors.
- No Field Rework: By capturing the true "as-built" state of a structure, contractors can pre-manufacture custom elements (joinery, stairs, benchtops) off-site knowing they will fit precisely on installation day, saving significant assembly time.
- Measuring Inaccessible Points: Advanced offset technology lets a single operator measure distances between any two points from one safe location, meaning no time is wasted setting up scaffolding or ladders.

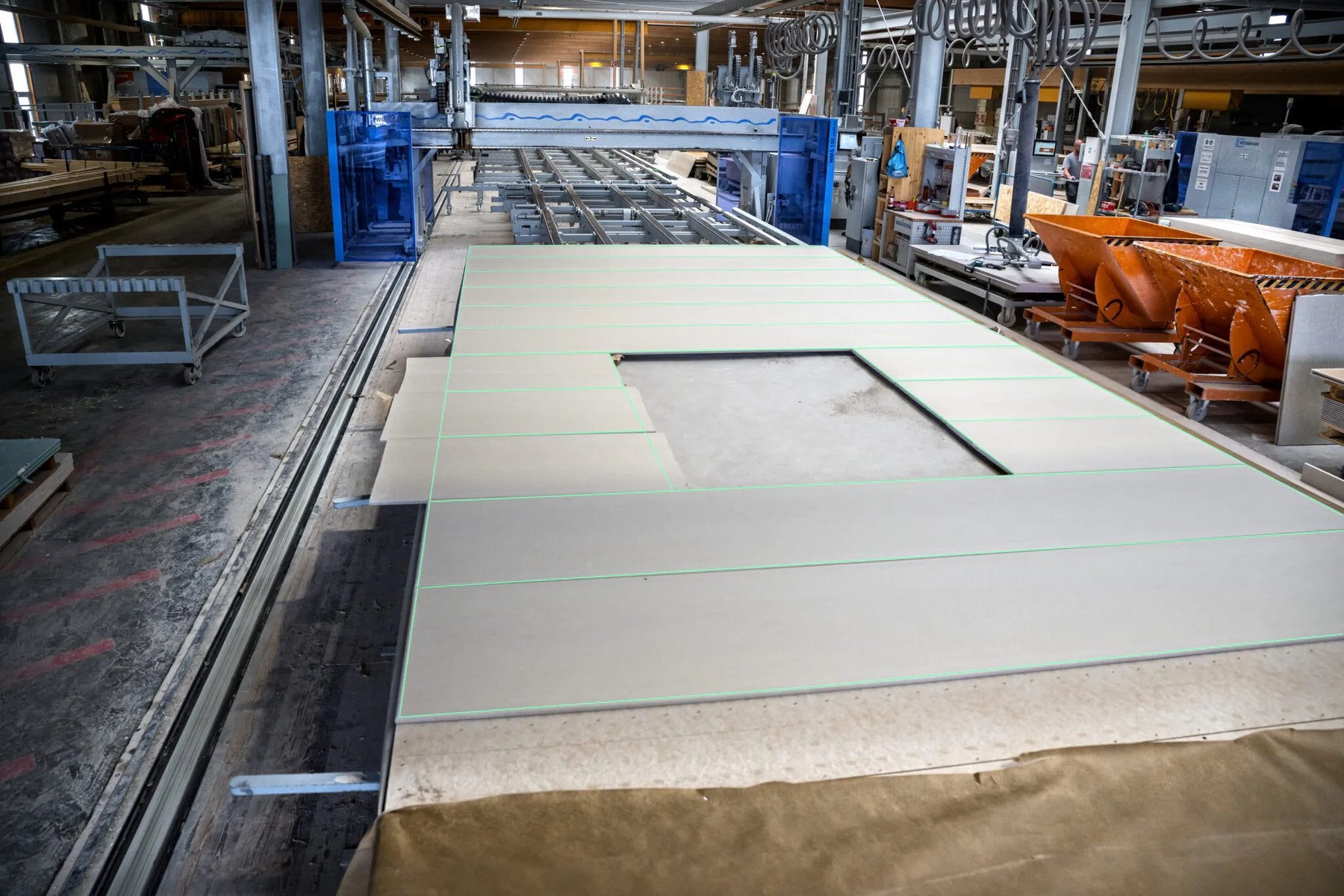

- BIM Integration: You can import 3D models into the device to project 3D design points directly back onto real-world surfaces (e.g., showing where pipes are located behind a finished wall).

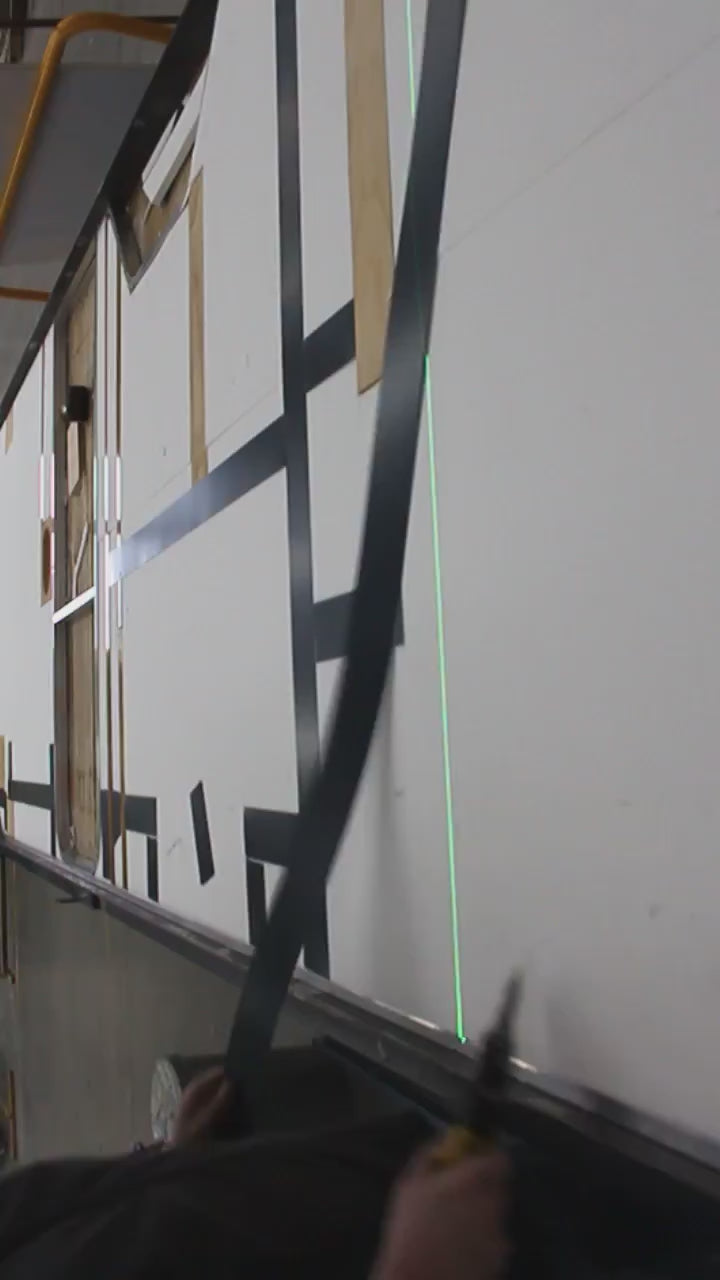

The Procollector from SL-Laser is actually two tools in one. Not only are measurements taken in 2D or 3D, it can also point to coordinates for assisted construction tasks.
Absolutely simple. Continuous product enhancement makes the ProCollector a robust and flexible laser measurements system.
The ProCollector's powerful collection of capabilities set it apart from its competitors. No manufacturer can afford the time consuming and inaccurate measurements associated with traditional point collection methods. The ProCollector provides the user a fast data acquisition without mistakes. With the use of the ProCollector inaccurate measures and transposed digits while writing the data are a thing of the past. The process is easy and intuitive. Simply use the laser to shoot a few points to establish an origin of your drawing, then start collecting data.
For 2D DXF drawings, only two points along a surface are needed for a straight line - the software will automatically calculate the corners. Irregular contoured surfaces like a wavey drywall backsplash or a flowing reception desk can be automatically scanned and saved as a curve - give ProCollector start and end points and watch it do the work.
In 3D mode, measuring complex geometry is still just point and click. Spaces like boat hull interiors that are difficult to measure by hand are easily measured with the ProCollector. The onscreen handheld display lets you see the results instantly as you build the drawing and allows you to pan, zoom and rotate 360 degrees to make sure you have the data you need before leaving the job site. Save it directly to DXF or IGES file format and email it back to the shop from your smartphone - no bulky templates to scribe and transport!
Applications
- Composite Woodworking
- Concrete/Brick-Laying
- Stone and Marble

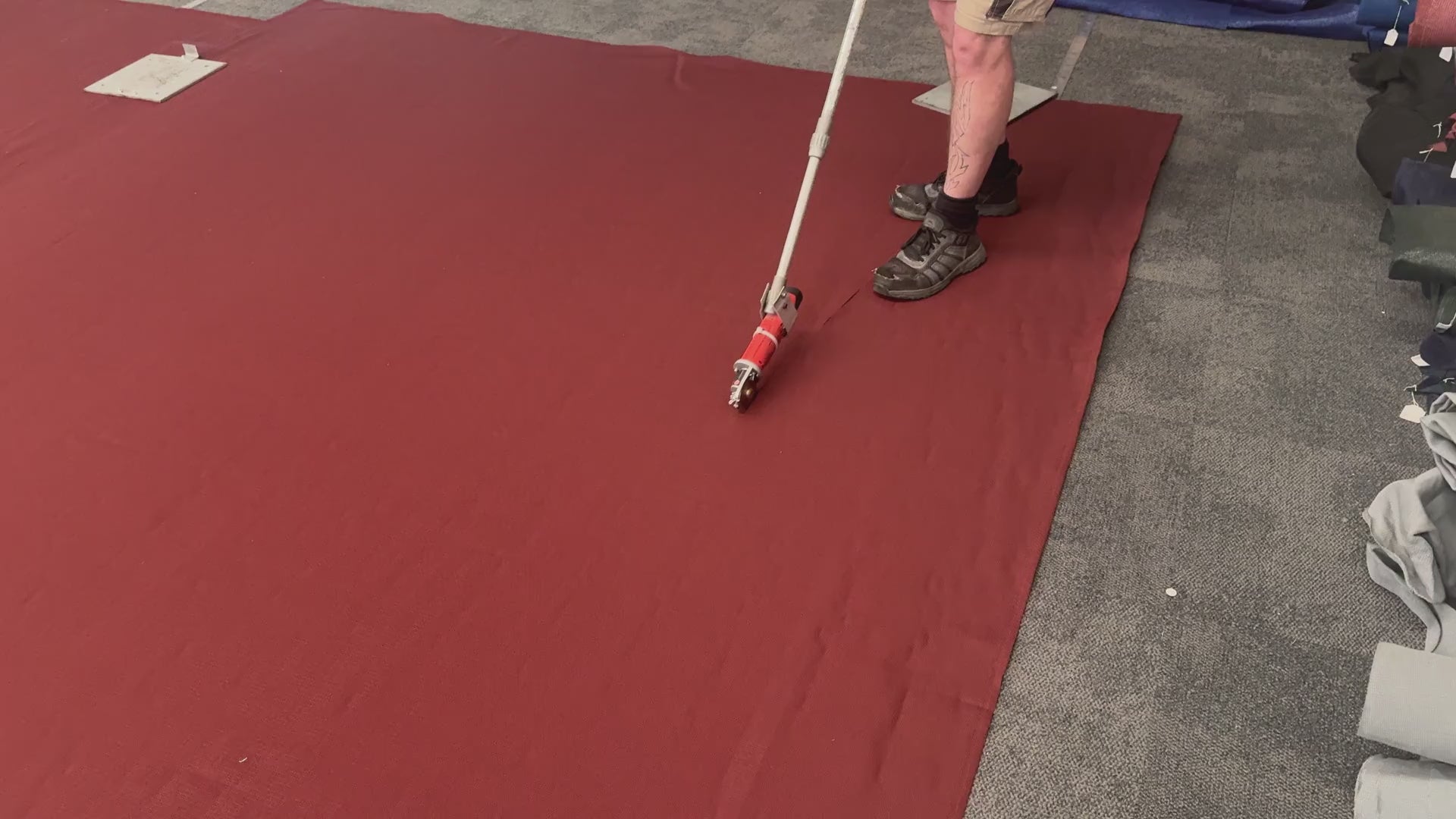

- Textile industry
ProCollector

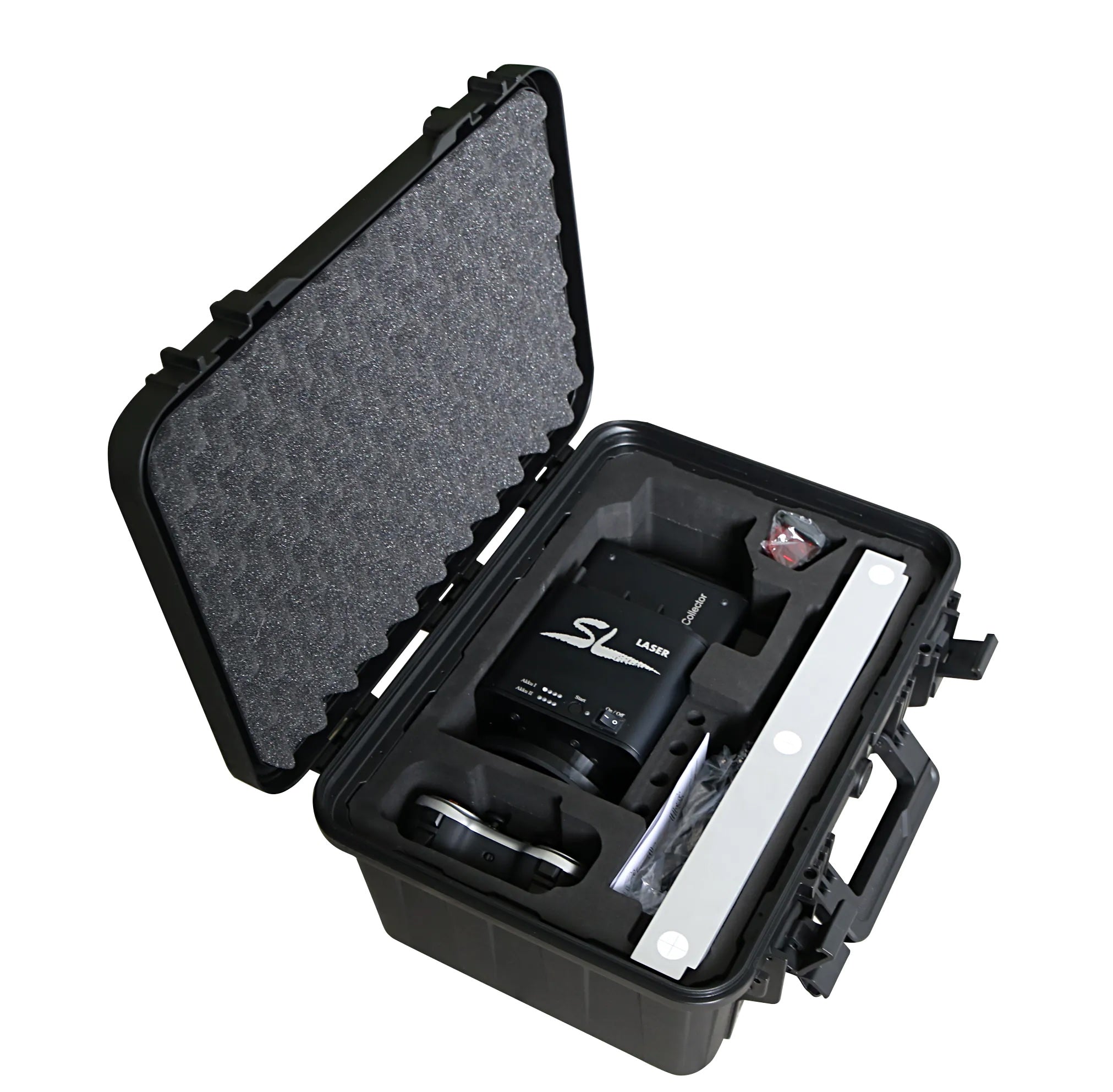

- Carry case
- 2 x rechargeable batteries and charger
- Remote controller
- Offset tool for hidden corners
Specifications
| System resolution | > 0,0002°, distance: 1 mm | |
| Field of view | horizontal: 360°, vertical: 200° | |
| Laser output | < 1 mW, Laserdiode: 635nm, red | |
| Laser class | International: Class 2 IEC/EN 60825-1:2015-07, CE-certification | |
| Power supply | 80-240 VAC 50/60 Hz | |
| Dimensions | length 9.45" (240mm), width 9.45" (240 mm), height 12.20" (310 mm), weight 5.5 kg | |
| Accessories | Joystick or tablet PC, TemplateCollector software, case, power supply, laser glasses |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
SL-Laser ProCollector 2D and 3D Laser Digital Template Measuring System
Product Overview
2D and 3D Measurement System
The SL-Laser ProCollector is an advanced 2D and 3D laser measurement and projection system that eliminates manual templating by generating CAD-ready DXF files in real-time. It offers absolute precision for industries like woodworking, stone fabrication, and aerospace by combining 1:1 scale data acquisition with laser projection capabilities.
The system allows for quick and accurate capture of complex room dimensions and inaccessible points. It speeds up the site survey process, reduces costly fabrication errors, eliminates expensive rework, and improves safety.
Use the included TemplateCollector software for easy collection of points, and built in Stair Measuring program that let you configure the staircase before starting to measure the stairs. Just specify the number of the steps and height, and start.
Two batteries are included, and allow for hot-swapping if you're working all day and one of them starts to run low.
The primary benefits include:
- Direct-to-CAD Workflows: Tools accurately record angles, curves, sloped surfaces, and points, and export this data directly into CAD software (like DXF or DWG formats). This digital workflow eliminates manual data-entry errors.
- No Field Rework: By capturing the true "as-built" state of a structure, contractors can pre-manufacture custom elements (joinery, stairs, benchtops) off-site knowing they will fit precisely on installation day, saving significant assembly time.
- Measuring Inaccessible Points: Advanced offset technology lets a single operator measure distances between any two points from one safe location, meaning no time is wasted setting up scaffolding or ladders.
- BIM Integration: You can import 3D models into the device to project 3D design points directly back onto real-world surfaces (e.g., showing where pipes are located behind a finished wall).
The Procollector from SL-Laser is actually two tools in one. Not only are measurements taken in 2D or 3D, it can also point to coordinates for assisted construction tasks.
Absolutely simple. Continuous product enhancement makes the ProCollector a robust and flexible laser measurements system.
The ProCollector's powerful collection of capabilities set it apart from its competitors. No manufacturer can afford the time consuming and inaccurate measurements associated with traditional point collection methods. The ProCollector provides the user a fast data acquisition without mistakes. With the use of the ProCollector inaccurate measures and transposed digits while writing the data are a thing of the past. The process is easy and intuitive. Simply use the laser to shoot a few points to establish an origin of your drawing, then start collecting data.
For 2D DXF drawings, only two points along a surface are needed for a straight line - the software will automatically calculate the corners. Irregular contoured surfaces like a wavey drywall backsplash or a flowing reception desk can be automatically scanned and saved as a curve - give ProCollector start and end points and watch it do the work.
In 3D mode, measuring complex geometry is still just point and click. Spaces like boat hull interiors that are difficult to measure by hand are easily measured with the ProCollector. The onscreen handheld display lets you see the results instantly as you build the drawing and allows you to pan, zoom and rotate 360 degrees to make sure you have the data you need before leaving the job site. Save it directly to DXF or IGES file format and email it back to the shop from your smartphone - no bulky templates to scribe and transport!
Applications
- Composite Woodworking
- Concrete/Brick-Laying
- Stone and Marble
- Textile industry
ProCollector
- Carry case
- 2 x rechargeable batteries and charger
- Remote controller
- Offset tool for hidden corners
Specifications
| System resolution | > 0,0002°, distance: 1 mm | |
| Field of view | horizontal: 360°, vertical: 200° | |
| Laser output | < 1 mW, Laserdiode: 635nm, red | |
| Laser class | International: Class 2 IEC/EN 60825-1:2015-07, CE-certification | |
| Power supply | 80-240 VAC 50/60 Hz | |
| Dimensions | length 9.45" (240mm), width 9.45" (240 mm), height 12.20" (310 mm), weight 5.5 kg | |
| Accessories | Joystick or tablet PC, TemplateCollector software, case, power supply, laser glasses |
