SL Positioning Laser, Laser Line, Laser Guide, Laser Alignment, Position Laser

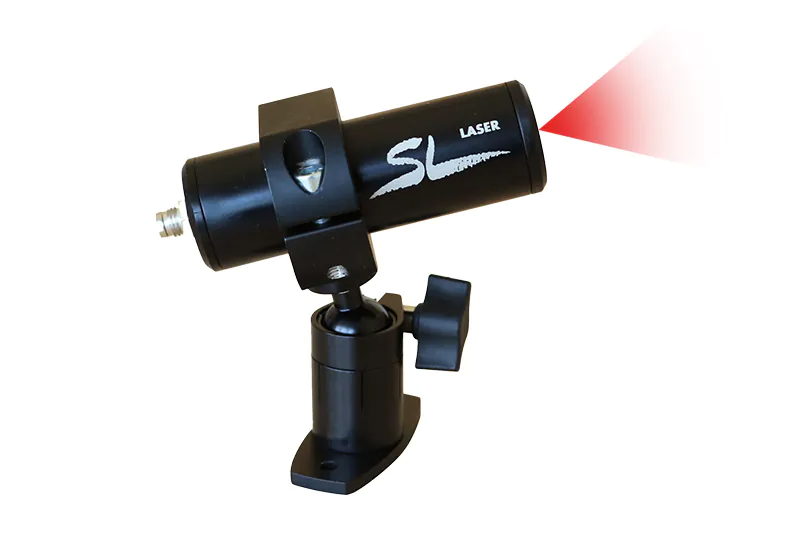

Positioning Laser

* The positioning laser suitable for industrial enviroments. *

The „Positioning laser“ combines sturdy durability and reliable accuracy in a versatile alignment laser. SL Positioning laser modules consist of a laser diode, optics and driver electronics constructed in a rugged isolated housing. A wide range of applications include the positioning of tools, fixtures and materials and the alignment of instruments and machines.

Features:

Compact design, electrically isolated housing, constant output power, wide temperature range for operation and storage

Applications:
Alignment and measurement, wood processing, machinery manufacturing, OEM integration

Product data green

Colour/Wavenlegth      Diode power   Max. Output  Focusable      Optics      Laser Class
green/520 nm 10 mW < 1 mW  yes    Line 2M
green/520 nm 10 mW < 1 mW  yes    Cross 2M
green/520 nm 50 mW < 5 mW  yes    Line 3R
Line generator for line  length 10°, 15°, 30°, 45°, 60°, 90°



Product data red

Colour/Wavenlength   Diode power   Max. Output  Focusable     Optics     Laser Class
red 10 mW < 1 mW  yes    Line 2M
red 10 mW < 1 mW  yes    Cross 2M

Line generator for line  length  10°, 15°, 30°, 45°, 60°, 90°



Specifications:

Mechanical    housing anodised aluminium, dimensions (mm) Ø 30 x 88.5mm, weight 300g incl. cable leads
Optics line or cross, homogeneous line
Optical properties green laser diode output: 10 mW / 50 mW, wavenlength 520nm (green), lifetime: > 20.000 h
Optical properties red laser diode output:: 10 mW,  wavenlength 635nm (red), lifetime: > 20.000 h
Laser Class Class 2M, 10 mW (Class 3R, 50 mW) EN 60825-1:2015-07, IEC60825-1, EN76-2, 21CFR 1040, CE
Inspection and safety temperature range 0°C... +50°C, IP 65, max. shock 4 g
Electrical Values Voltage 16-33 VDC (+)bn (-)bl (PE)gb/gn, Input 1 W, Cable length 5 m
