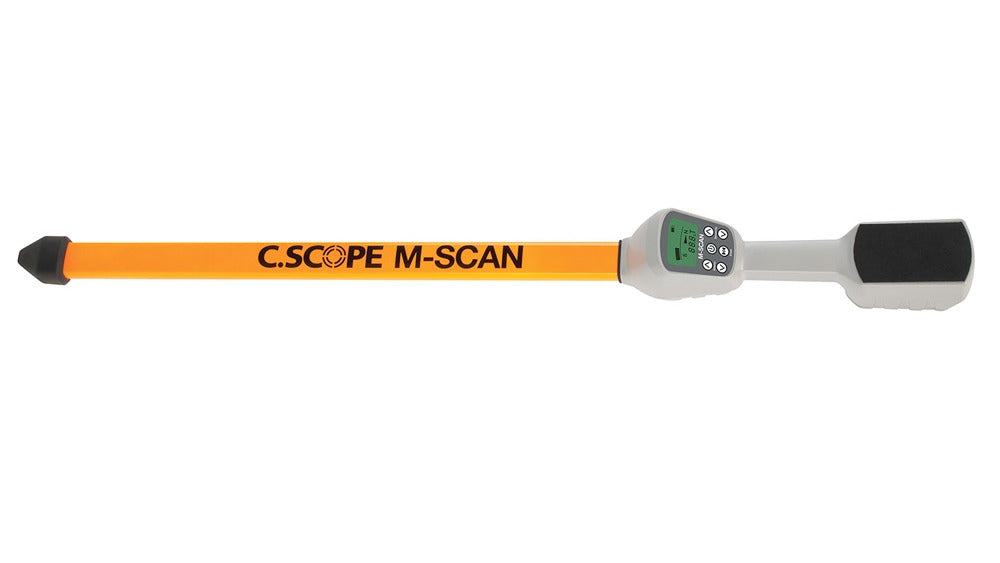

Uncover Buried Pipes & Tanks: C-scope M-SCAN Ferromagntic Locator
The M-SCAN Magnetometer can locate deeply buried ferrous objects such as manholes, septic tanks, valve boxes, line identification markers, survey and boundary marker pegs and cast iron gas and water pipes and joints.
The M-SCAN detects ferrous (magnetic) metals at a much greater depth than conventional metal detectors. It is capable of detecting objects up to 5m deep, depending on signal strength.

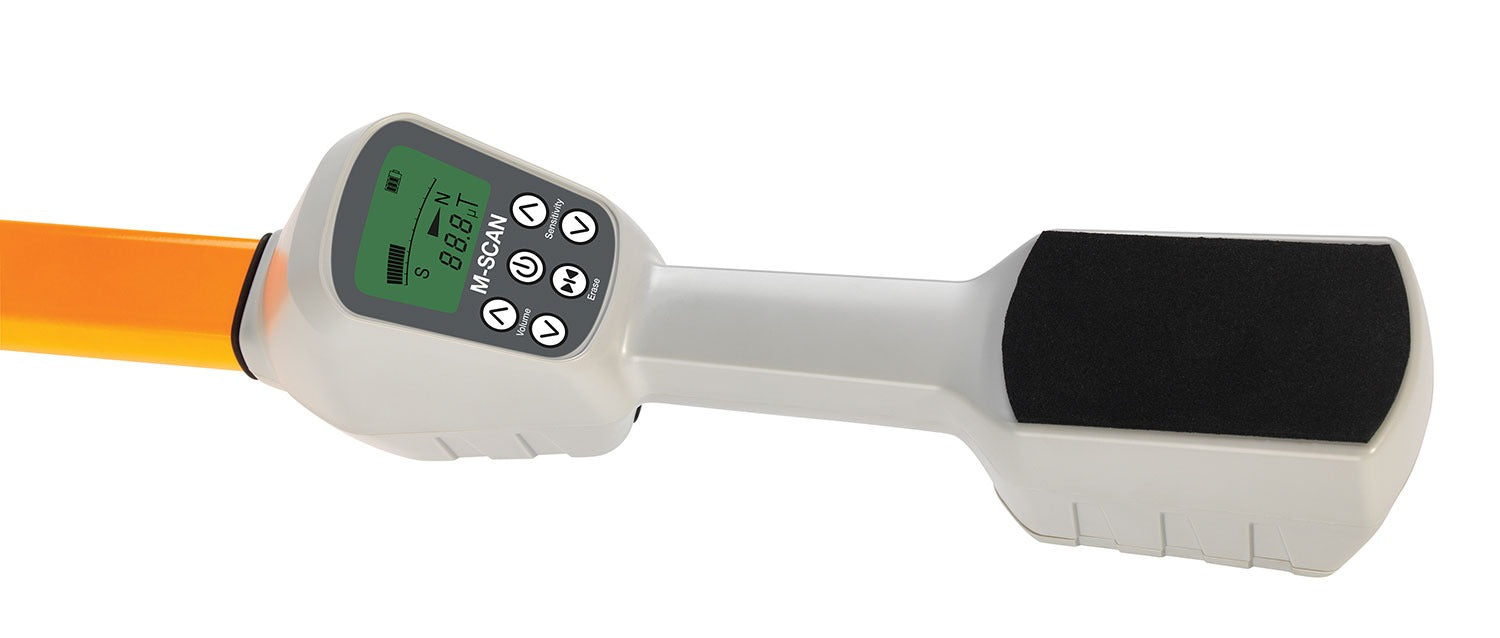

The M-Scan is a battery powered Locator manufactured in heavy-duty, high-impact ABS with a robust aluminium sensor tube. It has a large, easy-to-read LCD, showing battery level, signal strength and polarity indication backed up with a clear audible response that ensures that the target can be quickly located and identified. Simple one-touch controls for volume and sensitivity are ergonomically positioned and the unique moulded case design with in-built armrest means that the M-Scan can be used for long periods without undue fatigue.
Overview
- High Sensitivity
- Excellent Detection range
- 50/60 Hz warning
- Field polarity indicator
- Erase feature
- No response to aluminium, brass or copper
- Visual and audible signal strength
- Multi adjustable sensitivity
- Easy-to-use keypad
- One-handed operation
- Low battery warning
- Long battery life – stated
- Easy access battery compartment
- Rechargeable batteries option
- Robust, lightweight and ergonomic construction
- Carry case as standard
- IP65 / IP66
Specification
Product Name
M-SCAN
Part No.
M-SCAN
Detection Depth Range
5 m (dependent on site conditions)
Mains/ Line Detection
Visual warning of 50-60 Hz electric field
Erase Function
Background masking function allowing detection work near ferrous material
Sensitivity
4 levels of adjustment
Detection Resolution
20nT
Controls
Volume, Sensitivity, On/Off and Erase
Display
Numeric indication of signal amplitude, Multi segment bar graph,
Polarity indicator, Zero field crossing indicators, Battery level and 50-60 Hz electric field warning
Sound
8 volume levels, including mute. Frequency (pitch) varies with signal amplitude
In-built loudspeaker plus 3.5mm jack socket for standard headphones
Sensor Spacing
0.5 m
Overall Length
1.09 m
Sensor Tube Length
0.73 m
Construction
Case: Heavy duty high impact ABS (Water and dust resistant to IP65)
Sensor Tube: Epoxy sandwich coated aluminium (Waterproof and dust resistant to IP66)
Tip Protector: Heavy duty thermoplastic elastomer
Batteries
Eight 1.5V Cells, type AA, LR6, or equivalent. Alkaline cells recommended
Compatible with NiMH rechargeable batteries
100 hours battery life typical intermittent use
4 segment visual bar Battery Indicator
Weight
1.3 kg (with batteries)
Operating Temperature
-20 to +50ºC
Storage Temperature
-30 to +70ºC (batteries should be removed for storage at extremes of temperature)
Carry Bag
Protective shoulder carry case
