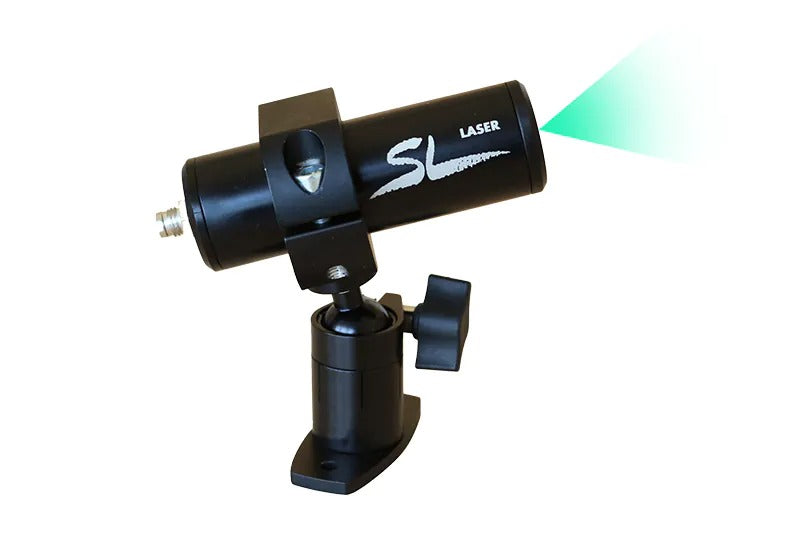

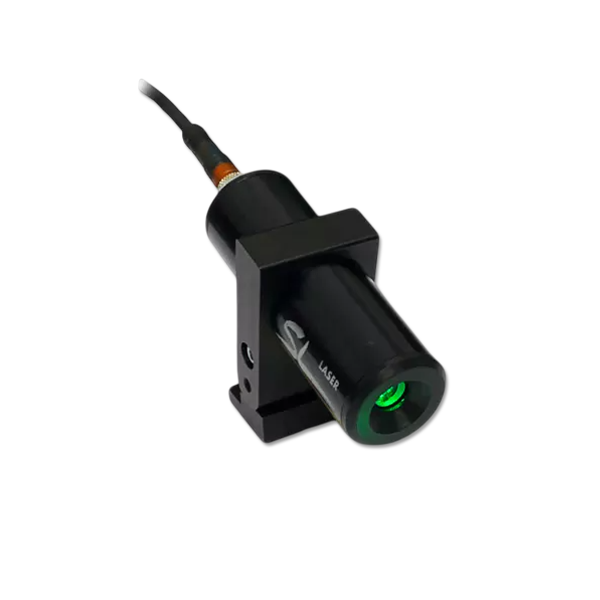

SL-Laser Green focusable Line Laser (10mW/50mW)

SKU: 90064
$1,760.00

Diode Power

Checkout Secure
Need more info? Call us +61 8 9335 1718

Features

The "Positioning laser“ combines sturdy durability and reliable accuracy in a versatile alignment laser. SL Positioning laser modules consist of a laser diode, optics and driver electronics constructed in a rugged isolated housing suitable for industrial environments.

  • Compact Design
  • Electrically Isolated Housing
  • Constant Output Power
  • Wide Temperature Range for Operation and Storage



Applications

A wide range of applications includes the positioning of tools, fixtures and materials and the alignment of instruments and machines.

  • Alignment and Measurement
  • Wood Processing
  • Machinery Manufacturing and OEM Integration



    Specifications

    Colour Diode Power Max. Output Focusable Optics  Laser Class
    green 10mW < 1mW yes Line 2M
    green 10mW < 1mW yes Cross 2M
    green 50mW < 5mW yes Line 3R

    Line generator for line length: 10°, 15°, 30°, 45°, 60°, 90°



    Specifications overview

    Mechanical Specifications:   Housing: Anodised Aluminium, Ø 30 x 88.5 mm, Weight: 300g incl. Cable Leads
    Optics:  Line or Cross
    Optical Properties:

    Laser Diode, Wavelength 520nm (green), Diode Power: 10 mW / 50 mW

                                                          Optics: homogeneous Line, Lifetime:  > 20.000 h

    Laser Class:

    Laser Class 2M (or 50 mW 3R) EN 60825-1:2015-07, IEC60825-1, EN76-2

                                                          21CFR 1040, CE

    Inspection and Safety:

    Temperature Range 0°C .. +50°C, IP 65, max. Shock 4 g



    Electrical Values:

    Voltage 16-33 VDC, (+)bn (-)bl (PE)gb/gn, Input 1 W, Cable Length 5 m



    Shipping This Item Ships from Fremantle, Perth, Western Australia
    Please allow 2 - 10 days for your order to arrive.

    Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

    Returns are easy.

    simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

    Description

    Features

    The "Positioning laser“ combines sturdy durability and reliable accuracy in a versatile alignment laser. SL Positioning laser modules consist of a laser diode, optics and driver electronics constructed in a rugged isolated housing suitable for industrial environments.

    • Compact Design
    • Electrically Isolated Housing
    • Constant Output Power
    • Wide Temperature Range for Operation and Storage



    Applications

    A wide range of applications includes the positioning of tools, fixtures and materials and the alignment of instruments and machines.

    • Alignment and Measurement
    • Wood Processing
    • Machinery Manufacturing and OEM Integration



      Specifications

      Colour Diode Power Max. Output Focusable Optics  Laser Class
      green 10mW < 1mW yes Line 2M
      green 10mW < 1mW yes Cross 2M
      green 50mW < 5mW yes Line 3R

      Line generator for line length: 10°, 15°, 30°, 45°, 60°, 90°



      Specifications overview

      Mechanical Specifications:   Housing: Anodised Aluminium, Ø 30 x 88.5 mm, Weight: 300g incl. Cable Leads
      Optics:  Line or Cross
      Optical Properties:

      Laser Diode, Wavelength 520nm (green), Diode Power: 10 mW / 50 mW

                                                            Optics: homogeneous Line, Lifetime:  > 20.000 h

      Laser Class:

      Laser Class 2M (or 50 mW 3R) EN 60825-1:2015-07, IEC60825-1, EN76-2

                                                            21CFR 1040, CE

      Inspection and Safety:

      Temperature Range 0°C .. +50°C, IP 65, max. Shock 4 g



      Electrical Values:

      Voltage 16-33 VDC, (+)bn (-)bl (PE)gb/gn, Input 1 W, Cable Length 5 m
