The innovative hybrid blue laser and LED light enhance adaptability across various materials, expanding its application spectrum. Leveraging LED light scanning ensures swift 3D capture, while laser scanning, less affected by ambient light, excels in capturing reflective and dark-colored surfaces.

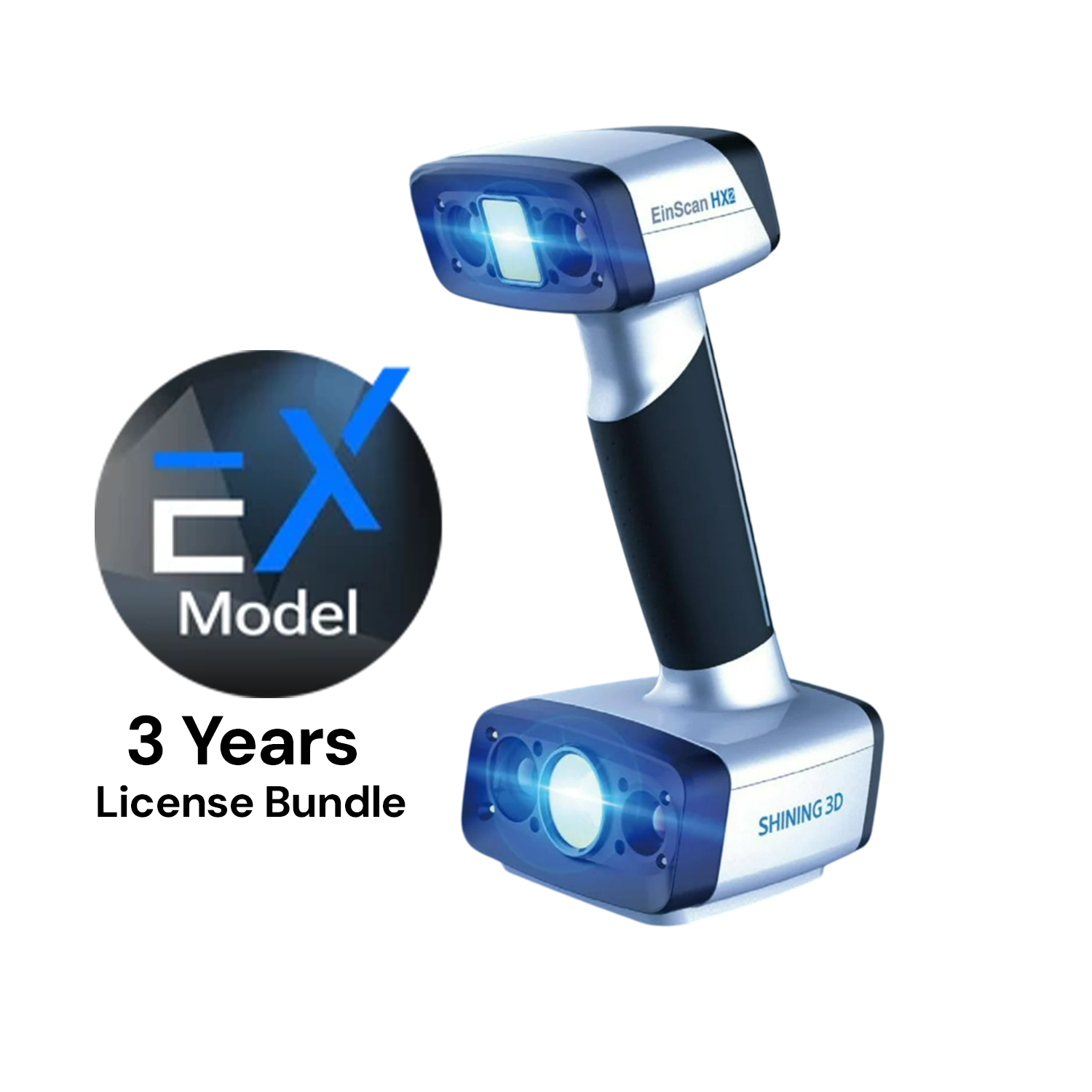

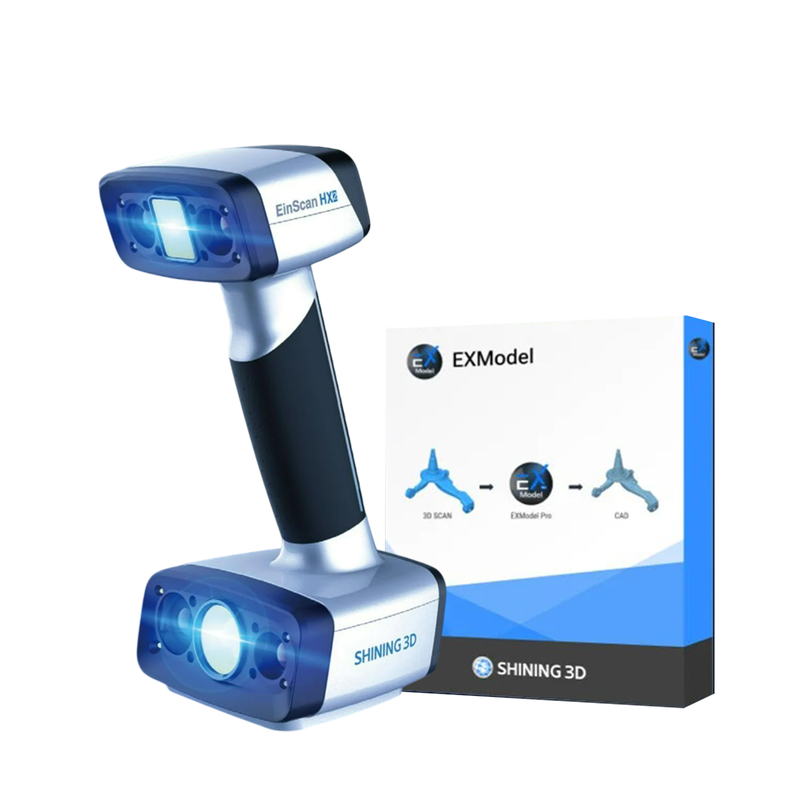

EinScan HX and EXModel 3 Years License bundle (EN)
EXModel is a powerful gateway that simplifies CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps.
- EXModel: The bridge between 3D scanning mesh and CAD design
- EXModel Pro: All-in-one reverse engineering solution
Function Features Comparison
|
Feature |
EXModel Pro | EXModel |
|---|---|---|
| Mesh Editing (Fill Holes, Smoothing, Editing Boundaries) | ✓ | ✓ |
| Mesh Alignment (Coordinates/ N-points/ Fine Align) | ✓ | ✓ |
| Primitives Extraction/ Construct References | ✓ | ✓ |
| Cross Sections/ 2D Sketching/ 3D Sketching | ✓ | ✓ |
| Fit/ Manual Free Form Modelling/ Auto Surfacing | ✓ | ✓ |
| Export Features/ Profile as IGES/ STEP/ DXF | ✓ | ✓ |
| Extrude/ Revolved Surfaces | ✓ | ✓ |
| Helix/ Loft/ Sweep/ Fill Surface (Class A surfaces)/ Blend surface/ Flatten | ✓ | ✗ |
| Constraints/ Offset/ Patterns/Sketch Assist in 2D Sketch | ✓ | ✗ |
| Unroll Mesh & Roll 2D Sketch | ✓ | ✗ |
| Trim to Solid/ Cut/ Combine/ Intersect/ Fillet/ Chamfer/ Patterns | ✓ | ✗ |
| Hybrid Modelling (Free-Form & Parametric) | ✓ | ✗ |
| Transfer Design and Feature Tree to other Packages | ✓ | ✗ |
| Compare | CAD vs Mesh, Mesh vs Mesh | CAD vs Mesh |
EinScan HX
The EinScan HX handheld 3D scanner features an innovative combination of blue LED light and blue laser technology. This hybrid system leverages both light sources to provide exceptional versatility, effortlessly adapting to various object sizes with precision and accuracy.
- Accuracy up to 0.04 mm
- Minimum point distance of 0.05 mm
- Scan speed up to 1,200,000 points/s
A Hybrid and Versatile Solution
EinScan HX combines blue lasers and LED light to bring you the most versatility a portable scanner can offer.
- Hybrid Light Source
- Reliable Results
- High Efficiency
- Full Color Capture
- Portability & Easy Operation
- Reverse Engineering Bundle
Material Adaptability
Reliable Results
The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.
- Minimum point distance of 0.05 mm
- Accuracy up to 0.04 mm under Laser Scan mode
High Efficiency
The EinScan HX achieves a processing speed of up to 1,200,000 points per second in Rapid Scan Mode.
With its efficiency and reliable results, EinScan HX unlocks endless application possibilities. Multiple blue laser lines under Laser Scan mode swiftly capture data in minutes for various applications including reverse engineering, CAD/CAM design, and 3D printing.
Full Color Capture
With the built-in color camera, EinScan HX supports full-color texture scanning and allows texture alignment.
Portability & Easy Operation
EinScan HX is plug-and-play with user-friendly software designed for effortless operation, catering to both novices and professionals.
Its ergonomic design ensures portability and flexibility, weighing just 710g, offering an efficient and comfortable scanning experience.
Special Pricing for Reverse Engineering Bundle
Enhance your engineering and design capabilities with our professional reverse engineering bundle, featuring the EinScan HX 3D Scanner and EXModel. This combination offers precise and efficient solutions tailored for industries requiring detailed reproduction of objects into digital CAD models.
EXScan HX Software
Your EinScan HX comes with access to our powerful and continuously updated EinScan software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-By-Step Guidance
EXScan HX software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
Smart Data Processing
EXScan HX software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently.
Regular Updates
We regularly update our software, ensuring you always have access to the latest tools and algorithms to get the most out of your 3D scanner over the years.
Multi-Language Support
Our software offers multi-language support, including English, German, Japanese, Korean, Russian, French, Spanish, and Traditional Chinese. We continuously update this list to include more languages.
EinScan HX Tech Specs
- Accuracyup to 0.04 mm
- Volumetric Accuracyup to 0.04 + 0.06 mm/m
- Point Distance0.25 ~ 3 mm
- Scan Speedup to 1,200,000 points/s
- Max. FOV420 x 440 mm
- Working Distance470 mm
- Align ModeFeature / Markers / Texture / Hybrid
- Light SourceBlue LED / 7 Blue Laser Crosses
