EXScan O&P is a specialized software designed for seamless integration with the EinScan H2, supporting multiple scan modes, streamlining the digital capture process of different parts of human body for orthotics and prosthetics (O&P) applications.

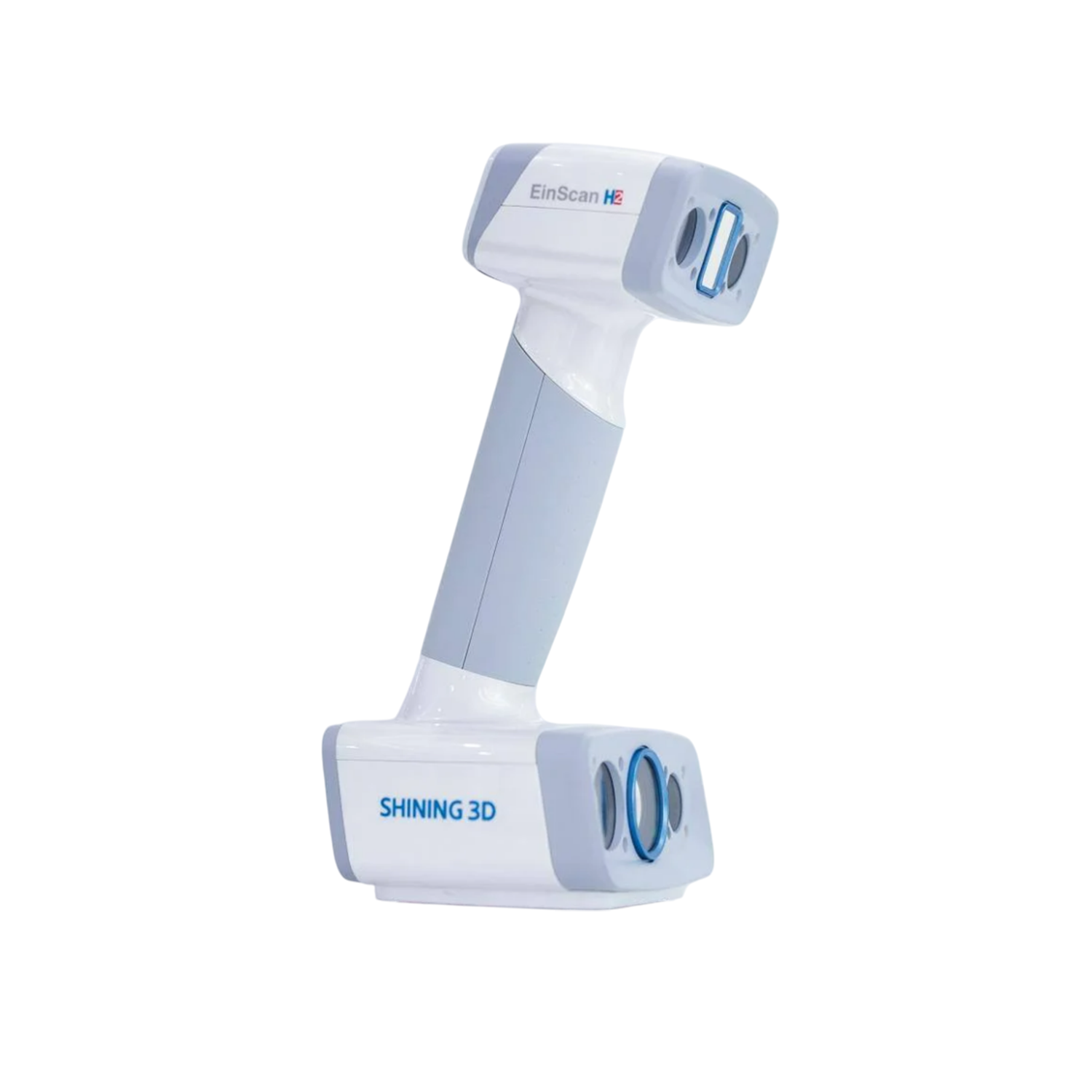

EinScan H2
Hybrid LED & Infrared Light Source Handheld 3D Scanner
- 5MP Texture Camera
- 3 VCSEL Projectors
- Accuracy up to 0.05 mm
- FOV up to 780 x 900 mm
Handheld 3D Scanner with High-Resolution Texture
The EinScan H2 builds on its predecessor with a 5MP texture camera, improved accuracy, and three infrared VCSEL projectors, delivering more photorealistic textures and higher-quality data.
- Hybrid Light Source
- Photorealistic Texture
- High-Quality Data
- Small to Large
- Ultra-Wide FOV
- Optimized for Face & Body 3D Sca
- User-Friendly Design
Hybrid Light Source
The EinScan H2 combines structured light and infrared technology, making it versatile for a wide range of scanning scenarios. It captures the intricate details of complex surfaces and dark materials with precision.
- LED light enables fast 3D scanning with accurate, high-quality data.
- Infrared VCSEL is ideal for capturing dark surfaces, the human body, and objects in bright-lit environments.
Photorealistic Texture
Equipped with a 5MP color camera, the EinScan H2 captures vibrant colors and detailed textures, combining them with precise 3D geometry to produce photorealistic 3D models. It's an ideal 3D scanner for cultural heritage preservation, art restoration, digital archiving, and other applications requiring high-quality textures.
High-Quality Data
The LED light modes enable fast 3D scanning with high precision, delivering data with an accuracy of up to 0.05mm—ideal for applications such as reverse engineering. The infrared light mode simplifies the scanning of dark surfaces, ensuring complete and high-quality results even in difficult conditions

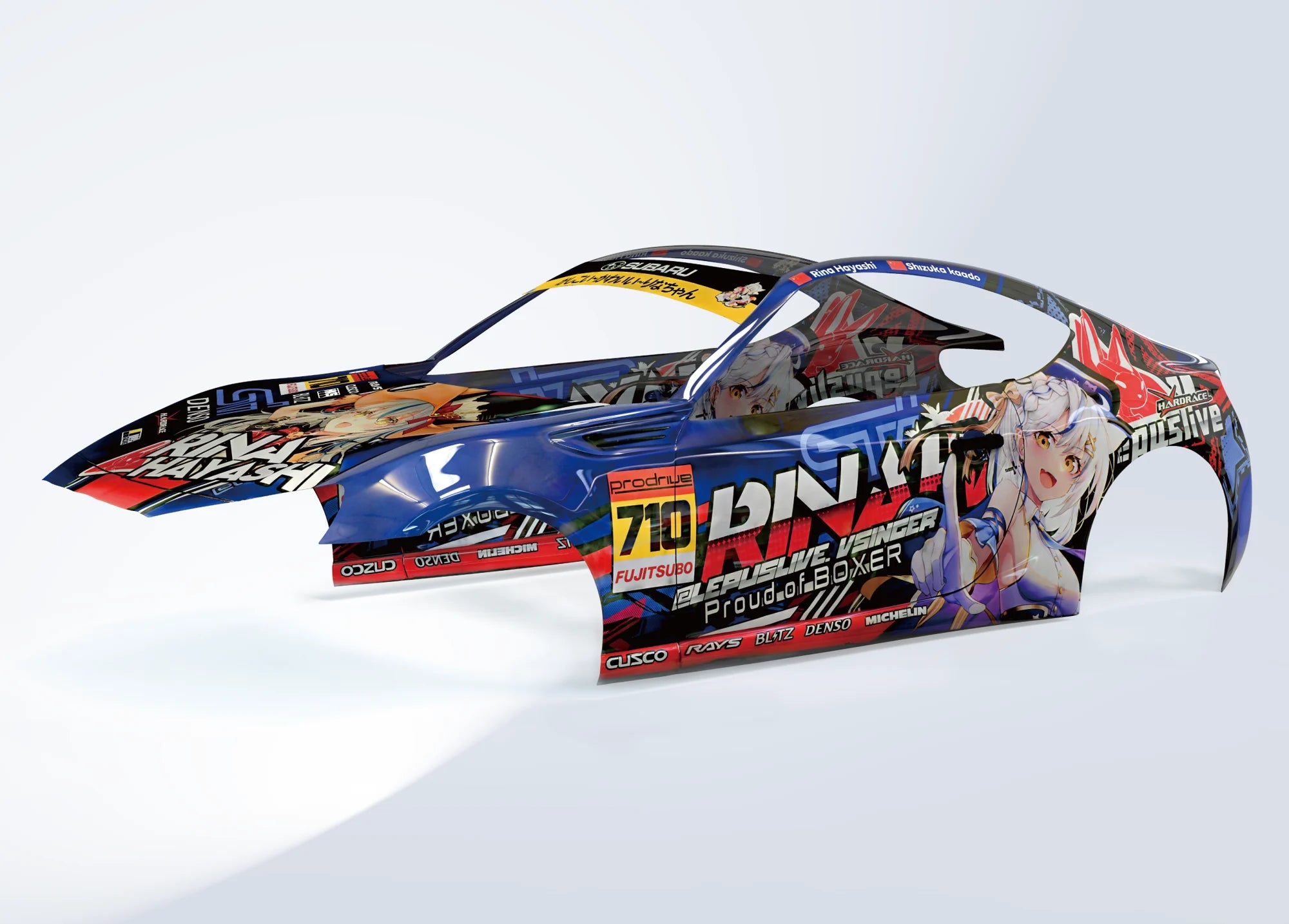

Versatile, Marker-Free Scanning
The working distance adjusts from 200 mm to 1500 mm, making it versatile for both narrow and wide scenes, as well as objects of varying sizes. Its wide field of view, up to 780 × 900 mm, enables quick and efficient capture of large objects. Additionally, the marker-free scanning feature simplifies the process by using rich geometric features, eliminating the need for markers.

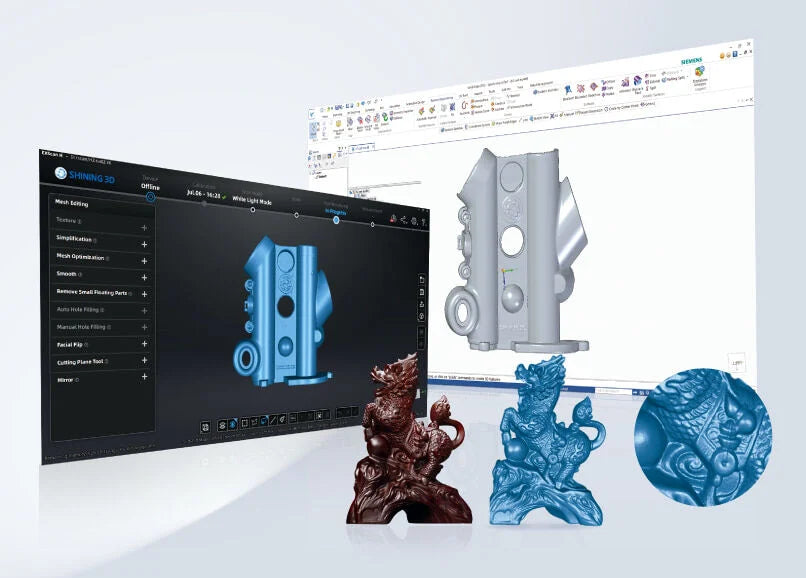

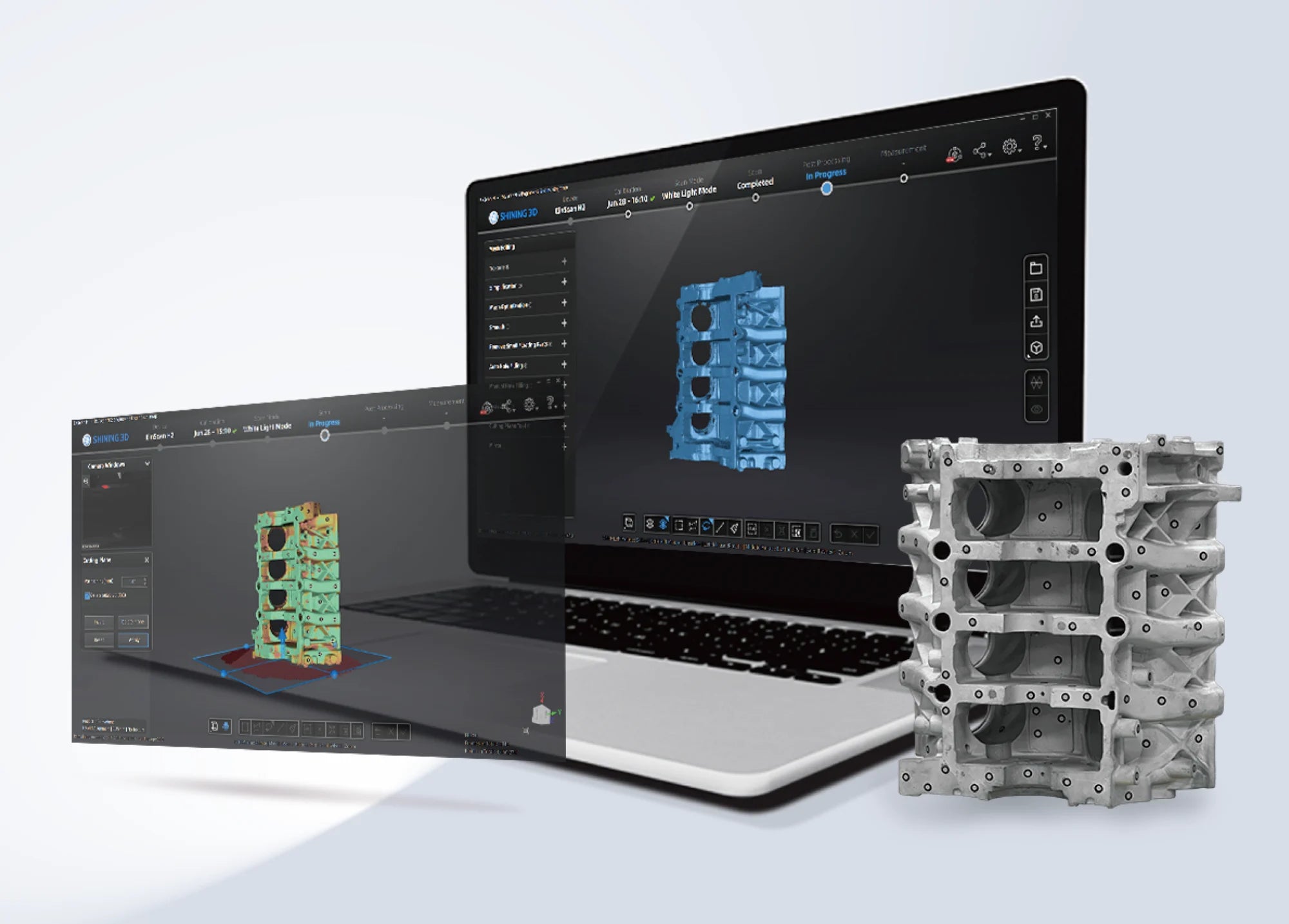

User-Friendly Software
The EinScan H2 provides a professional yet easy-to-use 3D scanning interface. It includes powerful post-processing tools, such as alignment, merging, and mesh editing, to ensure a smooth workflow from scan to finished model.

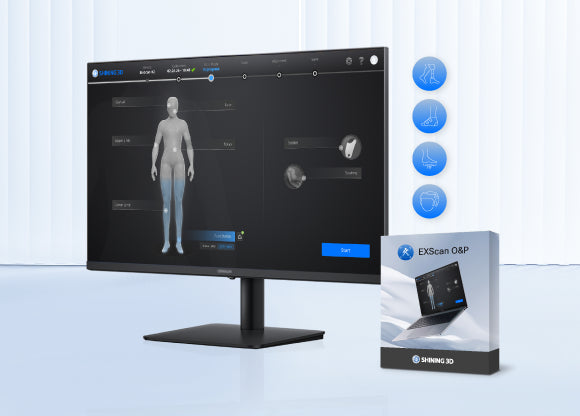

EXScan O&P Software
Discover How EXScan O&P Streamline the 3D Digitization of Human Body Scan
EXScan O&P is a specialized software solution designed to integrate with the EinScan H2. It revolutionizes the digital capture of human body data for orthotics and prosthetics (O&P) applications, enabling the efficient creation of customized O&P devices for diverse body parts with precision and ease.
EXScan H Software
Your EinScan H2 comes with access to our powerful, easy-to-use, and continuously updated EinScan software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-By-Step Guidance
EXScan H software guides you through the 3D scanning process, from calibration to 3D scanning and data editing. The software is easy to navigate for beginners and experts alike.
Multiple Scan Modes
EXScan H supports multiple scan modes, such as white light scan, IR scan Portrait, and IR scan Object. It allows you to easily choose the most suitable option for each project.
Color and Texture Capture
Leveraging the scanner's 5MP color cameras, EXScan H generates high-resolution color and texture. The software also includes texture alignment, particularly helpful for objects that are colorful but with limited geometric detail.
Optimized for Face and Body 3D Scanning
The advanced hair enhancement algorithm efficiently captures both light and dark hair, while the non-rigid algorithm in IR mode captures 3D body data while auto-compensating for slight movements, eliminating misalignment risks.
EinScan H2 Tech Specs
- AccuracyUp to 0.05 mm (LED mode)
- Point Distance0.2 ~ 3mm
- Scan SpeedUp to 1,200,000 points/s
- Maximum FOVUp to 780 x 900 mm (IR mode)
- Light SourceWhite LED / Infrared VCSEL (invisible)
- Align ModesGlobal Markers / Feature / Hybrid / Texture
