You can take the VEGA with you wherever you go. Scan, save, and share the data at any time, unleashing endless possibilities with 3D vision.
-
Two scanning technologies in one
-
Built-in computing
-
Internal data archiving
Pick Up and Scan
- Ergonomic design
- One-click start
- One-click processing
Wireless Solution
-
Wireless scanning: Without connecting to PC
-
Wireless transfer: Data sharing to SHINING 3D Cloud
-
Wireless screen casting: Display on a second screen
Pioneering Software Features
- 12mm markers alignment in fast mode: Minimize markers numbers when scanning super large objects
- Hybrid alignment: Enhance tracking stability and efficiency
- Scanning rewind: Support to correct data alignment error during scanning process
- Auto detecting the base plane
- Coordinate system adjustment
- Model measurement
Fast Mode
- For medium to large size objects
- Working distance 350～1500 mm for medium to large objects
- Scanning speed up to 20 fps
HD Mode
- For small to medium size objects
- Working distance 100～250 mm for small objects
- Scanning speed up to 15 fps
Powerful Hardware
- 6.4 Inch 2K AMOLED
- 32 RAM
- 32GB eMMC + 512GB SSD
- 48MP RGB texture camera
- Lightweight 535g
- Continuous operation during charging

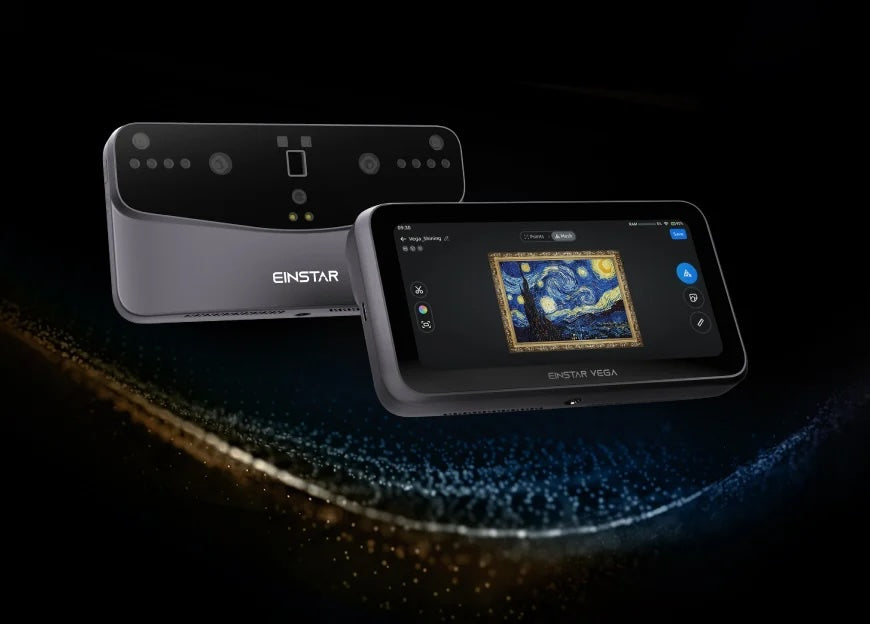

All-in-One System
You can take the VEGA with you wherever you go. Scan, save, and share the data at any time, unleashing endless possibilities with 3D vision.
-
Two scanning technologies in one
-
Built-in computing
-
Internal data archiving

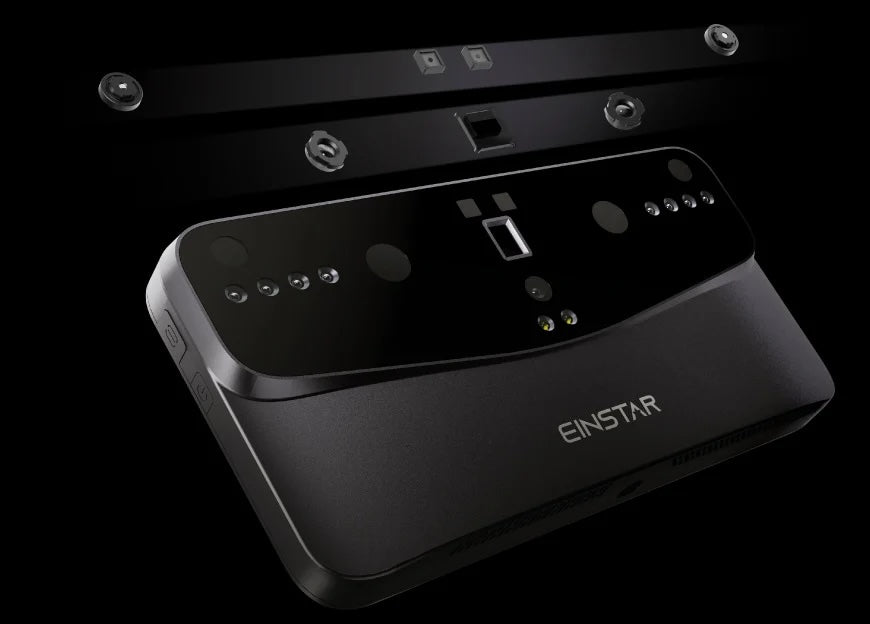

Two 3D Scanners in One
- VCSEL for long range scanning: smooth scanning under unlimited environment
- MEMS for short range scanning: stable scanning for high-detail data
Pick Up and Scan
- Ergonomic design
- One-click start
- One-click processing
Wireless Solution
-
Wireless scanning: Without connecting to PC
-
Wireless transfer: Data sharing to SHINING 3D Cloud
-
Wireless screen casting: Display on a second screen
Pioneering Software Features
- 12mm markers alignment in fast mode: Minimize markers numbers when scanning super large objects
- Hybrid alignment: Enhance tracking stability and efficiency
- Scanning rewind: Support to correct data alignment error during scanning process
- Auto detecting the base plane
- Coordinate system adjustment
- Model measurement
Fast Mode
- For medium to large size objects
- Working distance 350～1500 mm for medium to large objects
- Scanning speed up to 20 fps
HD Mode
- For small to medium size objects
- Working distance 100～250 mm for small objects
- Scanning speed up to 15 fps
Powerful Hardware
- 6.4 Inch 2K AMOLED
- 32 RAM
- 32GB eMMC + 512GB SSD
- 48MP RGB texture camera
- Lightweight 535g
- Continuous operation during charging
PC Software Starvision
Compatible with Windows and Mac OS.
SHINING 3D Cloud
- Data sharing and collaboration
- Data storage and management
- Data measurement
- Free 5GB space to each SHINING 3D user
Reliable Scanning Outdoor and Indoor
- Outdoor scanning under sunshine
- Ideal for dark surfaces
Scanning at Any Time
Smooth Scan at Night without Limitation

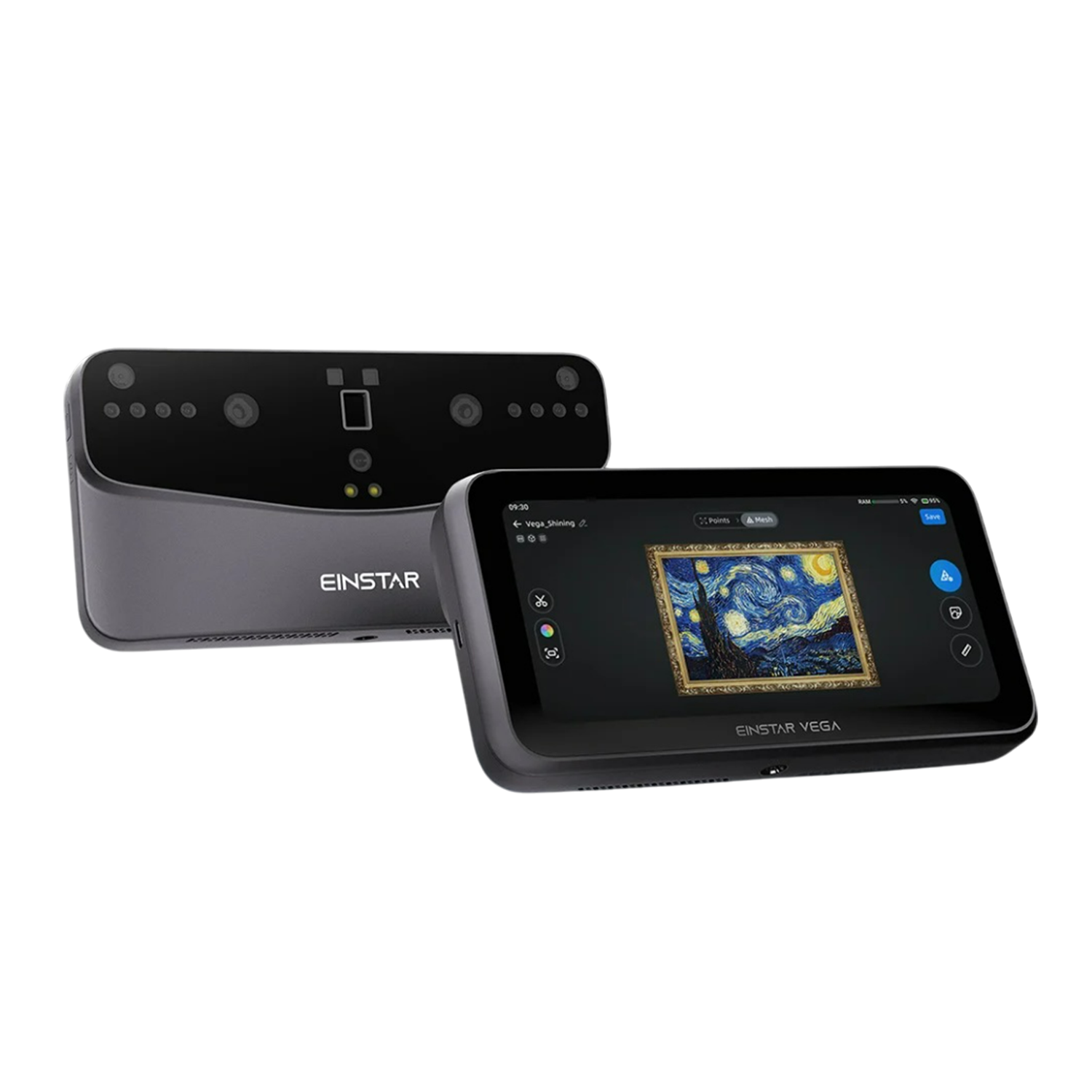

EINSTAR VEGA Specification
- Scan ModeHD Mode | Fast Mode
- Light SourceHD Mode: Infrared MEMS | Fast Mode: Infrared VCSEL
- Point DistanceHD Mode: 0.05～3mm | Fast Mode: 0.5 ~ 10 mm
- Capture FrameHD Mode: Up to 15 fps | Fast Mode: Up to 20 fps
- Working DistanceHD Mode: 100 ～ 350 mm | Fast Mode: 350 ～ 1500 mm
- IR Camera ResolutionHD Mode: 2 MP | Fast Mode: 1.3 MP
- Align ModesFeature / Hybrid / Texture / Markers
- Color Camera Resolution48 MP
- Outdoor ScanningYes
- CPU8-core CPU, 2.4GHz
- RAM32 GB LPDDR4 Memory
- Touchscreen6.4'' 2K OLED
- Internal Hard Drive32 GB eMMC + 512 GB SSD
- InterfaceWi-Fi 6, USB Type C
