C-Scope Tracing ROD with Sonde Tip 4.5x80

SKU: 03-10-ST-MTRAK-80
$1,793.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

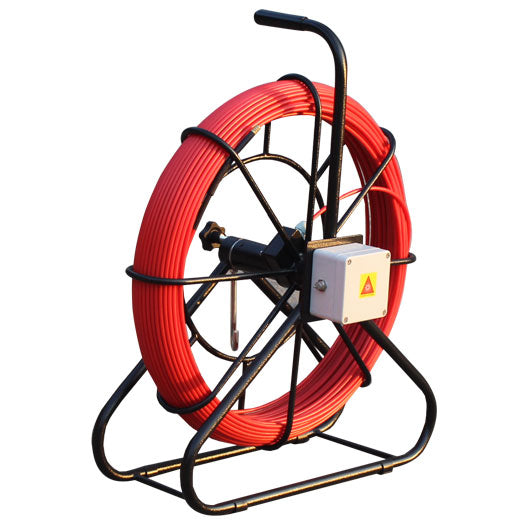

C.Scope 6mm Traceable Rod - 80m Open Reel

Features:

  • Fibreglass rod inside a drum cage mounted in a tubular steel frame.
  • 80m of 5mm diameter flexible fibreglass rod with fully integrated 9mm diameter Sonde.
  • Integral Sonde for tip tracing.
  • Integral wire for line tracing.
  • Slip Ring allowing drum rotation when in use.
  • Rotation brake.
  • Unique flexible Sonde performs even in tight angles.
  • Robust but lightweight construction.

Specifications:

  • Frequency: Optimised for 32,768Hz
  • Detection Depth Range:
    • Line Detection 3 m (dependent upon Locator and Signal Generator type and site conditions)
    • Tip Detection 4 m (dependent upon Locator and Signal Generator type and site conditions)
  • Compatibility: Any Signal Generator or Transmitter with 33kHz or 33/131kHz combined output
  • Rod Length: 80 m
  • Rod Diameter: 5 mm nominal
  • Rod Material: Quality sleeved fibreglass rod with three integral copper wires
  • Rod Minimum Bend Radius: 10 cm (reducing to 15 cm, 5 cm from Tip)
  • Rod wire diameter: 0.45 mm each wire
  • Transmitting Sonde Diameter: 7.5 mm max.
  • Tip:
    • Length: 160 mm.
    • Diameter: 9 mm.
    • Material: Brass
  • Frame:
    • Size: 58.8 x 28.8 x 48.5 cm
    • Material: Powder coated 16 mm steel tube
  • Reel Diameter: 48 cm
  • Weight: 7.5 kg
  • Slip ring assembly: Sealed multi-wire duplexed
  • Operational Temperature Range: -20ºC to 50ºC
  • Storage Temperature Range: -20ºC to 50ºC
  • IP rating
    • for Tracer Rod & Tip 68
    • for Casing 54
Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

C.Scope 6mm Traceable Rod - 80m Open Reel

Features:

  • Fibreglass rod inside a drum cage mounted in a tubular steel frame.
  • 80m of 5mm diameter flexible fibreglass rod with fully integrated 9mm diameter Sonde.
  • Integral Sonde for tip tracing.
  • Integral wire for line tracing.
  • Slip Ring allowing drum rotation when in use.
  • Rotation brake.
  • Unique flexible Sonde performs even in tight angles.
  • Robust but lightweight construction.

Specifications:

  • Frequency: Optimised for 32,768Hz
  • Detection Depth Range:
    • Line Detection 3 m (dependent upon Locator and Signal Generator type and site conditions)
    • Tip Detection 4 m (dependent upon Locator and Signal Generator type and site conditions)
  • Compatibility: Any Signal Generator or Transmitter with 33kHz or 33/131kHz combined output
  • Rod Length: 80 m
  • Rod Diameter: 5 mm nominal
  • Rod Material: Quality sleeved fibreglass rod with three integral copper wires
  • Rod Minimum Bend Radius: 10 cm (reducing to 15 cm, 5 cm from Tip)
  • Rod wire diameter: 0.45 mm each wire
  • Transmitting Sonde Diameter: 7.5 mm max.
  • Tip:
    • Length: 160 mm.
    • Diameter: 9 mm.
    • Material: Brass
  • Frame:
    • Size: 58.8 x 28.8 x 48.5 cm
    • Material: Powder coated 16 mm steel tube
  • Reel Diameter: 48 cm
  • Weight: 7.5 kg
  • Slip ring assembly: Sealed multi-wire duplexed
  • Operational Temperature Range: -20ºC to 50ºC
  • Storage Temperature Range: -20ºC to 50ºC
  • IP rating
    • for Tracer Rod & Tip 68
    • for Casing 54
