Fluke PLS 3R KIT, 3-Point Red Laser Kit
Product overview: PLS 3R KIT, 3-Point Red Laser Kit
The new PLS 3R red laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly.
Features
- This professional self-leveling three-point red and green laser level allows for fast, accurate layout of reference points and is excellent for steel stud framing, HVAC installation, electrical and residential construction.

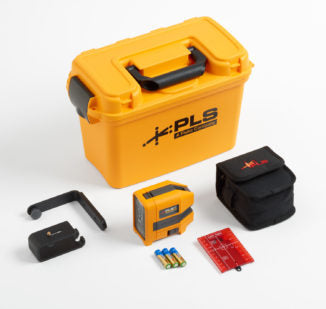

- Kit includes floor stand and L-bracket for fast, easy overhang and centerline measurements.
- Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
- Red laser beam
- Point laser direction: 90° up, down, forward
- Durable pendulum lock platform.
- IP54 rating to limit dust and water entry for years of operation on the job site.
Specifications: PLS 3R KIT, 3-Point Red Laser Kit
| PLS 3R | |||
|---|---|---|---|
| Battery | 3 x AA Alkaline IEC LR6 | ||
| Battery Life, Continuous Use | Red | ≥ 30 hours | |
| Green | ≥ 16 hours | ||
| Point Laser Direction | 90° up, down, forward | ||
| Working Range | ≤ 30 m (100 ft.) | ||
| Accuracy | ≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.) | ||
| Laser Leveling | System | Automatic, Pendulum | |
| Range | 4 ° | ||
| Point Laser Diameter | ≤ 4 mm at 5 m | ||
| Temperature | Operating | -10 °C to 50 °C (14 °F to 122 °F) | |
| Storage | 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in) | ||
| With Batteries | -18 °C to 50 °C (-0.4 °F to 122 °F) | ||
| Without Batteries | -20 °C to 70 °C (-13 °F to 158 °F) | ||
| Relative Humidity | 0 % to 90 % (0 °C to 35 °C) | ||
| 0 % to 75 % (35 °C to 40 °C) | |||
| 0 % to 45 % (40 °C to 50 °C) | |||
| Size (H x W X L) | 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in) | ||
| Weight | ~0.6 kg (1.3 lb.) | ||
| Safety | IEC 61010-1: Pollution Degree 2 | ||
| Laser | IEC 60825-1:2014 Class 2 | ||
| Light Source | Semiconductor laser diode | ||
| Max Output Power | < 1 mW | ||
| Wavelength | Red | 635 nm ± 5 nm | |
| Green | 525 nm ± 5 nm | ||
Additional information
| Accuracy |
1/8" @ 100' (3mm @ 30m) |
|---|---|
| Batteries |
Alkaline – 3 AA (included) |
| Laser Class |
Class II |
| IP Rating |
Product IP Rating 54 |
| Operating Time |
30 hours continuous |
What's in the box
Accessories
