OVERVIEW

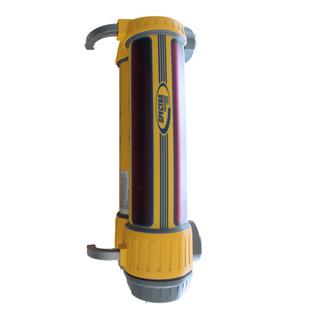

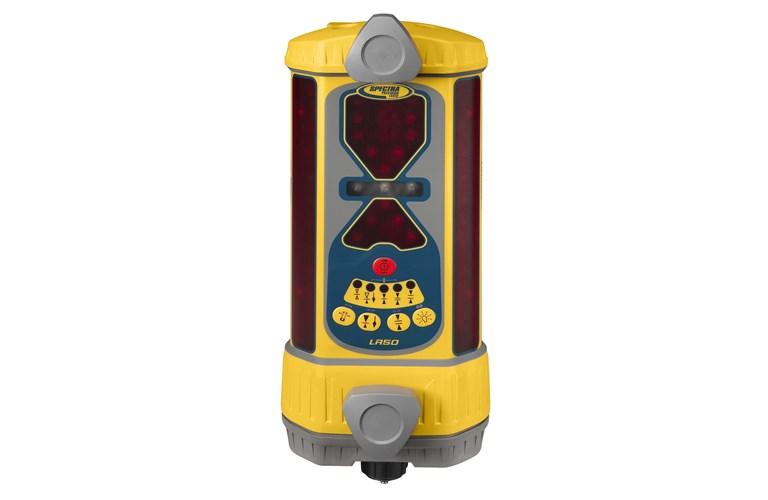

The Spectra Precision Laser LR50 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including dozers, excavators, backhoes, scrapers, and box blades. The easy-to-use LR50 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR50 receiver withstands all weather environments. Internal isolating shock mounts protect the electronics. The LR50W is designed to be used with the RD20 Wireless Remote Display.



FEATURES

  • Built-in blade tilt indicator helps the operator keep the blade
  • Level for increased accuracy and productivity.
  • Center on-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades.
  • Built-in plumb indicator for fast, accurate grade checking in excavation applications.
  • Offset on-grade gives you more range above grade using the entire receiver for more productive excavation.
  • Up to six channels of grade information plus directional out-of-beam indicators.
  • Plumb Indication - for fast, accurate grade checking when excavating
    Blade Tilt Indication - helps the operator keep the blade level for increased accuracy and productivity. Tilt can be set to an existing angle to providing more flexibility for the operator
  • Center on-grade provides an equal amount of grade information above and below grade when used on grading machines
  • Offset on-grade provides more range above the on-grade position using the entire receiver to avoid over-digging
  • LR50W provides a wireless link to RD20 remote display in a cab for easier reference by the operator
  • Robust and built for job site environment - 2-year warranty



INCLUDES

  • LR50W
  • UNV Charger
  • Radio



SPECIFICATION

Number of Display Channels 5-Channel Display
6-Channel Display in excavating mode
Accuracy: Center on grade mode (grading) Fine: 5 mm (0.20 in)
Standard: 10 mm (0.40 in)
Wide: 20 mm (0.80 in)
Accuracy: offset on grade mode (excavating) Fine: 12 mm (0.50 in)
Standard: 25 mm (1.0 in)
Wide: 50 mm (2.0 in)
ACE-Angle Compensation Mode NA
Blade-Tilt Accuracy ± 0.5°, ± 1.5°, ± 2.5°
Plumb-Swing Accuracy ± 0.5°, ± 1.5°, ± 2.5°
Vertical Reception 171 mm (6.75 in)
LED Battery Life
Alkaline Bright/Dim 45 / 60 hrs
Wireless with remote on 20 / 30 hrs
Ni-MH Bright/Dim 30 / 45 hrs
Wireless with remote on 15 / 20 hrs
Receiver Warranty 2 Years

Download Brochure

Shipping
This Item Ships from Fremantle, Perth, Western Australia



Please allow 2 - 10 days for your order to arrive. Although Most Stocked Products will generally Ship Overnight.  We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy, simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!





Here are 6 more great reasons to buy from us:



You get a full 30 days to return your item to us. If your product is faulty or damaged under manufacture warranty, simply send it back to us and we'll cheerfully replace it or fix the problem for you.

Returns are easy, simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down.

We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again.

Ordering from Laserman Technologies is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either.
Laserman the Best Laser Level, Pipe Laser and Laser Measuring Warranties in the Business - Now thats unbeatable value !!.
