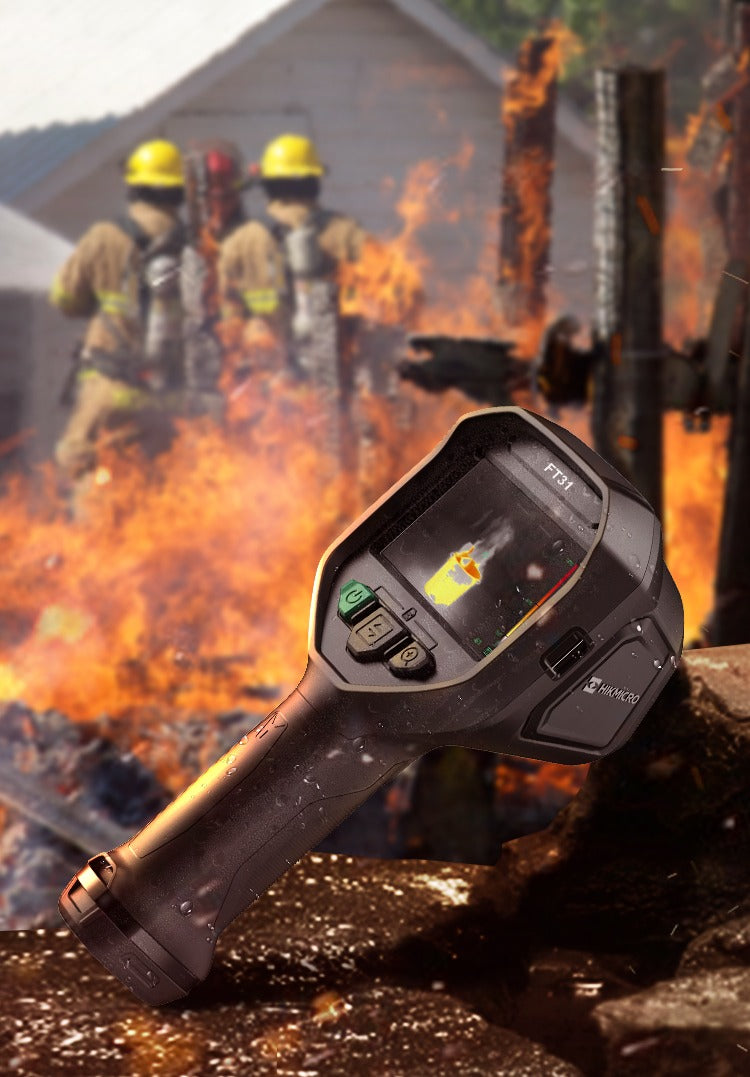

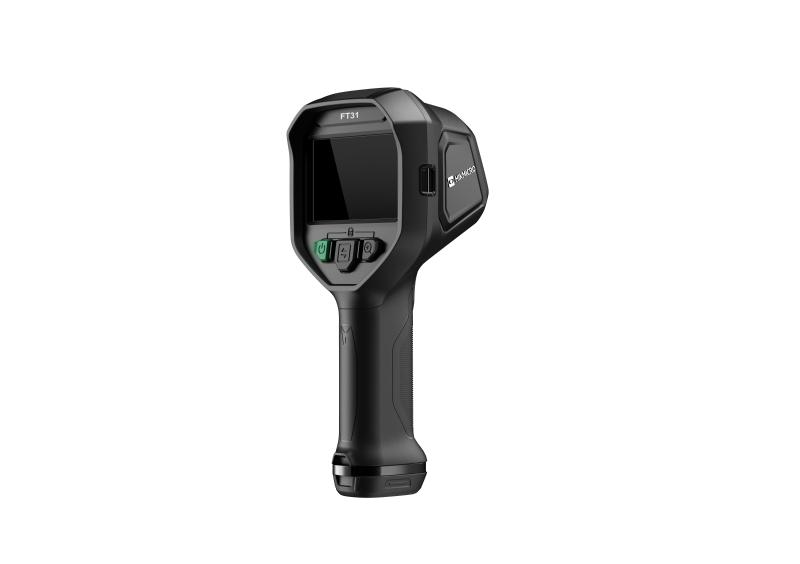

The HIKMICRO FT31 is a high-performance firefighting thermal camera designed for firefighters to observe in total darkness and smoke, helping to save lives, protect property, and keep firefighters safe. Features like object details enhancement, easy-to-navigate buttons and a working temperature range of up to 260°C(500°F) help you work effortlessly in harsh environments. 8 color palettes for you to choose from satisfy most application scenarios.
Key Features
- Thermal resolution: 384 x 288 (110,592 pixels)
- NETD : <30 mK (@ 25°C, F#=1.0)
- Start up time: 5 second (with IR image), 10 second (with OSD)
- Support object details enhancement
- Temperature measurement range : -20°C to 1200°C (-4°F to 2192°F)
- Measurement presets: Center spot, Hot spot, Cold spot
- 60 Hz image frequency
- 4.3" LCD screen display
Infrared Image | ||||
Image Sensor | VOx Uncooled Focal Plane Arrays, Germanium protective lens cover | |||
IR Resolution | 384 x 288 (110,592 pixels) | |||
NETD | < 30 mK (@ 25°C, F#=1.0) | |||
Image Frequency | 60 Hz | |||
Detector Pitch | 17 μm | |||
Spectral Range | 7.5 to 14 μm | |||
Focal Length | 7 mm | |||
F-number | F1.6 | |||
Field of View (FOV) | 54.1°×40.2° | |||
Spatial Resolution (IFOV) | 2.42 mrad | |||
Min. Focus Distance | 1 m (3.28 ft) | |||
Focus Mode | Focus Free | |||
Image Display | ||||
Display | 800 × 480 Resolution, 4.3" LCD Screen | |||
Digital Zoom | 1x, 2x, 4x | |||
Color Palettes | Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
|||
Image Modes | Thermal | |||
Measurement and Analysis | ||||
Object Temperature Range | Range -20°C to 250°C (-4°F to 482°F) Range 200°C to 1200°C (392°F to 2192°F) |
|||
Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C (-4°F to 122°F) and object temperature above 0°C (32°F) |
|||
Measurement Tools | Center Spot, Hot Spot, Cold Spot | |||
Data Storage and Communication | ||||
Storage Media | Built-in 128 GB flash memory | |||
Image Storage Capacity | Approx. 281,600 Images | |||
Video Storage Capacity | Approx. 15.6 hours | |||
General | ||||

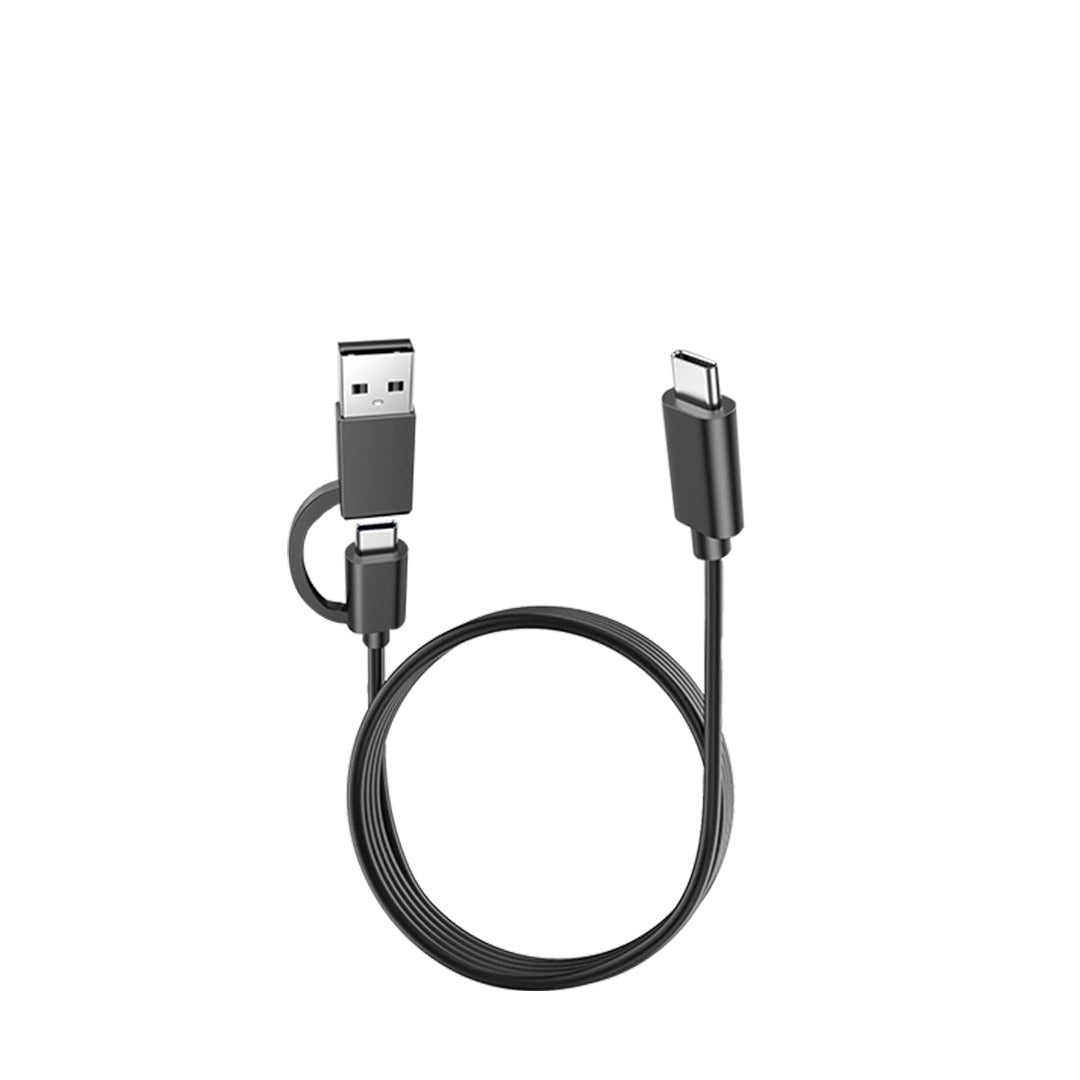

USB Interface | USB Type-C | |||

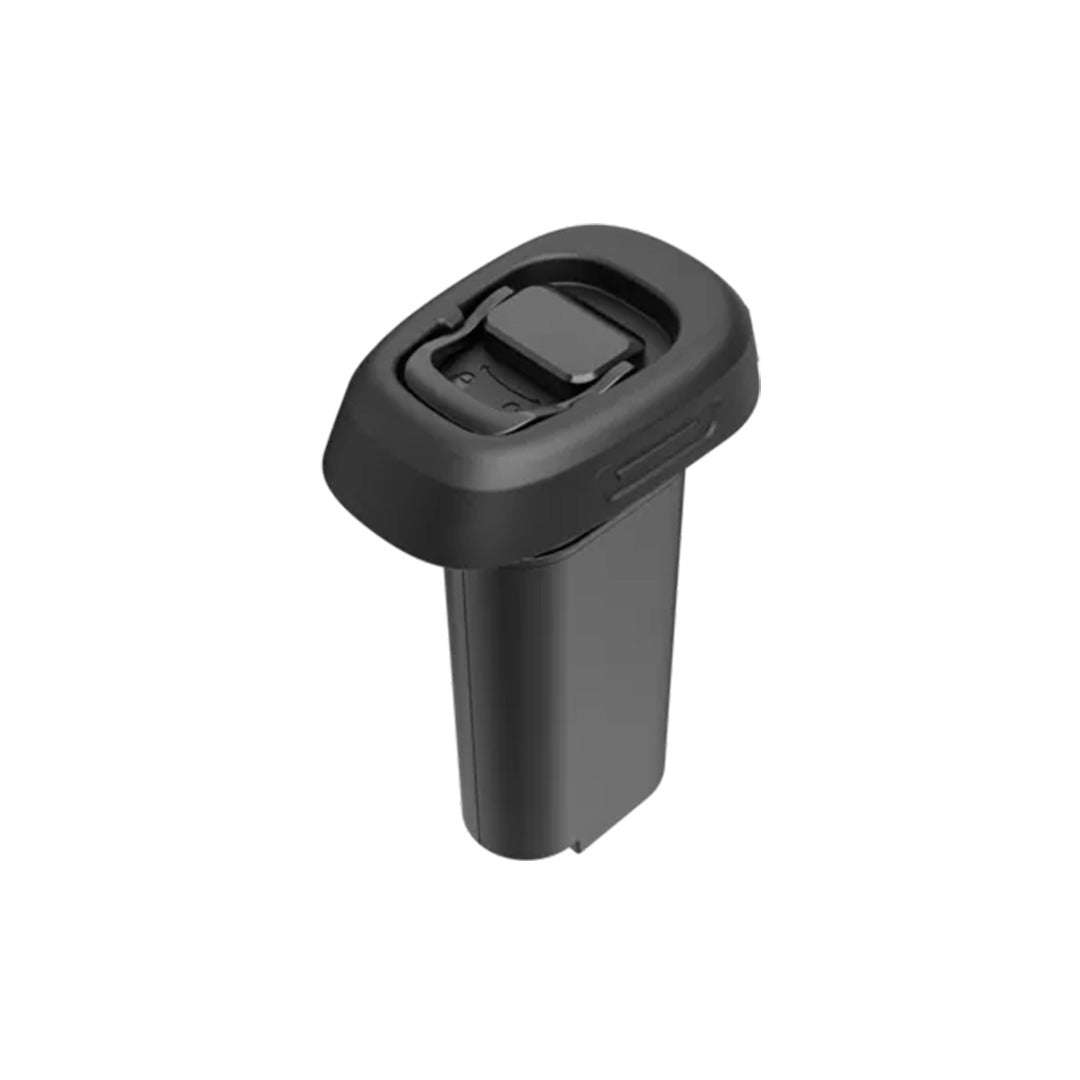

Battery Type | Interchangeable and rechargeable Li-ion battery | |||
Battery Operating Time | Approx. 6 hours | |||

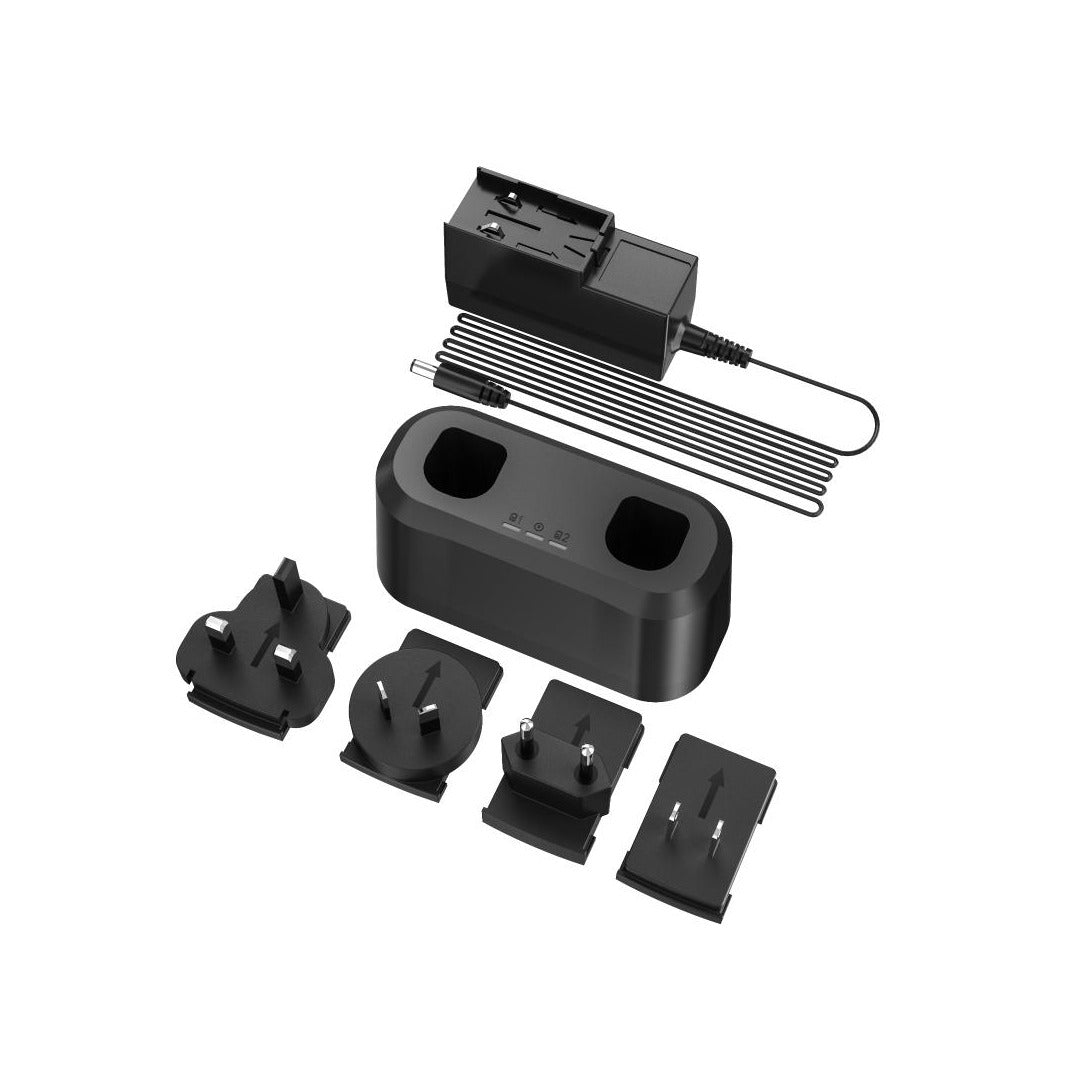

Battery Charging Time | Approx. 3 hours fully charged | |||
Protection Level | IP67, IEC 60529 | |||
Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 | |||
Safety | IEC 61010-1 | |||
EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 | |||
Vibration | 2g IEC 60068-2-6 | |||
Shock | 25 g, IEC 60068-2-27 | |||
Working Temperature Range | -20°C to 85°C (-4°F to 185°F) 150°C(302°F),15min 260°C(500°F),5min |
|||
Relative Humidity | < 95% non-condensing | |||
Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
The HIKMICRO FT31 is a high-performance firefighting thermal camera designed for firefighters to observe in total darkness and smoke, helping to save lives, protect property, and keep firefighters safe. Features like object details enhancement, easy-to-navigate buttons and a working temperature range of up to 260°C(500°F) help you work effortlessly in harsh environments. 8 color palettes for you to choose from satisfy most application scenarios.
Key Features
- Thermal resolution: 384 x 288 (110,592 pixels)
- NETD : <30 mK (@ 25°C, F#=1.0)
- Start up time: 5 second (with IR image), 10 second (with OSD)
- Support object details enhancement
- Temperature measurement range : -20°C to 1200°C (-4°F to 2192°F)
- Measurement presets: Center spot, Hot spot, Cold spot
- 60 Hz image frequency
- 4.3" LCD screen display
Infrared Image | ||||
Image Sensor | VOx Uncooled Focal Plane Arrays, Germanium protective lens cover | |||
IR Resolution | 384 x 288 (110,592 pixels) | |||
NETD | < 30 mK (@ 25°C, F#=1.0) | |||
Image Frequency | 60 Hz | |||
Detector Pitch | 17 μm | |||
Spectral Range | 7.5 to 14 μm | |||
Focal Length | 7 mm | |||
F-number | F1.6 | |||
Field of View (FOV) | 54.1°×40.2° | |||
Spatial Resolution (IFOV) | 2.42 mrad | |||
Min. Focus Distance | 1 m (3.28 ft) | |||
Focus Mode | Focus Free | |||
Image Display | ||||
Display | 800 × 480 Resolution, 4.3" LCD Screen | |||
Digital Zoom | 1x, 2x, 4x | |||
Color Palettes | Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
|||
Image Modes | Thermal | |||
Measurement and Analysis | ||||
Object Temperature Range | Range -20°C to 250°C (-4°F to 482°F) Range 200°C to 1200°C (392°F to 2192°F) |
|||
Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C (-4°F to 122°F) and object temperature above 0°C (32°F) |
|||
Measurement Tools | Center Spot, Hot Spot, Cold Spot | |||
Data Storage and Communication | ||||
Storage Media | Built-in 128 GB flash memory | |||
Image Storage Capacity | Approx. 281,600 Images | |||
Video Storage Capacity | Approx. 15.6 hours | |||
General | ||||
USB Interface | USB Type-C | |||
Battery Type | Interchangeable and rechargeable Li-ion battery | |||
Battery Operating Time | Approx. 6 hours | |||
Battery Charging Time | Approx. 3 hours fully charged | |||
Protection Level | IP67, IEC 60529 | |||
Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 | |||
Safety | IEC 61010-1 | |||
EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3 | |||
Vibration | 2g IEC 60068-2-6 | |||
Shock | 25 g, IEC 60068-2-27 | |||
Working Temperature Range | -20°C to 85°C (-4°F to 185°F) 150°C(302°F),15min 260°C(500°F),5min |
|||
Relative Humidity | < 95% non-condensing | |||
Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
