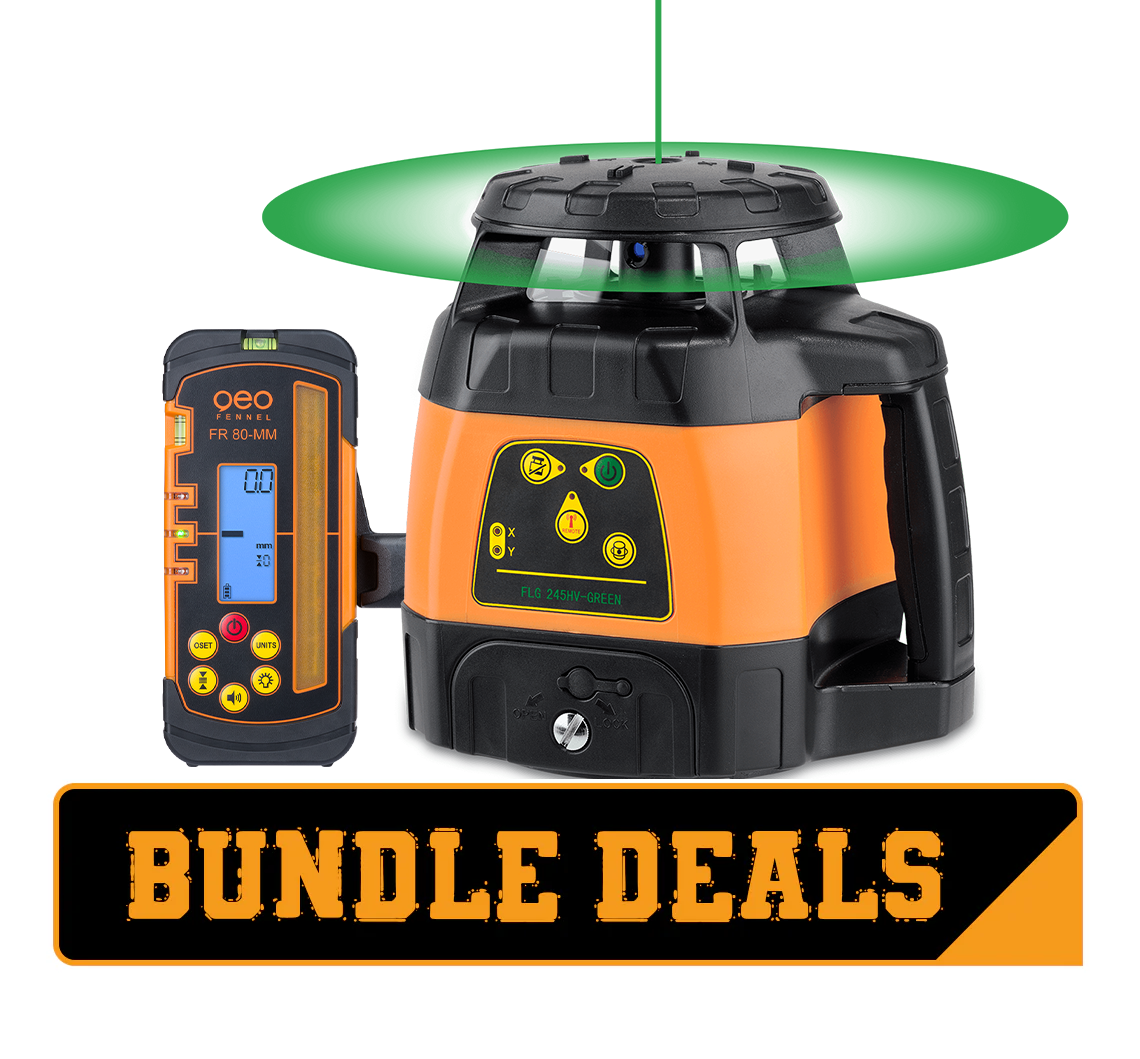

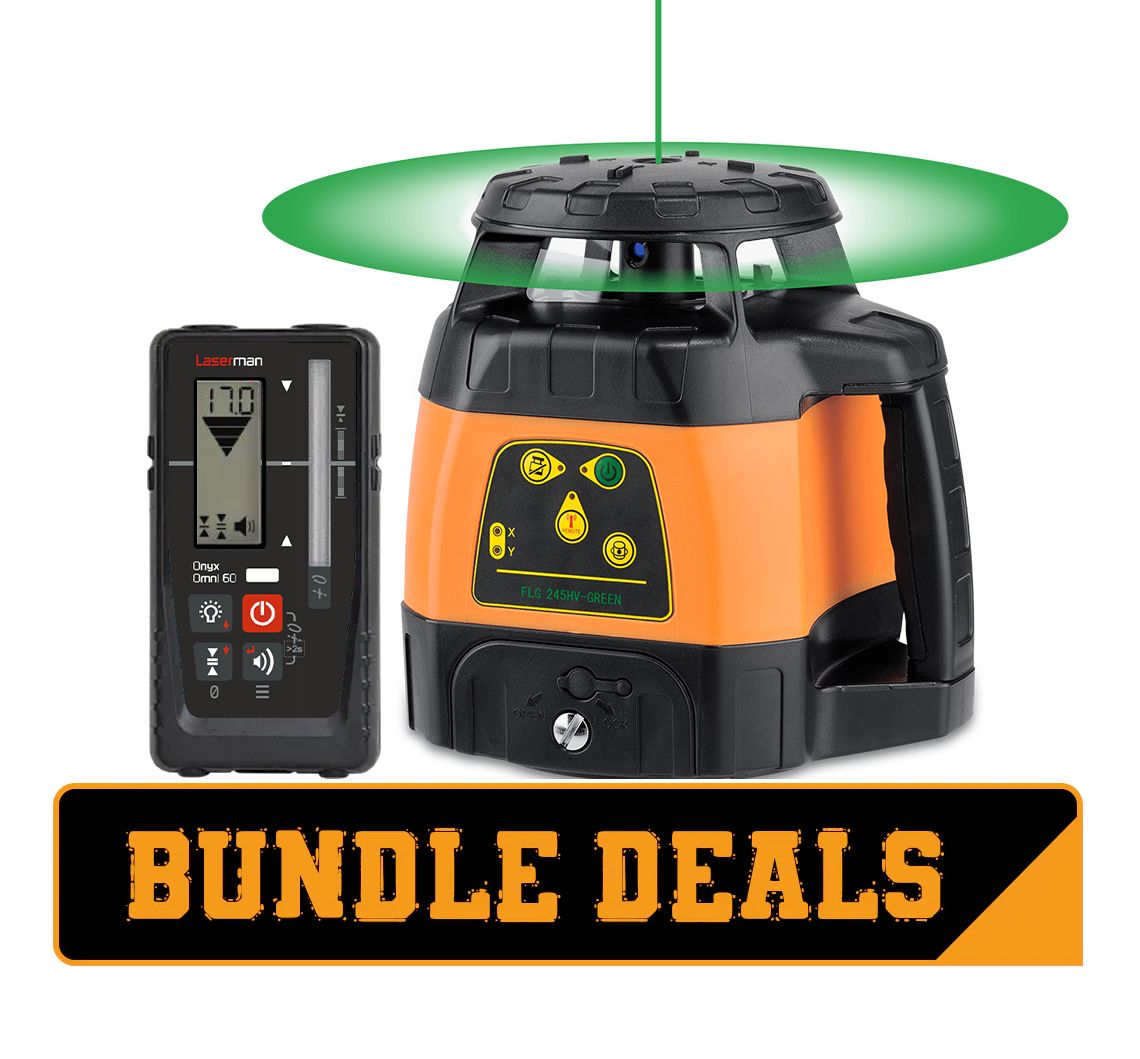

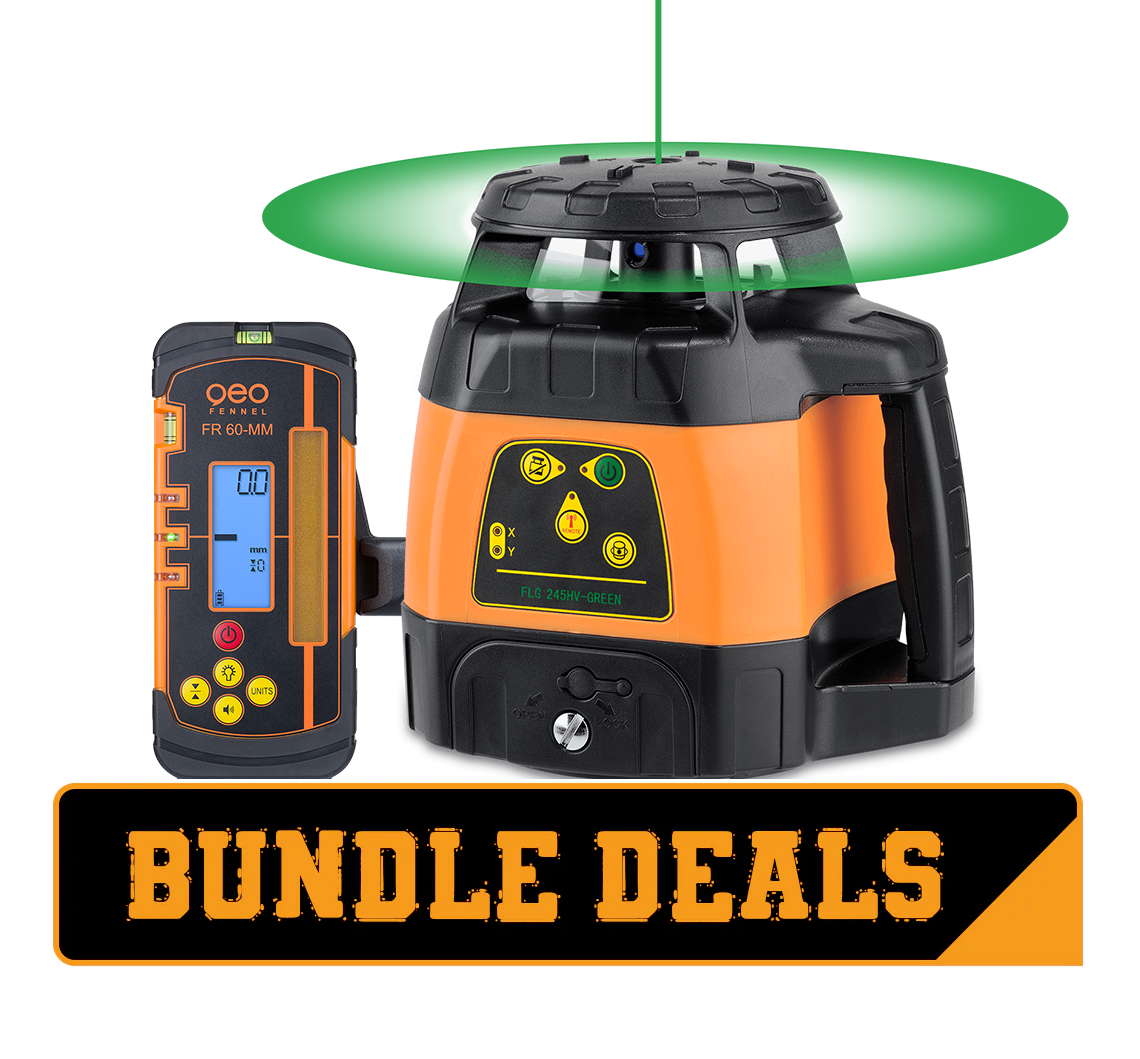

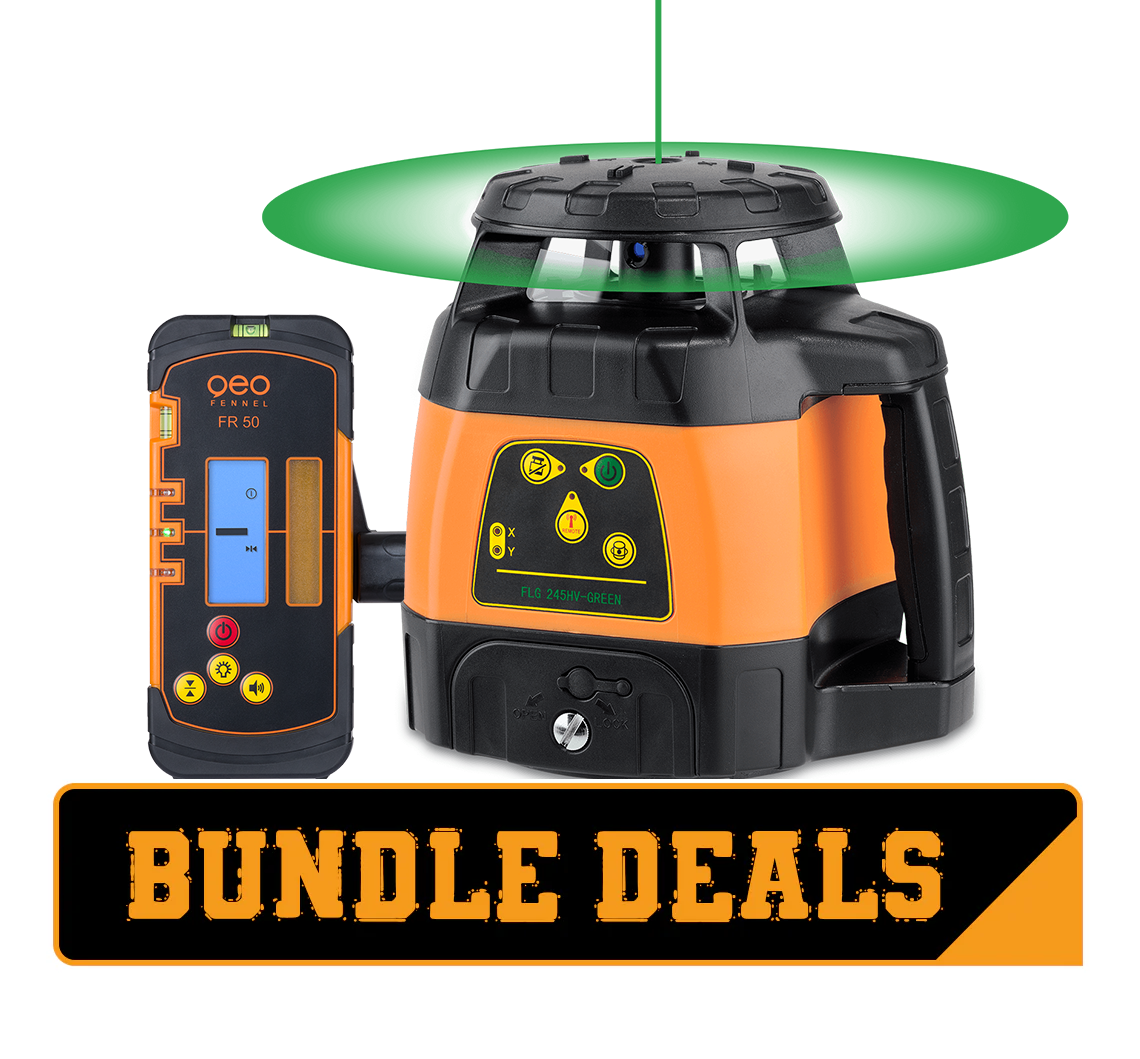

A professional multipurpose laser for indoor applications
- Green laser for enhanced visibility
- PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser
- Long distance working range and outstanding line visibility for indoor applications
User-friendly operating concept
- For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
- All additional functions including scanning and slope setting are accessed from the remote control
Highlights
- Indoor use: Outstanding line visibility without using a receiver. Versatile with rotating, scanning and point functions
- Outdoor use: IP 54 protection, long working range, TILT-Function,
- Numerous accessories supplied as standard - check them out
Features
- Working range up to 1000m diameter
- Dust / water protection IP 54
- Variable scanning and laser point mode
- Permanent 90° plumb beam
- Automatic TILT alarm function
- Auto-shut-off when out of level
- Manual slope setting of X and Y axis
- Remote control function (on/off)
Laser diode: | green |
Self-levelling: | horizontal / vertical |
Self-levelling range: | ± 5° |
Accuracy horizontal: | 1,0 mm / 10 m |
Accuracy vertical: | 1,5 mm / 10 m |
Working range without receiver: | Ø 60 m |
Working area with FR 45: | Ø 1000 m |
Working area with FR 77-MM: | keine Angabe |
Working area with FR-DIST 30: | keine Angabe |
Working range remote control: | IR 100 m |
Grade: | manual |
Slope setting manual X-Axis: | ± 5° (± 9%) |
Slope setting manual Y-Axis: | ± 5° (± 9%) |
Laser class: | 2 |
Rotating speed rpm: | 300, 800 |
Operating time: | 24 h |
Power supply: | NiMH |
Dust / water protection: | IP 54 |
Rotating w/o receiver Ø: | Ø 40 m |
Scanning w/o receiver : | 60 m (radius) |
90° plumb beam up: | yes |
Temperature range: | -20° to +50°C |
TILT-function: | yes |
Remote control function (on/off): | yes |
Laserdot mode: | yes |
Scanning: | 2 step |
|
|
|
|
|
|
|
|
Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
A professional multipurpose laser for indoor applications
- Green laser for enhanced visibility
- PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser
- Long distance working range and outstanding line visibility for indoor applications
User-friendly operating concept
- For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
- All additional functions including scanning and slope setting are accessed from the remote control
Highlights
- Indoor use: Outstanding line visibility without using a receiver. Versatile with rotating, scanning and point functions
- Outdoor use: IP 54 protection, long working range, TILT-Function,
- Numerous accessories supplied as standard - check them out
Features
- Working range up to 1000m diameter
- Dust / water protection IP 54
- Variable scanning and laser point mode
- Permanent 90° plumb beam
- Automatic TILT alarm function
- Auto-shut-off when out of level
- Manual slope setting of X and Y axis
- Remote control function (on/off)
Laser diode: | green |
Self-levelling: | horizontal / vertical |
Self-levelling range: | ± 5° |
Accuracy horizontal: | 1,0 mm / 10 m |
Accuracy vertical: | 1,5 mm / 10 m |
Working range without receiver: | Ø 60 m |
Working area with FR 45: | Ø 1000 m |
Working area with FR 77-MM: | keine Angabe |
Working area with FR-DIST 30: | keine Angabe |
Working range remote control: | IR 100 m |
Grade: | manual |
Slope setting manual X-Axis: | ± 5° (± 9%) |
Slope setting manual Y-Axis: | ± 5° (± 9%) |
Laser class: | 2 |
Rotating speed rpm: | 300, 800 |
Operating time: | 24 h |
Power supply: | NiMH |
Dust / water protection: | IP 54 |
Rotating w/o receiver Ø: | Ø 40 m |
Scanning w/o receiver : | 60 m (radius) |
90° plumb beam up: | yes |
Temperature range: | -20° to +50°C |
TILT-function: | yes |
Remote control function (on/off): | yes |
Laserdot mode: | yes |
Scanning: | 2 step |
|
|
|
|
|
|
|
|
