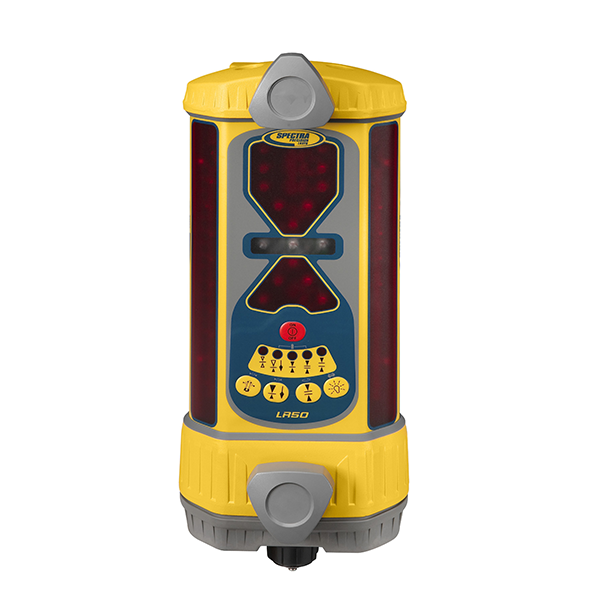

Spectra Precision LR50 Laser Machine Display Receiver
Product overview
The Spectra Precision® Laser LR50 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment.
The easy-to-use LR50 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR50 receiver withstands all weather environments. Internal isolating shock mounts protect the electronics.
Features
- Built-in blade tilt indicator helps the operators keep the blade level for increased accuracy and productivity

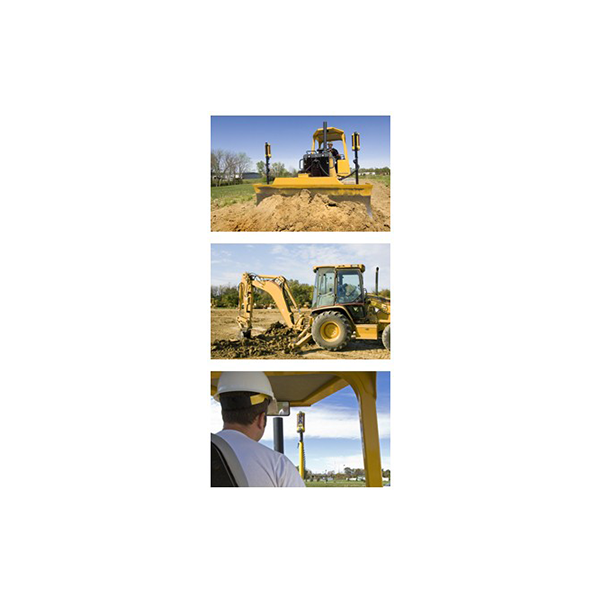

- Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades
- Offset on-grade for productive excavation provides additional above grade information for fewer undercuts
- Built-in plumb indicator for fast, accurate grade checking for excavators and backhoe's
- Up to six channels of grade information plus directional out-of-laser beam indicators
- Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility
- Adjustable, ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions
- LR50W Used with Spectra Precision RD20 Wireless Remote Display

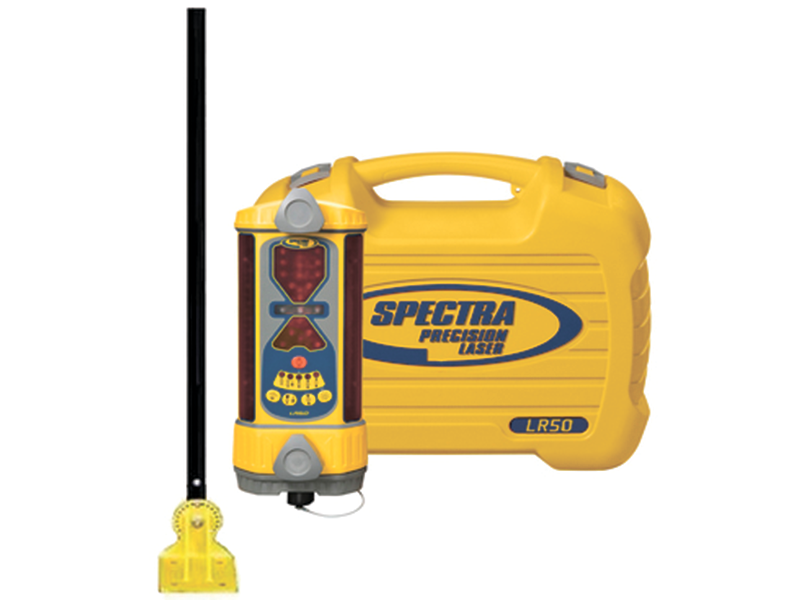

Includes:
- LR50 Laser Reciever
- Linear Display/Control
- Plumb Indicator NiMH
- Case
- Charger
Specifications
| Number of Display Channels | 5-Channel Display 6-Channel Display in excavating mode |
| Accuracy: Center on grade mode | Fine: 5 mm (0.20 in) (grading) Standard: 10 mm (0.40 in) Wide: 20 mm (0.80 in) |
| Accuracy: offset on grade mode | Fine: 12 mm (0.50 in) (excavating) Standard: 25 mm (1.0 in) Wide: 50 mm (2.0 in) |
| ACE—Angle Compensation Mode | ± 0.5°, ± 1.5°, ± 2.5° |
| Blade-Tilt Accuracy | ± 0.5°, ± 1.5°, ± 2.5° S |
| Plumb-Swing Accuracy | 171 mm (6.75 in) |
| Vertical Reception | 171 mm (6.75 in) |
| LED Battery Life | Alkaline Bright/Dim 45 / 60 hrs Wireless with remote on 20 / 30 hrs Ni-MH Bright/Dim 30 / 45 hrs Wireless with remote on 15 / 20 hrs |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
Spectra Precision LR50 Laser Machine Display Receiver
Product overview
The Spectra Precision® Laser LR50 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment.
The easy-to-use LR50 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR50 receiver withstands all weather environments. Internal isolating shock mounts protect the electronics.
Features
- Built-in blade tilt indicator helps the operators keep the blade level for increased accuracy and productivity
- Center On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades
- Offset on-grade for productive excavation provides additional above grade information for fewer undercuts
- Built-in plumb indicator for fast, accurate grade checking for excavators and backhoe's
- Up to six channels of grade information plus directional out-of-laser beam indicators
- Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility
- Adjustable, ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions
- LR50W Used with Spectra Precision RD20 Wireless Remote Display
Includes:
- LR50 Laser Reciever
- Linear Display/Control
- Plumb Indicator NiMH
- Case
- Charger
Specifications
| Number of Display Channels | 5-Channel Display 6-Channel Display in excavating mode |
| Accuracy: Center on grade mode | Fine: 5 mm (0.20 in) (grading) Standard: 10 mm (0.40 in) Wide: 20 mm (0.80 in) |
| Accuracy: offset on grade mode | Fine: 12 mm (0.50 in) (excavating) Standard: 25 mm (1.0 in) Wide: 50 mm (2.0 in) |
| ACE—Angle Compensation Mode | ± 0.5°, ± 1.5°, ± 2.5° |
| Blade-Tilt Accuracy | ± 0.5°, ± 1.5°, ± 2.5° S |
| Plumb-Swing Accuracy | 171 mm (6.75 in) |
| Vertical Reception | 171 mm (6.75 in) |
| LED Battery Life | Alkaline Bright/Dim 45 / 60 hrs Wireless with remote on 20 / 30 hrs Ni-MH Bright/Dim 30 / 45 hrs Wireless with remote on 15 / 20 hrs |
