Fluke PLS 180G KIT Green Crossline Laser Level Kit

SKU: 5009509

Not Available

Need more info? Call us +61 8 9335 1718

Fluke PLS 180G KIT, Cross Line Green Laser Kit

Product overview: PLS 180G KIT, Cross Line Green Laser Kit

The new PLS 180G green laser levels offer the durability and precision you expect from PLS, a Fluke Company. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly. Additionally, these products feature a pendulum lock to secure the laser during transport or if dropped.

  • This professional self-leveling cross line laser level in both red and green is equipped for multiple applications including wall construction, acoustic ceiling installation, tile installation, residential and commercial construction.

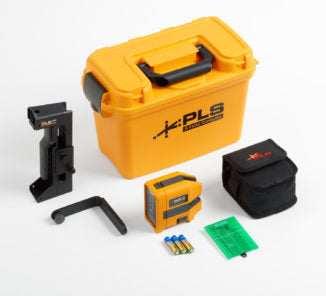

  • Kit includes magnetic L-bracket for fast, easy overhang and center- line measurements and the UB9 Universal Wall/Ceiling Bracket for fine vertical adjustment and ceiling installation.
  • System includes the SLD laser line detector for use in bright lighting, long distances, or outdoors.



Features

  • Accuracy: ≤1/8 in at 30 ft. (≤3 mm @ 10 m)
  • Green beam laser
  • Horizontal fan angle: 180 °
  • Vertical fan angle: 130°
  • Durable pendulum lock
  • IP54 rating to limit dust and water entry for years of operation on the job site.



    Specifications: PLS 180G KIT, Cross Line Green Laser Kit

    Rotary levels PLS 180R, 180G
    Battery 3 x AA Alkaline IEC LR6
    Battery Life, Continuous Use
    Red ≥ 8 hours (both lasers)
    Green ≥ 3 hours (both lasers)
    Point Laser Direction 90° up, down, left, right
    Line Fan Angle
    Horizontal ≥ 180°
    Vertical ≥ 130°
    Working Range
    Line Laser
    Without SLD ≤15 m (50 ft.)
    With SLD 6 m to 60 m (20 ft. to 200 ft.)
    Laser Leveling
    System Automatic, Pendulum
    Range
    Line Laser Width ≤2 mm at 5 m
    Temperature
    Line Laser Width ≤2 mm at 5 m
    Operating -10 °C to 50 °C (14 °F to 122 °F)
    Storage
    With Batteries -18 °C to 50 °C (-0.4 °F to 122 °F)
    Without Batteries
    Relative Humidity
    -20 °C to 70 °C (-13 °F to 158 °F)
    0 % to 90 % (0 °C to 35 °C)
    0 % to 75 % (35 °C to 40 °C)
    0 % to 45 % (40 °C to 50 °C)
    Size (H x W x L) 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
    Weight ~ 0.6 kg (1.3 lb.)
    Safety IEC 61010-1: Pollution Degree 2
    Laser IEC 60825-1:2014 Class 2
    Light Source Semiconductor laser diode
    Max Output Power < 1 mW
    Wavelength
    Red 635 nm ± 5 nm
    Green 525 nm ± 5 nm
    Electromagnetic compatibility (EMC)
    International IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B

    Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.

    Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

    Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
    Korea (KCC) Class B Equipment (Broadcast communications equipment for home)
    USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.


      What's in the box

      Accessories

      Technical Data

      PLS 6/180 Datasheet
