Major Tech MT24 1000V AC/DC Compact Multimeter

SKU: MT24

Not Available

Freight Charge for orders under $300 ex. GST / Free delivery for orders which exceed $300 ex. GST.

• If you require your order urgently, then you can choose express delivery - price TBC at point of sale.

You are most welcome to use your own courier if preferred and there is no admin fee for this.

Need more info? Call us +61 8 9335 1718

  • CAT III 600V and CAT II 1000V
  • Measures AC and DC Voltage to 1000V
  • MIN/MAX Recordings
  • Auto Range with Manual Overrid
  • Frequency measurement to 10MHz
  • -20°C to 760°C Temperature measurement
  • Capacitance to 4000μF
  • Data Hold
  • Duty Cycle
  • 6000 Count LCD with bargraph
  • Auto Power Off
  • Overmould rubber housing

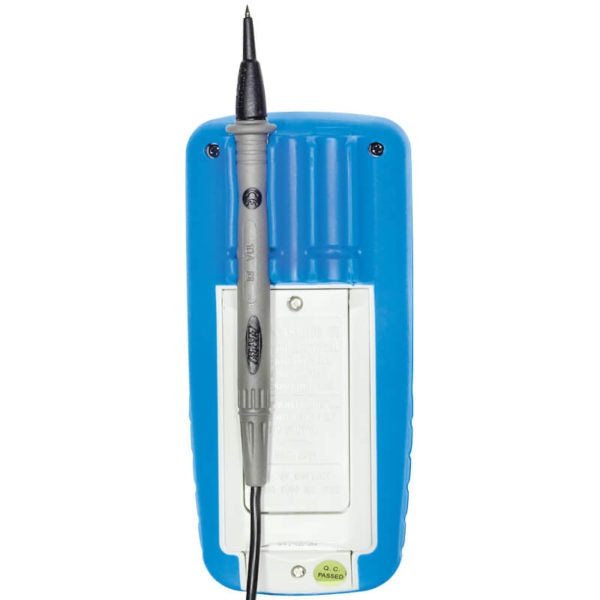

  • Integrated Test Lead Holder
  • Back light for dimly lit areas

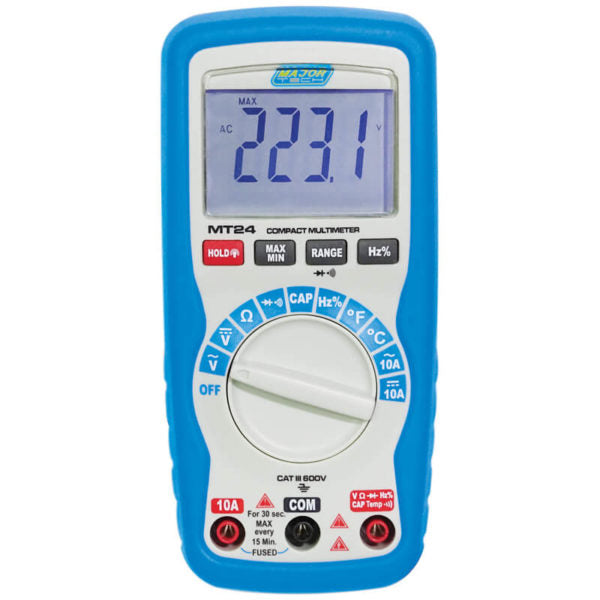

The MT24 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. The MT24 is an autoranging multimeter with the option of manual override, and has a 6000 count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000μF and resistance of 60MΩ. It has the added function of temperature measurement in either °C or °F, with a range from -20°C up to 760°C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.

Specifications

Function Range Resolution Accuracy
DC Voltage 600.0mV – 1000V 0.1mV ±(1.2% + 2 Digits)
AC Voltage 6.000V – 1000V 0.1mV ±(1.5% + 3 Digits)
DC Current 6A – 10A 1mA ±(2.5% + 5 Digits)
AC Current 6A – 10A 1mA ±(3.0% + 5 Digits)
Duty Cycle 0.1 to 99.90% 0.001 ±(1.2% + 2 Digits)
Resistance 600.0Ω – 60.00MΩ 0.1Ω ±(1.2% + 2 Digits
Frequency 9.999Hz – 10MHz 0.001Hz ±(1.2% + 3 Digits)
Capacitance 40.00nF – 4000μF 10pF ±(3.0% + 5 Digits)
Temperature -20°C to 760°C 1°C ±(3.0% + 5°C)
AC Bandwidth 50Hz to 60Hz
Digital Display 6000
Continuity Yes
Diode Test Yes
Overrange Indication Yes
Input Impedance 7.8MΩ VDC & 7.8MΩ VAC
Min Max Yes
Data Hold Yes
Enclosure Double moulded
Low Battery Indication Yes
Battery 9V
Weight 255g
Dimensions 150 x 70 x 48mm
Safety Specs IEC61010-1 CAT III 600V



Safety Ratings



Includes

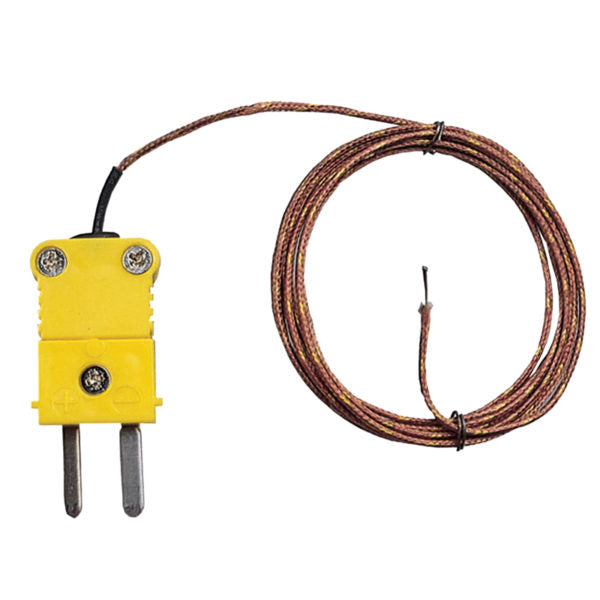

  • Type-K Temperature Probe

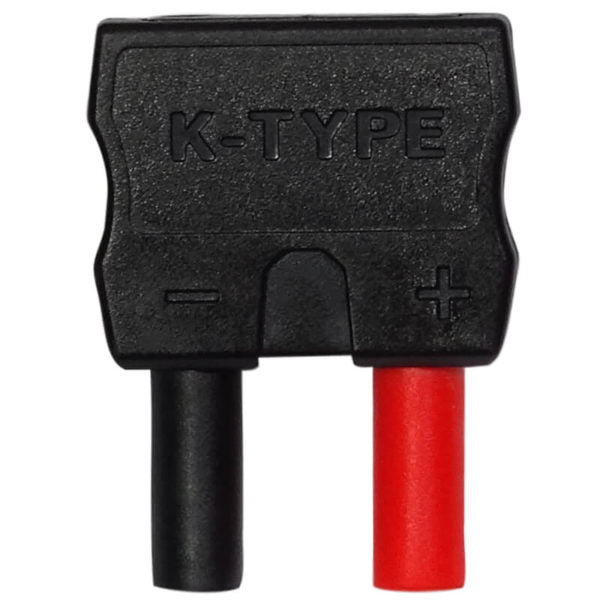

  • Type-K Adaptor
  • 9V Battery
  • Instruction Manual

Downloads

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

  • CAT III 600V and CAT II 1000V
  • Measures AC and DC Voltage to 1000V
  • MIN/MAX Recordings
  • Auto Range with Manual Overrid
  • Frequency measurement to 10MHz
  • -20°C to 760°C Temperature measurement
  • Capacitance to 4000μF
  • Data Hold
  • Duty Cycle
  • 6000 Count LCD with bargraph
  • Auto Power Off
  • Overmould rubber housing
  • Integrated Test Lead Holder
  • Back light for dimly lit areas

The MT24 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. The MT24 is an autoranging multimeter with the option of manual override, and has a 6000 count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000μF and resistance of 60MΩ. It has the added function of temperature measurement in either °C or °F, with a range from -20°C up to 760°C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.

Specifications

Function Range Resolution Accuracy
DC Voltage 600.0mV – 1000V 0.1mV ±(1.2% + 2 Digits)
AC Voltage 6.000V – 1000V 0.1mV ±(1.5% + 3 Digits)
DC Current 6A – 10A 1mA ±(2.5% + 5 Digits)
AC Current 6A – 10A 1mA ±(3.0% + 5 Digits)
Duty Cycle 0.1 to 99.90% 0.001 ±(1.2% + 2 Digits)
Resistance 600.0Ω – 60.00MΩ 0.1Ω ±(1.2% + 2 Digits
Frequency 9.999Hz – 10MHz 0.001Hz ±(1.2% + 3 Digits)
Capacitance 40.00nF – 4000μF 10pF ±(3.0% + 5 Digits)
Temperature -20°C to 760°C 1°C ±(3.0% + 5°C)
AC Bandwidth 50Hz to 60Hz
Digital Display 6000
Continuity Yes
Diode Test Yes
Overrange Indication Yes
Input Impedance 7.8MΩ VDC & 7.8MΩ VAC
Min Max Yes
Data Hold Yes
Enclosure Double moulded
Low Battery Indication Yes
Battery 9V
Weight 255g
Dimensions 150 x 70 x 48mm
Safety Specs IEC61010-1 CAT III 600V



Safety Ratings



Includes

  • Type-K Temperature Probe
  • Type-K Adaptor
  • 9V Battery
  • Instruction Manual

Downloads
