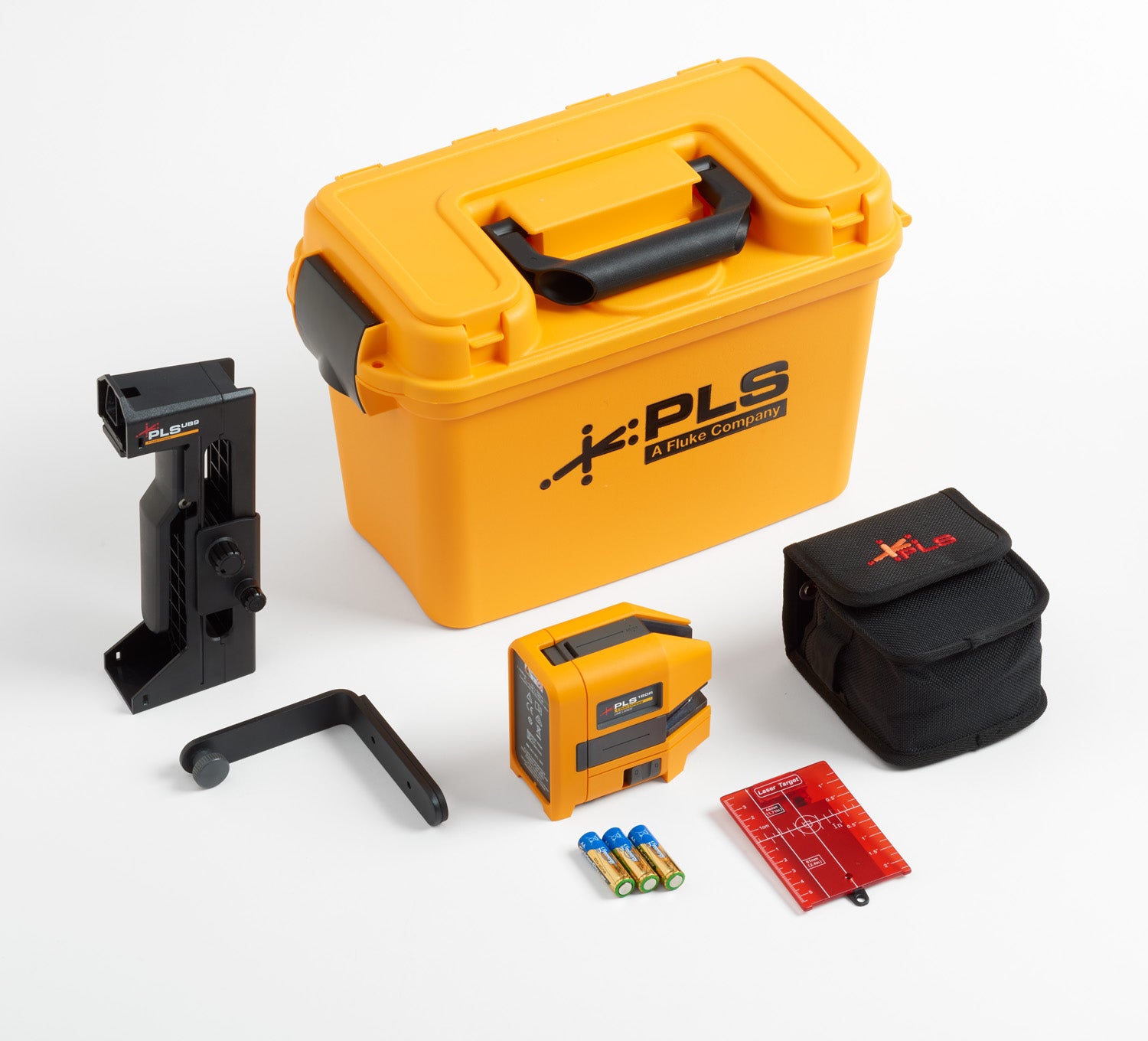

Fluke PLS 180R KIT Red Crossline Laser Level Kit

SKU: 5009450

Not Available

Need more info? Call us +61 8 9335 1718

Fluke PLS 180R KIT, Cross Line Red Laser Kit

Product Overview

The PLS 180 R is a professional self-leveling crossline laser level equipped for multiple applicationsincluding wall construction, acoustic ceiling installation, tile installation, residential and commercial construction.

Features

  • SLD laser line detector for use in bright lighting, long distances, or outdoors
  • Pendulum Lock, for added durability and projecting a line on a slope
  • Kit includes magnetic L-bracket for fast, easy overhang and center-line measurements and theUB9 Universal Wall/Ceiling Bracket for fine vertical adjustment and ceiling installation.



Specifications: PLS 180R KIT, Cross Line Red Laser Kit

Rotary levels PLS 180R, 180G
Battery 3 x AA Alkaline IEC LR6
Battery Life, Continuous Use
Red ≥ 8 hours (both lasers)
Green ≥ 3 hours (both lasers)
Point Laser Direction 90° up, down, left, right
Line Fan Angle
Horizontal ≥ 180°
Vertical ≥ 130°
Working Range
Line Laser
Without SLD ≤15 m (50 ft.)
With SLD 6 m to 60 m (20 ft. to 200 ft.)
Laser Leveling
System Automatic, Pendulum
Range
Line Laser Width ≤2 mm at 5 m
Temperature
Line Laser Width ≤2 mm at 5 m
Operating -10 °C to 50 °C (14 °F to 122 °F)
Storage
With Batteries -18 °C to 50 °C (-0.4 °F to 122 °F)
Without Batteries
Relative Humidity
-20 °C to 70 °C (-13 °F to 158 °F)
0 % to 90 % (0 °C to 35 °C)
0 % to 75 % (35 °C to 40 °C)
0 % to 45 % (40 °C to 50 °C)
Size (H x W x L) 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
Weight ~ 0.6 kg (1.3 lb.)
Safety IEC 61010-1: Pollution Degree 2
Laser IEC 60825-1:2014 Class 2
Light Source Semiconductor laser diode
Max Output Power < 1 mW
Wavelength
Red 635 nm ± 5 nm
Green 525 nm ± 5 nm
Electromagnetic compatibility (EMC)
International IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B

Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.

Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
Korea (KCC) Class B Equipment (Broadcast communications equipment for home)
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

    Additional information

    Accuracy

    1/8" @ 30' (3mm @ 10m)

    Batteries

    Alkaline – 3 AA (included)

    Laser Class

    Class II

    IP Rating

    Product IP Rating 54

    Operating Time

    ≥ 8 hours



    What's in the box

    Accessories

    Technical Data

    PLS 6/180 Datasheet
