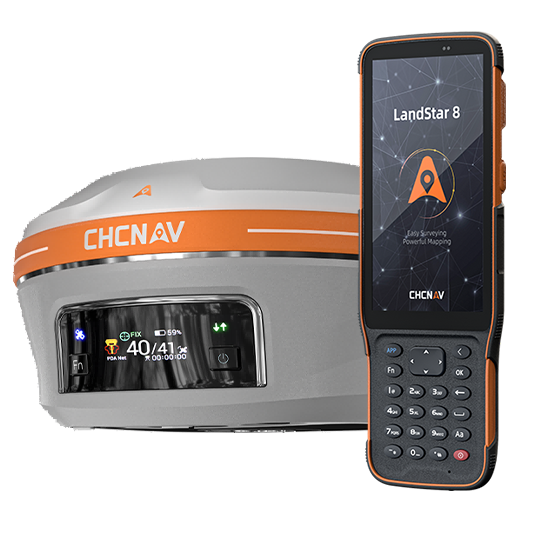

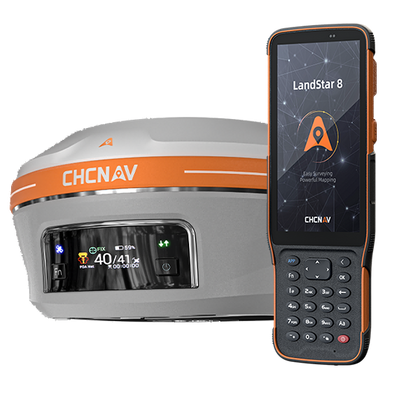

CHCNAV i93 W/ HCE600 Rover Kit - GNSS Receiver with UHF Whip Antenna

CHCNAV i93 W/ HCE600 Rover Kit - GNSS Receiver with UHF Whip Antenna

SKU: 8001010368

Need more info? Call us +61 8 9335 1718

Price Match International Orders Tax Removed

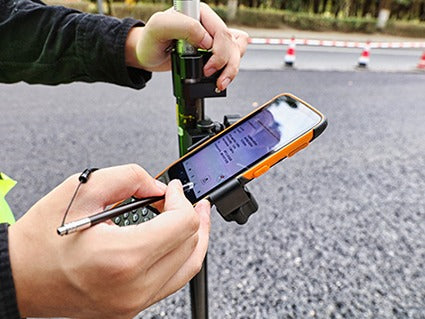

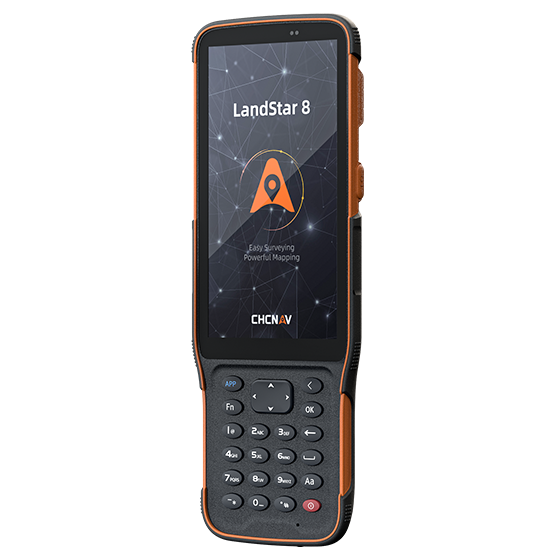

CHCNAV HCE600

Rugged Field Controller for Surveying and Mapping

Highlights
The HCE600 is a lightweight, professional Android data collector designed for field surveying and mapping. With a 5.5-inch DragonTrail™ display, it offers exceptional durability and clear visibility in sunlight. Packed with Bluetooth 5.0, dual-band Wi-Fi, and a 4G modem, it ensures seamless connectivity with GNSS receivers and RTK networks. Certified to IP68 and MIL-STD-810H standards, the HCE600 is built to withstand harsh environments, making it the ideal handheld controller for reliable data collection in any conditions.

Main Features

DragonTrail™ Glass
5.5-inch HD+ screen with 500 nits brightness.

Rugged
IP68 and MIL-STD-810H for dust, water and shock resistance.

Long Battery Life
6240 mAh battery for up to 14 hours of continuous operation.

High Connectivity
Bluetooth 5.0, dual-band Wi-Fi, 4G modem.

Benefits and Performances

Powerful Performance
Achieve high performance with the Helio MTK 6762 octa-core processor running at up to 2 GHz. Android OS coupled with 3GB of SDRAM and 32GB of flash memory ensure smooth operation and efficient data processing.

High-Visibility Display
Work efficiently in any lighting condition with the 5.5-inch, 500 nits HD+ display. The screen provides clear, legible data even in direct sunlight, enabling uninterrupted fieldwork.

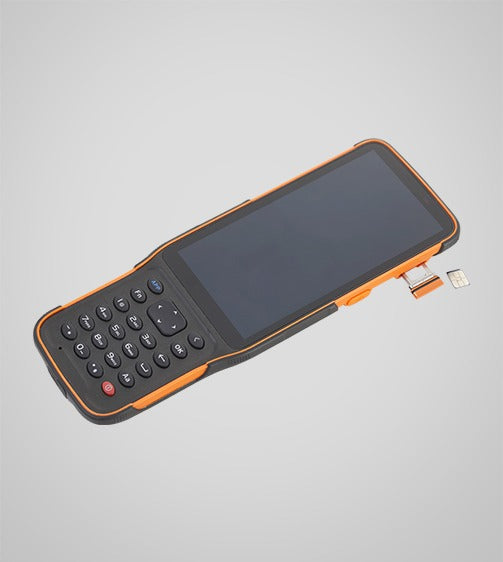

Comprehensive Connectivity
Enjoy seamless connectivity to GNSS receivers and RTK networks with Bluetooth 5.0, dual-band Wi-Fi (2.4G/5G) and a built-in 4G modem. The HCE600 ensures reliable communication and data transfer in the field.

Rugged and Durable Design
The HCE600's IP68 and MIL-STD-810H-rated housing can withstand harsh field conditions. The DragonTrail™ glass display offers scratch resistance and durability for long-term performance.

Lightweight and Ergonomic
Work in comfort with the HCE600's lightweight (345g) and ergonomic form factor. The one-handed grip and customizable shortcut keys enhance the user experience and make it easier to collect data.

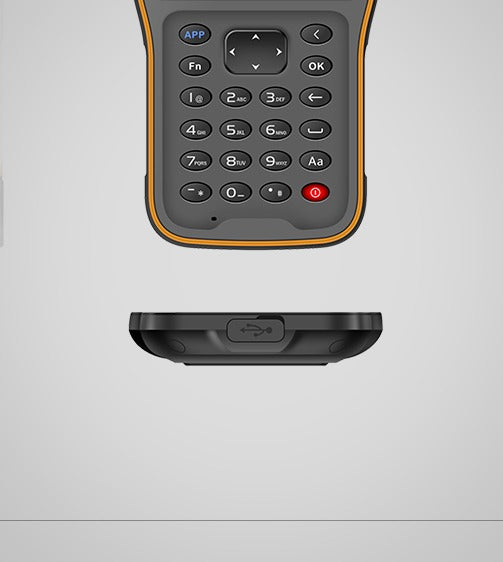

Extended Battery Life
The HCE600 lithium-ion battery provides up to 14 hours of continuous use without frequent recharging, allowing you to work all day in the field.

Specification

Display
Screen size : 5.5" touchscreen
Screen resolution : 1440 x 720
Positioning
GNSS : GPS, GLONASS, Galileo, BeiDou
System
Operating System : Android
Processor : Octa-core 2.0 GHz
Memory : 3 GB SDRAM - 32 GB ROM
Connectivity
Wireless : Bluetooth, Wi-Fi, NFC
Cellular : 4G LTE, GSM, WCDMA

CHCNAV i93 Advanced IMU-RTK with Visual Surveying

Highlights

The i93 Visual IMU-RTK GNSS receiver combines advanced GNSS, IMU, and dual-camera video-photogrammetry to deliver a superior user experience. Its 3D visual stakeout and offset measurement features boost efficiency on construction sites. Powered by the CHCNAV iStar algorithm, it uses multi-band GNSS channels and hybrid positioning for reliable accuracy in challenging environments, making it a versatile tool for any project.

Main Features

Visual Surveying

Dual cameras extract survey-grade 3D coordinates improving measurement efficiency.

Visual Stakeout

Guidance by a clear, eye-catching directional information.

3D Modeling

Dynamic panoramic video capture.

Auto-IMU Technology

200 Hz Auto-IMU for automatic pole tilt compensation.

Benefits and Performances

AR Visual Stakeout

The i93 cameras provide an immersive 3D visual stakeout experience. With the 3D visual view, surveyors are guided by a clear, bold directional arrow and real-time distance to the stakeout point and lines marked directly on the ground.

3D Visual Surveying

The i93 quickly delivers survey-grade 3D coordinates from real-world video capture, making it easy to survey hard-to-reach, signal-obstructed, or hazardous points in the field—such as areas under overpasses, eaves, or near power poles.

3D Modeling

By merging drone data with the i93's dynamic panoramic video capture, 3D joint modeling of buildings and facades is easily achieved. Compatibility with standard 3D modeling software provides flexibility and convenience.

Auto-IMU Technology

The i93's Auto-IMU provides simple and reliable pole tilt compensation, delivering accuracy to within 3 cm over a 60-degree tilt range without the need for manual initialization.

Superior GNSS Performance

Experience unmatched GNSS performance with the i93’s 1408-channel receiver. Supporting GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS constellations, the iStar2.0 algorithm provides over 96% reliable fix rate in areas of high solar activity.

Versatile Field Use

The i93 offers all the connectivity features a surveyor needs for any project scenario. Built-in Wi-Fi, Bluetooth, and NFC technologies ensure seamless connections to field data controllers. Integrated 4G and UHF modems support all GNSS RTK surveying modes.

Detailed Specifications

Positioning

GNSS : Full GNSS
IMU : 200 Hz
Precision max. : 0.8 cm H / 1.5 cm V

Sensors

Camera : Dual

Physical

Weight : 1.15 kg
Dimensions : 152 x 81 mm
Battery life : Up to 34 hours RTK rover

Connectivity

Wireless : Bluetooth, Wi-Fi, NFC
Cellular : 4G LTE
Modem : 410-470 MHz, Rx/Tx

Includes - i93 W/ HCE600 Rover Kit	1
i93 GNSS Receiver	1
UHF Whip Antenna(450-470MHz KQT450GT）	1
Type-C USB Cable	2
Transport Hard Case/ Rover	1
Transport Hard Case/ rover inner carton box	1
Transport Hard Case/ rover outer carton box	1
GNSS Receiver Case Label (CHCNAV)	1
Range Pole (AR)	1
Auxiliary H.I. Tool (Silver)	1
Power Adapter (5V2.4A)	2
HCE600 Handheld GNSS Data Collector W/Hand Strap	1
Android Stylus	1
Controller Bracket（Cramp）	1
Landstar 8 Data Collection Software (Android)	1
