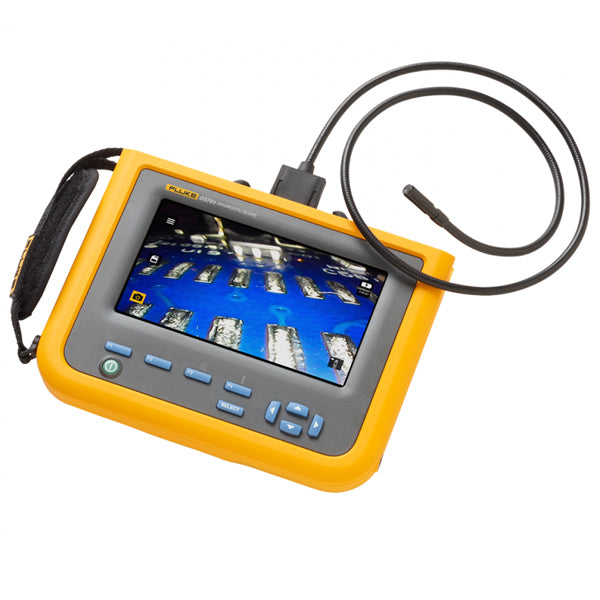

Fluke FLK-DS701 Diagnostic Videoscope (item no. 4962652)

SKU: 4962652

Not Available

Similar/Suggested Product:

Fluke FLK-DS703 FC High Resolution Diagnostic Videoscope W/ Fluke Connect (item no. 4962665)

Fluke DS703 FC High Resolution Diagnostic Videoscope with Fl...

SKU: 4962665

$4,017.00
Need more info? Call us +61 8 9335 1718

(item no. 4962652)

Product overview

Diagnostic scope with 7” LCD screen for accurate inspections in difficult to reach spaces. Adjustable LED lighting and digital zoom for quality images. Up is Up® technology rotates the display screen to allow for appropriate image display, regardless of the orientation of the probe. Intuitive user interface with easy to navigate button technology.



Expand the flexibility of your videoscope with optional probes offering cameras that range in diameter from 3.8 MM to 8.5 MM and probes as long as 20 meters.  Equip yourself the right probe for your environment.

Features

  • High definition probe with dual-view camera
  • Processing speeds that render a smooth, clear, consistent image
  • 7” LCD screen for easy viewing
  • Macro to micro zoom function
  • Adjustable lighting to capture the best image
  • Up is Up® technology for an appropriate orientation, regardless of the probe location

Specifications: Fluke DS701 Diagnostic Scope

Videoscope probe
Length 1.2 meter (3.94 feet)
Type Detachable, semi-ridged, waterproof, immersible to 1 meter or more in depth
Diameter 8.5 mm (0.33 inches), optional 3.8, 5.5 and 9 mm probes available
Material Elastomer coated steel
Lighting Adjustable LED, on front, one side
Illumination 53 Lux
Up is Up™ Technology Appropriate image display, regardless of the orientation of the probe, 8.5 MM, 1.2 M probe only

Camera
Dual view camera, forward and side
Resolution 800 x 600 (480,000 pixels)
Still image format JPG
Video Recording Format AVI
Video Output Format MPEG compression
Digital zoom Adjustable from 1x to 8x zoom
Field of view 68°
Depth of field 25 mm to infinity
Video resolution Standard
Minimum focus distance 10 mm
Focus Type Fixed
Rotation 180°
Streaming video N/A

LCD Screen
Touch Screen N/A
Size 7 inch (17.79 cm)
Refresh rate 30 hz
Up is Up™ technology Real-time upright adjustment for image
LED backlight Adjust display brightness for optimal viewing

Communication
Wireless Interface N/A
Data Transfer USB
Fluke Connect™ N/A
Instant upload to the cloud N/A

General Features
Color palettes Visible light, grayscale or inverted
Internal memory 6 GB
Physical buttons Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button
Carrying case Protective EVA case
Strap Hand strap
Power adapter AC adapter/battery charger input
Battery 6400mAh 3.7 volt rechargeable internal li-ion battery
Battery life 3 hours at 50 % LED brightness
Dimensions 6.98 x 8.85 inches (17.73 x 22.48 cm)
Weight 1.95 lbs (0.88 Kg)

IP Rating
Tablet IP54, dust protected and protected against water projected from a nozzle
Probe IP68, dust tight and immersion of 1 meter or more depth
Drop Test 2 meter (6.56 feet)
Operating temperature 0 °C to 45 °C (32 °F to 113 °F), 50 °C (113 °F) for less than 10 minutes
Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)
Operating humidity 90 % at 35 °C (95 °F)
75 % at 40 °C (104 °F)
45 % at 50 °C (122 °F)
Warranty 2 years

Probe Accessories Specifications
Probe Views Up-is-Up DS701-Display resolution DS703-Display Resolution Imager Resolution
Standard Probe. 8.5mm 1.2M Dual Yes 800 X 600 1200 X 720 1280 x 720
3.8mm , 1M Forward X 800 X 600 1200 X 720 720 x 488
8.5mm, 3M Dual Yes 800 X 600 1200 X 720 1280 x 720
5.5mm, 1M Dual X 800 X 600 1200 X 720 640 x 480
8.5mm UV, 1M Dual X 800 X 600 1200 X 720 1280 x 720
9mm, 20M Forward X 800 X 600 1200 X 720 720 x 488





Resources: Fluke DS701 Diagnostic Scope

Manuals

Brochures

Data Sheet

Application Note
