Z3D-CONTROL 3d measuring system

Posted by Stephen Ferguson at

Z3D-Control is a laser and camera based 3D-measuring and control system. Defective areas are marked via laser projection directly onto the work surface.

Z3D-Control not only means the support and optimization of the manufacturing process but also marker less measuring of the work piece with an impressive exactness of 1/10,000 of the measuring area. The laser based scan is able to detect profiles of less structured and uncooperative surfaces, thus allowing even the measurement of glowing steel.

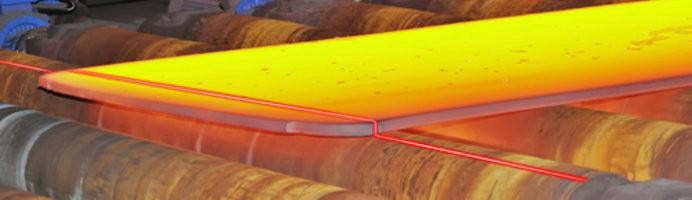

However a most important and unique advantage of Z3D-Control is its special control feature: In addition to the common comparison between 3D-scandata and the CAD scheme, Z3D-Control indicates the defective areas via laser projection directly on the work piece - This function gives the worker an exactly located correction field and instruction.



Features

Laser projector and stereo cameras for measuring and calibration

Projection after measurement

Accuracy up to 1/10,000 parts of the measuring range

Measuring range freely adjustable

Reading of less structured objects and non-cooperative surfaces

No marker needed on the object

Immediate tracking of location position (continuous in real time)

Projector will be calibrated dynamically (managed by cameras)

Robust against stray light and reflections

Laser safety (class 2M)

Projection with large optical depth of focus

Software easy to handle

Supports typical data formats



APPLICATION: Even red hot metals need to be inspected, which is why optical measuring systems or lasers are suitable.



Particular requirement:

• Reliable measuring results under difficult circumstances



Your benefits:

• Non-touch measurement
