Z-Laser ZRX Series Laser  ZRX Green - Cross Laser, Aligning Laser, Line Laser, Laser Guide, Laser Module, Laser Generator

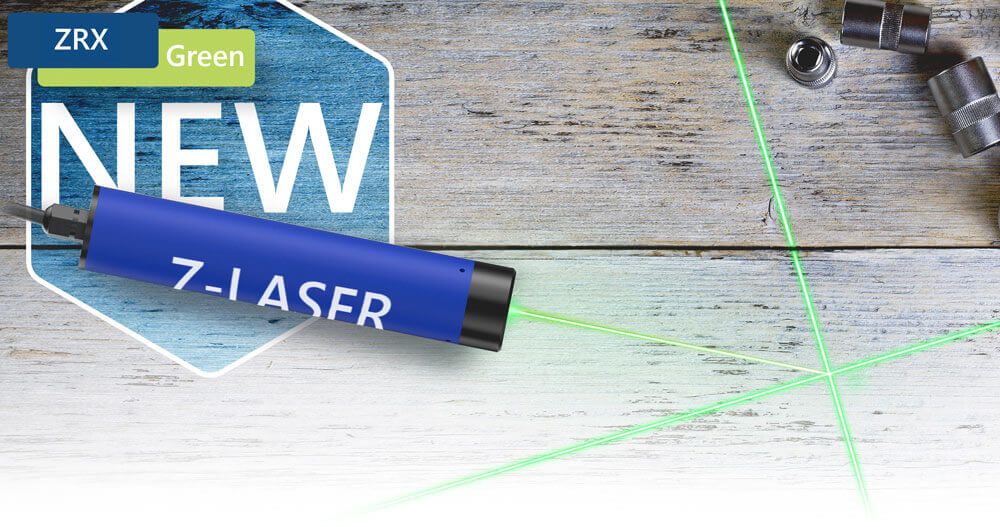

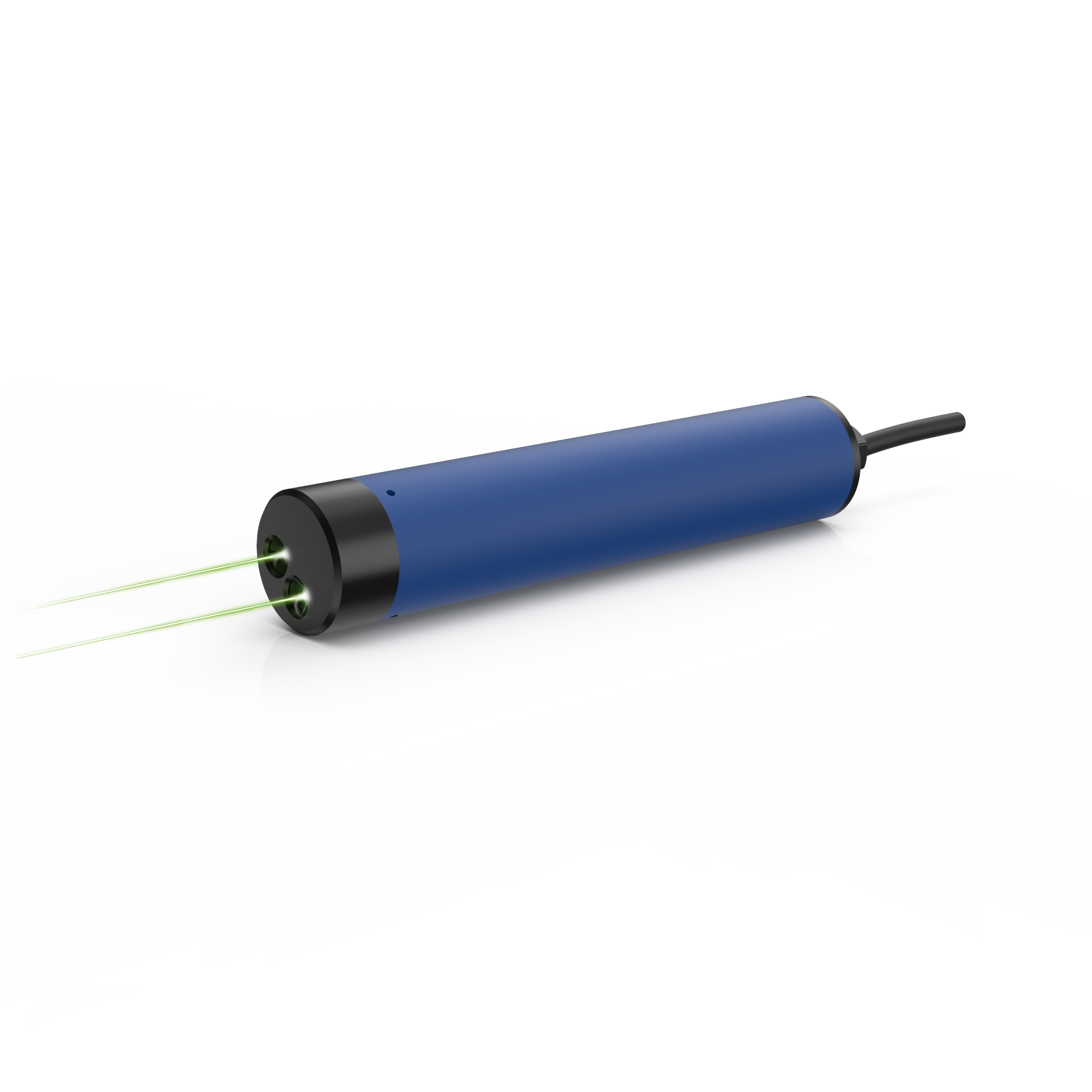

The ZRX cross laser projects a red or green cross of up to 5 m x 5 m at a distance of 4 m. This is made possible by two powerful diode lasers in the casing which ensure a high brightness level.

The integrated power supply, together with the robust casing allow for easy handling of the positioning aid with high immunity to interference. The cross laser ZRX can be used even in very harsh environments.

Description:

Cross laser for positioning tasks

This robust laser module for positioning tasks can be used in all industries where a highly visible crosshair with thin lines is needed.

Main fields of application include:

  • Aligning fabric on spreading tables
  • CNC milling (eg., in the wood industry)

The laser module contains two laser diodes of up to 20 mW each. This allows a particularly for visible crosshair to be projected. At the same time, the lines are extremely fine. Thus, the laser attains a cross projection of up to 5m x 5m at a distance of 4m. The integrated power supply guarantees high immunity to interference.

 Additional Information

Weight 590 g
Dimensions 201 × 40 mm
Wavelength

520 nm, 635 nm

Output power

10 mW, 15 mW, 20 mW, 5 mW

Projection

Cross

Focus

fixed focus

Diameter

40 mm

Supply voltage

90 bis 265 VAC

IP protection class

IP 65

Application

Assembling, Mounting/set-up, Positioning

Particularity

Lasers for cross projection up to 4 x 4m at a 3m distance, Best visibility (2 line lasers in one casing)
