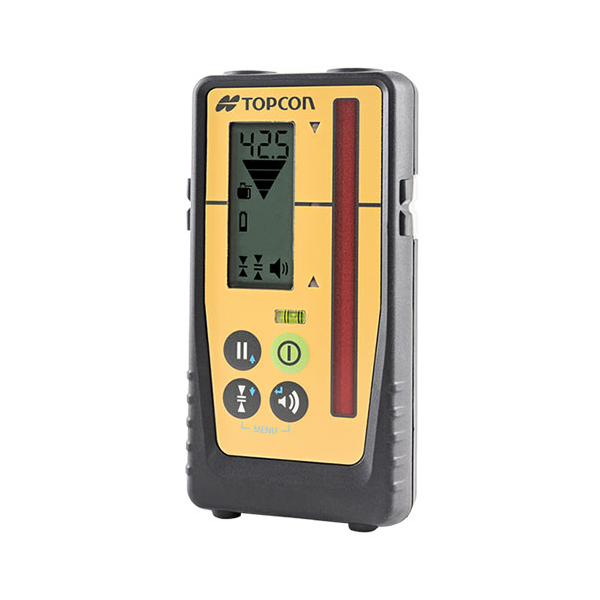

Topcon LS-100D Laser Receiver



The LS-100D is the latest addition to the Topcon laser receiver range. The LS-100D is designed to make elevation and vertical alignment control faster and easier in any application, with a digital readout of millimeters from grade.  The LS-100D is a high precision sensor that can meet the demands of even the toughest job.

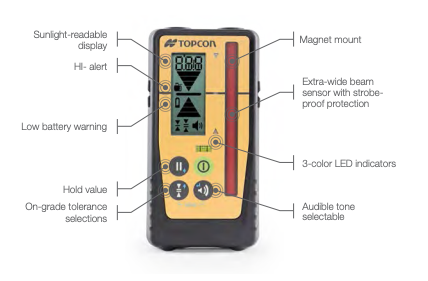

Features

  • 4 accuracy resolutions from ±0.5mm to ±10mm
  • 90mm reception height for extra-wide beam capture sensor
  • Built-in magnets for vertical & horizontal steel erection
  • Hold button for locking display to read elevation results
  • Large & bright LCD displays (front & back)
  • Three colored LEDs
  • The perfect partner for the RL-H4C, RL-SV2S or the RL-200 series.

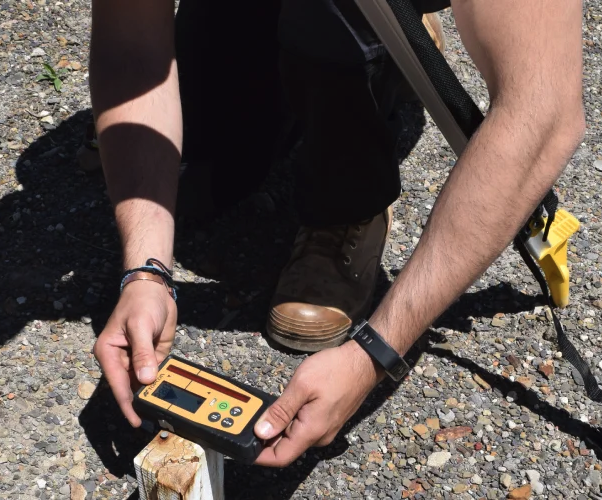

Applications

  • Site preparation
  • Earthworks
  • Drainage





Specifications

Working Range (diameter) 800 m with the RL-H4C, RL-SV2S, and RL-200 Series
Vertical Detecting Range 90 mm (3.5 in.); (-30 mm to +60 mm) (-1.1 in to +2.3 in.)
LCD Digital Readout Range 70 mm (2.7 in.); (-20 mm to +50 mm) (-0.7 in. to +1.9 in.)
Horizontal Detecting Range ±45º
Strobe Light Suppression Yes
Unit mm / cm / inch / fractional inch
On-Grade Resolution

±0.5 mm (±0.02 in.)
±1.0 mm (±0.05 in.)
±2.0 mm (±0.10 in.)
±5.0 mm (±0.20 in.)
±10.0 mm (±0.50 in.)

LCD Grade Indicators 9 Channels
LED Grade Indicators Orange, Green, Red (On/Off selectable)
Display LCD on each side
Buzzer Loud/Low/Off selectable
Bubble Tube Yes
Warning Icons  HI Alert, Low Battery (for the RL-H4C, RL-SV2S, and RL-200 Series)
Battery One AA/LR6 dry-cell battery
Operating Time Up to 45 hours with alkaline batteries
Battery Level Indicator  LCD Icon
Auto Shut-off  Approx. 30 minutes
Dust/Water Rating IP67 (IEC 60529)
Operating Temperature -20°C to 50°C
Dimension (l x w h) 134 x 69 x 25 mm
Weight 190 g (including one AA/LR6 battery)

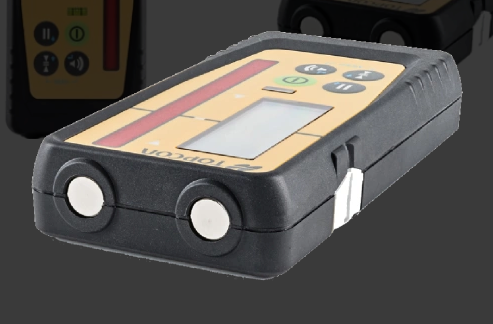

Magnet Mount Two round magnets on top

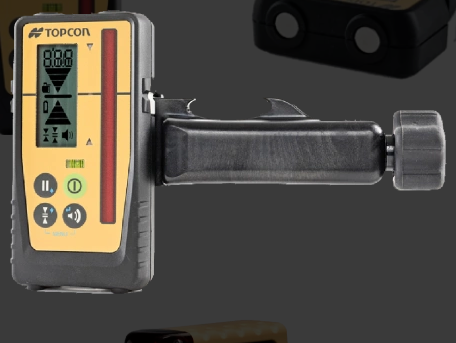

Sensor Holder 100 Screw mount (standard component)

Download Brochure
