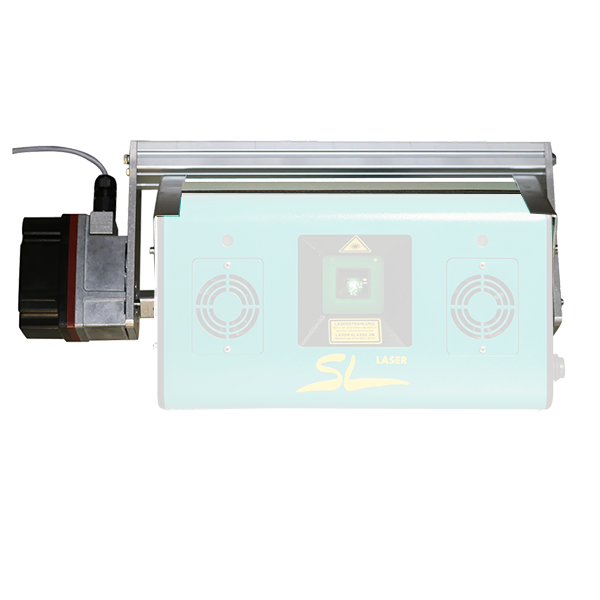

SL-Laser Swivel device

If you use projection systems, one or more ProDirectors, and you want them to have optimal projection on different shapes, then the angle is important. For example, in multitooling applications, one or more projectors can be combined to project on multiple forms. Each component requires its own specially optimized angle to exploit the maximum projection area and optimum angle can be changed manually by turning the devices by hand. This is risky and time consuming as the devices are high above the work area.

The ProDirector swivel device is the easy solution. A geared motor is setting the angle operated by two buttons. The positioning of the laser is stepless and precise. Thus you always have the best angle for the projection on the component.

System Specifications

   Power Supply   Voltage:   230 VAC
  Power:    18 VA
  Fixture   Tube(40mm)
  Angle    Max/min:   ± 45 degrees
  Angle Velocity   Typ.:   90 degr. / 15 s
  Humidity   Proof standard: IP65
  Force   Typ.:   20 Nm
  Weight    Typ.:   7 Kg
