Features

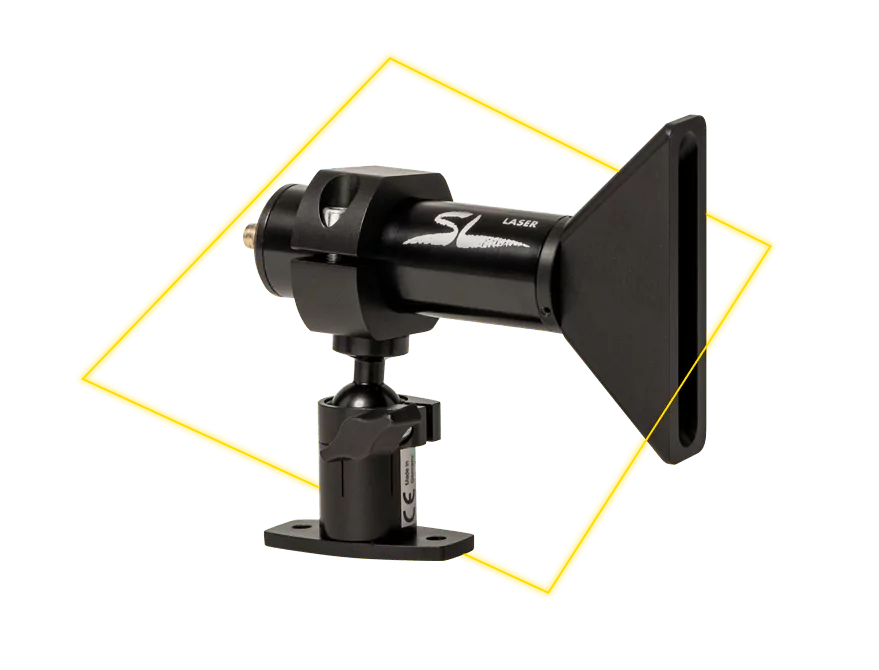

The "Positioning laser“ combines sturdy durability and reliable accuracy in a versatile alignment laser. SL Positioning laser modules consist of a laser diode, optics and driver electronics constructed in a rugged isolated housing suitable for industrial environments.
- Compact Design
- Electrically Isolated Housing
- Constant Output Power
- Wide Temperature Range for Operation and Storage
Applications
A wide range of applications includes the positioning of tools, fixtures and materials and the alignment of instruments and machines.
- Alignment and Measurement
- Wood Processing
- Machinery Manufacturing and OEM Integration
Specifications
| Colour | Diode Power | Max. Output | Focusable | Optics | Laser Class |
| red | 10mW | < 1mW | yes | Line | 2M |
| red | 10mW | < 1mW | yes | Cross | 2M |
Line generator for line length: 10°, 15°, 30°, 45°, 60°, 90°
Specifications overview
| Mechanical Specifications: | Housing: Anodised Aluminium, Ø 30 x 88.5 mm, Weight: 300g incl. Cable Leads |
| Optics: | Line or Cross |
| Optical Properties: |
Laser Diode, Wavelength 635nm (red), Diode Power: 10mW Optics: homogeneous Line, Lifetime: > 20.000 h |
| Laser Class: |
Laser Class 2M, EN 60825-1:2015-07, IEC60825-1, EN76-2 21CFR 1040, CE
|
| Inspection and Safety: |
Temperature Range 0°C .. +50°C, IP 65, max. Shock 4 g
|
| Electrical Values: |
Voltage 16-33 VDC, (+)bn (-)bl (PE)gb/gn, Input 1 W, Cable Length 5 m |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
Features
The "Positioning laser“ combines sturdy durability and reliable accuracy in a versatile alignment laser. SL Positioning laser modules consist of a laser diode, optics and driver electronics constructed in a rugged isolated housing suitable for industrial environments.
- Compact Design
- Electrically Isolated Housing
- Constant Output Power
- Wide Temperature Range for Operation and Storage
Applications
A wide range of applications includes the positioning of tools, fixtures and materials and the alignment of instruments and machines.
- Alignment and Measurement
- Wood Processing
- Machinery Manufacturing and OEM Integration
Specifications
| Colour | Diode Power | Max. Output | Focusable | Optics | Laser Class |
| red | 10mW | < 1mW | yes | Line | 2M |
| red | 10mW | < 1mW | yes | Cross | 2M |
Line generator for line length: 10°, 15°, 30°, 45°, 60°, 90°
Specifications overview
| Mechanical Specifications: | Housing: Anodised Aluminium, Ø 30 x 88.5 mm, Weight: 300g incl. Cable Leads |
| Optics: | Line or Cross |
| Optical Properties: |
Laser Diode, Wavelength 635nm (red), Diode Power: 10mW Optics: homogeneous Line, Lifetime: > 20.000 h |
| Laser Class: |
Laser Class 2M, EN 60825-1:2015-07, IEC60825-1, EN76-2 21CFR 1040, CE
|
| Inspection and Safety: |
Temperature Range 0°C .. +50°C, IP 65, max. Shock 4 g
|
| Electrical Values: |
Voltage 16-33 VDC, (+)bn (-)bl (PE)gb/gn, Input 1 W, Cable Length 5 m |
