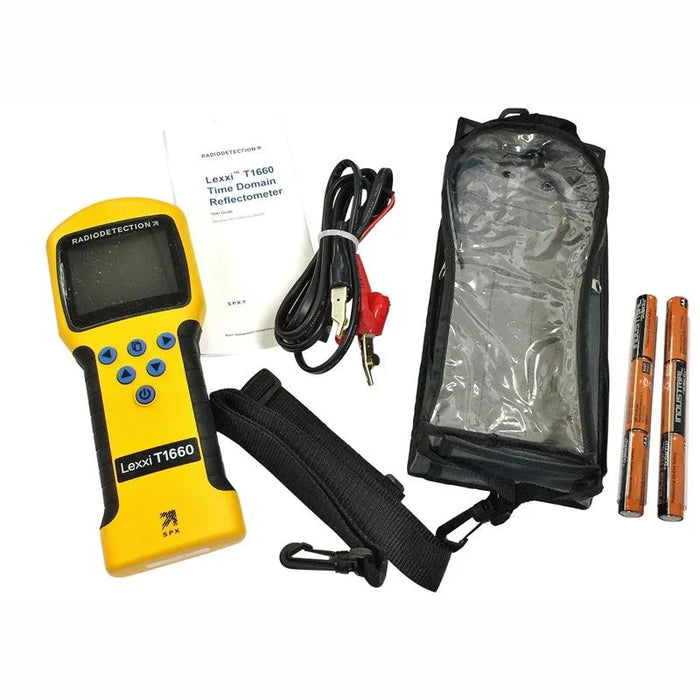

RadioDetection Lexxi T1660 Handheld Cable Fault Locator
- 100Ω Twisted Pair, Alligator Clips
- Lexxi T1660 bag, clear cover with strap
- Quick User Guide
Specification for Schonstedt Lexxi T1660 Handheld Cable Fault Locator:
| Ranges: |
Meters: 7, 15, 30, 60, 120, 250, 500, 1000, 2000, 3000, 6000 Feed: 20, 50, 100, 200, 400, 800, 1600, 3200, 9400, 10000, 20000 |
| Range Selection: |
Manual range control |
| Accuracy: |
1% of selected range* |
| Display: |
328x256 pixel 3.5” color backlit LCD |
| Resolution: |
Approx 1% of range |
| Velocity Factor, VoP: |
Adjustable from 1% to 99% |
| Output Pulse: |
5V peak to peak - Into open circuit |
| Output Impedance:: |
Selectable 25, 50, 75 & 100 ohms |
| Output Pulse Width: |
3ns to 3ms - Automatic with range |
| Scan Rate: |
2 scans/second |
| Batteries: |
Six AA (LR6/R6) Alkaline or NiMH cells |
| Battery Life: |
12 hours typical, continuous operation - Alkaline batteries |
| Voltage Protection: |
600VAC Category III, 300VAC Category IV, 250VAC. Lexxi T1660 with Mains Blocking Filter Lexxi T1660 with all other connectors and Plug-In Module options |
| Power Down: |
Selectable 1, 3, 5, 10, 15 minutes or disabled |
| Operating Temp: |
-10. to 50.C, 14. to 122.F |
| Storage Temp: |
-20. to 70.C, -4. to 158.F |
| Dimensions: |
250x100x55mm, 9.8x4x2.2” |
| Weight: |
600g, 1.3lb |
| Standards: |
EMC BS/EN 61326-1 |
| Water/Dust Proof: |
IP54 |
