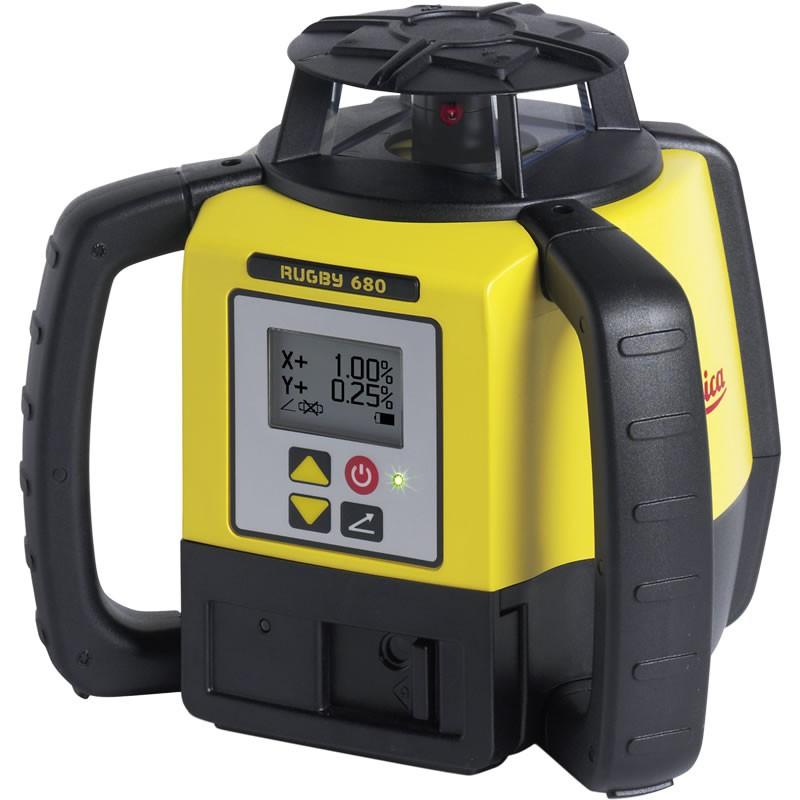

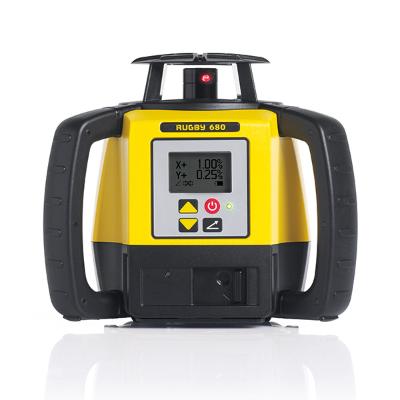

Leica Rugby 680 Rotating Grade Laser Level with RodEye 160 Digital Laser Receiver

SKU: LG6006009
$2,744.00

Not Available

Need more info? Call us +61 8 9335 1718

6Great reasons to buy from us:

  • Image of If your product is faulty or damaged under manufacture warranty, simply send it back to us and we'll cheerfully replace it or fix the problem for you.

    30 Days Return

    If your product is faulty or damaged under manufacture warranty, simply send it back to us and we'll cheerfully replace it or fix the problem for you.
  • Image of Simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

    Returns are Easy

    Simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
  • Image of In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down.

    Best Price Guarantee

    In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down.
  • Image of We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again.

    We guarantee your satisfaction

    We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again.
  • Image of Ordering from Laserman Technologies is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either.

    100% Safe & Secure

    Ordering from Laserman Technologies is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either.
  • Image of Laserman the Best Laser Level, Pipe Laser and Laser Measuring Warranties in the Business - Now thats unbeatable value !!.

    Best Laser Warranties in the Business

    Laserman the Best Laser Level, Pipe Laser and Laser Measuring Warranties in the Business - Now thats unbeatable value !!.

Rotating Grade Laser Level with RodEye 160 Digital Laser Receiver

DISCONTINUED

Bring simplicity to construction applications with the Leica Rugby 680 and 670 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 construction lasers are easy to use and effective in all levelling and grading tasks.

Slopes done easily

Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 dual and single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.

Accurate performance throughout the day

Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.


Features

Leica Rugby 680 rotating laser - Slopes done easy

  • A great general construction laser with digital grade capability
  • Dial-in grade in single or dual axis, easy and fast at the touch of a button
  • The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day
  • Superb performance with all Leica Rod Eye receivers – extend your working range using the Rod Eye 160 Digital laser receiver
  • Alkaline batteries

Includes

  • Alkaline batteries

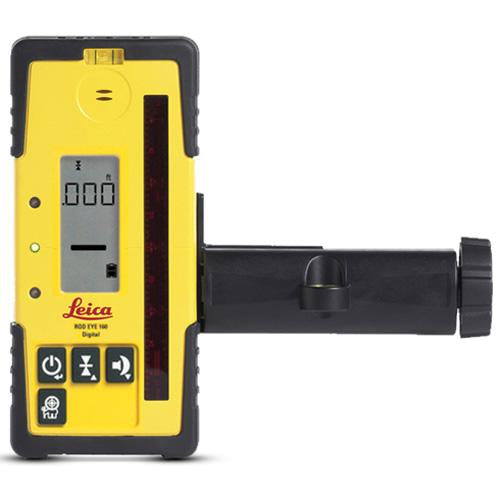

  • RodEye 160 Digital Receiver


Specifications

FUNCTIONALITY Self-levelling horizontal, dial-in grade in dual axis
RANGE (DIAMETER) 1,100 m
SELF-LEVELLING ACCURACY (DEFINED AT 25°C) ± 1.5 mm @ 30 m
SELF-LEVELLING RANGE ± 5°
GRADE RANGE ± 8% SG
SMART SLOPE YES
ROTATION SPEEDS 10 rps
LASER DIODE TYPE / CLASS 635 nm / Class 1
DIMENSIONS (HXWXD) 212 x 239 x 192 mm
BATTERIES – ALKALINE Four D-cells
BATTERY LIFE – ALKALINE 60 hours @ 20°C
WEIGHT WITH BATTERIES 2.6 kg
PROTECTION CLASS (SPLASH WATER / DUST PROOF) IP67
OPERATING TEMPERATURE RANGE -20° to +50°C

Download Brochure

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

Rotating Grade Laser Level with RodEye 160 Digital Laser Receiver

DISCONTINUED

Bring simplicity to construction applications with the Leica Rugby 680 and 670 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 construction lasers are easy to use and effective in all levelling and grading tasks.

Slopes done easily

Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 dual and single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.

Accurate performance throughout the day

Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.


Features

Leica Rugby 680 rotating laser - Slopes done easy

  • A great general construction laser with digital grade capability
  • Dial-in grade in single or dual axis, easy and fast at the touch of a button
  • The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day
  • Superb performance with all Leica Rod Eye receivers – extend your working range using the Rod Eye 160 Digital laser receiver
  • Alkaline batteries

Includes

  • Alkaline batteries
  • RodEye 160 Digital Receiver


Specifications

FUNCTIONALITY Self-levelling horizontal, dial-in grade in dual axis
RANGE (DIAMETER) 1,100 m
SELF-LEVELLING ACCURACY (DEFINED AT 25°C) ± 1.5 mm @ 30 m
SELF-LEVELLING RANGE ± 5°
GRADE RANGE ± 8% SG
SMART SLOPE YES
ROTATION SPEEDS 10 rps
LASER DIODE TYPE / CLASS 635 nm / Class 1
DIMENSIONS (HXWXD) 212 x 239 x 192 mm
BATTERIES – ALKALINE Four D-cells
BATTERY LIFE – ALKALINE 60 hours @ 20°C
WEIGHT WITH BATTERIES 2.6 kg
PROTECTION CLASS (SPLASH WATER / DUST PROOF) IP67
OPERATING TEMPERATURE RANGE -20° to +50°C

Download Brochure
