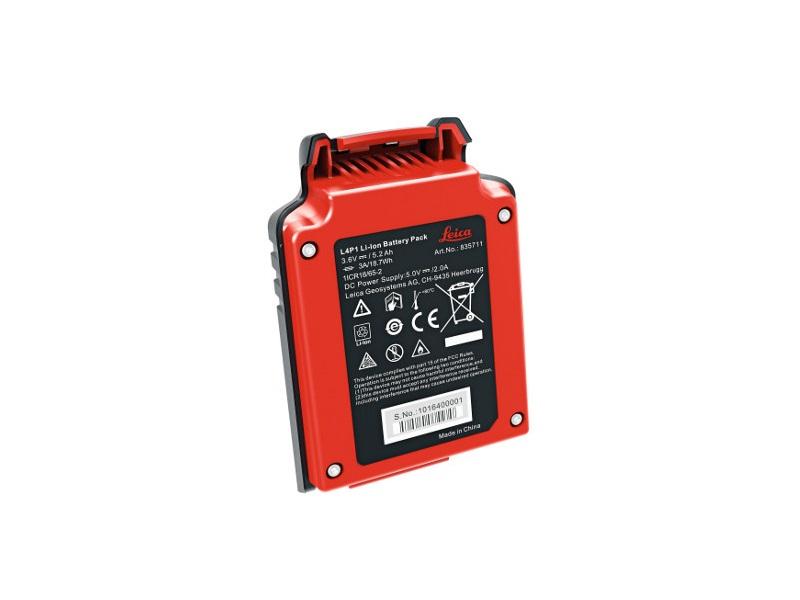

Leica Lino L4P1 Laser Level Lion Battery
You will not have to worry about running out of power in the Leica Lino L4P1, with the rechargeable battery you will not run out of charge.\
The self-leveling pendulum ensures a level line. You know your line is out of level when it blinks. Once level, the line goes solid. Lock the pendulum to set out angled lines or to protect the mechanism when you aren't using it.
The Leica Lino L4P1 runs on both rechargable Li-Ion batteries -- good for up to 24 hours on a single charge -- as well as standard alkaline batteries.
As with all our laser levels, the Leica Lino L4P1 is IP54 rated dust-proof and splash protected.
The four cross line lasers make this the ultimate 90º layout tool, perfect for wood or steel stud construction, point transfer for electrical installations, interior finish work and various other trade applications.
We recommend a tripod for maximum versatility like the TRI70. The Leica Lino L4P1 base mounts to either 1/4" or 5/8" tripod threads, so you can use a tripod you already have, or choose a Leica Geosystems tripod that best suits your needs. The L4P1 is also compatible with our RGR 200 laser receiver, which extends the working range of the multi-line laser up to 164ft.
Range* | 15 m / 50 ft |
Range with laser receiver* | 80 m / 265 ft |
Levelling accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33 ft |
Self-levelling range | ± 3° |
# of laser dots | 1 |
# of laser lines | 4 |
Beam direction | 3 vertical, 1 horizontal, 1 plumb down |
Dot accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33 ft |
Horizontal line accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33 ft |
Vertical line accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33 ft |
Laser type | 635 nm/class 2 |
Battery type | Li-Ion rechargeable (or AA 4 x 1.5V) |
Operating time** | up to 24 h (Li-ion) |
Protection class | IP54 |
Dimensions | 125 x 125 x 162 mm / 4.92 x 4.92 x 6.38 in |
Weight with batteries | 1173 g / 2.59 lbs |
Tripod thread |
5/8" + 1/4" |
Scope of delivery | Leica Lino L4P1, Li-Ion battery pack, charger, Alkaline battery tray, target plate, hard case |
![]() |
