OVERVIEW

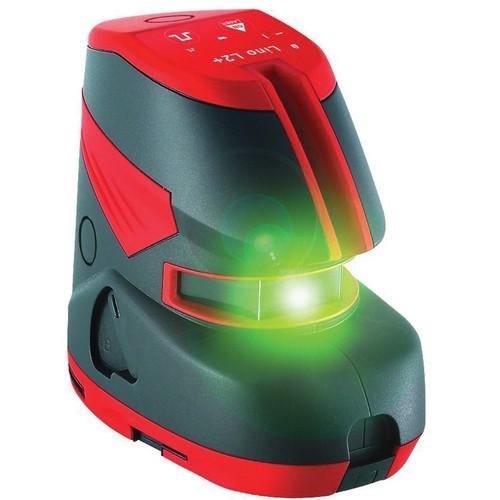

The Leica Lino L2G+ Green Cross Line Laser is a multi-purpose high precision leveling device with enhanced green beam visibility. A green light is four times easier for the human eye to see and register than red light. The L2G+ projects crisp highly visible green lines, with minimal speckling to give a clear read no matter how dark or bright the working conditions.

Use the Leica Lino L2G+ cross line laser for horizontal, vertical, or both, 90° and 180° horizontal fan leveling tasks, or lock the level at any angle for non-horizontal or non-vertical alignment projects. It self-levels within ±0.5° in a 4° range and shuts off the green beam laser automatically if the level is out of range. Once level and set, the Leica Lino L2G+ offers ±1/16 inch horizontal accuracy at 16 feet (5m) lines and ±1/16 inch vertical accuracy at 10 feet (3m) lines.

The Leica L2G+ has a range of 100 feet (30m) and is dust and splash resistant, making it resilient in rougher working conditions. It is also capable of identifying reference points and crosshairs in seconds and come with a magnetic multi-function adapter for easy positioning and to keep your hands free to work. It is recommended to buy a 1/4" thread tripod (sold separately) for total hands-free convenience. The L2G+ offers an unrivaled seven hours work time on one set of four AA batteries, making it reliable and ecologically efficient.





FEATURES

  • Four times brighter green beam laser
  • Dual 180° fan angle
  • Horizontal accuracy of ±1/16" at 16 feet
  • Vertical accuracy of ±1/16" at 10 feet
  • Self-leveling ±0.5° lockable pendulum
  • Range up to 100 feet (30m)
  • Suits 1/4" thread tripods (sold separately)
  • Dust and splash resistant
  • Includes green beam target plate and soft pouch

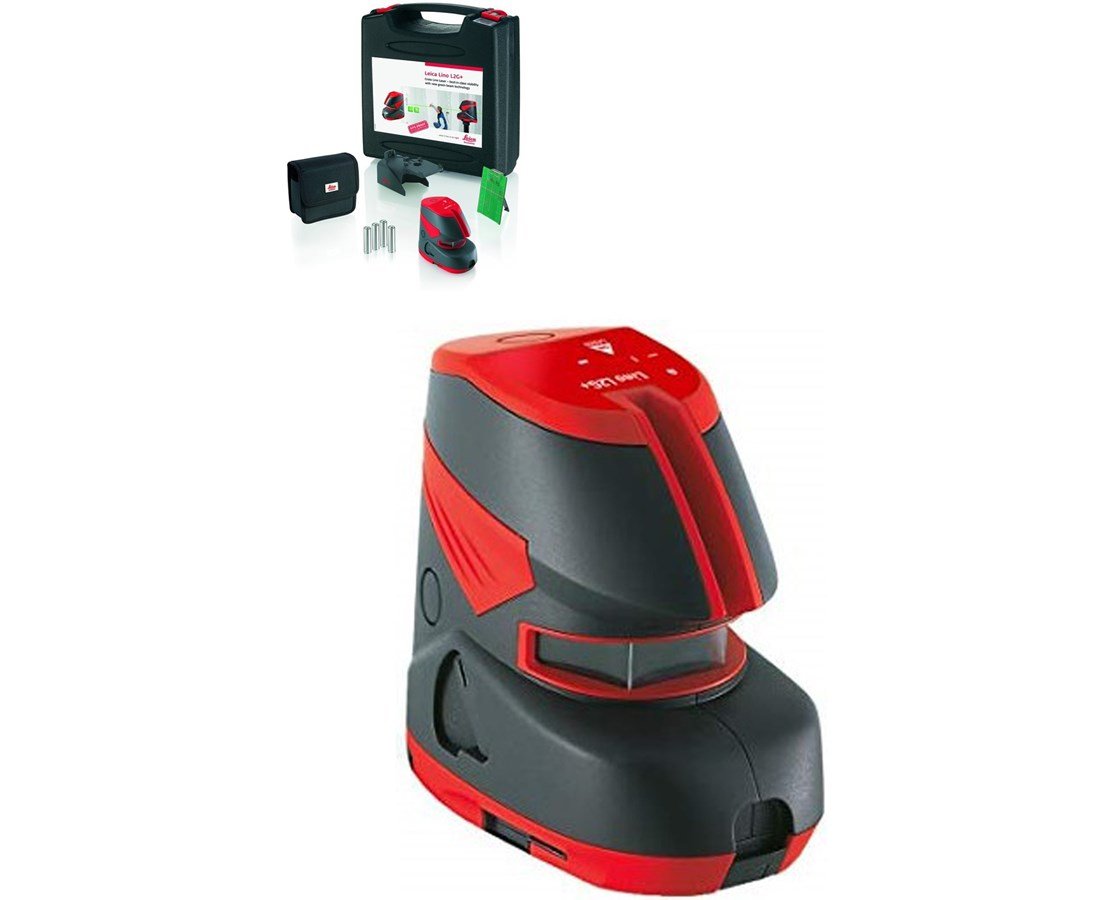

INCLUDES

  • Leica Lino L2G+ Green Beam Cross Line Laser
  • Wall bracket
  • Case
  • Soft pouch
  • Green target plate
  • 4 x AA batteries





SPECIFICATION

General
Weight 0.81 lbs (0.37kg)
Laser Type 515-520nm (Green), Class 2
Dimensions 4.6 x 5.2 x 3.0" (117.8 × 130.7 × 75.4 mm)
Laser Class II (in accordance with IEC 60825-1)
Measuring Capabilities
Leveling Accuracy ±0.06" on 16' (± 1.5 mm on 5m)
Working Range Up to 100' (30m) depending on light conditions
Vertical Accuracy ±0.06" on 9' (± 1.5 mm on 3m)
Self-Leveling Range ± 0.5°
Number of Lines (Planes) Two
Beam Direction Vertical, Horizontal
Horizontal Accuracy ±0.06" on 16' (± 1.5 mm on 5m)
Battery/Power
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -13°F to 158°F (-25°C to 70°C)
Power Source Four AA batteries
Battery Level Indicator Yes
Functions
Setting out Right Angles Yes
Horizontal Leveling Yes
Vertical Aligning Yes
Vertical and Horizontal Aligning Yes
Aligning at an Angle Yes
Features
Tripod Thread 1/4" Thread
Environmental Class IP54 Dust and Water Resistant
Power Save Mode Yes
Self-Leveling Yes

Download Brochure
