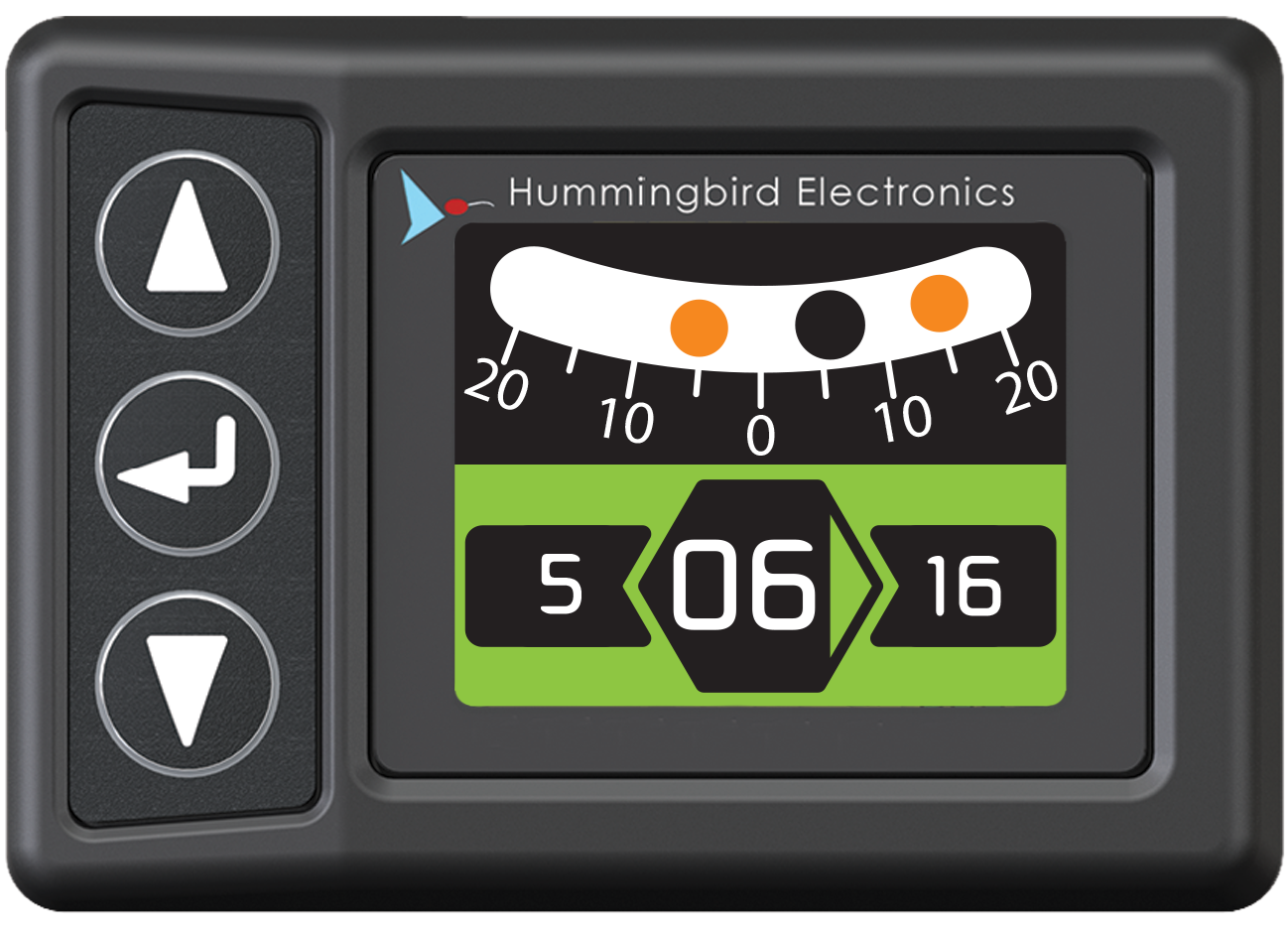

The Hummingbird Electronics Integrated Compact Ball Bank measures and displays the roll of a vehicle or machine.
Hummingbird Electronics Integrated Compact Ball Bank (HMBB0400) is a device that is used to measure roll through the use of an integrated accelerometer.
It features a full-colour screen allowing for easy interpretation of roll angle up to 20 degrees. There is no external sensor and the screen will update roll measurements ten times a second.
It requires no costly installation and is operated by simply plugging into a cigarette adapter or directly connecting to power and ground. It is also multi-voltage and can work in both 12 and 24V vehicles.
In-built warning and alarm levels are configurable to a predetermined angle when the roll exceeds this angle the alarm will sound, and a visual warning will appear on the display.
The sensitivity function allows the user to set how sensitive the device is. A higher value will cause the device to be very resistant to quick changes in acceleration like a rough road for example, whereas setting the sensitivity to a lower value will cause the device to be sensitive to changes in acceleration.
Features
- Roll measurement
- Configurable warning and alarm levels
- Full-colour display
- Sensor damping configurable
- Internal buzzer
- Rugged RAM mounting system
- Multi-Voltage
| Mounting System | Windshield Mount |
| Input Voltage | 9-32V |
| Power Consumption | <1W |
| Sensor Resolution | 1 Degree |
| Sensor Accuracy | 3 Degrees |
| Operating Temperature | -40°C to 85°C; 5% to 95% relative humidity |
| Width (mm) | 70 |
| Length (mm) | 50 |
| Height (mm) | 19 |
Download:
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
The Hummingbird Electronics Integrated Compact Ball Bank measures and displays the roll of a vehicle or machine.
Hummingbird Electronics Integrated Compact Ball Bank (HMBB0400) is a device that is used to measure roll through the use of an integrated accelerometer.
It features a full-colour screen allowing for easy interpretation of roll angle up to 20 degrees. There is no external sensor and the screen will update roll measurements ten times a second.
It requires no costly installation and is operated by simply plugging into a cigarette adapter or directly connecting to power and ground. It is also multi-voltage and can work in both 12 and 24V vehicles.
In-built warning and alarm levels are configurable to a predetermined angle when the roll exceeds this angle the alarm will sound, and a visual warning will appear on the display.
The sensitivity function allows the user to set how sensitive the device is. A higher value will cause the device to be very resistant to quick changes in acceleration like a rough road for example, whereas setting the sensitivity to a lower value will cause the device to be sensitive to changes in acceleration.
Features
- Roll measurement
- Configurable warning and alarm levels
- Full-colour display
- Sensor damping configurable
- Internal buzzer
- Rugged RAM mounting system
- Multi-Voltage
| Mounting System | Windshield Mount |
| Input Voltage | 9-32V |
| Power Consumption | <1W |
| Sensor Resolution | 1 Degree |
| Sensor Accuracy | 3 Degrees |
| Operating Temperature | -40°C to 85°C; 5% to 95% relative humidity |
| Width (mm) | 70 |
| Length (mm) | 50 |
| Height (mm) | 19 |
Download:
