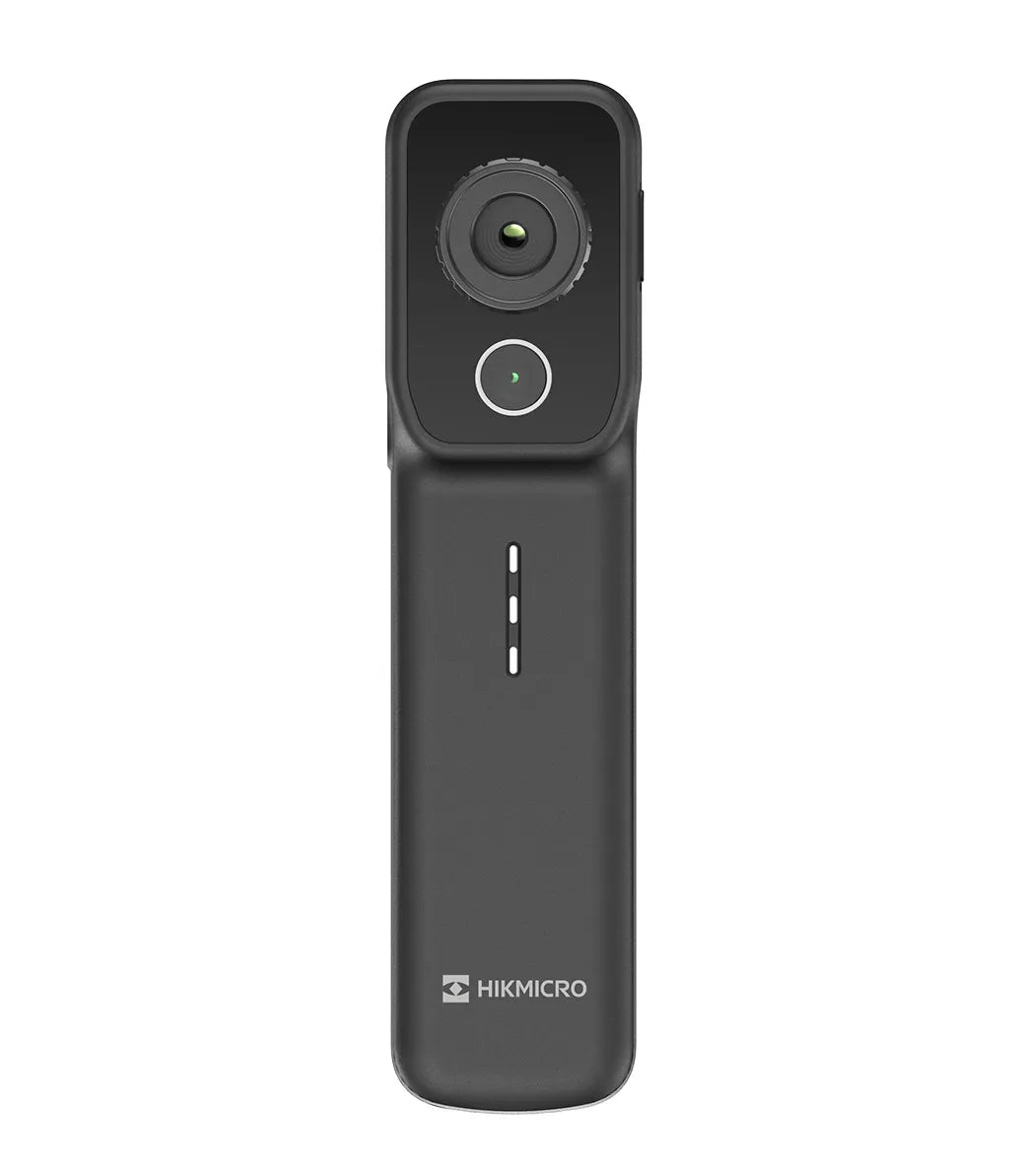

HIKMICRO Mini-X Wireless Dual Camera Thermal Imager
Crisp Focus from Near to Far — The HIKMICRO Mini-X is a compact, versatile wireless dual-camera thermal imager designed for professionals in PCB repair, electrical inspections, HVAC, and building maintenance.
Key Features

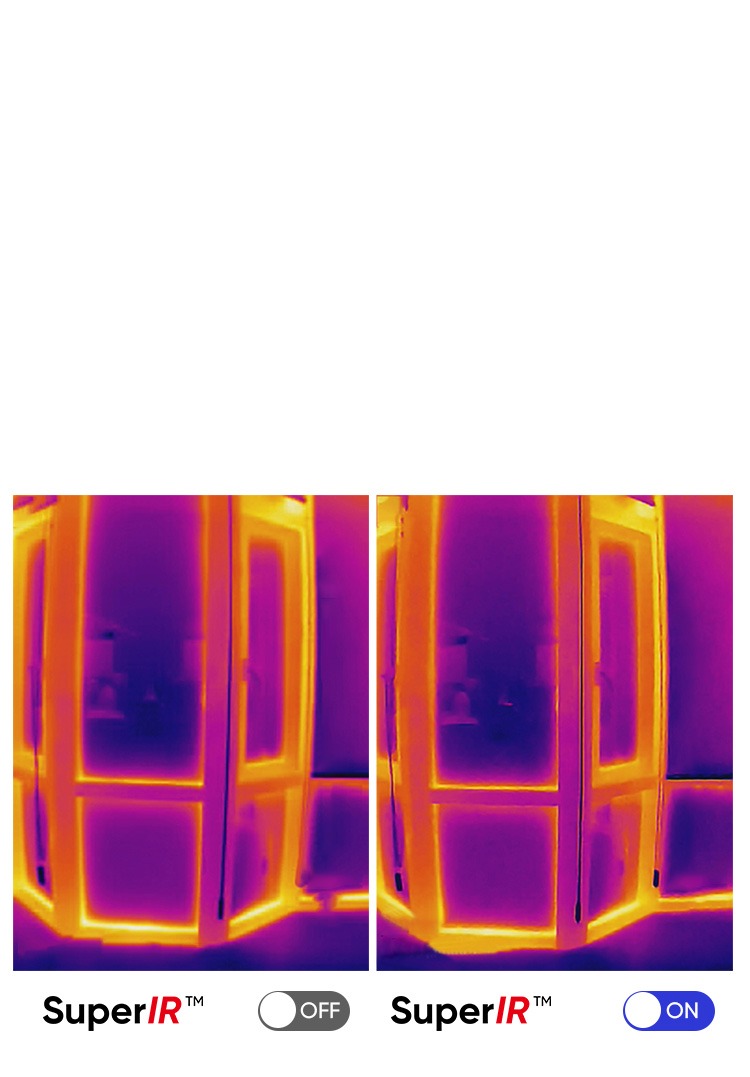

- High-Resolution Thermal Imaging: Equipped with a sensitive ($NETD < 40\text{ mK}$) VOx detector featuring a resolution of $256 \times 192$ ($49,152$ pixels) combined with SuperIR enhancement algorithms for crystal-clear thermal pictures.
- Adjustable Focal Lens: Features a $3.6\text{ mm}$ adjustable focal lens with manual focus capability, ensuring crisp details whether inspecting close-up microcircuits or distant targets.

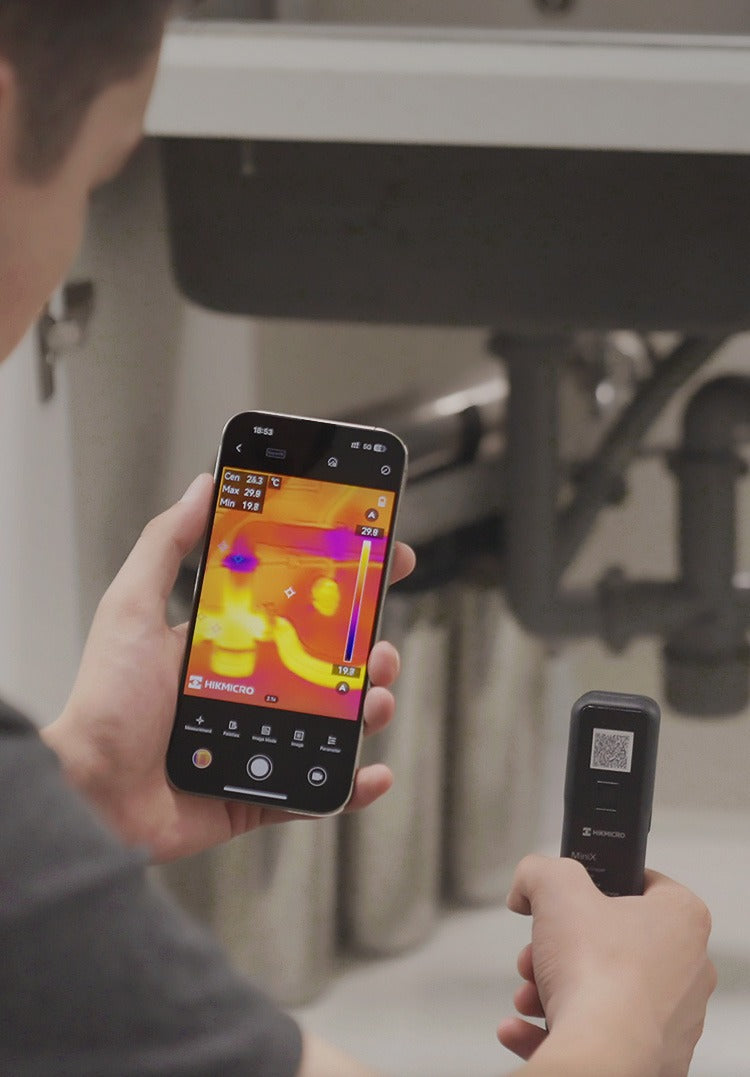

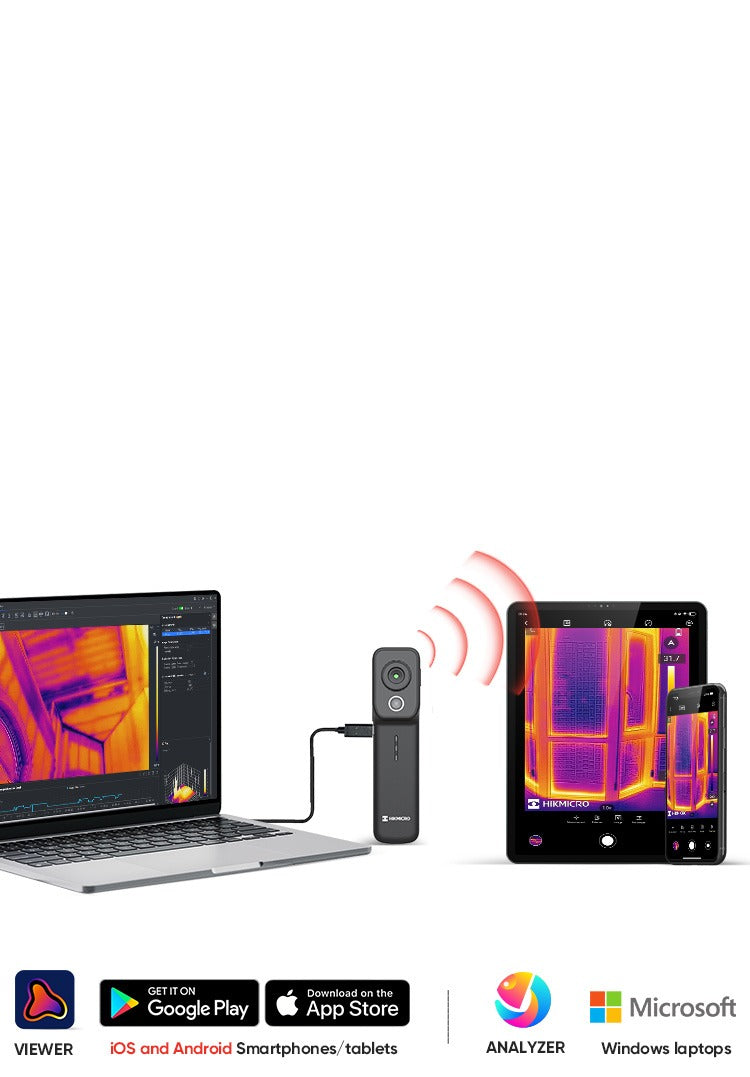

- Stable Wireless Connection: Seamlessly connects to Android and iOS devices via a simple QR code scan for reliable, real-time image transmission without needing to change phones.
- Dual Camera System: Combines high-resolution infrared and visual cameras, supporting 5 image modes and 8 color palettes to easily uncover hidden defects.
- Versatile Mounting Options: Designed with an ergonomic profile and four mounting options including magnetic, wall, tripod, and clamp mounts.
- Long-Lasting Battery: Built-in rechargeable Li-ion battery supports up to 4 hours of continuous operation.
Technical Specifications
| IR Resolution | 256 × 192 (49,152 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 3.33 mrad |
| Focus Mode | Manual Focus |
What's in the Box
- Thermal Imager

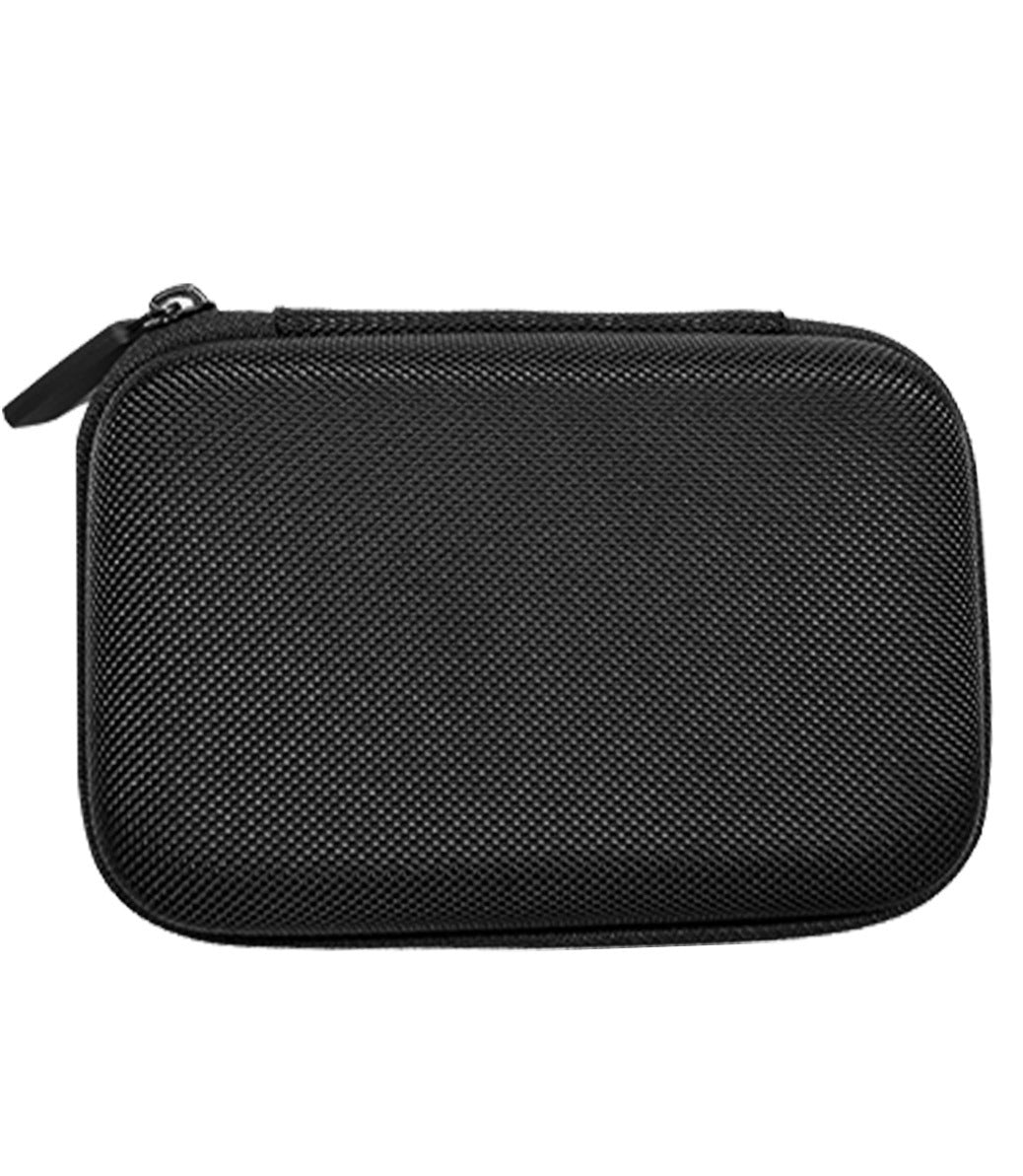

- Imager Case

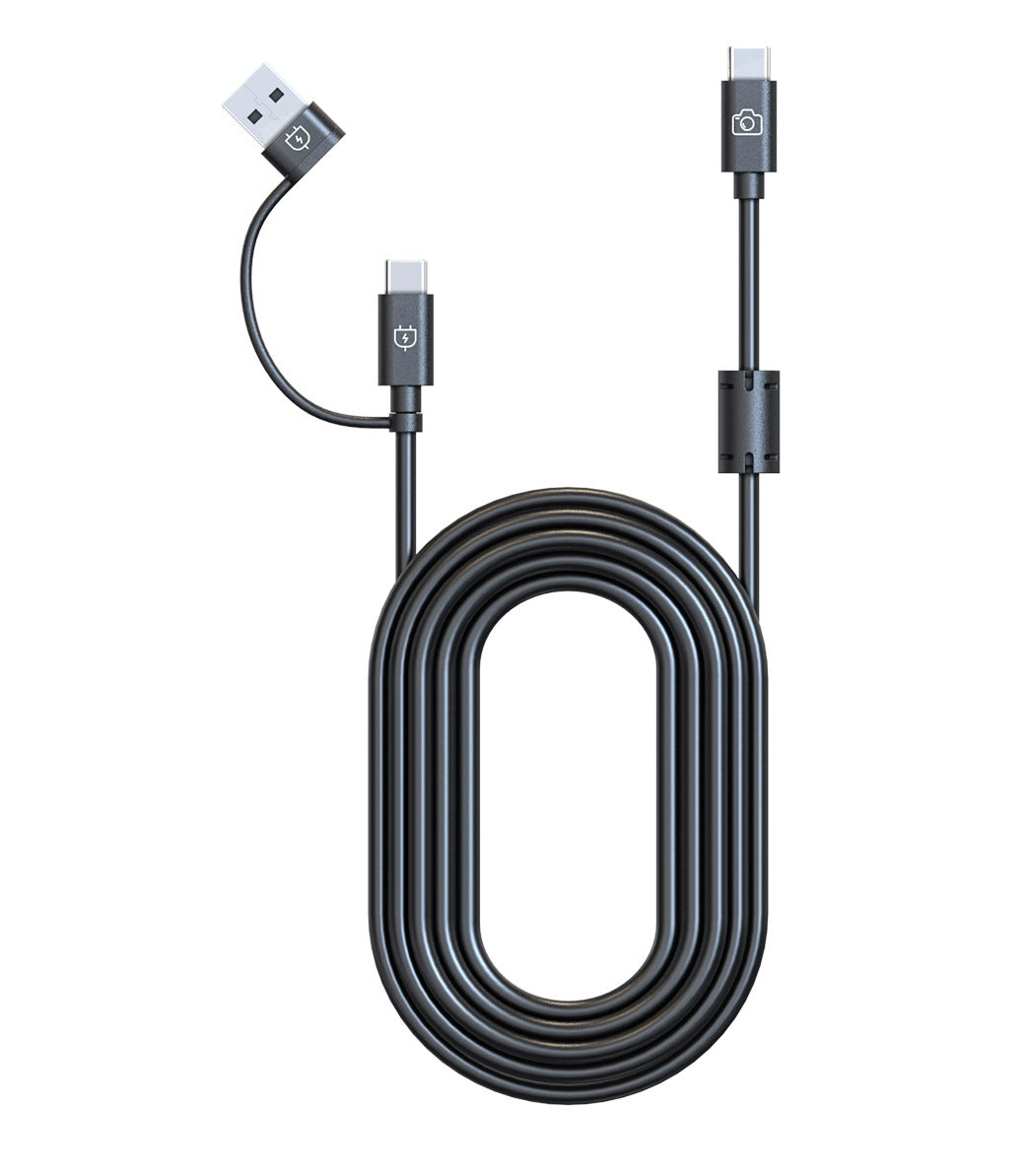

- USB Cable

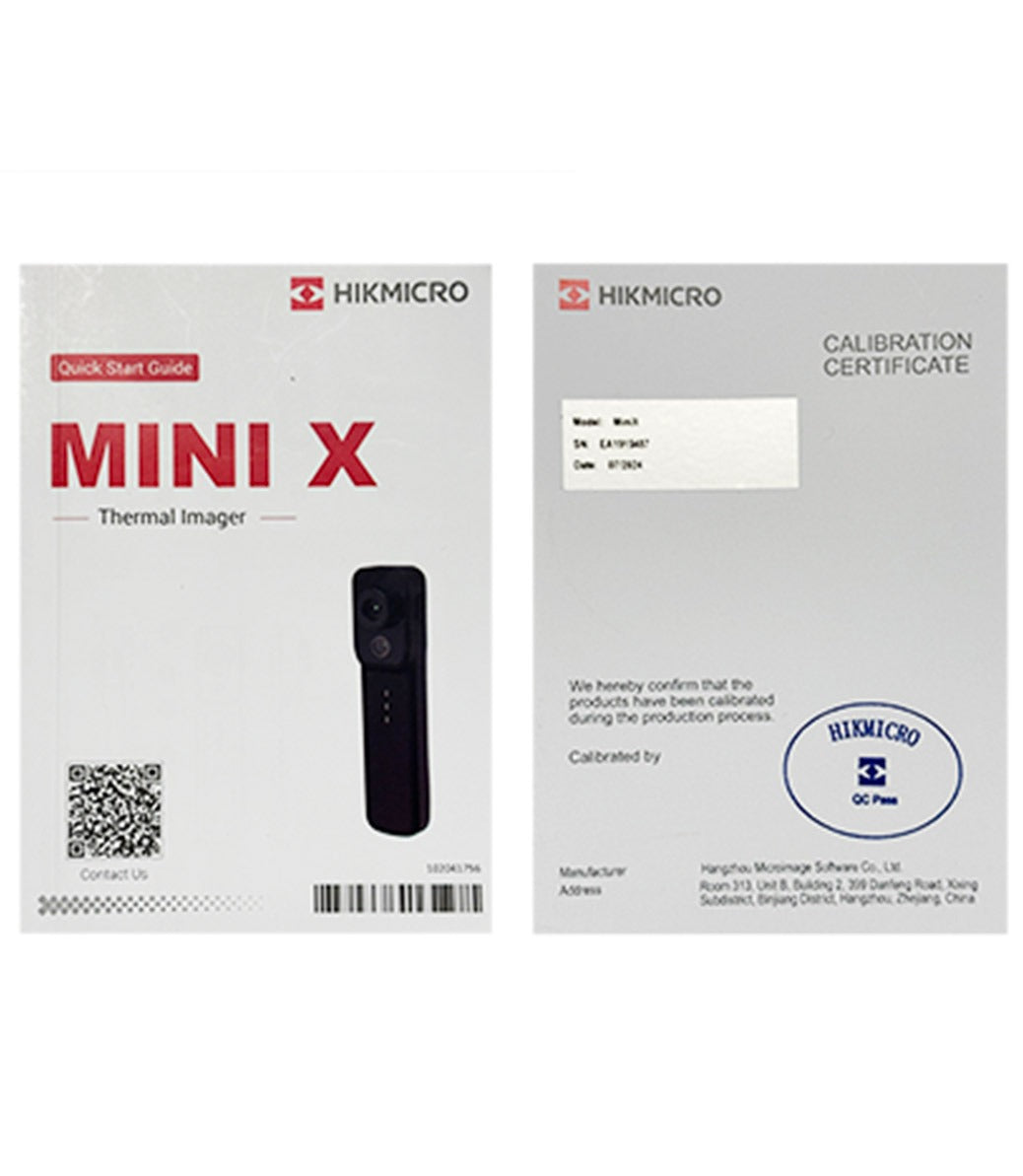

- Quick Start Guide
- Surface Mount Holder

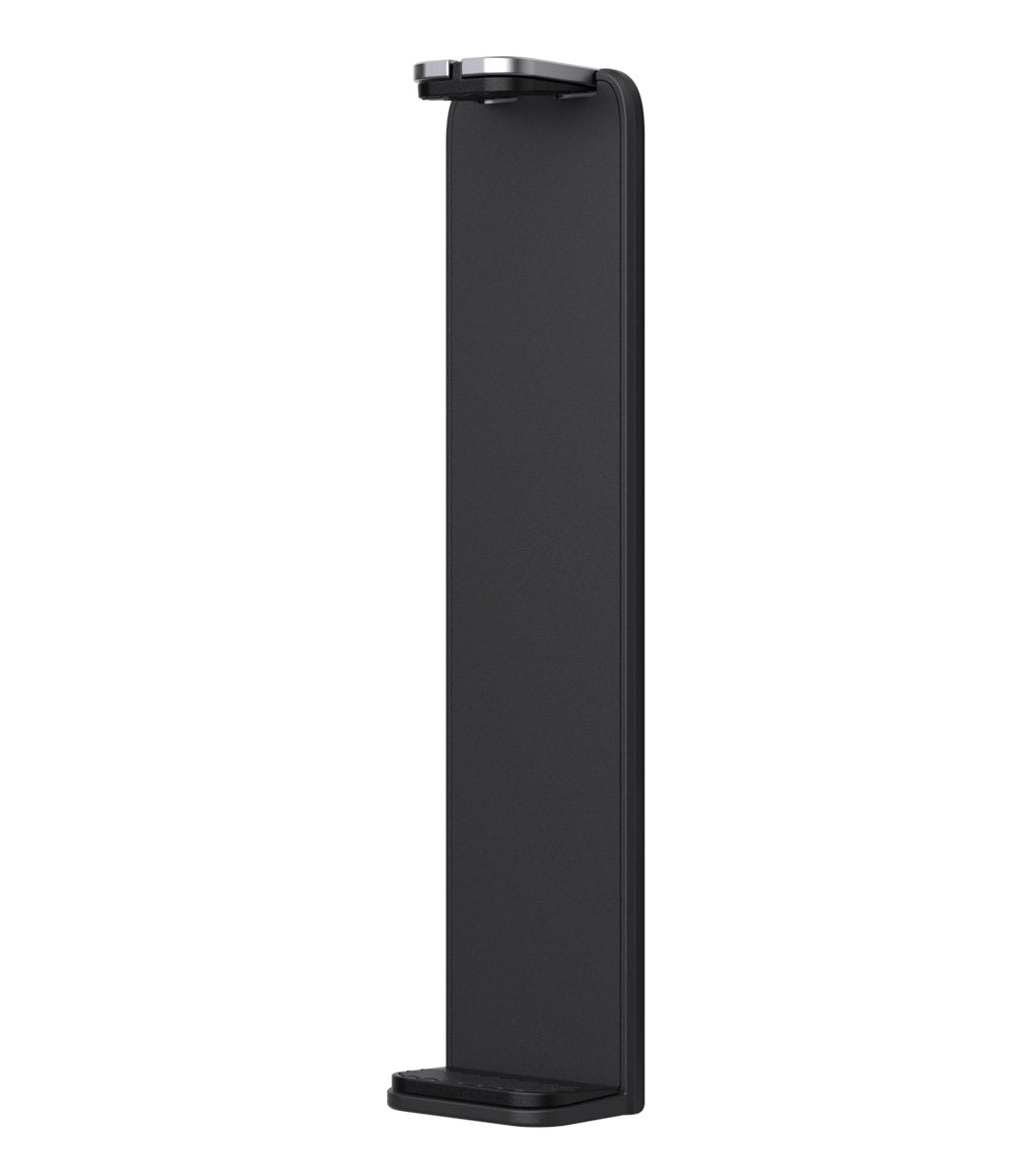

- Phone Mount Holder
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
HIKMICRO Mini-X Wireless Dual Camera Thermal Imager
Crisp Focus from Near to Far — The HIKMICRO Mini-X is a compact, versatile wireless dual-camera thermal imager designed for professionals in PCB repair, electrical inspections, HVAC, and building maintenance.
Key Features
- High-Resolution Thermal Imaging: Equipped with a sensitive ($NETD < 40\text{ mK}$) VOx detector featuring a resolution of $256 \times 192$ ($49,152$ pixels) combined with SuperIR enhancement algorithms for crystal-clear thermal pictures.
- Adjustable Focal Lens: Features a $3.6\text{ mm}$ adjustable focal lens with manual focus capability, ensuring crisp details whether inspecting close-up microcircuits or distant targets.
- Stable Wireless Connection: Seamlessly connects to Android and iOS devices via a simple QR code scan for reliable, real-time image transmission without needing to change phones.
- Dual Camera System: Combines high-resolution infrared and visual cameras, supporting 5 image modes and 8 color palettes to easily uncover hidden defects.
- Versatile Mounting Options: Designed with an ergonomic profile and four mounting options including magnetic, wall, tripod, and clamp mounts.
- Long-Lasting Battery: Built-in rechargeable Li-ion battery supports up to 4 hours of continuous operation.
Technical Specifications
| IR Resolution | 256 × 192 (49,152 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 3.33 mrad |
| Focus Mode | Manual Focus |
What's in the Box
- Thermal Imager
- Imager Case
- USB Cable
- Quick Start Guide
- Surface Mount Holder
- Phone Mount Holder
