HIKMICRO AD22P Acoustic Leak Detector

SKU: HM-AP21-AD22P-I

Model

$1,399.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

Overview

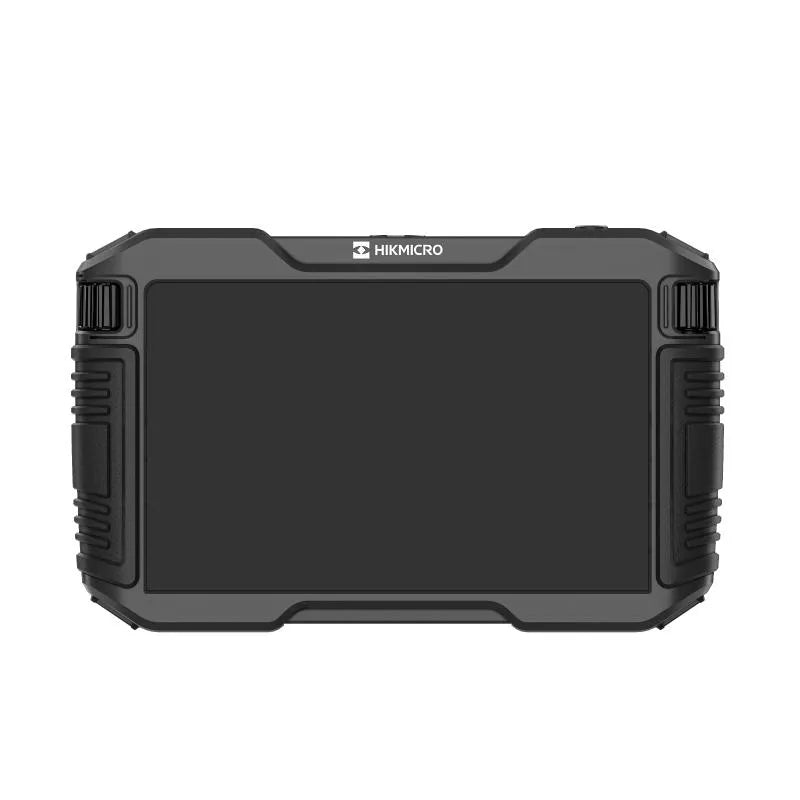

The HIKMICRO AD22P is a professional acoustic leak detector designed for both indoor plumbing and outdoor property-side water leak detection. Ideal for residential, commercial, and building-related pipeline scenarios, it empowers technicians to handle diverse daily leak detection tasks efficiently with a single, comprehensive device.

Key Features

  • Upgraded Dual Sensors: Comes with dedicated indoor and outdoor sensors for optimal performance across different environments. The high-sensitivity indoor sensor excels in acoustic pickup for plumbing systems, underfloor heating pipes, walls, and floors, while the outdoor sensor is engineered for ground contact in property-side scenarios. The device automatically recognizes the connected sensor for rapid setup.
  • HIKMICRO SuperDetect: Automatically analyzes collected sound data to highlight suspected leak points directly on the screen, minimizing reliance on listening experience alone and streamlining indoor localization for both novices and seasoned professionals.
  • Two Inspection Modes: Supports Quick Inspection Mode for rapid sound comparison around suspected zones and Route Inspection Mode for structured, multi-point inspections ensuring reliable localization.
  • Clear Acoustic Feedback: Professional acoustic sensing and advanced noise reduction capture leak signals clearly in complex settings, supporting an efficient Locate → Localize → Pinpoint workflow.

Configurations Available

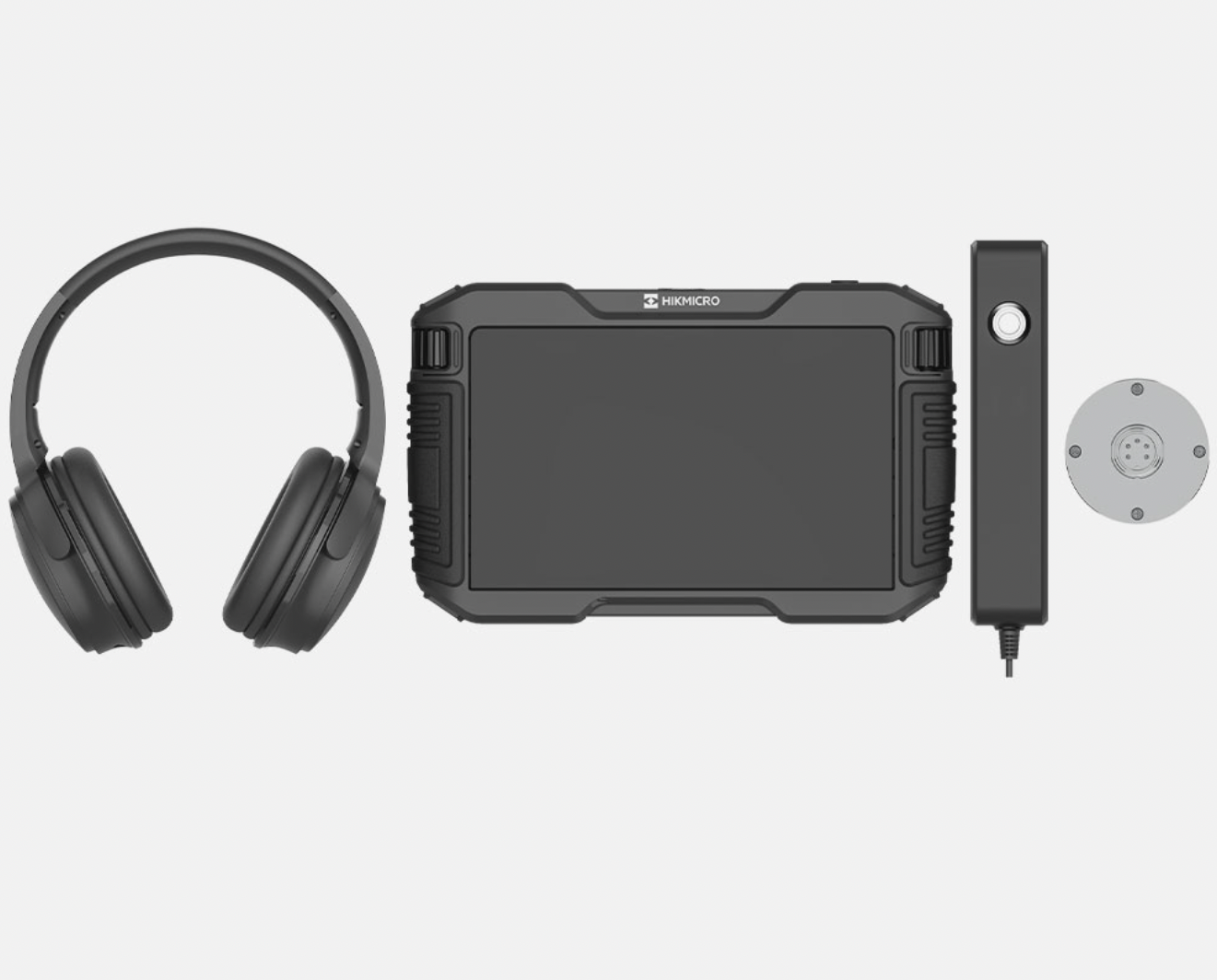

  • AD22P-I: Combines the main unit with a high-sensitivity indoor sensor (ideal for indoor plumbing, underfloor heating, walls, and floors).

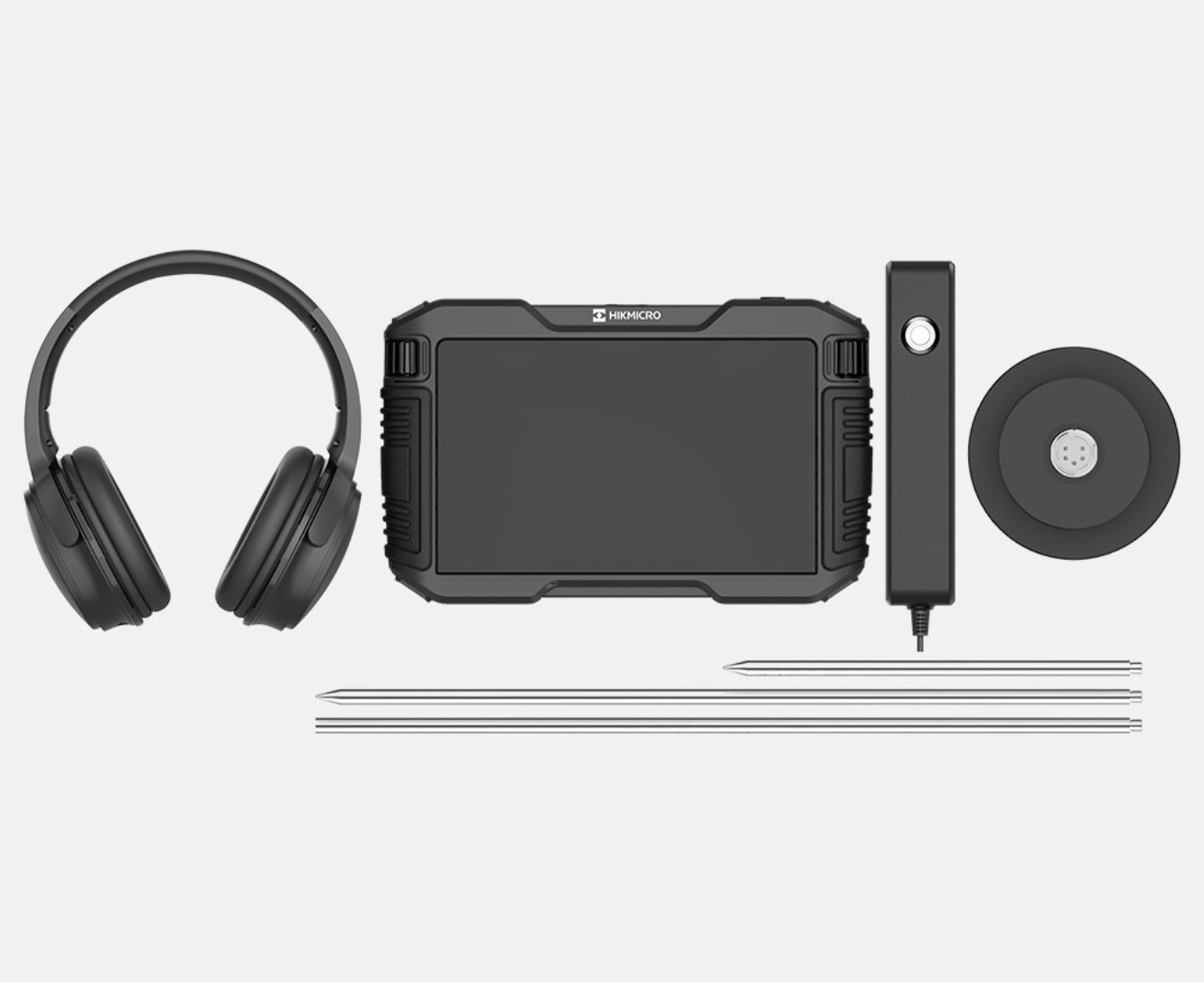

  • AD22P-O: Combines the main unit with an outdoor sensor (ideal for courtyards, paved areas, and outdoor property pipelines).

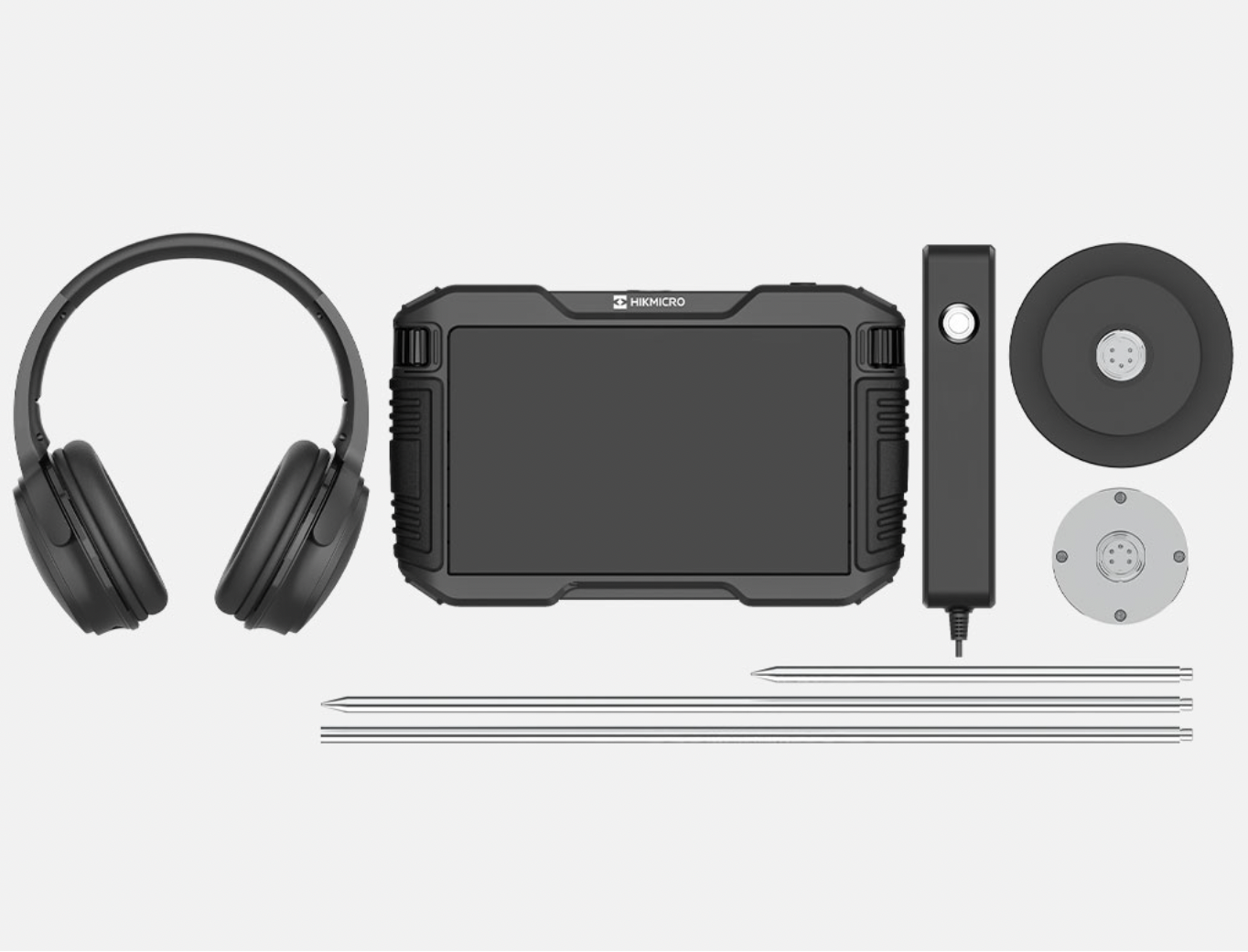

  • AD22P-I/O: Combines the main unit with both indoor and outdoor sensors for complete versatility across indoor plumbing and outdoor property-side tasks.

Technical Specifications

  • Product Model: AD22P
  • Frequency Range: 200 Hz to 16,000 Hz
  • Band Pass Filters:
    • Indoor Mode 1: 5000 to 16000 Hz
    • Indoor Mode 2: 8000 to 16000 Hz
    • Outdoor Mode: 200 to 2000 Hz
    • Custom Mode: Adjustable from 200 to 16000 Hz
  • SuperDetect: Yes (supported in indoor mode)
  • Display: 7-inch LCD Touch Screen (1024 x 600 resolution)
  • Screen Brightness Control: Manual / Auto
  • Data Storage: Image storage capacity and audio storage capacity supported (audio viewable only on PC)

Specification

Product Model

  • Model: AD22P

Acoustic

  • Amplification: Manual
  • Frequency Range: 200 to 16000 Hz
  • Band Pass Filters:
    • Indoor Mode 1: 5000 to 16000 Hz
    • Indoor Mode 2: 8000 to 16000 Hz
    • Outdoor Mode: 200 to 2000 Hz
    • Custom Mode: Adjustable from 200 to 16000 Hz
  • SuperDetect: Yes (only for indoor mode)

Image Display

  • Display: 1024 × 600 Resolution, 7" LCD Touch Screen
  • Screen Brightness: Manual / Auto

Data Storage and Communication

  • Image Storage Capacity: Yes
  • Audio Storage Capacity: Yes, viewable only on PC
Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

Overview

The HIKMICRO AD22P is a professional acoustic leak detector designed for both indoor plumbing and outdoor property-side water leak detection. Ideal for residential, commercial, and building-related pipeline scenarios, it empowers technicians to handle diverse daily leak detection tasks efficiently with a single, comprehensive device.

Key Features

  • Upgraded Dual Sensors: Comes with dedicated indoor and outdoor sensors for optimal performance across different environments. The high-sensitivity indoor sensor excels in acoustic pickup for plumbing systems, underfloor heating pipes, walls, and floors, while the outdoor sensor is engineered for ground contact in property-side scenarios. The device automatically recognizes the connected sensor for rapid setup.
  • HIKMICRO SuperDetect: Automatically analyzes collected sound data to highlight suspected leak points directly on the screen, minimizing reliance on listening experience alone and streamlining indoor localization for both novices and seasoned professionals.
  • Two Inspection Modes: Supports Quick Inspection Mode for rapid sound comparison around suspected zones and Route Inspection Mode for structured, multi-point inspections ensuring reliable localization.
  • Clear Acoustic Feedback: Professional acoustic sensing and advanced noise reduction capture leak signals clearly in complex settings, supporting an efficient Locate → Localize → Pinpoint workflow.

Configurations Available

  • AD22P-I: Combines the main unit with a high-sensitivity indoor sensor (ideal for indoor plumbing, underfloor heating, walls, and floors).
  • AD22P-O: Combines the main unit with an outdoor sensor (ideal for courtyards, paved areas, and outdoor property pipelines).
  • AD22P-I/O: Combines the main unit with both indoor and outdoor sensors for complete versatility across indoor plumbing and outdoor property-side tasks.

Technical Specifications

  • Product Model: AD22P
  • Frequency Range: 200 Hz to 16,000 Hz
  • Band Pass Filters:
    • Indoor Mode 1: 5000 to 16000 Hz
    • Indoor Mode 2: 8000 to 16000 Hz
    • Outdoor Mode: 200 to 2000 Hz
    • Custom Mode: Adjustable from 200 to 16000 Hz
  • SuperDetect: Yes (supported in indoor mode)
  • Display: 7-inch LCD Touch Screen (1024 x 600 resolution)
  • Screen Brightness Control: Manual / Auto
  • Data Storage: Image storage capacity and audio storage capacity supported (audio viewable only on PC)

Specification

Product Model

  • Model: AD22P

Acoustic

  • Amplification: Manual
  • Frequency Range: 200 to 16000 Hz
  • Band Pass Filters:
    • Indoor Mode 1: 5000 to 16000 Hz
    • Indoor Mode 2: 8000 to 16000 Hz
    • Outdoor Mode: 200 to 2000 Hz
    • Custom Mode: Adjustable from 200 to 16000 Hz
  • SuperDetect: Yes (only for indoor mode)

Image Display

  • Display: 1024 × 600 Resolution, 7" LCD Touch Screen
  • Screen Brightness: Manual / Auto

Data Storage and Communication

  • Image Storage Capacity: Yes
  • Audio Storage Capacity: Yes, viewable only on PC
