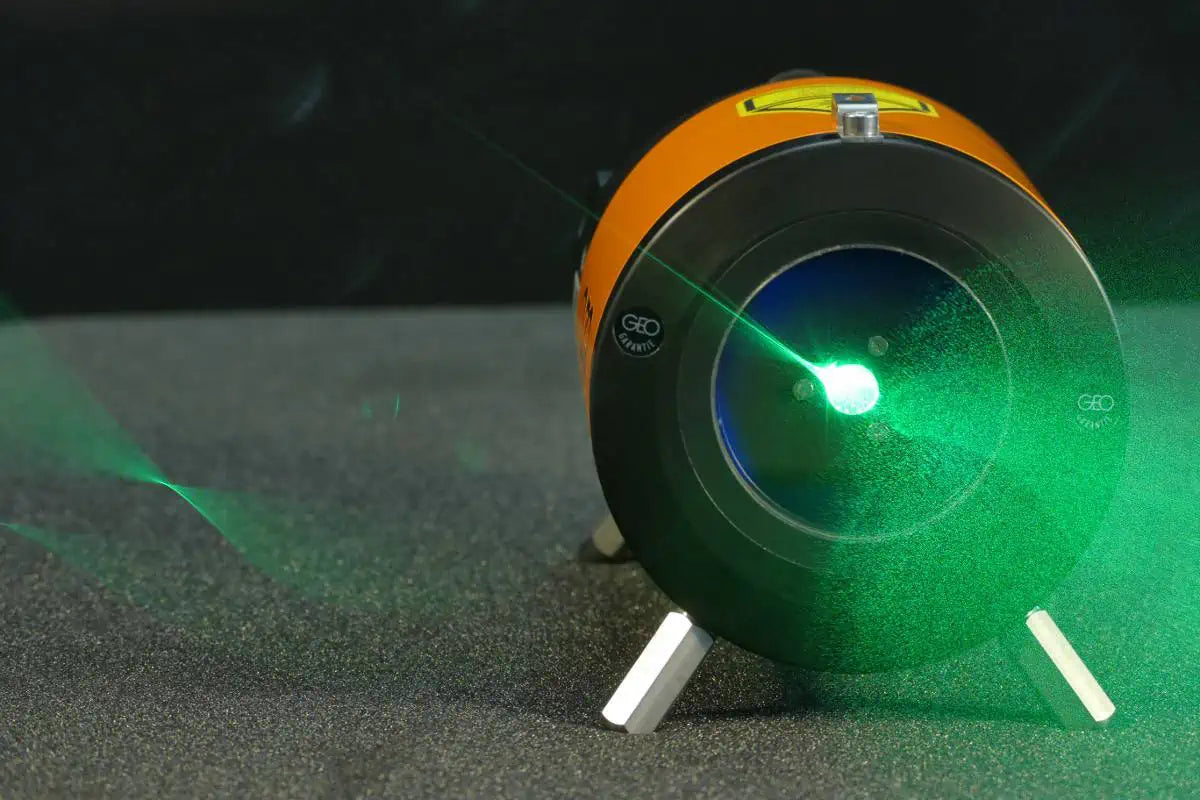

The latest generation of GEO pipe laying lasers: Special attention was paid to simple and intuitive operation on the construction site. The green laser beam, which is clearly visible even in sunlight, makes work easier, as does the high-contrast, easy-to-read graphic OLED display.
Building on the same high quality you have come to expect from GEO, our new green laser beam noticeably enhances visibility of the target, even in difficult lighting conditions. This is because the human eye is four times more receptive to green light than to red. In addition, green light does not get overpowered so much by the red spectrum of the sunlight.

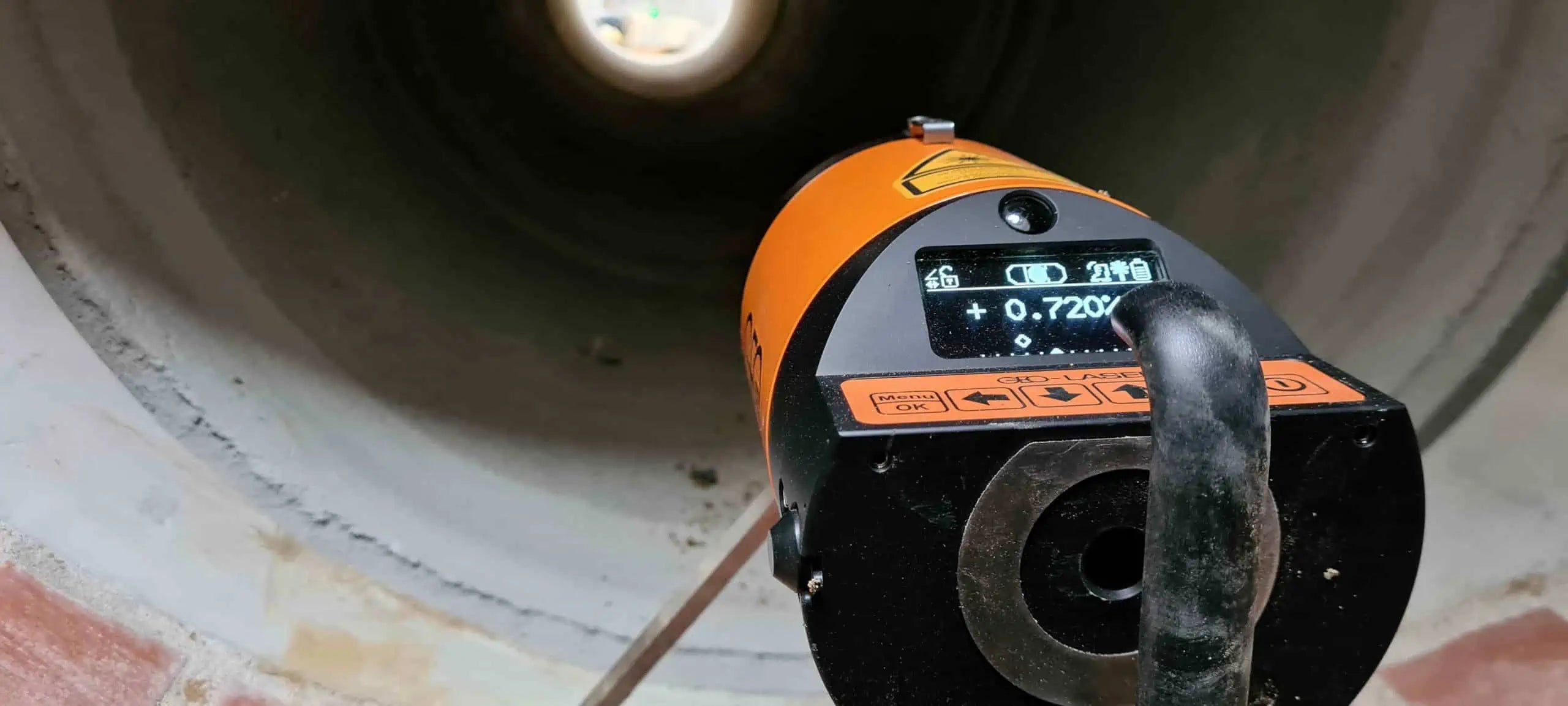

Our pipe laser emits an automatically levelled or defined inclined laser beam as reference axis. It was specifically designed for pipe laying, but can also be used for a variety of other purposes. It can be set up centrically or at a constant distance above the pipe invert. Suitable legs, tripods and fastening systems are available for this.
The latest electronics also allow us to display an electronic spirit level for correct positioning in the pipe.
Also available as KL-900 with laser class 2.
-
-
Laser class
Laser class 3R, laser power < 5 mW Special features: laser power adjustable in 5 steps. -
Fully automatic
Automatic levelling, banking compensation, inclination zeroing, direction centring and cut-out in case of undervoltage or jerky movement. -
Robust metal housing
Anodised, plastic-coated, filled with nitrogen, 100% watertight. -
Special laser beam quality
Diode laser with visible green laser beam, high life expectancy and low power consumption. The human eyes are 4 times more sensitve for green light rather then red light. -

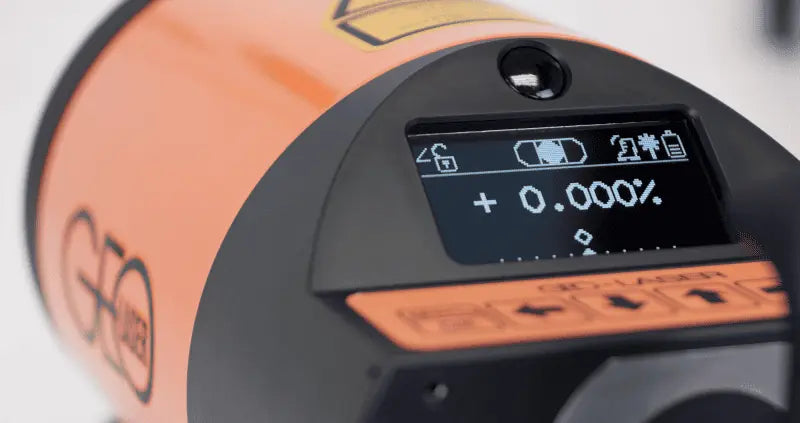

Easy-read OLED display
The brightly illuminated display ensures very good readability even in difficult lighting conditions. The graphic displays, especially in the settings, are intuitive and easy to understand and simplify operation considerably. -
Easy to use keyboard
Clear, functional, large user-friendly keys. -
Electronic bubble level
For easy and intuitive alignment of the laser in the tube. -
Li-Ion battery
Operating time up to 34 hours on one charge. Rechargeable in a maximum of 5 hours without removing the battery. -
Proven mounting feet
Guarantee a secure, force-centred stand in the tube.
-
Laser class
Specification
| Laser class | 3R, <5mW |
|---|---|
| Laser | Diode, visible green, 520 nm |
| Laser range | up to 500 m |
| Beam diameter at laser | 13 mm |
| Inclination range | -10% to +40% |
| Self-levelling range | - 5 % to + 40 % |
| Reading accuracy | 0,001 % |
| Permissible deviation | 5 mm/100 m |
| Direction setting | ± 5,000 % |
| Banking compensation | ± 4° |
| Operating time | up to 34 hours |
| External power supply | 11 to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to + 50° C |
| Dimensions | Ø 130 mm, length 265 mm |
| Weight | 3 kg |
| Range IR remote control | to 150 m from front/to 18 m from behind |
| Guarantee | 24 month |
Download Brochure
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
The latest generation of GEO pipe laying lasers: Special attention was paid to simple and intuitive operation on the construction site. The green laser beam, which is clearly visible even in sunlight, makes work easier, as does the high-contrast, easy-to-read graphic OLED display.
Building on the same high quality you have come to expect from GEO, our new green laser beam noticeably enhances visibility of the target, even in difficult lighting conditions. This is because the human eye is four times more receptive to green light than to red. In addition, green light does not get overpowered so much by the red spectrum of the sunlight.
Our pipe laser emits an automatically levelled or defined inclined laser beam as reference axis. It was specifically designed for pipe laying, but can also be used for a variety of other purposes. It can be set up centrically or at a constant distance above the pipe invert. Suitable legs, tripods and fastening systems are available for this.
The latest electronics also allow us to display an electronic spirit level for correct positioning in the pipe.
Also available as KL-900 with laser class 2.
-
-
Laser class
Laser class 3R, laser power < 5 mW Special features: laser power adjustable in 5 steps. -
Fully automatic
Automatic levelling, banking compensation, inclination zeroing, direction centring and cut-out in case of undervoltage or jerky movement. -
Robust metal housing
Anodised, plastic-coated, filled with nitrogen, 100% watertight. -
Special laser beam quality
Diode laser with visible green laser beam, high life expectancy and low power consumption. The human eyes are 4 times more sensitve for green light rather then red light. -
Easy-read OLED display
The brightly illuminated display ensures very good readability even in difficult lighting conditions. The graphic displays, especially in the settings, are intuitive and easy to understand and simplify operation considerably. -
Easy to use keyboard
Clear, functional, large user-friendly keys. -
Electronic bubble level
For easy and intuitive alignment of the laser in the tube. -
Li-Ion battery
Operating time up to 34 hours on one charge. Rechargeable in a maximum of 5 hours without removing the battery. -
Proven mounting feet
Guarantee a secure, force-centred stand in the tube.
-
Laser class
Specification
| Laser class | 3R, <5mW |
|---|---|
| Laser | Diode, visible green, 520 nm |
| Laser range | up to 500 m |
| Beam diameter at laser | 13 mm |
| Inclination range | -10% to +40% |
| Self-levelling range | - 5 % to + 40 % |
| Reading accuracy | 0,001 % |
| Permissible deviation | 5 mm/100 m |
| Direction setting | ± 5,000 % |
| Banking compensation | ± 4° |
| Operating time | up to 34 hours |
| External power supply | 11 to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to + 50° C |
| Dimensions | Ø 130 mm, length 265 mm |
| Weight | 3 kg |
| Range IR remote control | to 150 m from front/to 18 m from behind |
| Guarantee | 24 month |
Download Brochure
