Key features
- 256 x 192 pixels, detailed image quality
- Up to 550 ℃, suitable to use in many applications
- ±2% or ±2 °C accuracy to ensure reliable results
- 25Hz frame rate for smooth video recording
- Customize image view with more than 10 standard or custom color palettes
- Never miss any detail with real-time high and low temperature capture
- Adjustable emissivity to apply with different materials
- Comprehensive temperature analysis for spot, line and area, supported with professional thermal imaging mobile software
- Real-time temperature alarm for timely response of abnormal condition
- Automatic time-lapse capture mode for unattended operation
- Automatically generate infrared inspection reports, easy for reporting, archiving and sharing (TC01B only)
- Share and manage images and videos in real-time, for fast and efficient communication
- Up to 1 meter drop test, IP56 (TC01B)/IP54 (TC01A) ingress protection, adhering to the Fluke durability and quality
To download the Fluke iSee™ APP:
Detailed image quality comparable to professional thermal cameras
- 256 x 192 pixels, detailed image quality
- Up to 550 ℃, suitable to use in many applications
- 50 mk (0.05 ℃) thermal sensitivity for fine differences
- ±2% or ±2 °C accuracy to ensure reliable results
- 25 Hz frame rate for smooth video recording
- Customize image view with more than 10 standard or custom color palettes
Powerful full temperature range analysis
- Never miss any detail with real-time high and low temperature capture
- Adjustable emissivity to apply with different materials
- Comprehensive temperature analysis for spot, line and area, supported with professional thermal imaging mobile software
- Real-time temperature alarm for timely response of abnormal condition
- Automatic time-lapse capture mode, for unattended operation
- Infrared and visible image comparison for locating, comparing and archiving
Real-time image sharing for fast and easy communication
- Share and manage images and videos in real-time, for fast and efficient communication
- Easy to add image annotation for smooth communication
- Automatically generate infrared inspection reports, easy for reporting, archiving and sharing (TC01B only)
Small and portable, takes only a second to get started
- Compact design as light as 22 g
- The iSee™ is made of high quality specially treated aluminum material with laser etched surface
- Up to 1 meter drop test, IP56 (TC01B)/IP54 (TC01A) ingress protection, adhering to the Fluke durability and quality
- Optimized Fluke iSee™ application interfaces and menus, to enhance user experience with easy to access functions
Specifications: Fluke iSee™ Mobile Thermal Camera - TC01A/TC01B/TC01C
| TC01A | TC01B | TC01C | |
| Performance Specifications | |||
| IR resolution | 256 x 192 | ||
| Pixel size | 12 μm | ||
| Temperature range | -10 ℃ to 550 ℃ | -20 ℃ to 550 ℃ | |
| Temperature accuracy | ± 2 % of rdg or ± 2 °C, whichever is greater (@ 23 °C ± 5 °C ambient temperature) | ||
| Temperature measurement distance | 0.25 m to 5 m (* -20 ℃ to 10 ℃, only for 0.25 m to 3 m) | ||
| Frame rate | 25 Hz | ||
| Warm-up time | 1 minute | ||
| Focal length | Fixed focal length: 3.2 mm | ||
| Shutter mode | Internal auto shutter | ||
| Thermal sensitivity (NETD) | 50 mK | ||
| Spectral range | 8 to 14 μm | ||
| Field of view (H x V) | 56° x 42° | ||
| Spatial resolution | 3.81 mrad | ||
| General Specifications | |||

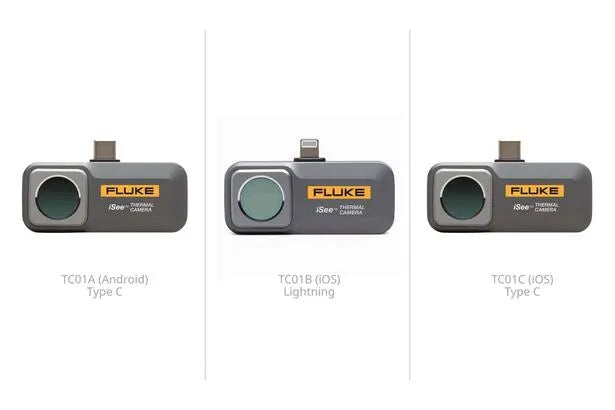

| USB interface | Type C | Lightning | Type C |
| Compatible system | Android and HarmonyOS | iOS | |
| Operating temperature | 0 ℃ to 40 ℃ | ||
| Storage temperature | -30 ℃ to 60 ℃ | ||
| Operating humidity | 10% to 90% RH, non-condensing | ||
| Power consumption | 350 mW (Typical) | 200 mW (Typical) | |
| Drop test | 1 m | ||
| Ingress protection | IEC 60529: IP54 (with the protective cover for Type C) | IEC 60529: IP56 | IEC 60529: IP56 (with the protective cover for Type C) |
| Operating altitude | 2000 m | ||
| Storage altitude | 12 000 m | ||
| Dimensions (L x W x H) | 60 x 33.5 x 11.2 mm | ||
| Weight | 22 g | ||
| EMC Environment | International: IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
||
| Korea (KCC) Class A Equipment (Industrial Broadcasting and Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
|||
| United States (FCC) 47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103. | |||
| Warranty | 2 years | ||
Includes
Model: The Fluke iSee™ Mobile Thermal Camera - TC01B
- Fluke TC01B Mobile Thermal Camera
- Packaging Box
- Users Manual
Manuals
- Fluke TC01A Thermal Camera for Smartphone | Users manual
- TC01B | Users manual
- TC01C | Users manual
- TC01B | Instruction sheet
Data sheet
Software
