(item no. 4152643)
Product Overview
Verify the presence of load current, AC voltage, and continuity of circuits, DC current, and frequency, switches, fuses, and contacts in the toughest environments with this True RMS clamp meter. Additionally, this troubleshooting tool is ideal for commercial and residential electricians.
You can also use it to measure temperature, capacitance, AC/DC current and frequency. Commercial and residential electricians use the 325 to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses and contacts. Frequency measurements allow checking of portable generators; dc current testing battery backups and solar storage equipment.
Features
- 400 A AC and DC current measurement
- 600 V AC and DC voltage measurement
- True RMS AC voltage and current for accurate measurements on non-linear signals
- Resistance measurement up to 40 kΩ with continuity detection
- Measures frequency to 500 Hz
- Temperature and capacitance measurement
- Frequency measurement
- Slim, ergonomic design
- Large, easy to read backlight display
- CAT IV 300V/CAT III 600 V safety rating
- Hold button
Applications
- Electricians
- Commercial
- Residential

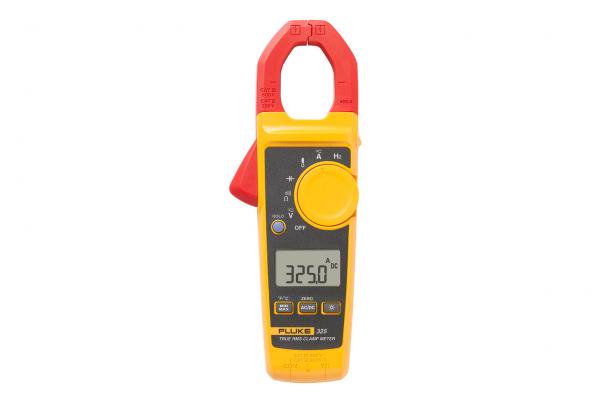

Specifications: Fluke 325 True RMS Clamp Meter
| Specifications |
| AC current |
Range |
40.00 A / 400.0 A |
| Accuracy |
2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
| DC current |
Range |
40.00 A / 400.0 A |
| Accuracy |
2% ± 5 digits |
| AC voltage |
Range |
600.0 V |
| Accuracy |
1.5% ± 5 digits |
| DC voltage |
Range |
600.0 V |
| Accuracy |
1.0% ± 5 digits |
| Resistance |
Range |
400.0 Ω / 4000 Ω / 40.00 kΩ |
| Accuracy |
1.0% ± 5 digits |
| Continuity |
≤ 30 Ω |
| Capacitance |
0 to 100.0 μF / 100μF to 1000 μF
|
| Frequency |
5.0 Hz to 500.0 Hz |
| AC response |
True-RMS |
| Backlight |
Yes |
| Data hold |
Yes |
| Contact temperature |
-10.0°C to 400.0°C (14.0°F to 752.0°F) |
| Min/Max |
Yes |
| Size |
H x W x D (mm) |
207 x 75 x 34 |
| Max wire diameter |
30 mm (600 MCM) |
| Weight |
283 g |
| Category rating |
CAT III 600 V CAT IV 300 V |
| Warranty |
Two-year |
Includes:
- Test leads
- Soft case
- User's manual
