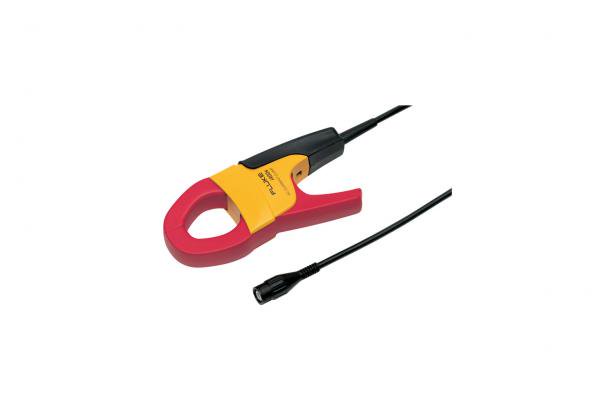

Fluke I400S AC Current Clamp (400A) (item no. 2277202)

SKU: 2277202
$843.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

6Great reasons to buy from us:

  • Image of If your product is faulty or damaged under manufacture warranty, simply send it back to us and we'll cheerfully replace it or fix the problem for you.

    30 Days Return

    If your product is faulty or damaged under manufacture warranty, simply send it back to us and we'll cheerfully replace it or fix the problem for you.
  • Image of Simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

    Returns are Easy

    Simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
  • Image of In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down.

    Best Price Guarantee

    In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing hands-down.
  • Image of We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again.

    We guarantee your satisfaction

    We insist that you love everything you buy from us. If you're unhappy for any reason whatsoever, just let us know and we'll bend over backwards to make things right again.
  • Image of Ordering from Laserman Technologies is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either.

    100% Safe & Secure

    Ordering from Laserman Technologies is 100% safe and secure so you can rest easy. Your personal details are never shared, sold or rented to anyone either.
  • Image of Laserman the Best Laser Level, Pipe Laser and Laser Measuring Warranties in the Business - Now thats unbeatable value !!.

    Best Laser Warranties in the Business

    Laserman the Best Laser Level, Pipe Laser and Laser Measuring Warranties in the Business - Now thats unbeatable value !!.

(item no. 2277202)

Product Overview

For use with digital multimeters, power quality analyzers, and portable oscilloscopes, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.



Features

  • Designed to offer maximum utility in a compact shape
  • Take accurate current readings without breaking the circuit
  • Soft non-slippery over-mold handle
  • CAT IV 600 V / CAT III 1000 V safety rating

Compatible with

  • Fluke 114 Electrical Multimeter
  • Fluke 117 Electrician's Multimeter with Non-Contact Voltage
  • Fluke 434-II and 435-II Power Quality and Energy Analyzers
  • Fluke 438-II Power Quality Analyzer and Motor Analyzer
  • Fluke PQ400 Electrical Measurement Window

Specifications

Electrical Specifications
Nominal Current Range 40 A Range: 0.5 to 40 A
400 A Range: 5 to 400 A
Basic Accuracy 40 A Range: 2% + 0.015 A (45 to 400 Hz)
400 A Range: 2% + 0.04 A (45-400 Hz)
Phase Shift 40 A Range 0.5 to 1 A: Unspecified
1 to 5 A: 4°
5 to 10 A: 3°
10 to 20 A: 3°
20 to 40 A: 2°
40 to 400 A: NA
Phase Shift 400 A Range 0.5 to 1 A: NA
1 to 5 A: NA
5 to 10 A: Unspecified
10 to 20 A: 2°
20 to 40 A: 2°
40 to 400 A: 1.5°
Typical Bandwidth 40 A Range: 5 to 10 kHz
400 A Range: 5 to 10 kHz
Output Level(s) 40 A Range: 10 mV/A
400 A Range: 1 mV/A
Crest Factor 40 A Range: ≤3
400 A Range: ≤3 to 300 A, ≤2.5 to 400 A
Mechanical and General Specifications
Maximum Conductor Size 1.25" (32 mm)
Output Cable Length 8.2' (2.5 m)
BNC Adapter Yes
Dimensions 5.9 x 2.7 x 1.2" (150 x 70 x 30 mm)
Weight 0.25 lb (114 g)
Safety Specifications
Safety CAT IV, 600 V, CAT III, 1000 V
Maximum Non-Destructive Current 1000 V AC
Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

(item no. 2277202)

Product Overview

For use with digital multimeters, power quality analyzers, and portable oscilloscopes, this current clamp allows users to take accurate current measurements without breaking electric circuits. Additionally, it measures up to 400 A AC.



Features

  • Designed to offer maximum utility in a compact shape
  • Take accurate current readings without breaking the circuit
  • Soft non-slippery over-mold handle
  • CAT IV 600 V / CAT III 1000 V safety rating

Compatible with

  • Fluke 114 Electrical Multimeter
  • Fluke 117 Electrician's Multimeter with Non-Contact Voltage
  • Fluke 434-II and 435-II Power Quality and Energy Analyzers
  • Fluke 438-II Power Quality Analyzer and Motor Analyzer
  • Fluke PQ400 Electrical Measurement Window

Specifications

Electrical Specifications
Nominal Current Range 40 A Range: 0.5 to 40 A
400 A Range: 5 to 400 A
Basic Accuracy 40 A Range: 2% + 0.015 A (45 to 400 Hz)
400 A Range: 2% + 0.04 A (45-400 Hz)
Phase Shift 40 A Range 0.5 to 1 A: Unspecified
1 to 5 A: 4°
5 to 10 A: 3°
10 to 20 A: 3°
20 to 40 A: 2°
40 to 400 A: NA
Phase Shift 400 A Range 0.5 to 1 A: NA
1 to 5 A: NA
5 to 10 A: Unspecified
10 to 20 A: 2°
20 to 40 A: 2°
40 to 400 A: 1.5°
Typical Bandwidth 40 A Range: 5 to 10 kHz
400 A Range: 5 to 10 kHz
Output Level(s) 40 A Range: 10 mV/A
400 A Range: 1 mV/A
Crest Factor 40 A Range: ≤3
400 A Range: ≤3 to 300 A, ≤2.5 to 400 A
Mechanical and General Specifications
Maximum Conductor Size 1.25" (32 mm)
Output Cable Length 8.2' (2.5 m)
BNC Adapter Yes
Dimensions 5.9 x 2.7 x 1.2" (150 x 70 x 30 mm)
Weight 0.25 lb (114 g)
Safety Specifications
Safety CAT IV, 600 V, CAT III, 1000 V
Maximum Non-Destructive Current 1000 V AC
