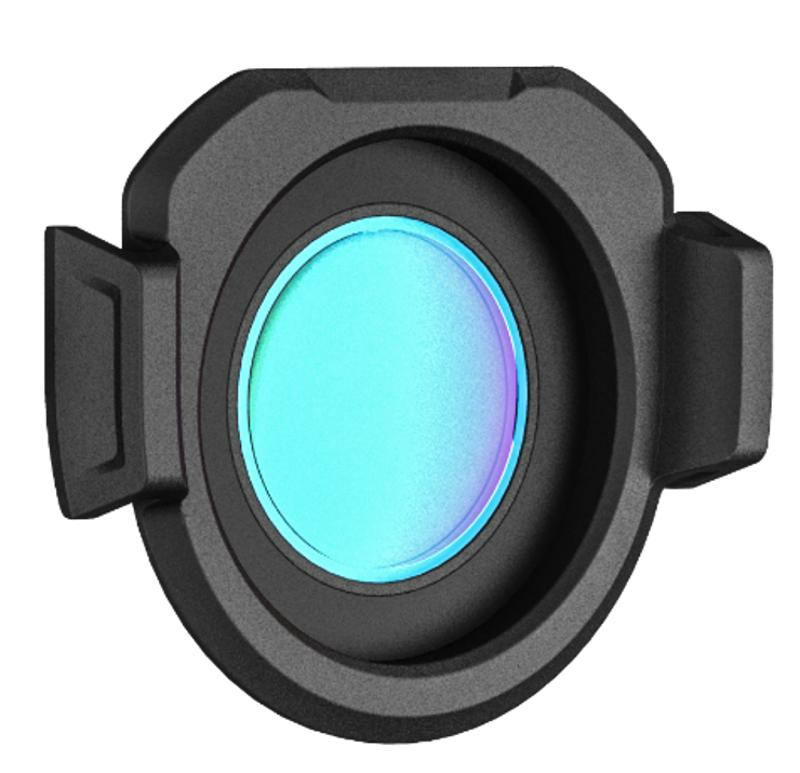

HIKMICRO Macro lens for M series

SKU: HM-AHL02-MM650
$499.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

The HIKMICRO HM-AHL02-MM650 macro lens allows you to spot potential design flaws, evaluate PCB hot spots,
and inspect small electronic components.

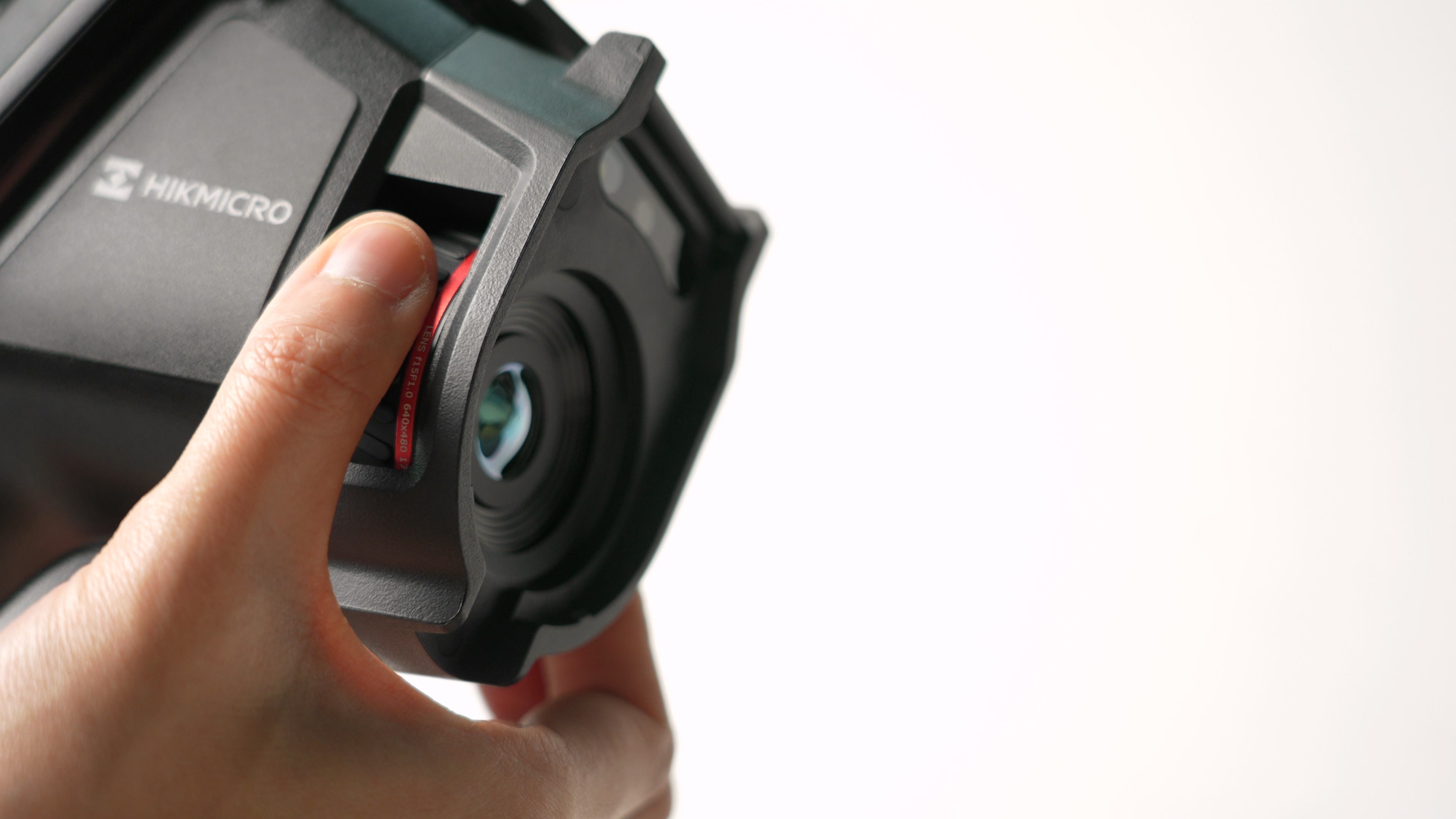

Easily clips onto HIKMICRO M-series thermal imaging cameras.
HIKMICRO HM-AHL02-MM650 macro lens is compatible with the M series thermography cameras.

Features

  • Min. Focus Distance up to 26.5 mm
  • Spatial Resolution (IFOV) , Manual Focus up to 50 µm/pixel, Focus Free up to 100 µm/pixel
n   Specification
Infrared Image
Focal Length M20/M11: 15.4mm0.051 ft
M20W/M11W: 5.9mm0.019 ft
M30: 15.1mm  0.050 ft
M31: 13.9mm0.046 ftM60: 14.7mm0.048 ft
FOV (Field of View) M11: 3.7°  x 2.8°
M20: 4.7°  x 3.9°
M11W: 20.4°  x 15.7°
M20W: 25.9°  x 20.4°
M30: 12.2°  x 10.0°
M31: 13.0°  x 10.6°
M60: 26.3°  x 20.1°
IFOV (Spatial Resolution) manual focus50 µm/pixel
focus free
100 µm/pixel
Aperture 1.0
Min. Focusing Distance 26.5 mm
General
Working Temperature Range -20°C to 50°C (-4°F to 122°F)
Weight 15 g0.03 lb
Dimension 62.32mm×51.28mm×13.26mm2.45''  ×  2.02''  ×  0.52''
