(item no. 4387857)
Product Overview

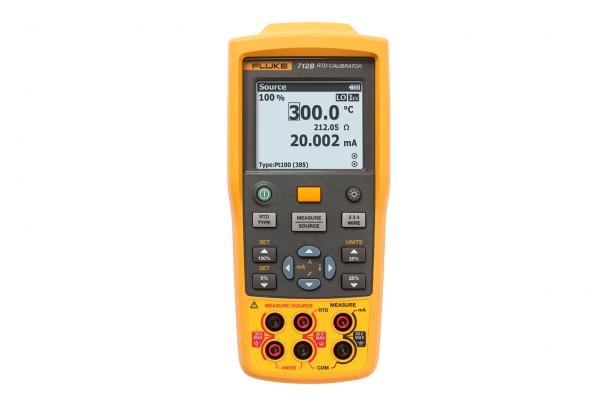

This handheld, battery operated calibrator measures and sources a variety of RTD types and resistances with isolated channel to measure 4 to 20mA while sourcing a temperature signal. Can be configured to 0% and 100% source settings for quick 25% linearity checks.
Features
Ideal for the professional that wants a highly accurate, easy-to-use, single function temperature calibrator. Capable of measuring and simulating 13 different RTD types and resistances. This calibrator was designed for convenience and functionality on the job site, including a convenient hanging strap designed for use with this model. With dual inputs and a backlit display for easy interpretation of measurements.
- Highly accurate, full-featured , easy-to-use single function RTD temperature calibrator
- Measures and simulates 13 different RTD types and resistance
- Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal
- Comes with a magnetic hanging tool designed in for convenient hands-free operation
- Features configurable 0% and 100% source settings for quick 25% linearity checks
- Dual inputs and backlit display for easy interpretation of measurements
- Remembers power down settings to easily restart tests when powered up
- Provides linear ramp and 25% step auto ramp based on 0% and 100% settings
- Provides one-year and two-year specifications and traceable certification of calibration
Specifications
| Maximum voltage applied between any terminal and earth ground or between any two terminals |
30V |
| Operating Temperature |
-10 to 50°C |
| Storage Temperature |
-30 to 60°C |
| Operating Altitude |
2,000 Meters |
| Storage Altitude |
12,000 Meters |
| Drop Text Requirements |
1 Meter |
| IP Rating |
IEC 60529: IP52 |
| Electromagnetic Environment |
IEC 61326-1, Portable |
| Safety |
IEC 61010-1, Max 30 V to Earth, Pollution Degree 2 |
| Power supply |
4 x AA NEDA 1.5A IEC LR6 Batteries |
| Weight |
515g |
| Dimensions |
52.5 x 84 x 188.5mm |
