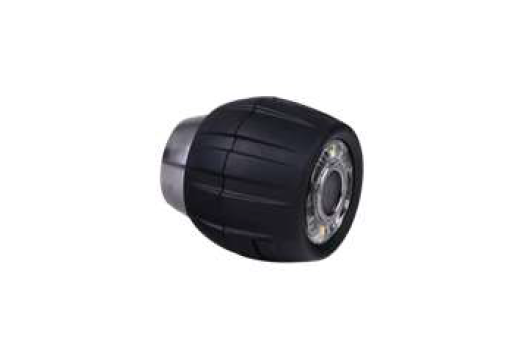

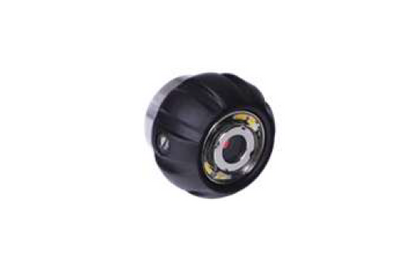

VIVAX-METROTECH vCamMX Series Mini Exchange Camera Head

SKU: 1.113.02.00001-E

Models

$1,353.00
Checkout Secure
Need more info? Call us +61 8 9335 1718
Component Specification
Model Name D18-HD
Model Number VX113-2
Application Used with the Type-MX reel in pipe diameters from 1-1/2 to 3 inches / 38 to 75mm
Resolution 1080p
Active Pixels 1920 x 1080
Focus Point 4" (10cm)
Aperture / FOV 90º
Lighting 69 Lumens Measure at 1 meter in 4-inch cast iron pipe
Auto Upright None, fixed position non-leveling camera
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 11 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing Designed and manufactured per ISO 9001:2015
Dimensions Installed 0.73” (Dia.) x 0.71” (L) / 18.6mm (Dia.) x 18.1mm (L) without standard skid
1.0” (Dia.) x 0.73” (L) / 25.6mm (Dia.) x 18.6mm (L) Diameter with standard skid installed
Weight 0.029lbs (0.013kg) without standard skid 0.035lbs (0.016kg) with standard skid
Options Optional 2.5 / 57mm Guide skid Camera exchange program
What’s in the Box D18-HD Camera Standard Skid


Component Specification
Model Name D26-HD
Model Number VX112-3
Application Used with the Type-MX reel in pipe diameters from 2 to 4 inches / 50 to 101mm
Resolution 1080p
Active Pixels 1920 x 1080
Focus Point 6" (15cm)
Aperture / FOV 114º
Auto Upright Cantilever self-leveling design
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 10 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC).
Manufacturing Designed and manufactured per ISO 9001:2015
Dimensions Installed 1.02” (Dia.) x 1.41” (L) / 26mm (Dia.) x 35.9mm(L) without standard skid
1.33” (Dia.) x 1.41” (L) / 33.7mm (Dia.) x 35.9mm(L) with standard skid
Weight 0.14lbs (0.065kg) without standard skid 0.16lbs (0.073kg) with standard skid
Options Optional 2.5 and 3" guide skids (57 and 75mm) Camera exchange program
What’s in the Box D26-HD Camera Standard Skid



Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

Component Specification
Model Name D18-HD
Model Number VX113-2
Application Used with the Type-MX reel in pipe diameters from 1-1/2 to 3 inches / 38 to 75mm
Resolution 1080p
Active Pixels 1920 x 1080
Focus Point 4" (10cm)
Aperture / FOV 90º
Lighting 69 Lumens Measure at 1 meter in 4-inch cast iron pipe
Auto Upright None, fixed position non-leveling camera
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 11 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing Designed and manufactured per ISO 9001:2015
Dimensions Installed 0.73” (Dia.) x 0.71” (L) / 18.6mm (Dia.) x 18.1mm (L) without standard skid
1.0” (Dia.) x 0.73” (L) / 25.6mm (Dia.) x 18.6mm (L) Diameter with standard skid installed
Weight 0.029lbs (0.013kg) without standard skid 0.035lbs (0.016kg) with standard skid
Options Optional 2.5 / 57mm Guide skid Camera exchange program
What’s in the Box D18-HD Camera Standard Skid


Component Specification
Model Name D26-HD
Model Number VX112-3
Application Used with the Type-MX reel in pipe diameters from 2 to 4 inches / 50 to 101mm
Resolution 1080p
Active Pixels 1920 x 1080
Focus Point 6" (15cm)
Aperture / FOV 114º
Auto Upright Cantilever self-leveling design
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 10 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC).
Manufacturing Designed and manufactured per ISO 9001:2015
Dimensions Installed 1.02” (Dia.) x 1.41” (L) / 26mm (Dia.) x 35.9mm(L) without standard skid
1.33” (Dia.) x 1.41” (L) / 33.7mm (Dia.) x 35.9mm(L) with standard skid
Weight 0.14lbs (0.065kg) without standard skid 0.16lbs (0.073kg) with standard skid
Options Optional 2.5 and 3" guide skids (57 and 75mm) Camera exchange program
What’s in the Box D26-HD Camera Standard Skid
