VIVAX-METROTECH Camera Head D34-C, D46-HD

SKU: 1.111.05.00001

Models

Need more info? Call us +61 8 9335 1718

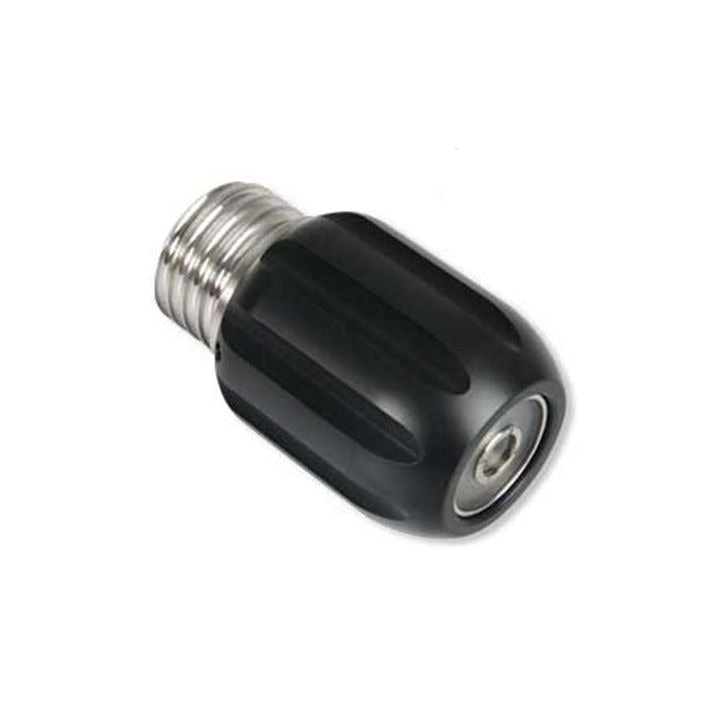

D34-HD Camera Head

Component Specification
Model Name D34-HD
Model Number VX111-05
Application Used with Type-CP Reel, in pipe diameters from 3 to 6 inches /76 to 152mm
Resolution 1080P
Active Pixels NTSC: 1920 x 1080 (30 fps) PAL: 1920 x 1080 (25 fps)
Focus Point 7.8"/20cm
Aperture / Field of View F2.4/96o
Light Sensitivity 0.01 Lux
Lighting 12.87 Lumen
Auto Upright Cantilever self-leveling design
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 11 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing Designed and manufactured per ISO 9001:2015
Dimension Installed 1.36" (Dia.) x 2.2" (L) / 34.5mm (Dia.) x 56mm (L) without standard skid
1.77" / 45mm Diameter with standard skid installed
Total Dimensions 1.36" (Dia.) x 2.9" (L) / 34.5mm (Dia.) x 73mm (L) without standard skid
1.77" / 45mm Diameter with standard skid installed
Weight 0.49lbs (0.22kg)
Shipping Weight 0.77lbs (0.35kg)
Warranty 1 Year
Options and Accessories ·    Camera Exchange Program
·    Guide skid range: 2.25", 3", and 4" (57 mm, 75 mm, and 100 mm)
·    Type-B Adjustable Skid

D46-HD Camera Head

Component Specification
Model Name D46-HD
Model Number VX111-03
Application Used on Type-CP Reel, in pipe diameters from 4 to 8 inches / 101 to 203mm
Resolution 1080P
Active Pixels NTSC: 1920 x 1080 (30 fps) PAL: 1920 x 1080 (25 fps)
Focus Point 7.8"/20cm
Aperture / FOV F2.4/96o
Light Sensitivity 0.01 Lux
Lighting 44.02 Lumen
Auto Upright Cantilever self-leveling design
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 11 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing Designed and manufactured per ISO 9001:2015
Dimension Installed 1.8" (Dia.) x 1.9" (L) / 46mm (Dia.) x 50.5mm (L) without standard skid
2.41" / 61.2mm Diameter with standard skid installed
Total Dimensions 1.8" (Dia.) x 2.6" (L) / 46mm (Dia.) x 68.4mm (L) without standard skid
2.41" / 61.2mm Diameter with standard skid installed
Weight 0.73lbs (0.33kg)
Shipping Weight 0.84lbs (0.38kg)
Warranty 1 Year
Options ·    Camera Exchange Program
·    Guide skid range: 3", 4", and 5" (75 mm, 100 mm, and 127 mm)
·    Type-B Skid
What’s in the Box D46-HD Camera Standard Skid
Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

D34-HD Camera Head

Component Specification
Model Name D34-HD
Model Number VX111-05
Application Used with Type-CP Reel, in pipe diameters from 3 to 6 inches /76 to 152mm
Resolution 1080P
Active Pixels NTSC: 1920 x 1080 (30 fps) PAL: 1920 x 1080 (25 fps)
Focus Point 7.8"/20cm
Aperture / Field of View F2.4/96o
Light Sensitivity 0.01 Lux
Lighting 12.87 Lumen
Auto Upright Cantilever self-leveling design
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 11 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing Designed and manufactured per ISO 9001:2015
Dimension Installed 1.36" (Dia.) x 2.2" (L) / 34.5mm (Dia.) x 56mm (L) without standard skid
1.77" / 45mm Diameter with standard skid installed
Total Dimensions 1.36" (Dia.) x 2.9" (L) / 34.5mm (Dia.) x 73mm (L) without standard skid
1.77" / 45mm Diameter with standard skid installed
Weight 0.49lbs (0.22kg)
Shipping Weight 0.77lbs (0.35kg)
Warranty 1 Year
Options and Accessories ·    Camera Exchange Program
·    Guide skid range: 2.25", 3", and 4" (57 mm, 75 mm, and 100 mm)
·    Type-B Adjustable Skid

D46-HD Camera Head

Component Specification
Model Name D46-HD
Model Number VX111-03
Application Used on Type-CP Reel, in pipe diameters from 4 to 8 inches / 101 to 203mm
Resolution 1080P
Active Pixels NTSC: 1920 x 1080 (30 fps) PAL: 1920 x 1080 (25 fps)
Focus Point 7.8"/20cm
Aperture / FOV F2.4/96o
Light Sensitivity 0.01 Lux
Lighting 44.02 Lumen
Auto Upright Cantilever self-leveling design
Construction Stainless steel housing with scratch-resistant Sapphire lens
Environmental Water resistance up to 11 BAR pressure
Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC)
Manufacturing Designed and manufactured per ISO 9001:2015
Dimension Installed 1.8" (Dia.) x 1.9" (L) / 46mm (Dia.) x 50.5mm (L) without standard skid
2.41" / 61.2mm Diameter with standard skid installed
Total Dimensions 1.8" (Dia.) x 2.6" (L) / 46mm (Dia.) x 68.4mm (L) without standard skid
2.41" / 61.2mm Diameter with standard skid installed
Weight 0.73lbs (0.33kg)
Shipping Weight 0.84lbs (0.38kg)
Warranty 1 Year
Options ·    Camera Exchange Program
·    Guide skid range: 3", 4", and 5" (75 mm, 100 mm, and 127 mm)
·    Type-B Skid
What’s in the Box D46-HD Camera Standard Skid
