Smart Sensor AR600E Cable Height meter

SKU: 008-AR600E
$720.00

Not Available

Replaced by

Suparule 600 - Cable Height Meter for Utility, Power & Electricity

Suparule 600 - Cable Height Meter S600, CHM600

SKU: S600

$1,430.00
Need more info? Call us +61 8 9335 1718

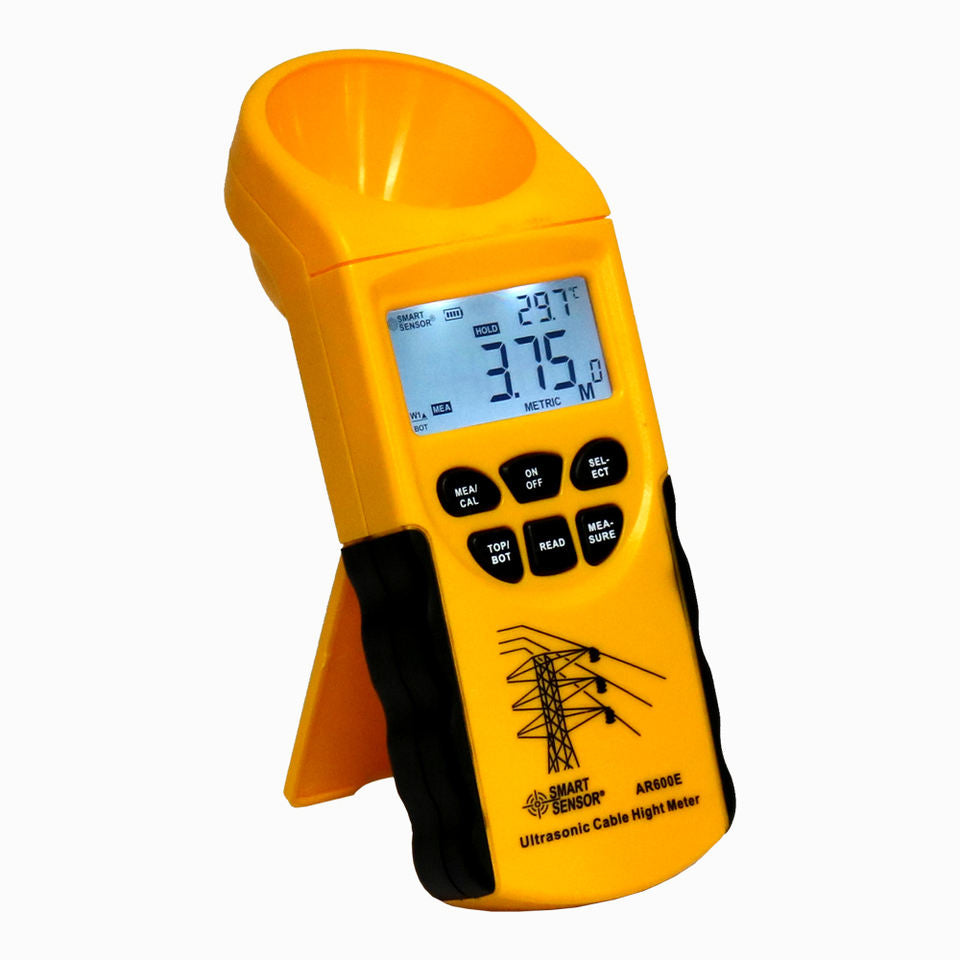

AR600E Digital Cable Height Meter (Chinese copy of the original Suparule Cable Height Meter

This digital cable height meter adopts ultrasonic principle to measure cable height with fast and accurate readings safely and quickly. It's widely used for measuring the distance between wire and wire in different uses of cables.

Features:
Wide cable height measurement range(25mm cable min): 3-23mm for measuring the height up to 6 cables together.
Wide horizontal measurement range: 3-18m, for measuring the distance between wire and wire.
User friendly and easy-to-operate Ultrasonic Cable Height Meter, applicable to different use of cables.
Adopts large measuring sensor for higher accuracy than other cable height meters and measuring the distance between objects.
Digital backlight LCD display, easy to aim at the measuring position and convenient to read in dark.
The temperature compensation enables the meter compensates error automatically under -10~40℃ and ensures the measuring accuracy on differnet temperature conditions.
Can be used for depth measurement with the accessory bracket, (examples: an shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection.
Can be widely used in electrical, overhead cables, tree branches, forestry, industrial, mining, shafts, depth of wells, etc.

Specifications:
Brand Name: SMART SENSOR
Color: Yellow
Material: ABS Plastic
Display: LCD Backlight Display
Screen Size: 52 * 26mm / 2.05 * 1.02in
Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

AR600E Digital Cable Height Meter (Chinese copy of the original Suparule Cable Height Meter

This digital cable height meter adopts ultrasonic principle to measure cable height with fast and accurate readings safely and quickly. It's widely used for measuring the distance between wire and wire in different uses of cables.

Features:
Wide cable height measurement range(25mm cable min): 3-23mm for measuring the height up to 6 cables together.
Wide horizontal measurement range: 3-18m, for measuring the distance between wire and wire.
User friendly and easy-to-operate Ultrasonic Cable Height Meter, applicable to different use of cables.
Adopts large measuring sensor for higher accuracy than other cable height meters and measuring the distance between objects.
Digital backlight LCD display, easy to aim at the measuring position and convenient to read in dark.
The temperature compensation enables the meter compensates error automatically under -10~40℃ and ensures the measuring accuracy on differnet temperature conditions.
Can be used for depth measurement with the accessory bracket, (examples: an shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection.
Can be widely used in electrical, overhead cables, tree branches, forestry, industrial, mining, shafts, depth of wells, etc.

Specifications:
Brand Name: SMART SENSOR
Color: Yellow
Material: ABS Plastic
Display: LCD Backlight Display
Screen Size: 52 * 26mm / 2.05 * 1.02in
