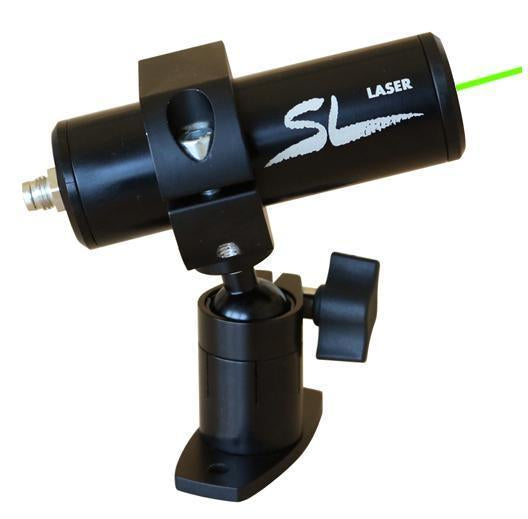

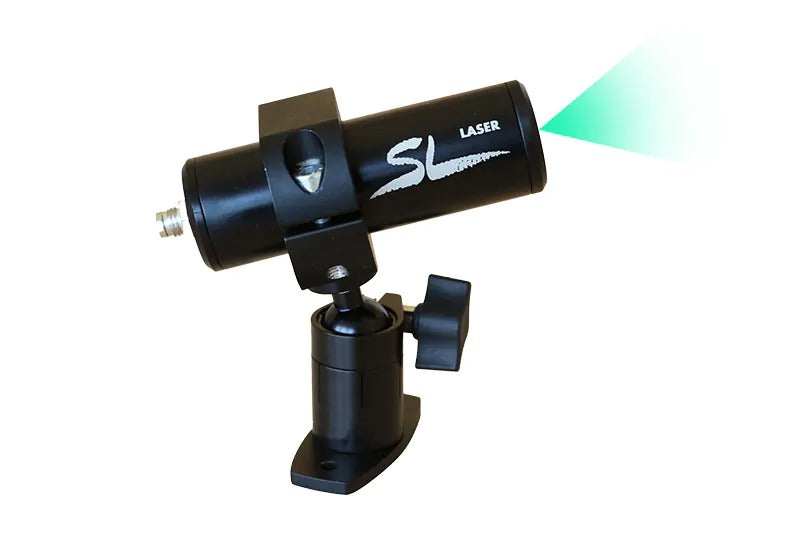

SL Red/Green Beam Positioning Laser
Product Overview
The positioning laser is suitable for industrial environments.
The "Positioning laser“ combines sturdy durability and reliable accuracy in a versatile alignment laser. SL Positioning laser modules consist of a laser diode, optics and driver electronics constructed in a rugged isolated housing. A wide range of applications include the positioning of tools, fixtures and materials and the alignment of instruments and machines.
Features
- Compact design
- Electrically isolated housing
- Constant output power
- Wide temperature range for operation and storage
- Perfect for Alignment and measurement,
- Wood processing
- Machinery manufacturing
- OEM integration
Specifications (green)
| Colour/Wavenlegth | Diode power | Max. Output | Focusable | Optics | Laser Class |
| green/520 nm | 10 mW | < 1 mW | yes | Line | 2M |
| green/520 nm | 10 mW | < 1 mW | yes | Cross | 2M |
| green/520 nm | 50 mW | < 5 mW | yes | Line | 3R |
| Line generator for line | length | 10°, 15°, 30°, 45°, 60°, 90° |
Specifications (red)
| Colour/Wavenlength | Diode power | Max. Output | Focusable | Optics | Laser Class |
| red | 10 mW | < 1 mW | yes | Line | 2M |
| red | 10 mW | < 1 mW | yes | Cross | 2M |
| Line generator for line | length | 10°, 15°, 30°, 45°, 60°, 90° |
Specifications overview
| Mechanical | housing anodised aluminium, dimensions (mm) Ø 30 x 88.5mm, weight 300g incl. cable leads | |
| Optics | line or cross, homogeneous line | |
| Optical properties green | laser diode output: 10 mW / 50 mW, wavenlength 520nm (green), lifetime: > 20.000 h | |
| Optical properties red | laser diode output:: 10 mW, wavenlength 635nm (red), lifetime: > 20.000 h | |
| Laser Class | Class 2M, 10 mW (Class 3R, 50 mW) EN 60825-1:2015-07, IEC60825-1, EN76-2, 21CFR 1040, CE | |
| Inspection and safety | temperature range 0°C... +50°C, IP 65, max. shock 4 g | |
| Electrical Values | Voltage 16-33 VDC (+)bn (-)bl (PE)gb/gn, Input 1 W, Cable length 5 m |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
