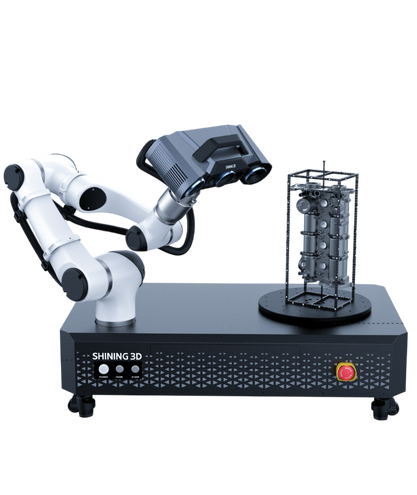

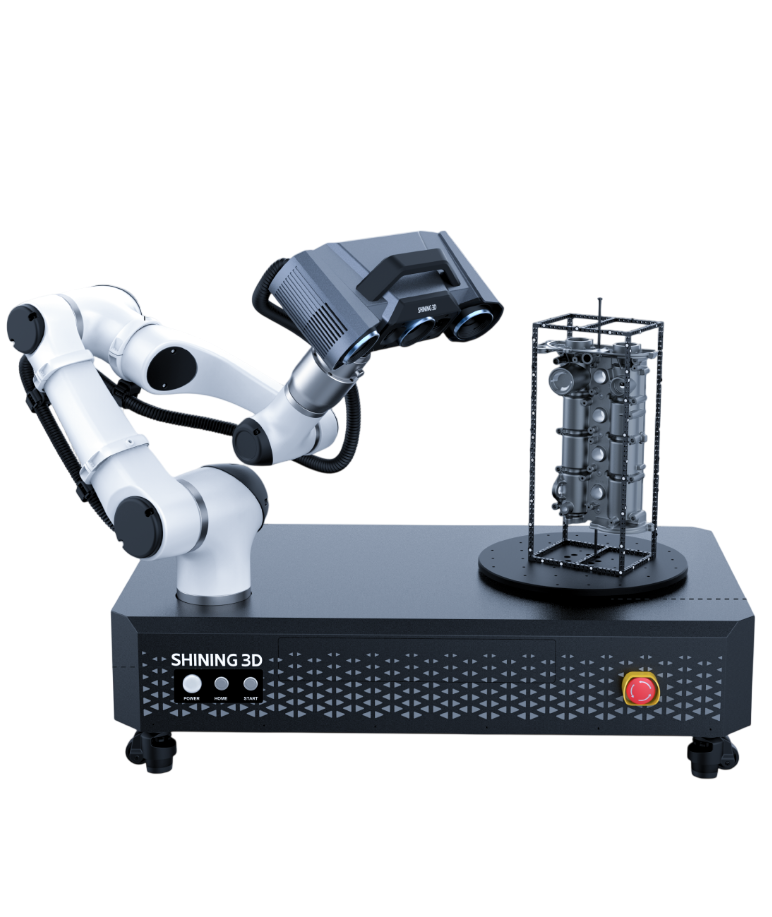

Shining 3D RobotScan Q12

SKU: BD.202507.083
$88,000.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

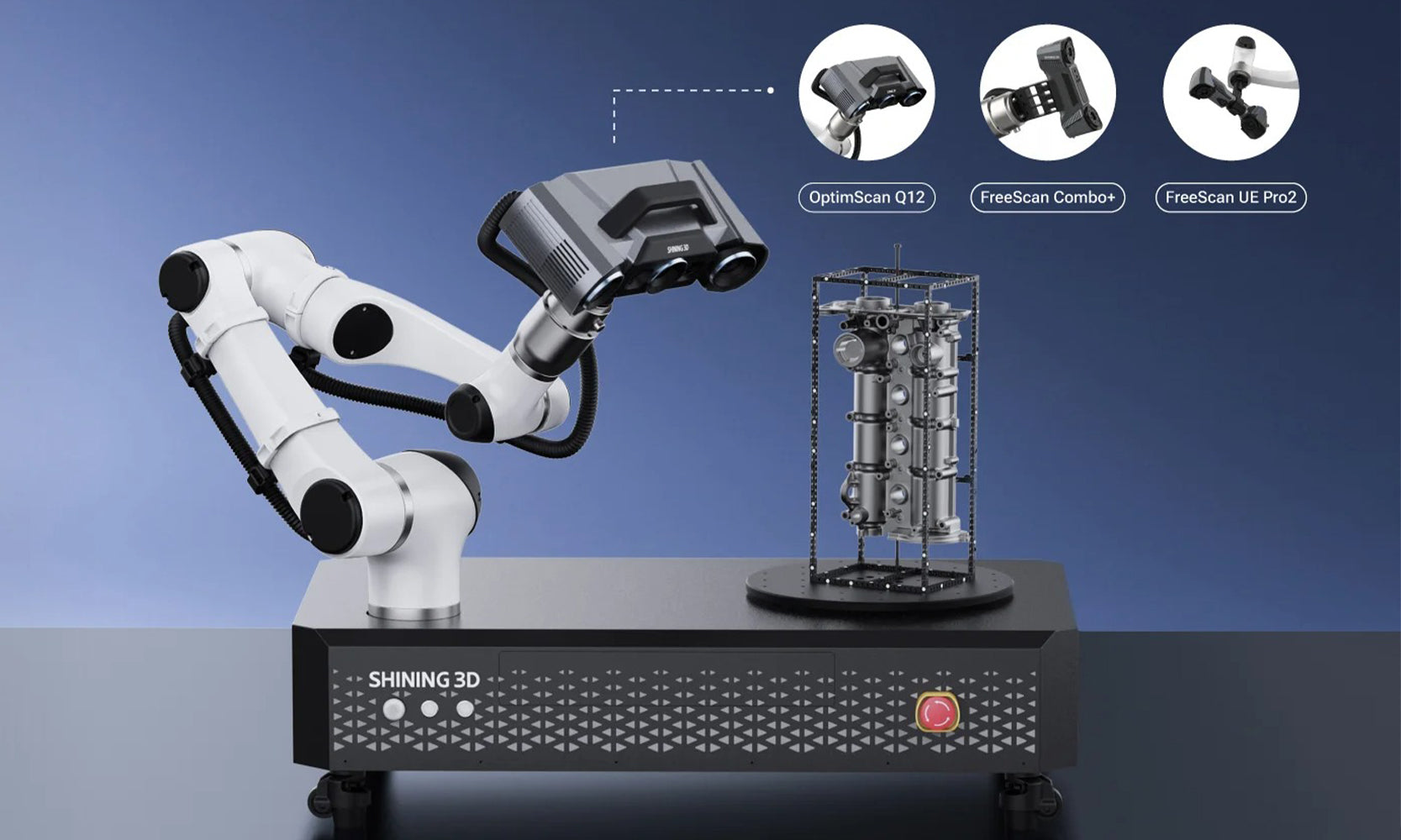

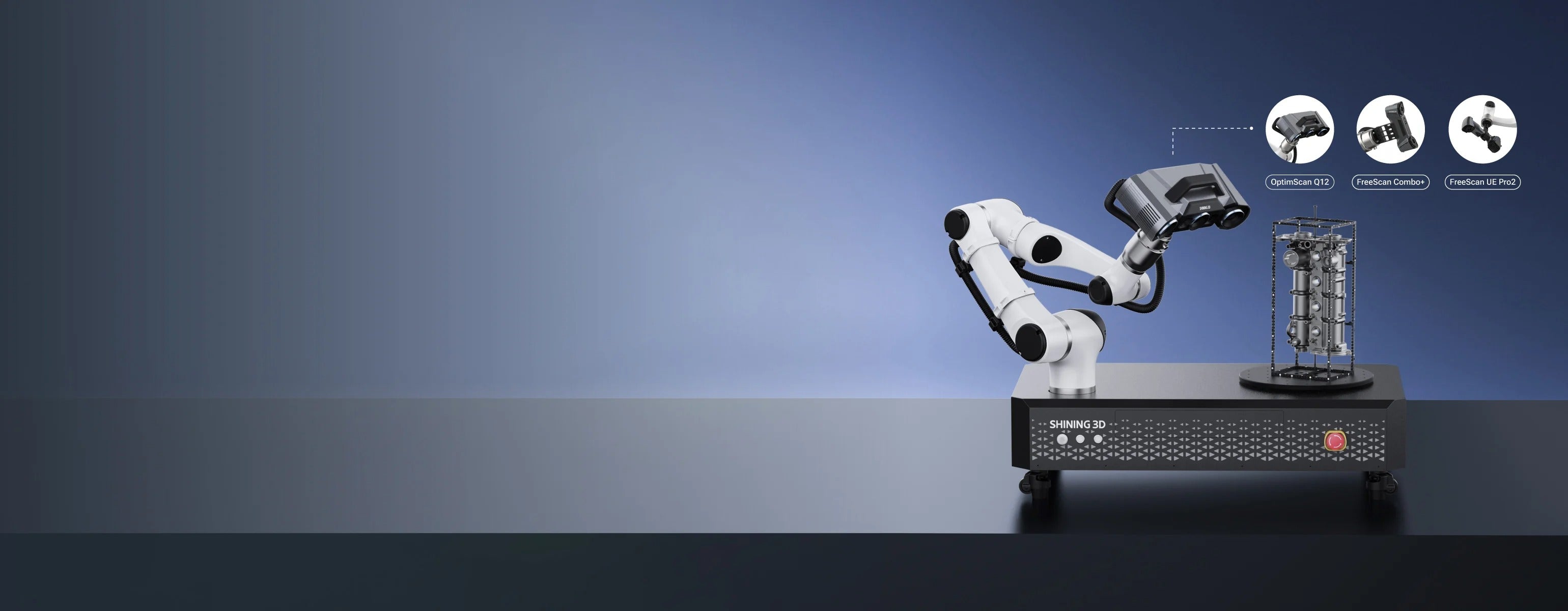

Standard Automation Solutions

The standardized automation solution of RobotScan Series is designed to meet the typical inspection demands in modern manufacturing. It supports both high-precision fringe projection scanners and handheld laser scanners.

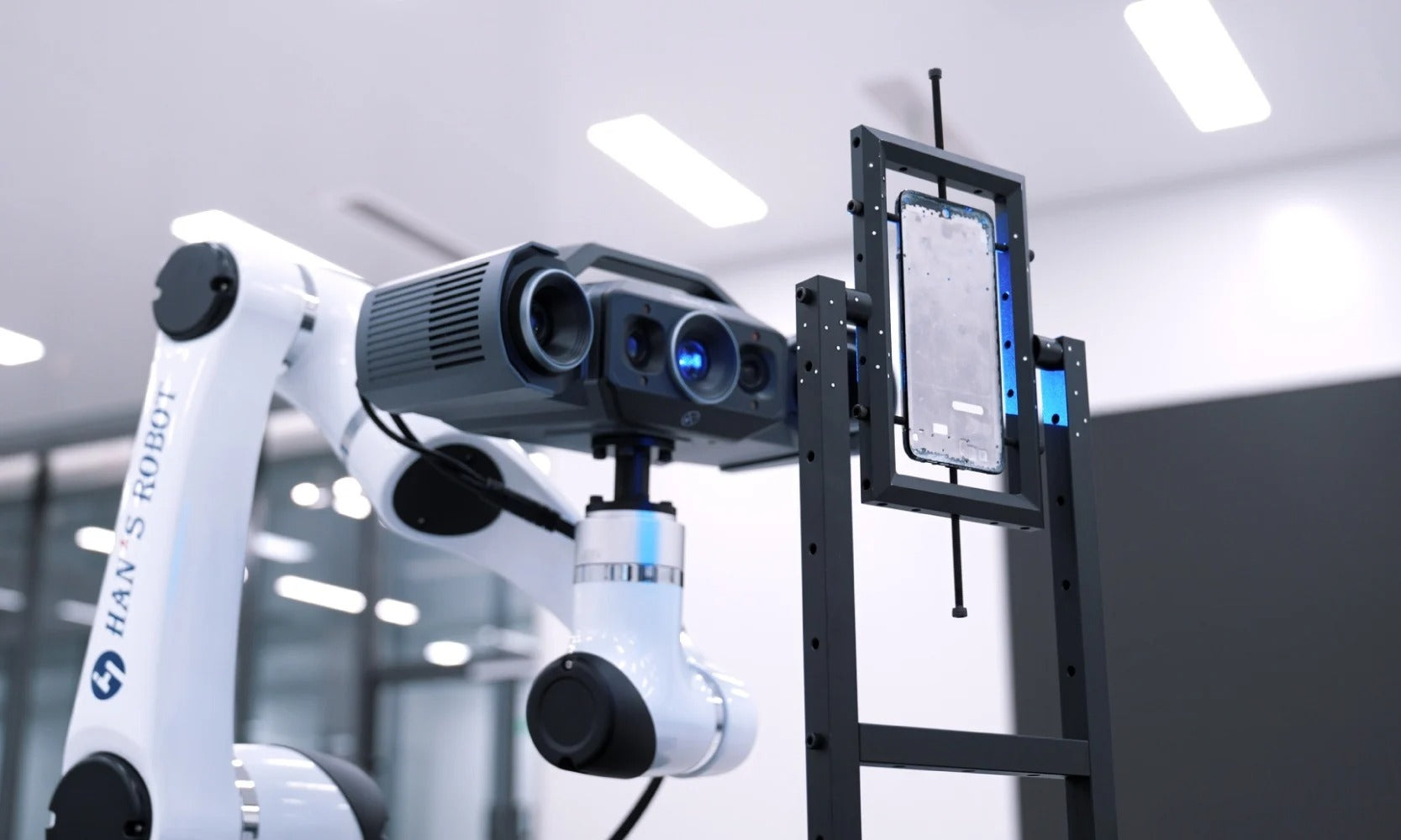

RobotScan Q12_1667_1000

RobotScan Q12

  • Fine-detail components such as airfoils, brackets, connectors, gears, housings, and electronic components
  • Designed sensor for small-sized part measurement with complex surfaces, geometries,  or sharp edges
  • Suited for a wide range of tasks, like injection molding, die casting, investment casting, and CNC parts
  • Automated optical 3D measurement solution with high repeatability
  • High efficiency for mass-production inspection
  • Fringe projection technology with the best accuracy and high detailed data

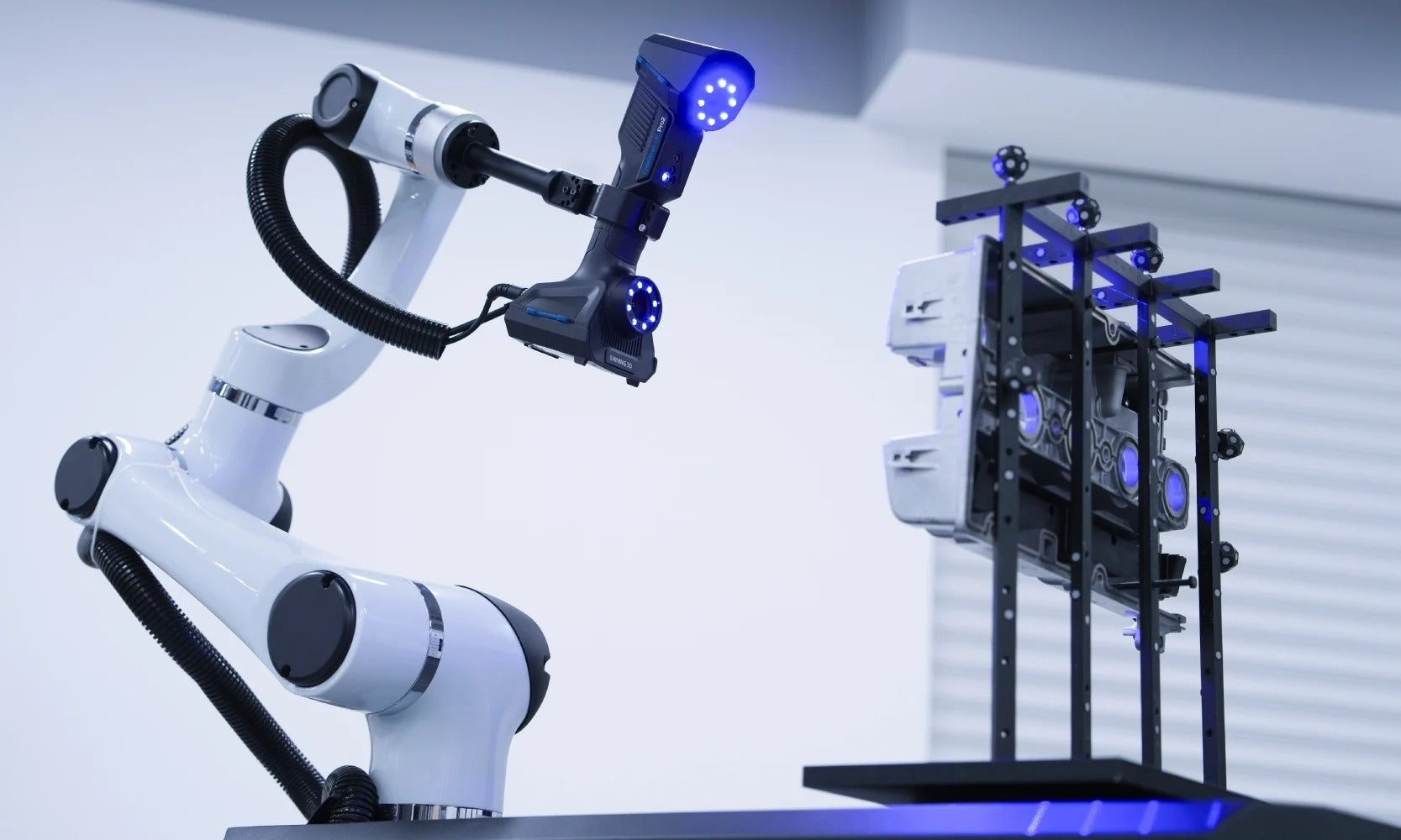

RobotScan UE Pro2_1667_1000

RobotScan UE Pro2

  • Small and medium sized sheet metal parts, casting housing, machining parts, mold components
  • Strong material adaptability, especially on black, shiny, and reflective surfaces
  • Suited for a wide range of tasks, like die casting, stamping, and machining parts
  • Wireless and Wired connectivity for flexible on-site installation
  • Automated optical 3D measurement solution with high accuracy and high efficiency
  • Handheld laser technology for various shopfloor environments

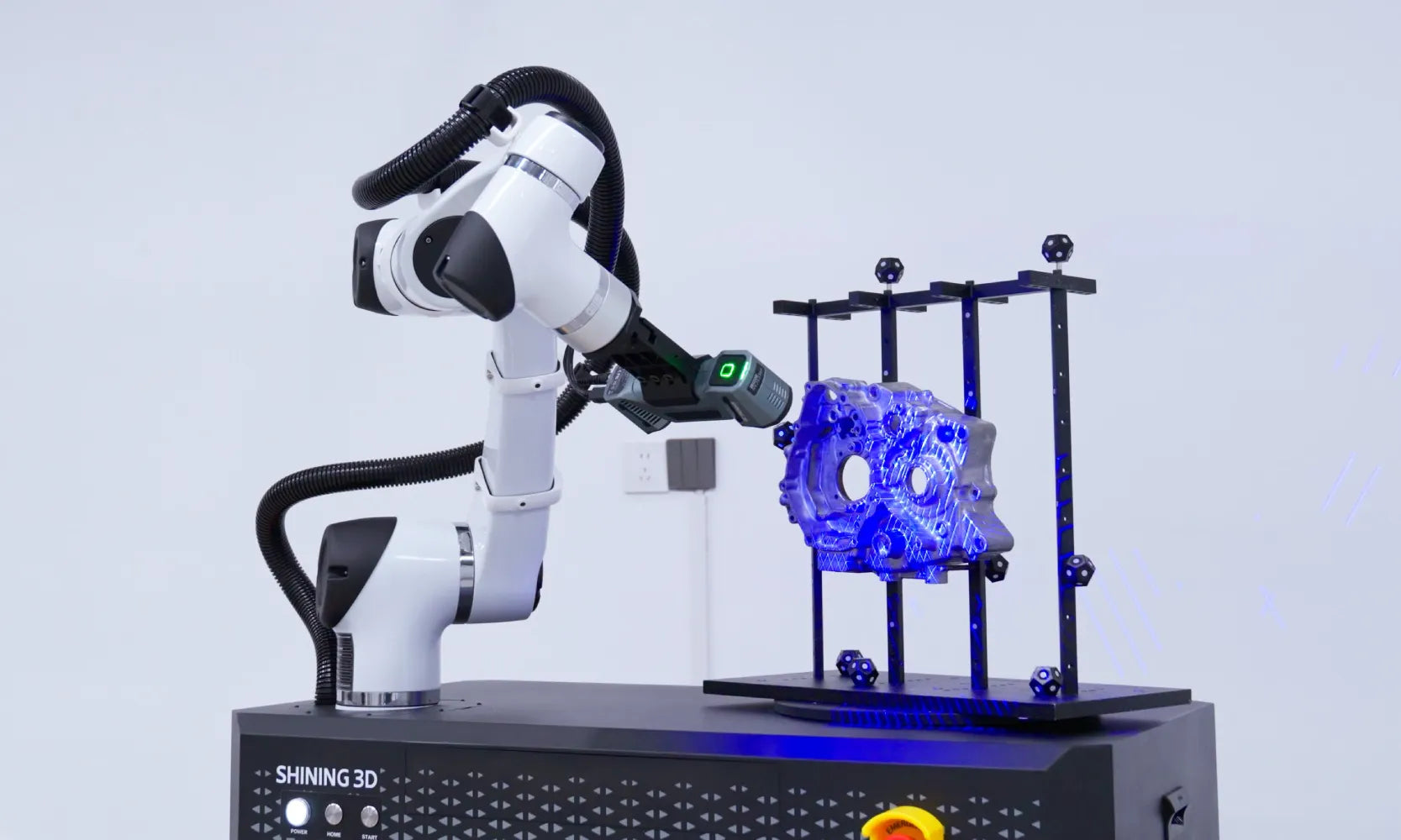

RobotScan Combo+_1667_1000

RobotScan Combo+

  • Batch inspection of the small-to-medium-sized castings and machined parts
  • Mixed-size components such as covers, trim pieces, assemblies, medium castings
  • Cost-effective automated 3D scanning across varied parts

Control & Inspection Software

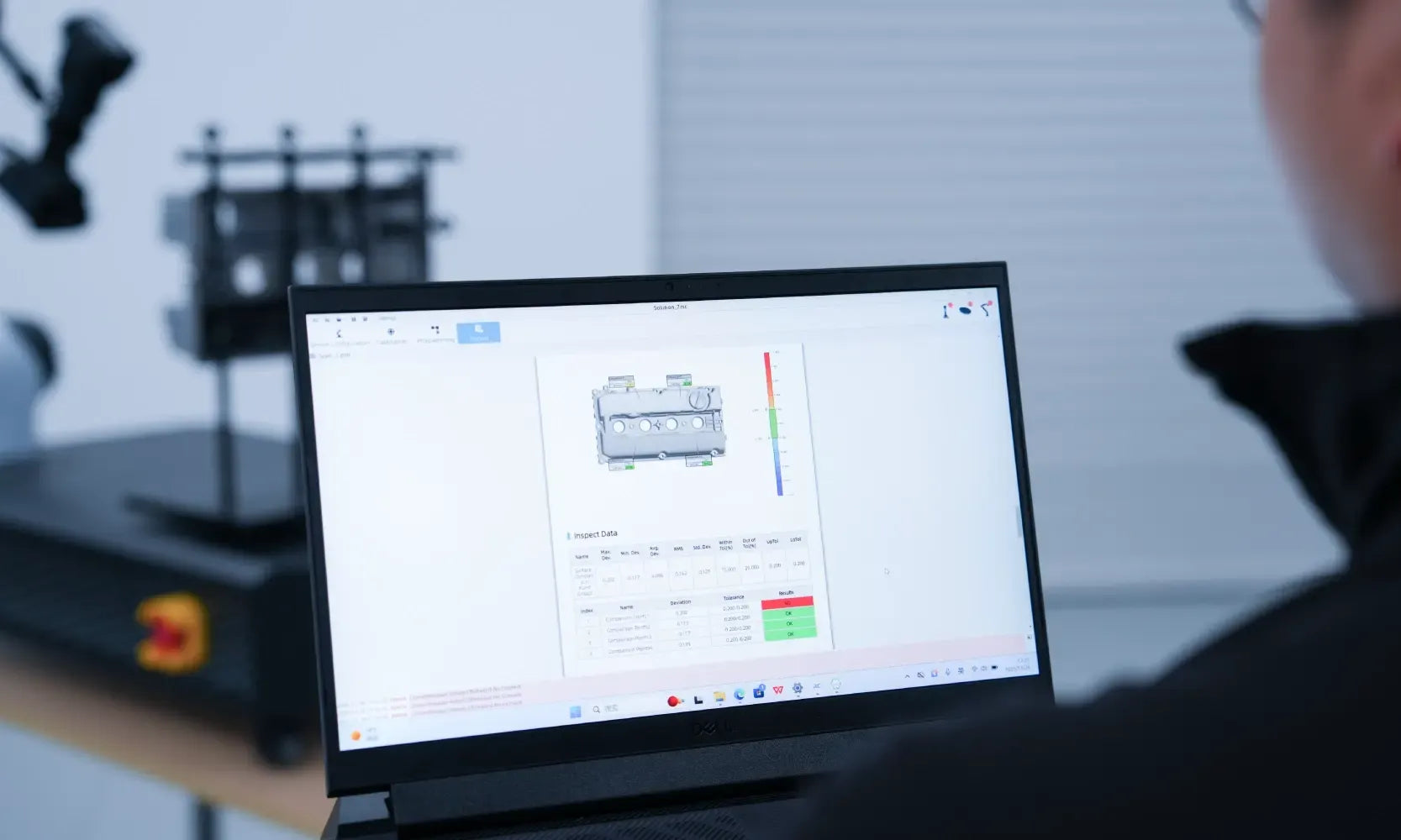

RC Control(1)

RobotScan Control

RobotScan Control is a professional automation software purpose-built for industrial applications. It enables direct control of collaborative robot arms, servo turntables, and 3D scanners to execute the complete workflow - from path programming to 3D scanning and inspection. Featuring a process-oriented interface, the software offers intuitive operation and a low learning curve, greatly improving automation efficiency and stability.
    robotscan shining3d inspect

    SHINING3D Inspect

    SHINING3D Inspect is an industrial inspection software certified by PTB for measurement accuracy. It processes high-accuracy 3D scan data to perform detailed 3D comparison, measurement, and inspection report generation. The software delivers reliable, traceable inspection results that meet the stringent demands of modern manufacturing and quality control.

    RobotScan Series Technical Data

    • Measurable object size≤ 500 mm
    • Turntable load capacity≤ 20 kg
    • Robot typeCobot, Huayan Robotics
    • Robot working radius800 mm
    • Dimensions1030 × 670 × 270 mm
    • Weight70 kg
    • Power supply100 – 240V (Single-phase, 10A)
    • Safe working space2400 × 2400 × 1600 mm
