Topcon RL-H5A Rotating Laser Level with Receiver

SKU: 1021200-45
$1,945.00

Receiver Option

Battery

Checkout Secure
Need more info? Call us +61 8 9335 1718


RL-H5A Rotating Laser Level with Receiver

Options to choose

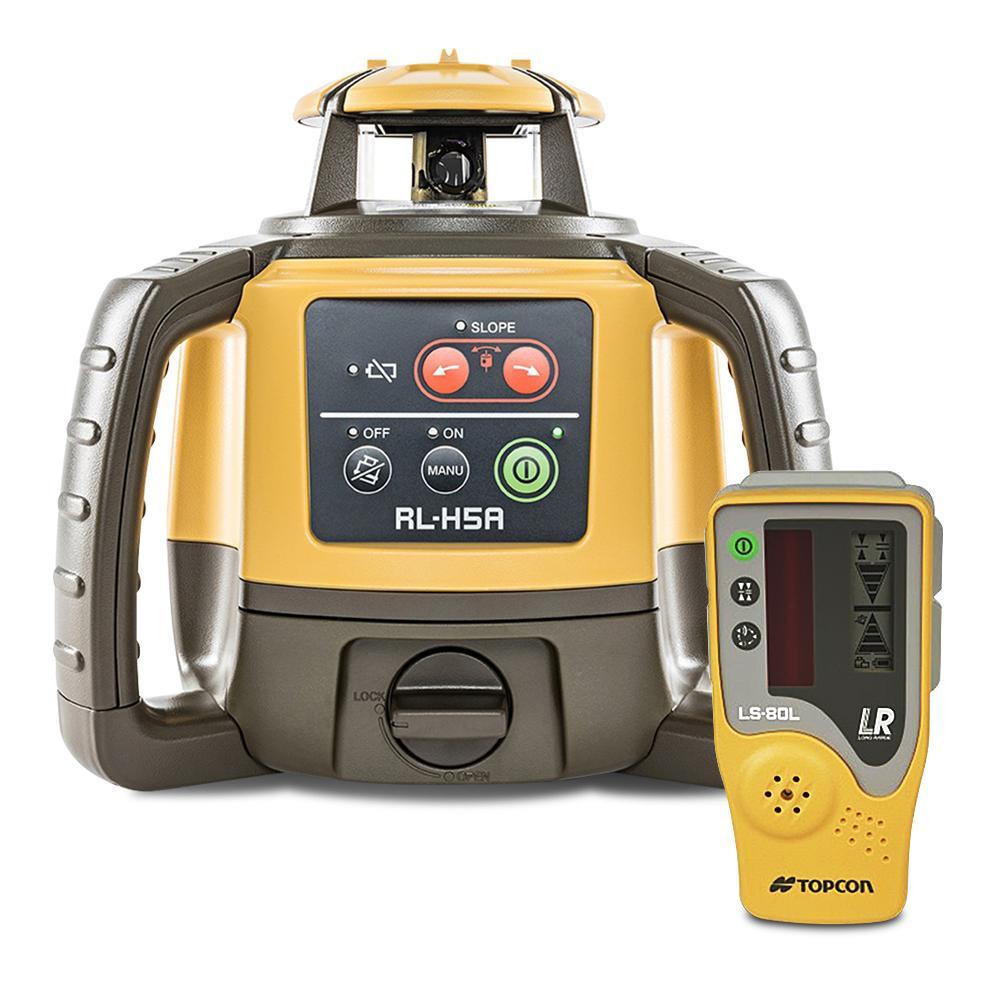

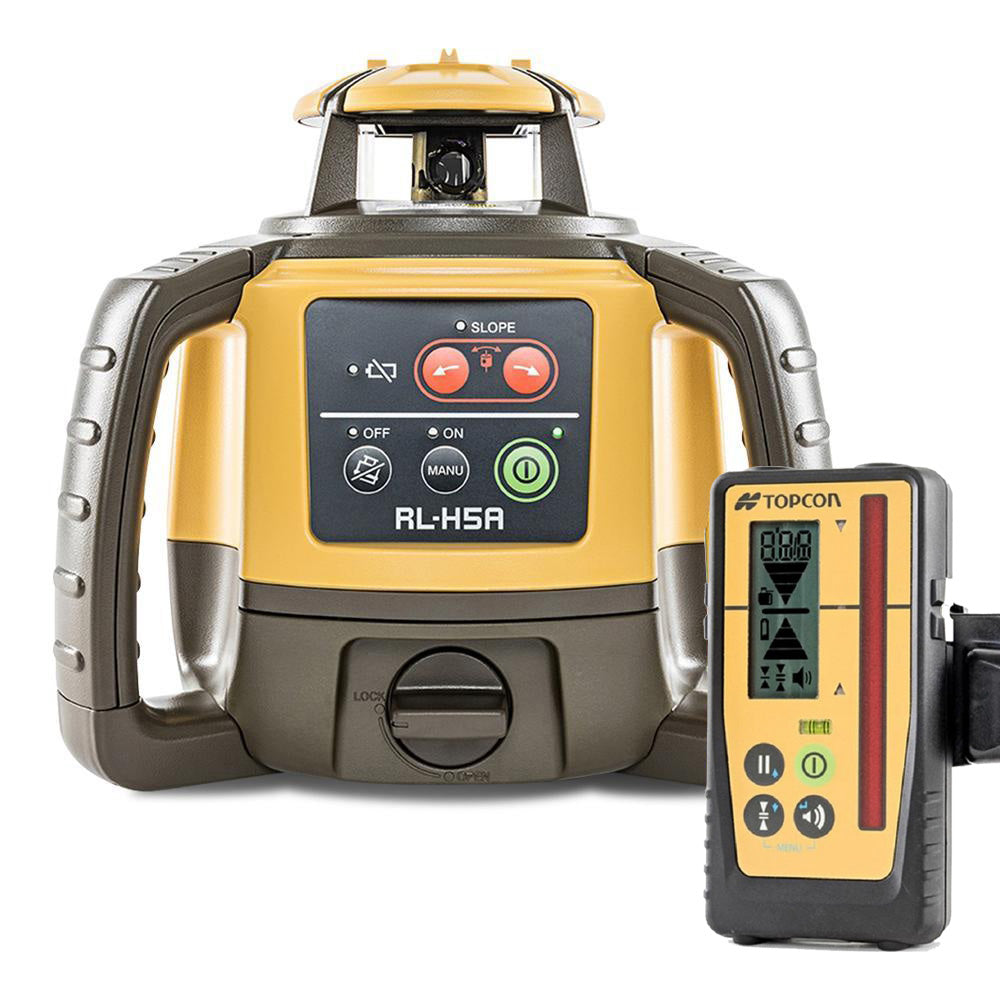

  • RL-H5A with LS80X - Dry Battery
  • RL-H5A with LS80X - Rechargeable

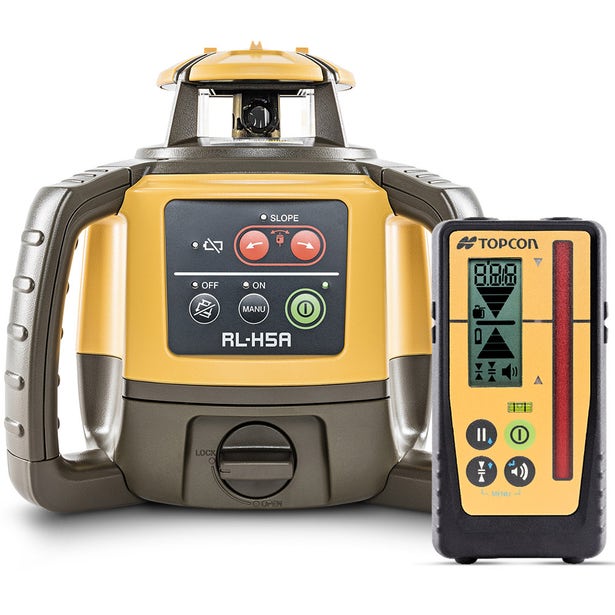

  • RL-H5A with LS100D - Rechargeable
  • RL-H5A with LS100D - Dry Battery

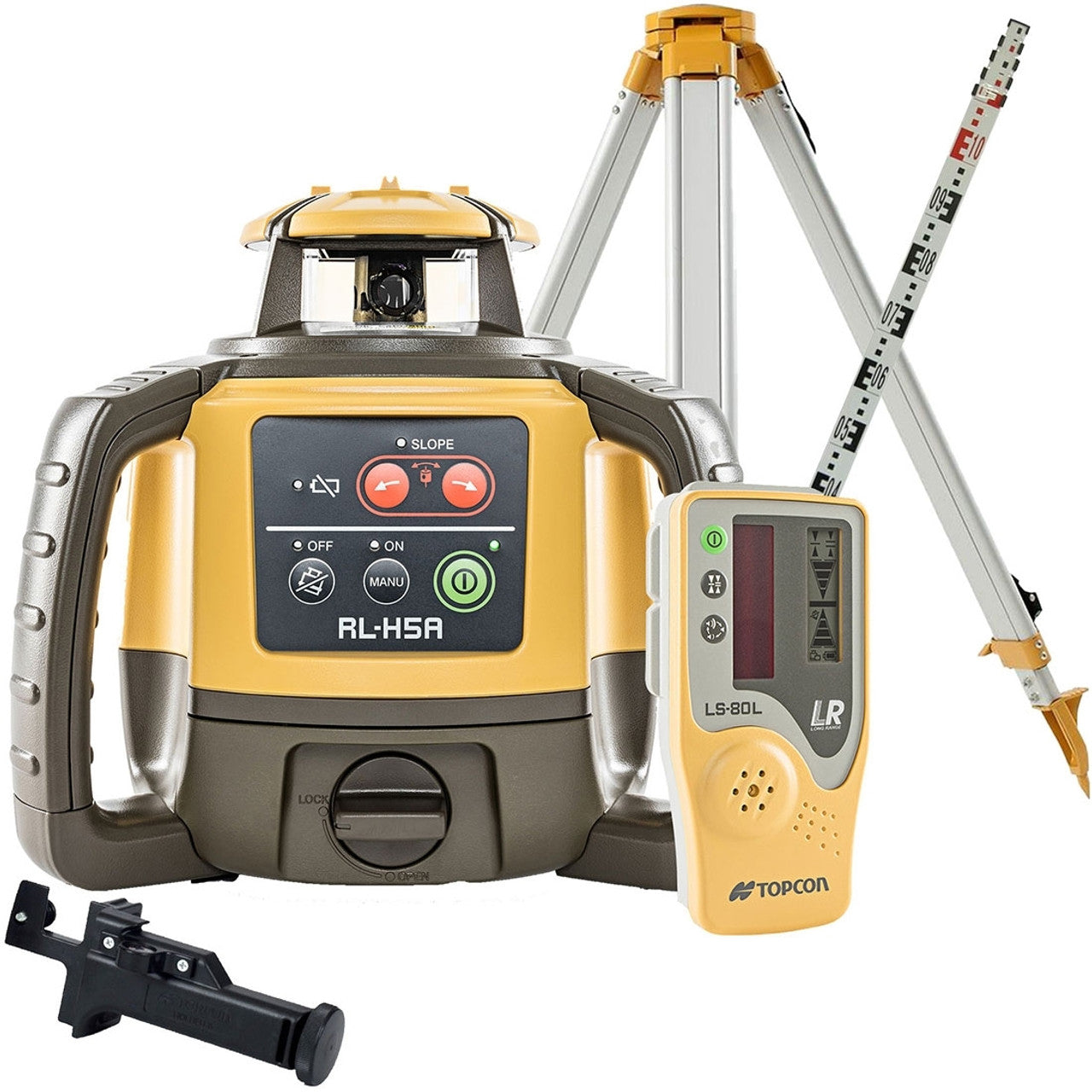

  • RL-H5A with LS-80X - Dry Battery Build-Combo2_T (ML400 Dome Top Tripod & 5m E Face Staff



THE NEXT STEP IN DISTANCE AND ACCURACY

The new RL-H5A is the replacement for Topcon's market-leading RL-H4C. It can be used for horizontal and sloping laser applications. Slopes up to ±5% can be used in either the X or Y axis.

Grading, excavating and general construction projects are all perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the RL-H5A a great match with any machine mounted laser sensor.

The RL-H5A's popularity lies in its ease of use. With electronic self-levelling, you press the power button and begin levelling work in seconds. If the RL-H5A gets disturbed on the job, it relevels itself automatically. The self-levelling motors are accurate to ±10 arc seconds.

The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover an 800m (diameter) job site. With efficient power usage, the RL-H5A has a long battery life. The unit also gives you the option of two forms of power, 100 hours of continuous usage with D cell (4 x) batteries (not included), or 60 hours with the included rechargeable (Ni-MH) battery pack.

The RL-H5A is “job site tough” and with its IP66 rating, the unit can withstand dust, a sudden shower, and even torrential rainfall.



FEATURES

  • Long-range operation (800 m)
  • Smart long-range receiver
  • Simple, intuitive manual slope capability
  • ±10 Arc second horizontal accuracy
  • Extra-long battery life (100 hours)
  • Tough IP66 weatherproof rating



INCLUDES

  • Topcon RL-H5A (RB) Rotating Laser Level
  • Topcon Receiver Clamp
  • Carry Case
  • Operator Manual



SPECIFICATION

Accuracy H: ±10 arc seconds
Self-Levelling Range Horizontal ±5°
Working Area 800m
Rotation Speed 600 rpm
Dust/Water Rating IP66
Operating Time Alkaline (100 hours) ; Ni-MH (60 hours)
Operating Temperature -20°C to 50°C

Download Brochure

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description



RL-H5A Rotating Laser Level with Receiver

Options to choose

  • RL-H5A with LS80X - Dry Battery
  • RL-H5A with LS80X - Rechargeable
  • RL-H5A with LS100D - Rechargeable
  • RL-H5A with LS100D - Dry Battery
  • RL-H5A with LS-80X - Dry Battery Build-Combo2_T (ML400 Dome Top Tripod & 5m E Face Staff



THE NEXT STEP IN DISTANCE AND ACCURACY

The new RL-H5A is the replacement for Topcon's market-leading RL-H4C. It can be used for horizontal and sloping laser applications. Slopes up to ±5% can be used in either the X or Y axis.

Grading, excavating and general construction projects are all perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the RL-H5A a great match with any machine mounted laser sensor.

The RL-H5A's popularity lies in its ease of use. With electronic self-levelling, you press the power button and begin levelling work in seconds. If the RL-H5A gets disturbed on the job, it relevels itself automatically. The self-levelling motors are accurate to ±10 arc seconds.

The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover an 800m (diameter) job site. With efficient power usage, the RL-H5A has a long battery life. The unit also gives you the option of two forms of power, 100 hours of continuous usage with D cell (4 x) batteries (not included), or 60 hours with the included rechargeable (Ni-MH) battery pack.

The RL-H5A is “job site tough” and with its IP66 rating, the unit can withstand dust, a sudden shower, and even torrential rainfall.



FEATURES

  • Long-range operation (800 m)
  • Smart long-range receiver
  • Simple, intuitive manual slope capability
  • ±10 Arc second horizontal accuracy
  • Extra-long battery life (100 hours)
  • Tough IP66 weatherproof rating



INCLUDES

  • Topcon RL-H5A (RB) Rotating Laser Level
  • Topcon Receiver Clamp
  • Carry Case
  • Operator Manual



SPECIFICATION

Accuracy H: ±10 arc seconds
Self-Levelling Range Horizontal ±5°
Working Area 800m
Rotation Speed 600 rpm
Dust/Water Rating IP66
Operating Time Alkaline (100 hours) ; Ni-MH (60 hours)
Operating Temperature -20°C to 50°C

Download Brochure
