Leica Lino LG912971-K300 L6G-1, 3x360° Laser, green beam,Li-ion, wallmount, Rugged case+ RGR200 Receiver
- Horizontal and two vertical 360° green laser lines
- Best visibility due to green Ultra-power laser diodes
- Self-leveling over wide range
- Fixed plumb point due to integrated base
- Adjustable strength of laser lines
- Operating range of up to 35 metres
- Li-Ion power for up to 11 h
- Uninterrupted working with Triple-Power concept
- Smart magnetic adapters versatile usage

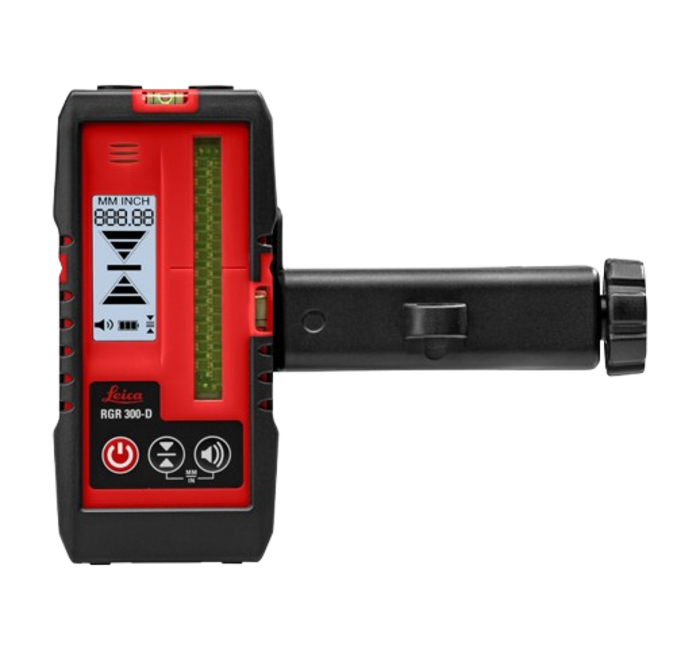

Leica RGR 300-D – With digital read-out. Fast. Precise. Simple
Digital line laser receiver with clear mm or inch guidance with dual-screen display and built-in magnets for secure attachment to metallic surfaces. Detects red and green laser beams at distances up to 80 m.
Compatibility: Leica Lino P5, L2, L2G, L2P5, L2P5G, L6R, L6G
Dimensions: 158 x 73 x 26 mm
Green Visibility
Green Lino laser lines are four times more visible to the human eye in comparison to red ones. This makes green lasers more suitable for longer distances and increases visibility in bright environments.
Li-Ion Innovative
Li-Ion power lasts for hours. There is no interruption to your work for battery charging and no need to constantly exchange Alkaline batteries.
Self-leveling
The Leica Lino automatically adjusts its positioning if it is slightly out of level (up to ± 4°). If the tilt is outside the limit, the instrument activates a visual alert to prevent errors.
Preferred Settings
Save your laser line settings and their intensity on the device so it is ready to use when it’s turned on.
Continuous Working
Run your laser with Li-Ion, Alkaline or connect it to the power supply. Continue working with the smart triple power concept.
Rugged Design
The Leica Linos are dust and spray water protected. This makes them tough instruments suitable for today’s jobsite condition

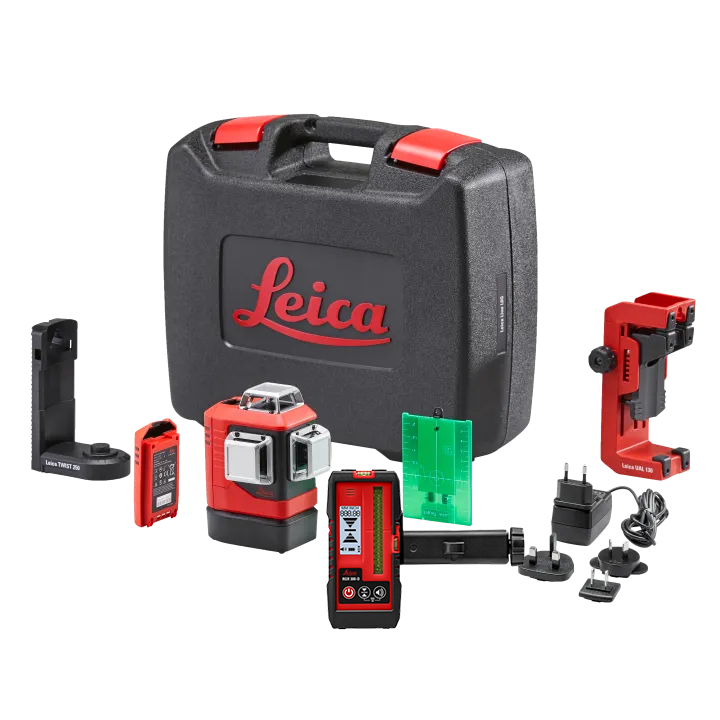

Includes
- Leica Lino L6G
- RGR300-D mm receiver
- Quick start guide
- Rugged case
- Li-Ion battery pack incl. charger and plugs
- Alkaline battery tray
- Laser target
- TWIST 250 magnetic multi functional adapter
- UAL 130 wall-mount adapter
- Safety instructions
- Calibration certificate
- Warranty card
Technical data
| Lino L6Gs | Lino L6G | |
|---|---|---|
| Beam horizontal | 360° | |
| Beam vertical | 2 x 360° | |
| Intersection points | up, down, right, left, front, back (90° / 180°) | |
| Range / diameter* | 35 m / 70 m (115 ft / 230 ft) | |
| Range / diameter* with Leica RGR 200 receiver | 70 m / 140 m (230 ft / 460 ft) | |
| Levelling accuracy | ± 0.2 mm/m (± 0.002 in/ft) | |
| Horizontal- and vertical line accuracy | ± 0.3 mm/m (± 0.004 in/ft) | |
| Intersection point accuracy | ± 0.2 mm/m (± 0.002 in/ft) | |
| Self-levelling range | ± 4° | |
| Self-levelling time | < 3 sec | |
| Fine adjustment | ± 10° around vertical intersection point | |
| Out-of-level warning | yes – blink lines every 5 s | |
| Levelling | pendulum (lockable) | |
| Laser | 525 nm / class 2 (acc. to IEC 60825-1) | |
| Protection class | IP54 (dust and splash water) | |
| Battery type | Lino Li-Ion battery pack 5200mAh / 18.7Wh or 3 x AA Alkaline |
|
| Laser line intensity (selectable) | 100 %, 75 %, 50 % | |
| Operating time with Li-Ion | up to 11 h (3 beam, 50 % power) | |
| Operating time with Alkaline | up to 8 h (3 beam, 50 % power) | |
| Dimensions | 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in) | |
| Weight | 781 g (1.71 lbs) | |
| Operation temperature | -10 to +50° C (14 to 122° F) | |
| Storage temperature | -25 to +70° C (-13 to +158° F) | |
| Laser line width @ 5 m distance (16.4 ft) | < 2 mm (< 0.08 in) | |
| Tripod thread | 1/4 in (5/8 in with adapter) | |
| Pulse power for receiver | yes | |
* Depending on lighting conditions
