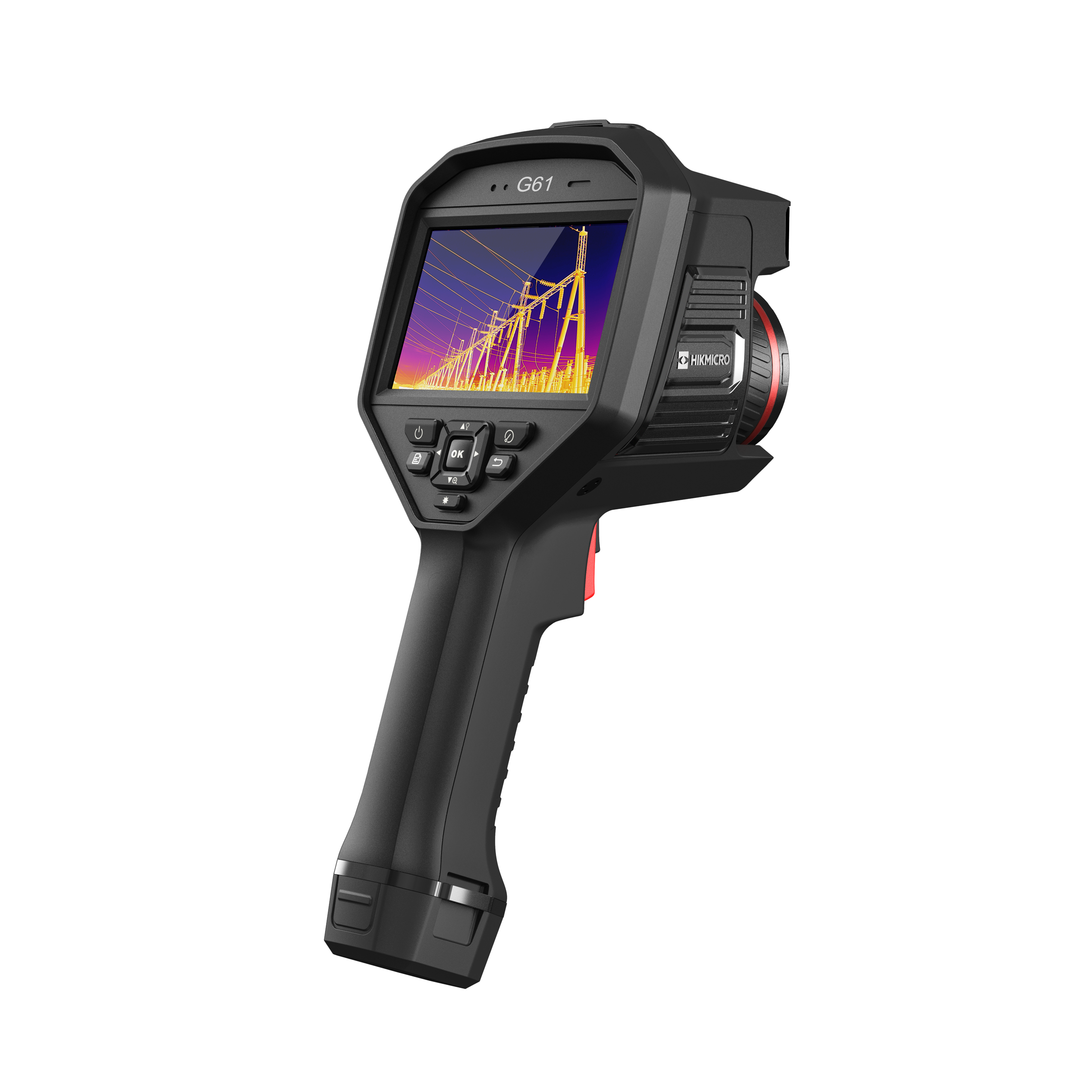

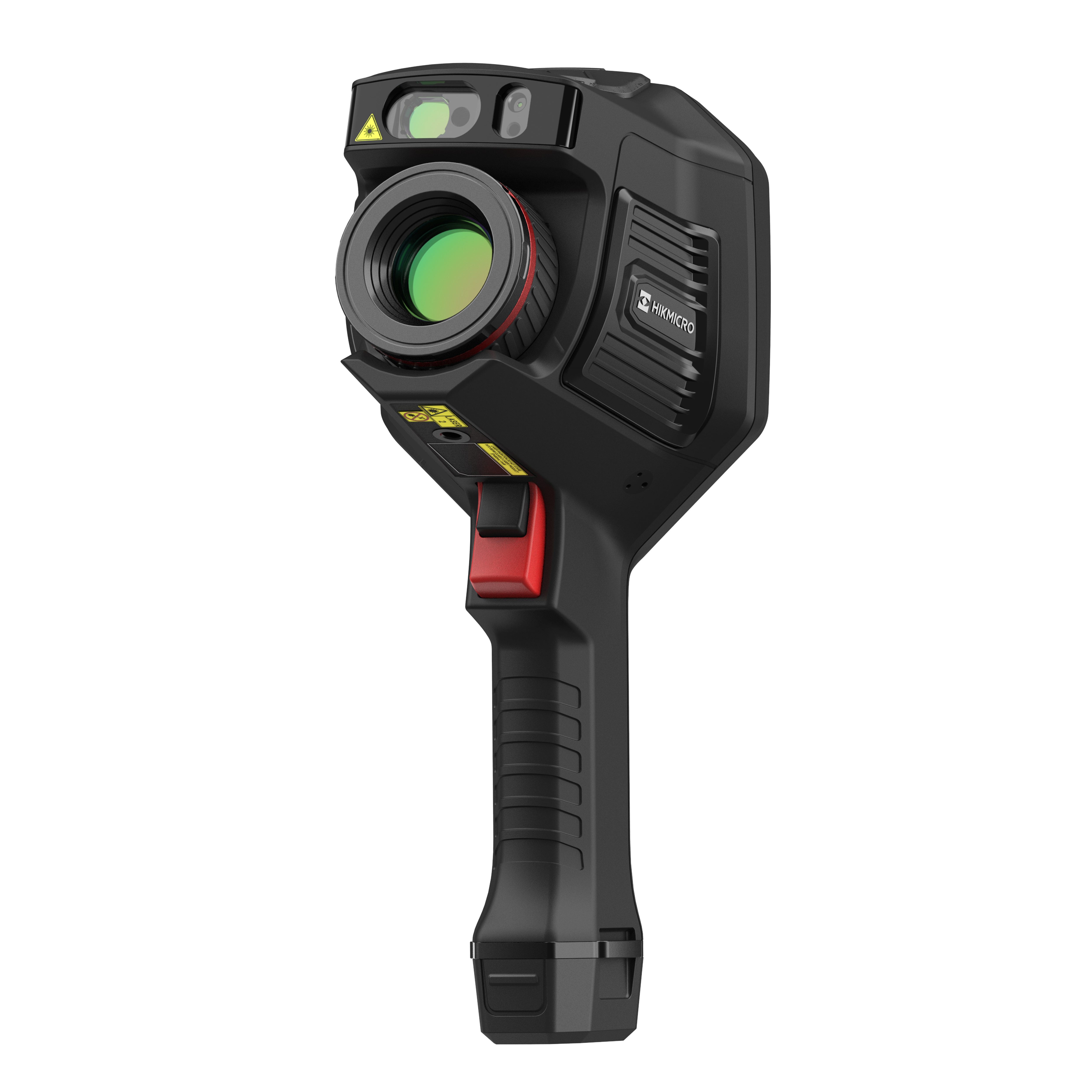

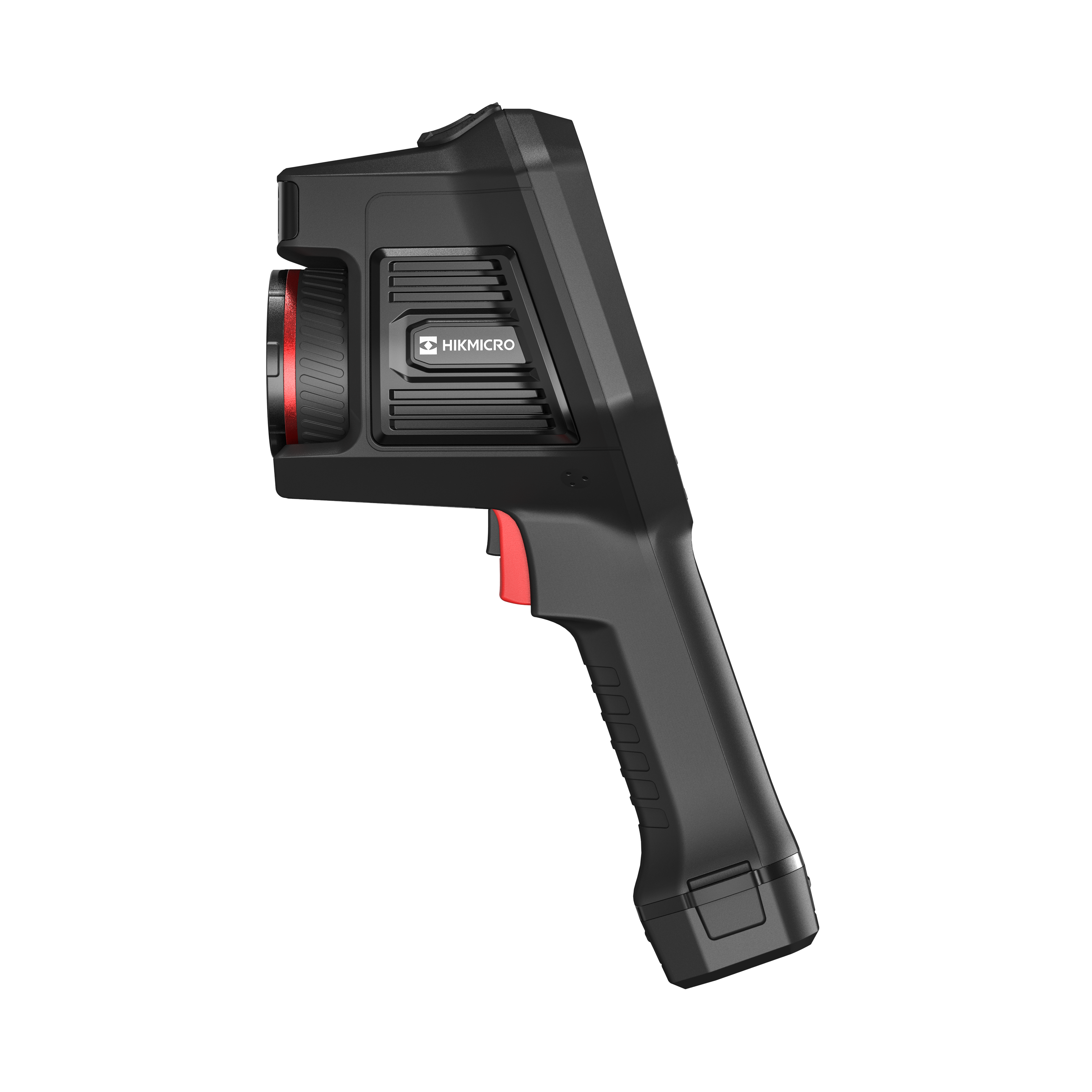

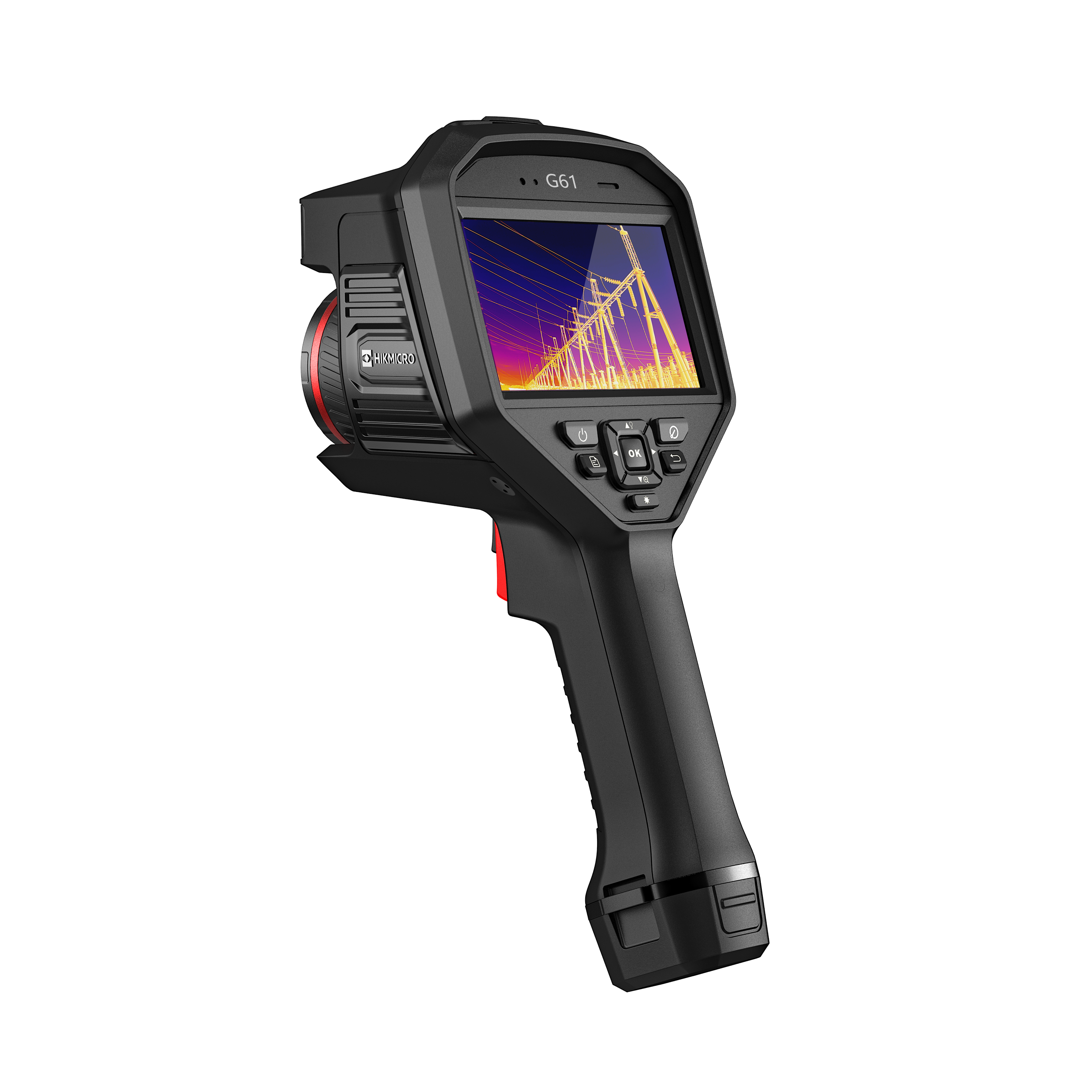

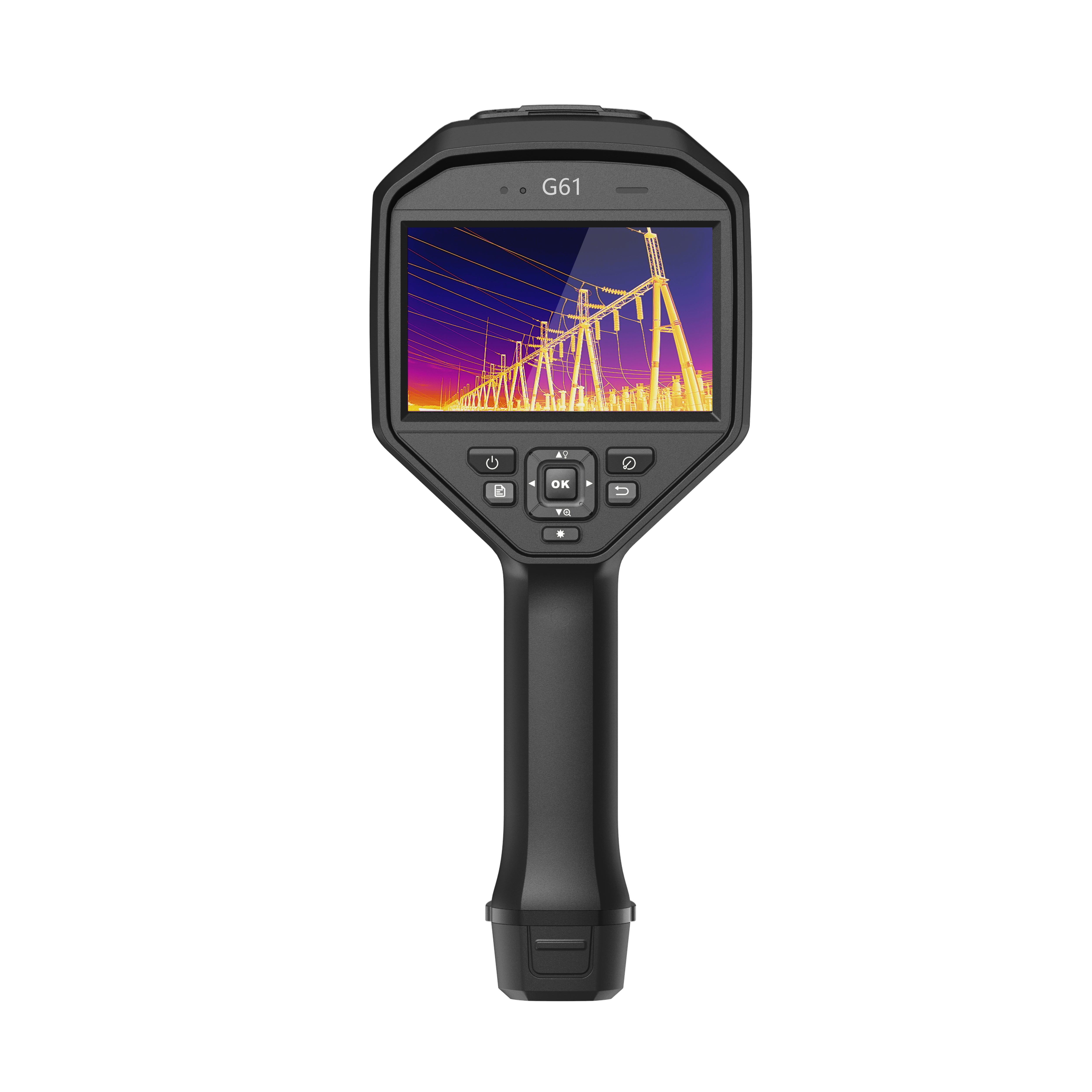

The HIKMICRO G61 high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections.
HIKMICRO G61 has a high sensitivity (NETD < 35 mK) and high resolution (640 x 480) HIKMICRO VOx detector, and the temperature calibration is up to 650°C. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1- Tap level and span.
Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.
Features
- Thermal resolution: 640 x 480 (307,200 pixels),NETD : <35 mK (@ 30 °C, F#=1.0)
- Temperature measurement range : -20 °C to 650 °C (-4 °F to 1202 °F)
- 1.x to 8.x continuous digital zoom
- Manual, automatic, and 1-Tap Level and Span
- GPS & compass annotation functions
- Long-distance laser light supplement for thermography targets
- LED light supplement provides light in dark scenarios
Infrared Image | |||||||||
IR Resolution | 640 x 480 (307,200 pixels) | ||||||||
SuperIR | 1280 x 960 (1,228,800 pixels) | ||||||||
NETD | < 35 mK (@ 30 °C, F#=1.0) | ||||||||
Image Frequency | 50 Hz | ||||||||
Detector Pitch | 17 μm | ||||||||
Spectral Range | 7.5 to 14 μm | ||||||||
Focal Length | 25 mm For other optional lenses, see the respective spec sheets. |
||||||||
F-number | F 1.0 | ||||||||
Field of View (FOV) | 25° × 19° For other optional lenses, see the respective spec sheets. |
||||||||
Spatial Resolution (IFOV) | 0.68 mrad For other optional lenses, see the respective spec sheets. |
||||||||
Min. Focus Distance | 0.25 m (0.82 ft) For other optional lenses, see the respective spec sheets. |
||||||||
Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | ||||||||
Focus Speed | Approx. 2 second | ||||||||
Image Display | |||||||||
Visual Camera | 3264 × 2448 (8 MP) | ||||||||
Display | 800 × 480 Resolution, 4.3" LCD Touch Screen | ||||||||
Screen Brightness | Manual/Auto | ||||||||
Digital Zoom | 1.x to 8.x continuous | ||||||||
Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | ||||||||
Focus Mode Palette | Above/Below/Interval | ||||||||
Color Alarm | Above/Below/Interval/Insulation//Condensation | ||||||||
Image Modes | Infrared/Visual/Fusion/PIP/Blending | ||||||||
Measurement and Analysis | |||||||||
Object Temperature Range | Range -20℃ to 150℃ (-4 °F to 302°F) Range 0℃ to 650℃ (32°F to 1202°F) |
||||||||
Accuracy | Range -20 to 150°C (-4 to 302°F): -20 to 0℃ (-4 to 32°F): ±2℃ (±3.6°F) 0 to 100℃ (32 to 212°F): ±1℃ (±1.8°F) 100 to 150°C (212 to 302°F): ±1% Range 0 to 650°C (32 to 1202°F): 0 to 100℃ (32 to 212°F): ±2℃ (±3.6°F) 100 to 650°C (212 to 302°F): ±2% |
||||||||
Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circle |
||||||||
Level and Span Mode | Auto/Manual/1-Tap Touch-screen | ||||||||
Inspection Route | Yes | ||||||||
Data Storage and Communication | |||||||||
Storage Media | Removable 64 GB Micro SD Card | ||||||||
Image Storage Capacity | Approx. 60,000 Images | ||||||||
Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters |
||||||||
Video Storage Capacity | Approx. 54 hours | ||||||||
Video File Format | MP4 video and radiometric video |
||||||||
Image Format | Radiometric JPEG | ||||||||
Radiometric Infrared-Video Streaming (Compressed) |
Over UVC, Wi-Fi | ||||||||
General | |||||||||
Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) | ||||||||
Bluetooth | Bluetooth 4.2 | ||||||||
USB Interface | USB Type-C | ||||||||
HDMI Interface | Yes | ||||||||
Laser Pointer | Yes | ||||||||
LED Light | Yes | ||||||||
Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | ||||||||
GPS & Compass | Yes | ||||||||
Laser Distance Meter | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). |
||||||||
Battery Type | Interchangeable and rechargeable Li-ion battery | ||||||||
Battery Operating Time | Approx. 4 hours | ||||||||
Battery Charging Time | Approx. 4 hours fully charged | ||||||||
Power Saving Mode | Yes | ||||||||
Protection Level | IP54, IEC 60529 | ||||||||
Drop Test Height | 2 m (6.56 ft), IEC 60068-2-31 | ||||||||
Safety | IEC 61010-1 | ||||||||
EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61326-1, EN IEC 61326-2-2 |
||||||||
Vibration | 2 g, IEC 60068-2-6 | ||||||||
Shock | 25 g, IEC 60068-2-27 | ||||||||
Working Temperature Range | -20°C to 50°C ( -4°F to 122°F) | ||||||||
Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) | ||||||||
Weight | Approx. 1058 g (2.33 lb) | ||||||||
Relative Humidity | < 95% non-condensing | ||||||||
Dimension | 284.7 × 120.6 × 124.5 mm (11.21 × 4.75 × 4.9 in) | ||||||||
Tripod Mounting | UNC ¼”-20 | ||||||||
Warranty | 3 years for the full product, 10 years for the detector, and 2 years for the battery. |
