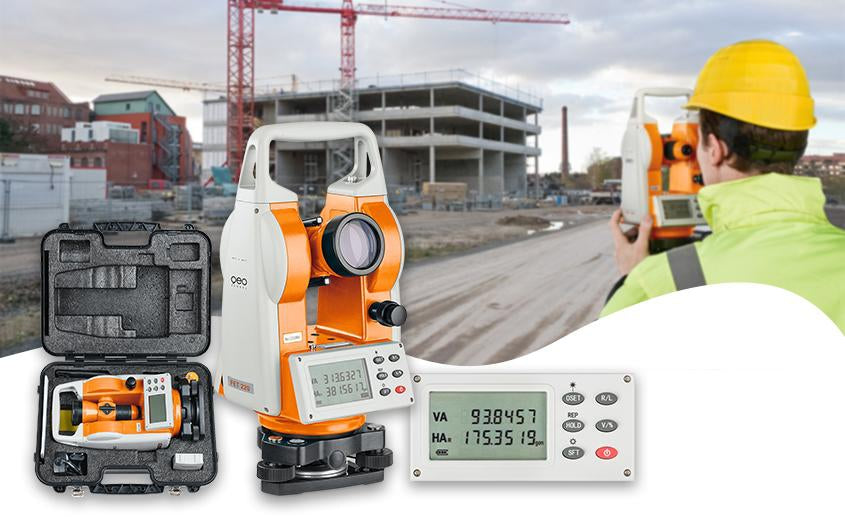

Introducing geo-Fennel Electronic Theodolite FET 220K-L

Geo-Fennel is pleased to announce the new product FET 220K-L Digital Theodolite is coming soon! It is a user-friendly instrument that has Large easy to read displays, precise positioning over a ground point and an easy levelling in both X and Y axes without tedious turning of the instrument.

FET 220K-L Digital Theodolite.

FET 220K-L Digital Theodolite.
The new top-model - particular attention has been paid to making the instrument user-friendly:
  • Large easy-to-read displays at both sides
  • Laser plummet for precise positioning over a ground point
  • Easy levelling in both X and Y axes without tedious turning of the instrument thanks to the electronic base level in the display.

Helpful: Coaxial laser beam integrated in the telescope and focusable on the target

Measurement safety: 2-axis compensator of target and transverse axis for automatic correction of small residual inclinations of the displayed vertical angles

Specification

 Magnification  30x
 Accuracy  2" (0.6 mgon)
 Minimum reading  1" (0.2 mgon)
 Compensator  2-Axis compensator
 Laser point finder  focusable
 Laser class  2
 Beam diameter  5 mm / 100 m
 Maximum visibility   180 m
 Oper.time/power  10 h / NiMH
 Temperature range  -20°C - +50°C



These following products will be phased out soon and will be replaced by FET 220 Digital Theodolite & FET 220K-L Digital Theodolite.

1. geo-FENNEL FET 402K-L Digital Laser Theodolite

geo-FENNEL FET 402K-L Digital Laser Theodolite

Features

  • 2 large easy-to-read LCDs
  • Simultaneous reading of horizontal and vertical circle
  • Illumination of display and field of view
  • Clockwise / anti-clockwise horizontal angle reading
  • „0“ set or hold of horizontal circle at any desired position
  • „V“ circle reading in gon / degrees or % of slope

Click this for more details

2. geo-FENNEL FET 405K Digital Theodolite

geo-FENNEL FET 405K Digital Theodolite

Features

  • 2 large easy-to-read LCDs
  • Simultaneous reading of horizontal and vertical circle
  • Illumination of display and field of view
  • Clockwise / anti-clockwise horizontal angle reading
  • „0“ set or hold of horizontal circle at any desired position
  • „V“ circle reading in gon / degrees or % of slope

Click this for more details

3. geo-FENNEL FET 420K Digital Theodolite

geo-FENNEL FET 420K Digital Theodolite

Features

  • 2 large easy-to-read LCDs
  • Simultaneous reading of horizontal and vertical circle
  • Illumination of display and field of view
  • Clockwise / anti-clockwise horizontal angle reading
  • „0“ set or hold of horizontal circle at any desired position
  • „V“ circle reading in gon / degrees or % of slope

Click this for more details

4. geo-FENNEL ELT 220 Digital Electronic Theodolite

geo-FENNEL ELT 220 Digital Electronic Theodolite

Features

  • 2 large easy-to-read LCDs
  • Simultaneous reading of horizontal and vertical circle
  • Illumination of display and field of view
  • Clockwise / anti-clockwise horizontal angle reading
  • „0“ set or hold of horizontal circle at any desired position
  • „V“ circle reading in gon / degrees or % of slope

Click this for more details
