A 2D laser projector is a tool used in manufacturing to project a digital image onto a work surface using laser technology. It is commonly used in industries such as automotive, aerospace, and electronics, among others. Here's how it works:
-
Design: The first step is to create a digital model of the product using computer-aided design (CAD) software. This digital model contains all the necessary information such as dimensions, geometry, and markings.
-
Calibration: The 2D laser projector is then calibrated to ensure accuracy and precision in projection. This involves setting up the projector at a specific distance from the work surface and aligning it to the correct position.
-
Projection: Once calibrated, the projector then projects the digital image onto the work surface. This image can include any necessary markings, such as outlines or placement indicators, that aid in the manufacturing process.
-
Assembly: The manufacturing team then uses the projected image as a guide for assembly. By following the image, they can ensure that each component is placed correctly and that the final product meets the necessary specifications.
Overall, a 2D laser projector helps manufacturers save time and increase accuracy in the assembly process by providing a visual guide that is directly linked to the digital model.

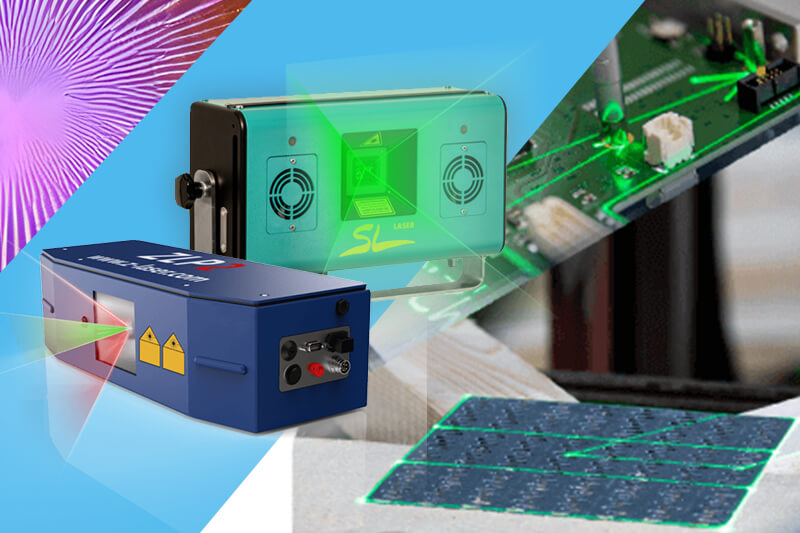

Image reference from z-laser.com and sl-laser.com.
