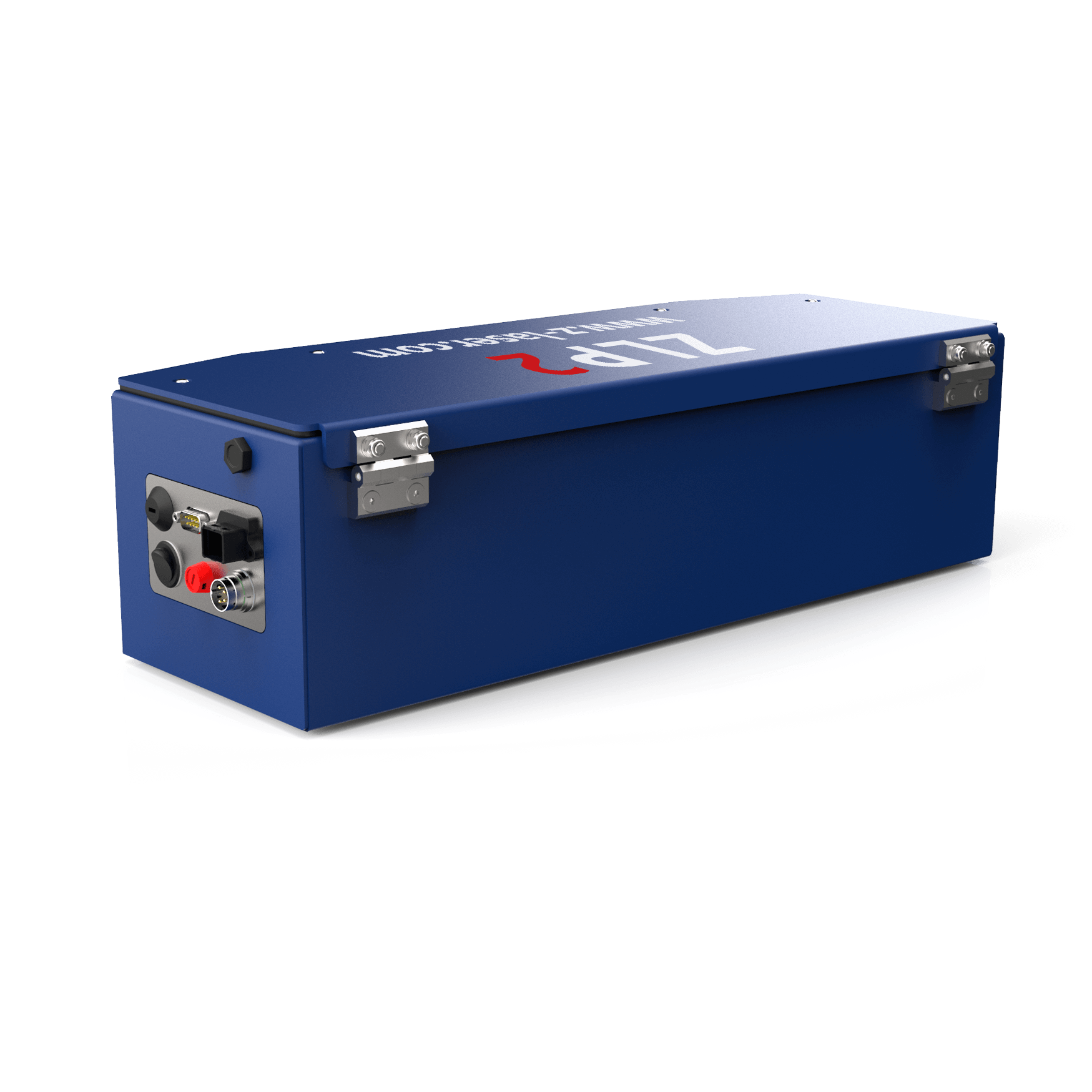

Z-Laser ZLP2 Compact Laser Projector with Z-FIBER Source

Article-No. Model Details Output Power Wavelength Source Optic Laser Class Fan Angle Accuracy
STANDARD MODEL
101073900 ZLP2-7-638F-S-80 Standard Projector red 7 mW 638 nm Fiber Standard 2M 80° 0.25 mm/m
101073700 ZLP2-7-520F-S-80 Standard Projector green 7 mW 520 nm Fiber Standard 2M 80° 0.25 mm/m
HIGH POWER MODEL
101074100 101074100 High Power Projector green 14 mW 520 nm Fiber Standard 3R 80° 0.25 mm/m
TELEOPTIC MODEL
702000300 ZLP2-7-520F-T-60 Teleoptic Projector green
for working distance 7-14m
7 mW 520 nm Fiber Tele 2M 60° 0.2 mm/m
101099100 ZLP2-14-520F-T-60 Teleoptic Projector green
High Power
for working distance 7-14m
14 mW 520 nm Fiber Tele 3R 60° 0.2 mm/m

High-performance laser projector with Z-FIBER source

ZLP2 is the high-end model of our ZLP laser projector family.ZLP2 comes with an unmatched beam quality due to the use of a fiber-coupled laser source. Thanks to its precision of 0.25mm per meter working distance, ZLP2 is perfectly suited for applications in composite using industries.

ZLP2 comes with the intuitive graphical user interface ZLP-Suite. The integrated API allows an easy integration of ZLP2 in existing customer software. For the extension of ZLP-Suite additional software modules are available.


Wavelength

520 nm, 638 nm

Output power

7 mW, 14 mW

Fan Angle

60°x60°, 80°x80°

Projection

2D, 3D, CAD

Supply voltage

24 VDC

IP protection class

IP 65

Application

Assembling, Mounting/set-up, Positioning

Laser class

2M, 3R

Technology

Fiber-coupled laser

Downloads
