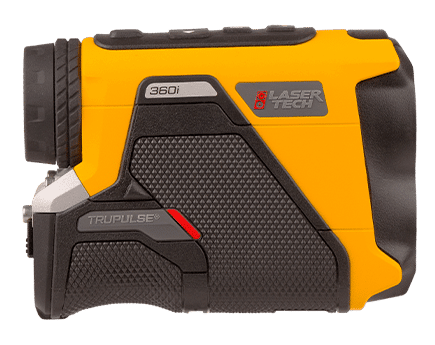

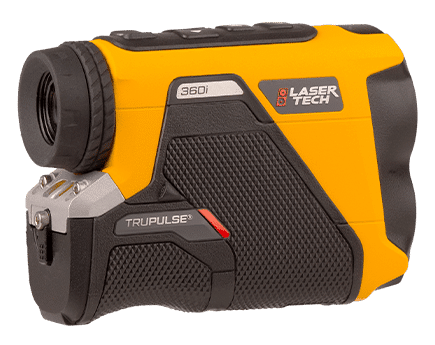

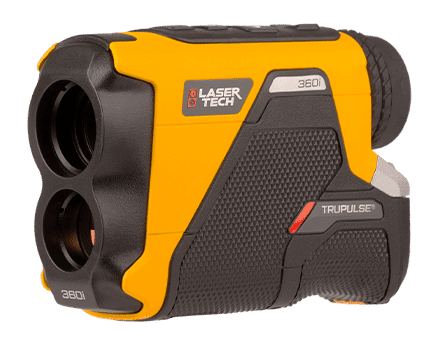

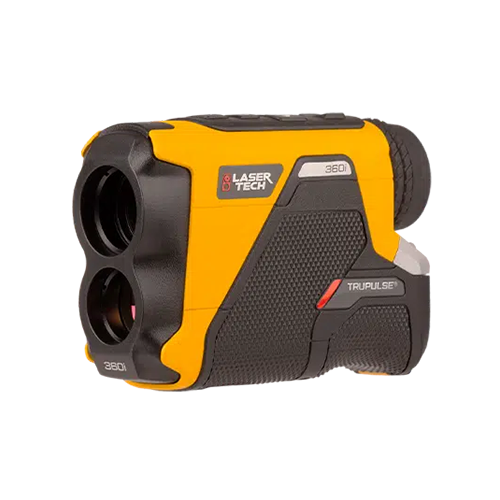

TruPulse 360i Laser Range Finder

SKU: 7005855

$3,465.00

Need more info? Call us +61 8 9335 1718

Price Match International Orders Tax Removed

NOT AVAILABLE TILL END OF 2024

(Nov-Dec)

TRUPULSE® 360𝗂

Next-Generation Version of the TruPulse 360° and 360R°

Bring this rugged and waterproof rangefinder with you anywhere and capture 3D data with TruVector^® 360° Compass Technology.

The TruPulse 360i fuses a tough, highly accurate, and intuitive next-generation rangefinder design with our patented TruVector 360° Compass Technology, enriching your laser measurements with azimuth data.

i-Series rangefinders are made to measure from the ground up. The TruPulse 360i is capable of 50% higher distance accuracy and 60% higher inclination accuracy than the previous TruPulse 360° model while increasing the overall effective range by 25%. Faster target acquisition speeds and new feedback features boost confidence in each measurement.

Take your measurements up a notch with TruVector 360° Compass Technology. The TruPulse 360i adds azimuth data to your measurements allowing efficient, single-shot positioning of remote features and 3D point-to-point calculations, a major advantage when completing projects that require accurate asset location and facility mapping.

This next-generation laser rangefinder gives you confidence for every measurement with faster target acquisition speeds along with visual feedback for each shot. Use Bluetooth Dual Mode to expand connection capabilities. Challenging targets are no match for the ultra-bright heads-up display with 5 brightness levels to work in any lighting condition. This rugged unit is built to last with a lightweight and strong magnesium chassis and rubber-armored aluminum housing with a 100% waterproof rating.

_{The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Laser Tech is under license.}

Primary Applications

Construction: Crane Positioning
Forestry: Engineering, Surveys, Tree Heights
GIS / GNSS Mapping: LaserGIS mapping laser offset
Utilities (EU): Pole Audit, Vegetation Management
Utilities (Public Works): Water/Gas/pipeline
Telecommunications / Wireless: Small Cell
Mining: Stockpile Volume

Key Features

Measurement

Provides measurement capability with distance, azimuth & inclination values.

Accuracy (Range)

50% Increased range accuracy, can achieve 10cm accuracy when higher accuracy jobs demand nothing less.

Accuracy (Tilt Inclination)

More Precise Tilt Accuracy: 2.5X more precise tilt measurement (0.1° vs. 0.25°)

Accuracy (Compass)

Confidence in repeatable azimuth measurement; less than 1 Degree

TruTargeting

Faster acquisition, greater accuracy with physical, visual and audible feedback on target acquired means confidence, efficiency. and greater safety in the field

LTI TruVector 360° Compass Technology®

Produces accurate and repeatable Azimuth (AZ) results regardless of the tilt or pitch used when aiming the laser
Intuitively recognizes conditions that will affect the reliability of the compass accuracy and prompts you to recalibrate
Calibration is easily done with a simple field routine that can be completed in less than a minute

Targeting Mode

Advanced Targeting Modes (Closest, Farthest, Continuous and Filter)

Ergonomics

Easy to hold and operate with rubberized grips and tactile button feedback

Rugged

Withstands harsh conditions with rugged, waterproof, dustproof housing. designed with a strong magnesium chassis and rubber-armored aluminum housing for extra durability. Holds up to everyday uses under any conditions.

On Board Calculations

Auto calculates horizontal distance, vertical distance, height and 3D missing line values; inclination Percent Slope

Optics/Display

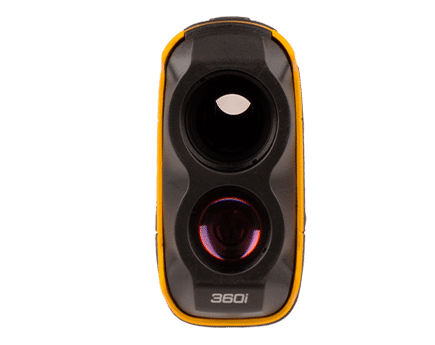

The new Ultra-Bright Display has five brightness settings and works in any lighting condition. Our enhanced optical designs provides 80% light transmission, which simply means you will be able to see with greater clarity and bring smaller hard to see objects into focus.

Communicates with multiple platforms

Bluetooth Dual Mode: BLE and Classic BT options; Android, iOS & Windows Compatible

User Experience

Intuitive User Interface and workflows with an icon driven display to provide 7 onboard measurement solutions

Specifications

Ranging Performance: 0.5 – 2,500 Meters (1.64 – 8,202 ft)

Distance Accuracy: 0.1 m < 1,000 m (3,280 ft) and to a High-Quality target 0.2 m > 1,000 m (3,280 ft) or to a Low-Quality target

Distance Precision: 0.01 = High-Quality Target 0.1 = Low-Quality Target

Inclination Accuracy: 0.1° @ 0° to +/-30° 0.2° @ +/-30° to +/-90°

Azimuth Accuracy: < 1.0° RMS

Wireless Communication: Bluetooth V4.0 Dual Mode: BLE / Classic BT; iOS, Android™, and Windows^® Compatible

Scope Magnification / In-Scope Display Type: Optics: 5X magnification; Ultra Bright LED HUD; 5 Brightness levels

Battery Type / Life: Two AA / ~ 3,600 measurements

Environmental Rating: IP67: Waterproof & Dustproof

Operating Temperature: -20°C to +60°C. (-22°F to 140°F)

Size : Height 88 mm Width 43.4 mm Length 118.3 mm

Weight : 382.6 g with batteries, or 337.4 g w/o batteries

Eye Safety : CLASS 1 LASER PRODUCT: Product complies with IEC60825-1 Ed. 3:2014-5 and 21CFR1040.10/11 per Notice 50:2007
