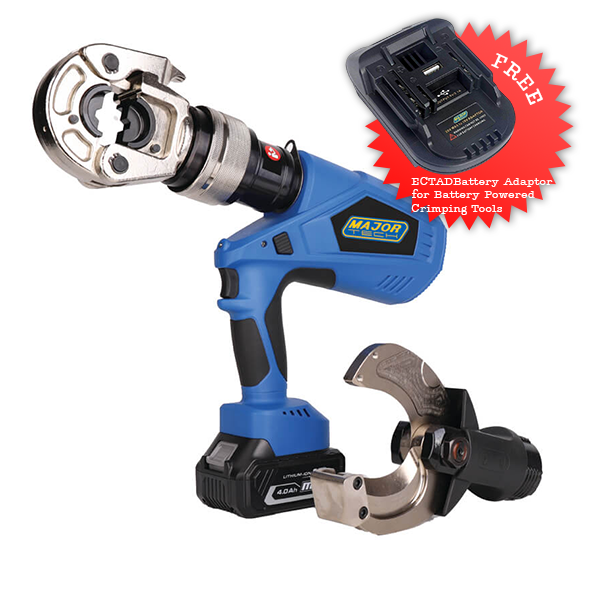

Introducing the ECCT450, the ultimate combined crimping and cutting multitool designed to elevate your workflow with unprecedented efficiency and safety. The EECT450 comes with an OLED display, the crimping head rotates a full 350°, granting you unmatched flexibility and precision even in the most confined spaces. Safety is paramount with the quick motor stop feature, ensuring the highest level of operator protection. The ECCT450 allows quick and effortless changeovers between the crimping and cutting heads, making it a true multitasking marvel. With an ergonomic design that optimizes the position of the center of gravity, the ECCT450 reduces operator fatigue, enabling prolonged use without compromising comfort. Its impressive crimping capacity handles up to 400mm² for copper and 300mm² for aluminum, making it the go-to tool for a wide range of applications.
- Combined Crimping and Cutting multitool
- OLED Display showing Crimping Time, Electricity Quantity.
- Maintenance Reminding and Fault Code
- Crimping Head rotates 350°
- Two stage hydraulic system with fast feed and power control
- Quick motor stop guarantees highest safety for the operator
- Automatic retraction when crimp is completed
- Quick changeover between Crimping head and cutting head
- Electronic control and monitoring of crimping operation
- Ergonomic design and optimized position of center of gravity
- Max crimping: Copper 400mm² / Aluminium 300mm²
- **Please note: When selecting die sizes for copper and aluminium, you will use the same dies but reduce the size by one when switching from copper to aluminium. For example, if you are using a 240 mm² die for copper, you would use a 185 mm² die for aluminium.
Specifications
| Function | Range |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
| Rated Pressure | 120kN |
| Stroke | 23mm |
| Crimping Range | Cu 16mm² – 400mm² |
| Cutting Range | ø65mm Cu/Al Cable, ø50mm Armored Cable |
| Battery | 18V Li-ion 4.0Ah |
| Charger | AC 100V – 240V 50/60Hz |
Accessories
- Crimping & Cutting Tool
- 1 x Cutting Head
- 1 x Crimping Head
- Crimping Dies:16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm²
- 2 x Batteries
- 1 x Charger
- Carrying Case
- Stra
