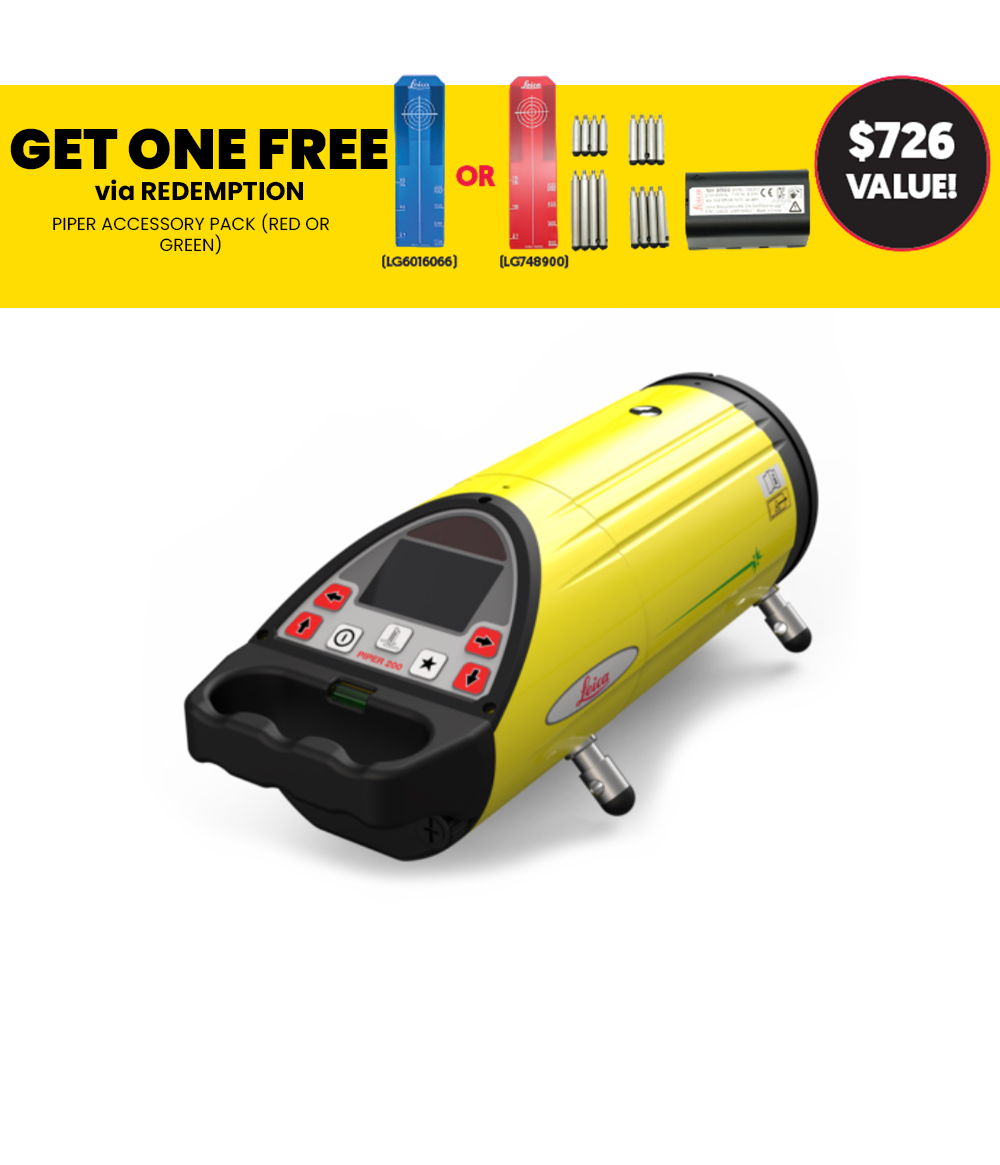

Leica Piper 200G Green Pipe Laser Pack with Alignmaster

SKU: LG6016958
$7,150.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

Leica Piper 200G Green Pipe Laser Pack

Solid performance in the pipe, over the top or in the manhole. The Leica Piper series helps you to work with confidence having the perfect instrument for your
application and need. Built with a rugged aluminium housing, these pipe lasers perform powerfully even in tough jobsite conditions.
In addition, the Piper Green series offers you four times better visibility of the laser providing you higher leveling accuracy. This allows you to work at longer distances from the instrument position even in sunny conditions. Often used in water and sewage the green series improves the usability also in those use cases.

LEICA PIPER:
Compact and powerful:
The pipe laser that fits inside a 100 mm/4 in pipe.
Automatic grade compensation:
With the housing rolled up to ± 3°, the Piper will compensate and
correct for the grade errors.
Heavy duty trivet:
With easy grip handle, heavy base and clear markings on the pole
to adjust and set the height.
Multi-function remote:
Works up to 150 m (500 ft) for line control and other features.
Green beam:
Four times better visibility of the laser for longer measurement
distance and higher levelling accuracy

  PIPER100 PIPER200
3R 2M 3R GREEN 2M GREEN 3R 3R GREEN
Laser beam color Red Green Red Green
Wave length 635nm 520nm 635nm 520nm
Laser class 3R 2M 3R 2M 3R 3R
Max. average radiant power 4.75mW 1.2mW 4.8mW 1.2mW 4.75mW 4.8mW
Working range <200m/650 ft
Grade range -10% to +25%
Self-levelling range -15% to +30%
Line movement 6m at 30m / 20ft at 100ft
Battery* Li-Ion, up to 40h
Charging time* 4h
Operating temperature -20°C to +50°C / -4°F to +122°F
Dimensions (diameter x length) 96mm x 267mm / 3.9“ x 10.5“
Weight 2.0Kg / 4.4lbs
Housing Cast aluminium
Protection class IPx8
Wireless remote distance Front 150m / 500ft
Back 10m / 35ft
Self levelling accuracy** +/-1.5mm at 30m / +/- 1/16“ at 100ft
Auto targeting No Yes



  • Battery operating/charging times are dependent upon environmental conditions
  • Self levelling accuracy is defined at 25°C/77°F

Recommended Leica Piper package:
■ Leica Piper 200
■ Rugged carrying case
■ Remote control
■ Target assembly
■ Li-Ion battery
■ Charger with AC and auto adapter
■ Self-centering feet (150mm/6in)

Data sheet
